< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

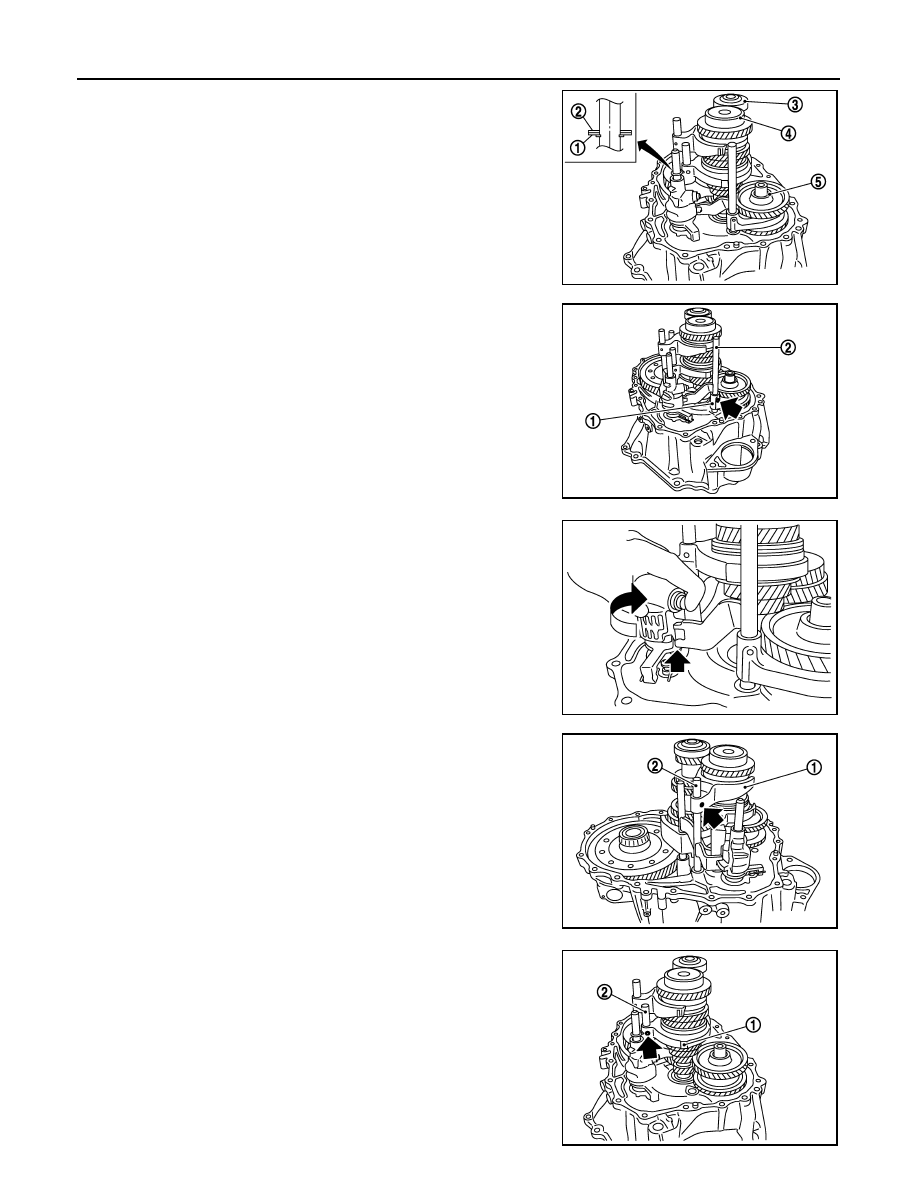

18. Remove striking rod shim (1), striking rod adjusting shim (2),

mainshaft rear bearing adjusting shim (3), input shaft rear bear-

ing adjusting shim (4), and reverse idler gear adjusting shim (5).

19. Remove retaining pin of reverse shift fork (1) using suitable tool.

20. Rotate striking lever of striking rod assembly as shown. Then

rotate reverse fork rod to a position where bracket of reverse

fork rod does not interfere with striking lever of striking rod

assembly.

21. Pull out reverse shift fork and reverse fork rod.

22. Remove retaining pin of 5th-6th shift fork (1) using suitable tool.

23. Remove retaining pin of 3rd-4th shift fork (1) using suitable tool.
24. Pull out 3rd-4th fork rod (2).

PCIB1858E

2

: Reverse fork rod

PCIB1850E

PCIB1851E

2

: 5th-6th fork rod

PCIB1852E

PCIB1853E

TRANSAXLE ASSEMBLY

TM-37

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

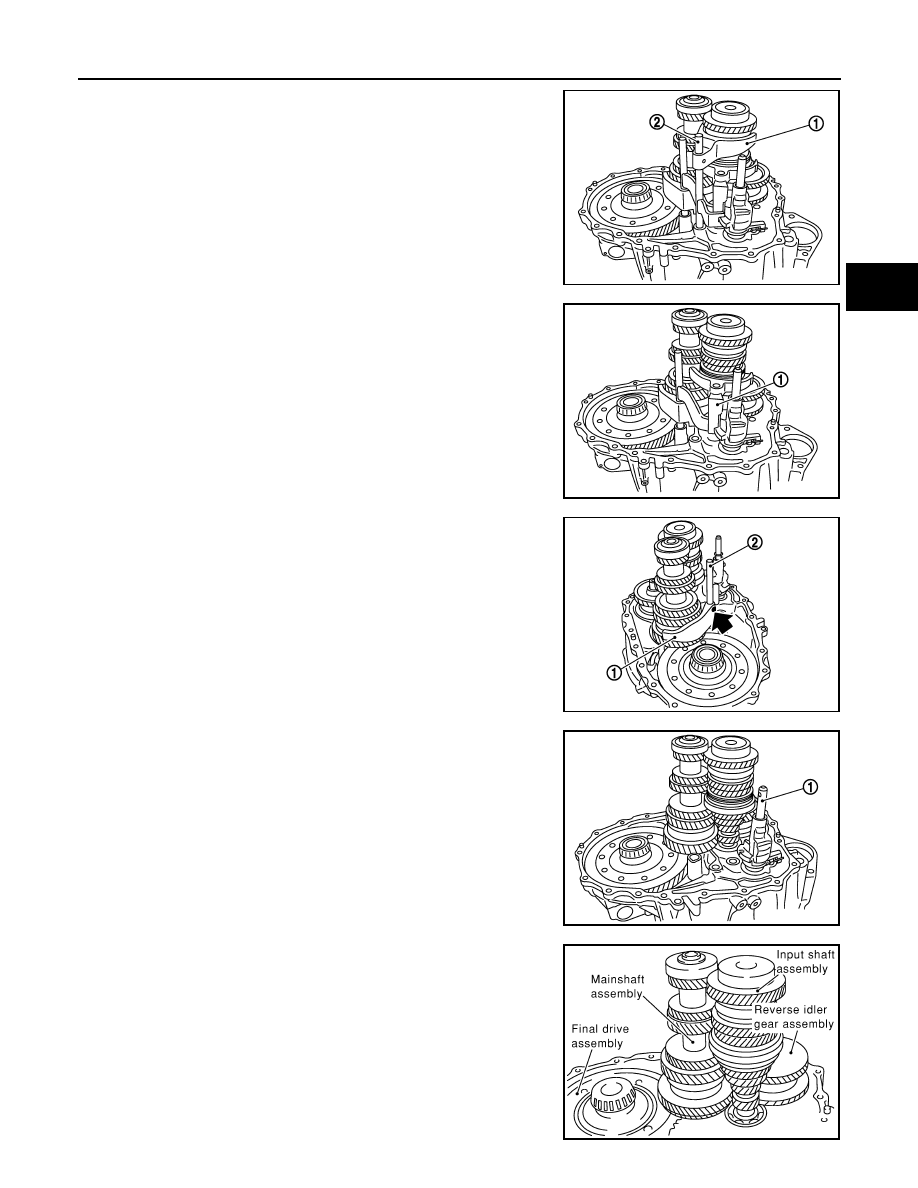

25. Pull out 5th-6th shift fork (1) and 5th-6th fork rod (2).

26. Pull out 3rd-4th shift fork (1).

27. Remove retaining pin of 1st-2nd shift fork (1) using suitable tool.
28. Pull out 1st-2nd shift fork and 1st-2nd fork rod (2).

29. Remove striking rod assembly (1).

30. Remove gear components from clutch housing in the following

procedure.

a. Remove a set of input shaft assembly, mainshaft assembly, and

reverse idler gear assembly by tapping the tip of input shaft from

the back of the clutch housing with a plastic hammer.

CAUTION:

Always withdraw mainshaft straight out. Failure to do so

can damage resin oil channel on clutch housing side.

b. Remove final drive assembly.

PCIB1854E

PCIB1855E

PCIB1856E

PCIB1857E

SCIA0964E

TM-38

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

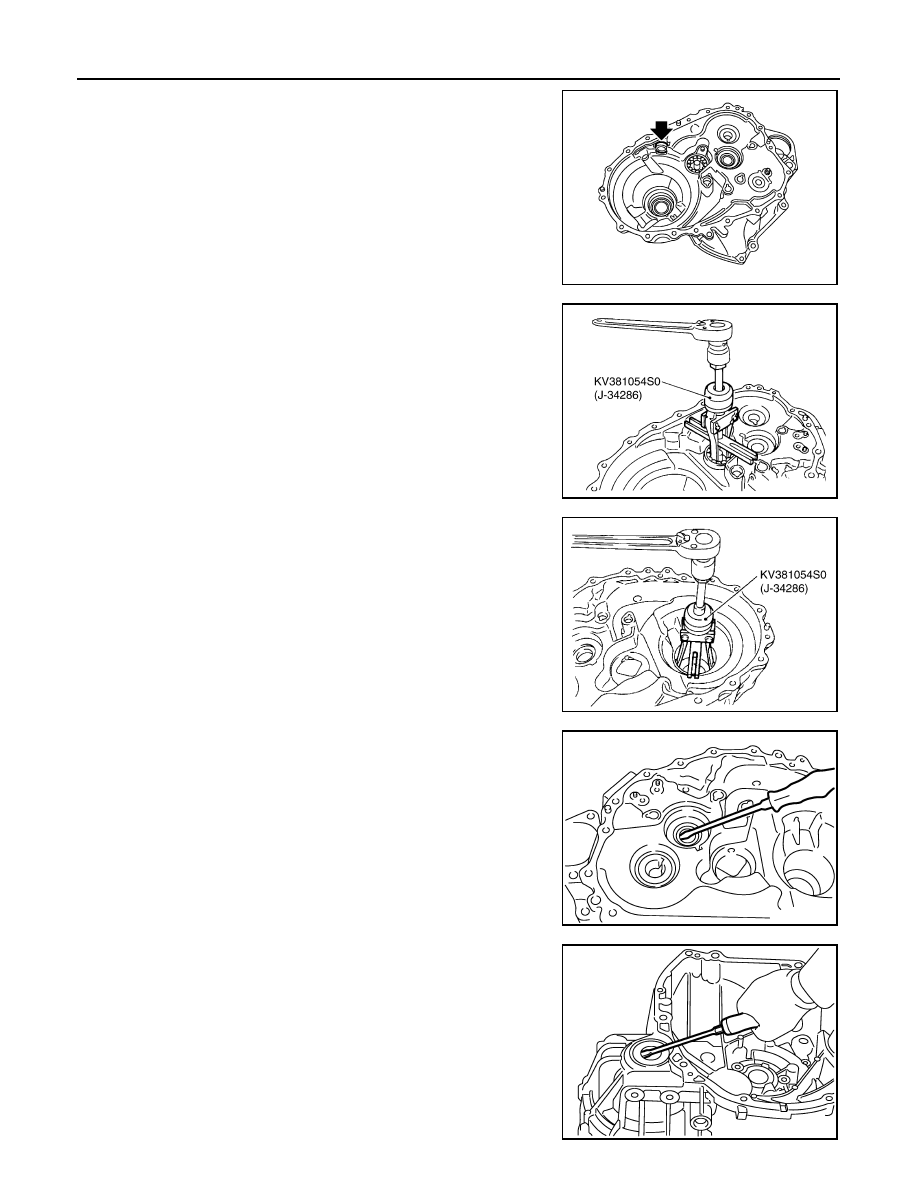

31. Remove magnet from clutch housing.

32. Remove mainshaft bearing retainer and then mainshaft front

bearing from clutch housing using Tool.

CAUTION:

Do not damage clutch housing, mainshaft front bearing,

and oil channel.

33. Remove oil channel from clutch housing.

34. Remove differential side bearing outer race from clutch housing

using Tool.

CAUTION:

Do not damage clutch housing and differential side bearing

outer race.

35. Remove input shaft oil seal from clutch housing using suitable

tool.

CAUTION:

Do not damage clutch housing.

36. Remove differential side oil seal from clutch housing using suit-

able tool.

CAUTION:

Do not damage clutch housing.

PCIB1859E

Tool number

:KV381054SO (J-34286)

PCIB0937E

Tool number

:KV381054SO (J-34286)

PCIB0938E

SCIA0398E

PCIB1874E

TRANSAXLE ASSEMBLY

TM-39

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Assembly

INFOID:0000000004201597

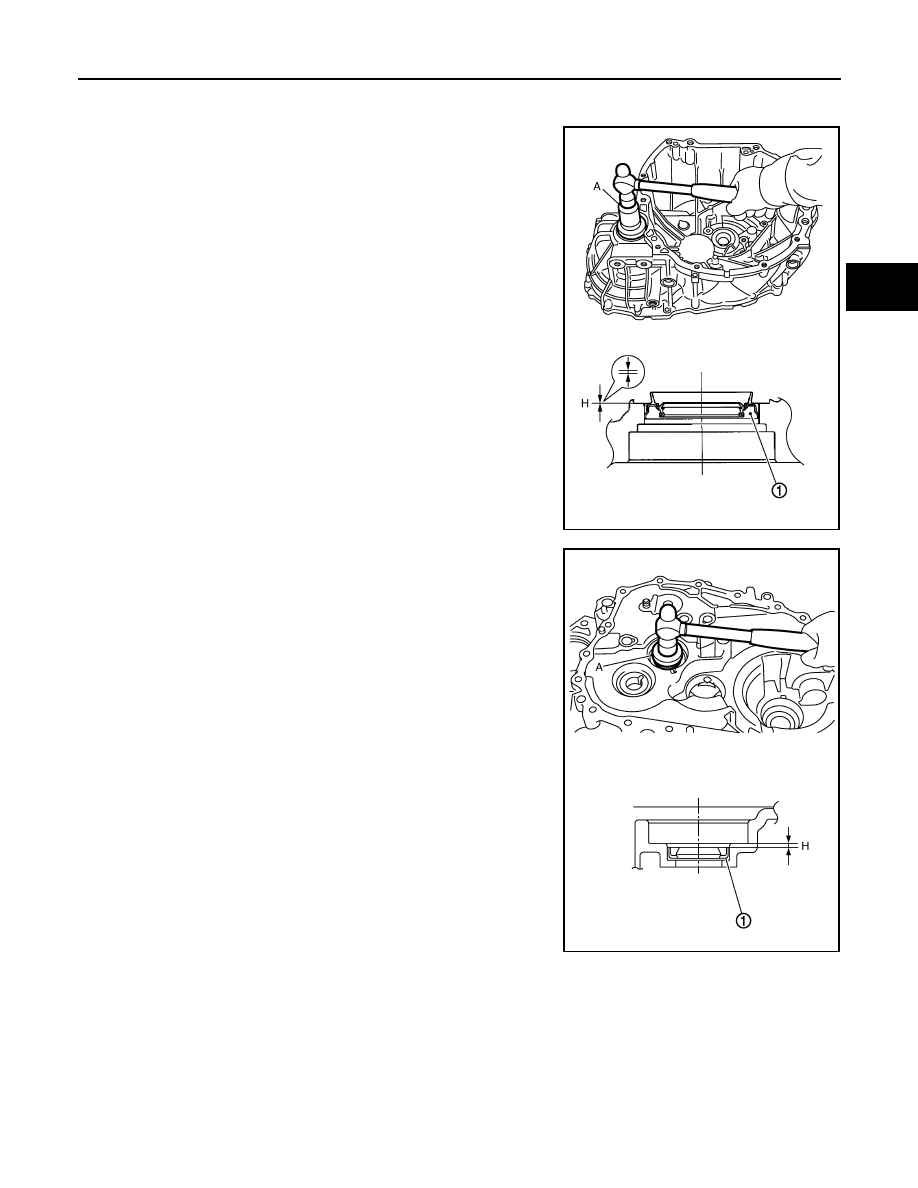

1. Install differential side oil seal (1) to clutch housing using Tool

(A).

CAUTION:

• Do not reuse differential side oil seal.

• When installing, do not incline differential side oil seal.

• Do not damage clutch housing.

2. Install input shaft oil seal (1) to clutch housing using Tool (A).

CAUTION:

• Do not reuse input shaft oil seal.

• When installing, do not incline input shaft oil seal.

• Do not damage clutch housing.

Dimension “H”

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

Tool number

: ST33400001 (J-26082)

PCIB1864E

Dimension “H”

: 1.1 - 2.1 mm (0.043 - 0.083 in)

Tool number

: ST35321000 ( — )

PCIB1814E
