TRANSAXLE ASSEMBLY

DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000004201595

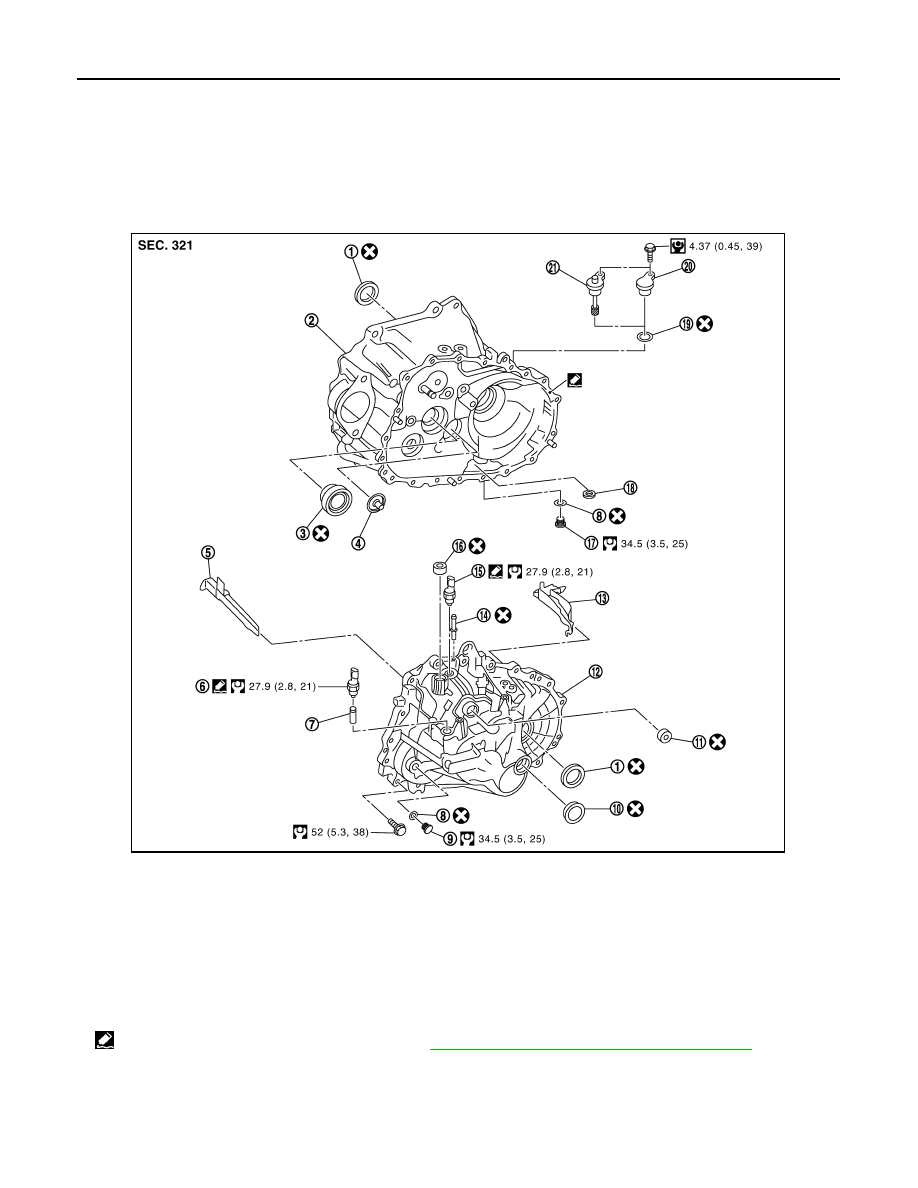

CASE AND HOUSING

SHAFT AND GEAR

1.

Differential side oil seal

2.

Clutch housing

3.

Input shaft oil seal

4.

Oil channel

5.

Oil gutter A

6.

Back-up lamp switch

7.

Plunger

8.

Gasket

9.

Plug

10. Bore plug

11. Striking rod oil seal

12. Transaxle case

13. Oil gutter B

14. Air breather tube

15. Park/Neutral position (PNP) switch

16. Shifter lever oil seal

17. Drain plug

18. Magnet

19. O-ring

20. Filler plug (With ABS models)

21. Speedometer pinion gear (Without

ABS models)

: Apply Genuine Silicone RTV or an equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

PCIB1805E

TRANSAXLE ASSEMBLY

TM-29

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

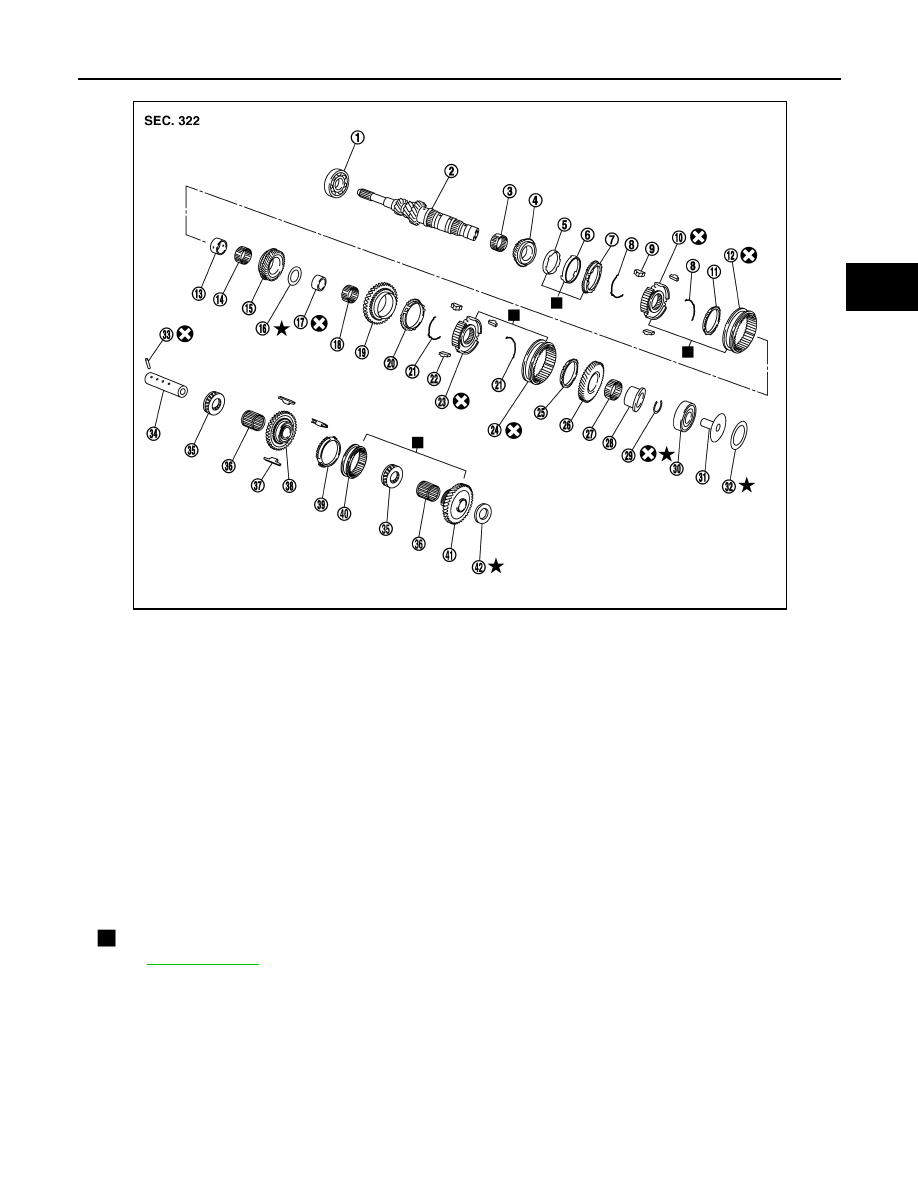

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

1.

Input shaft front bearing

2.

Input shaft

3.

3rd needle bearing

4.

3rd input gear

5.

3rd inner baulk ring

6.

3rd synchronizer cone

7.

3rd outer baulk ring

8.

3rd-4th spread spring

9.

3rd-4th shifting insert

10. 3rd-4th synchronizer hub

11. 4th baulk ring

12. 3rd-4th coupling sleeve

13. 4th input gear bushing

14. 4th needle bearing

15. 4th input gear

16. Thrust washer

17. 5th input gear bushing

18. 5th needle bearing

19. 5th input gear

20. 5th baulk ring

21. 5th-6th spread spring

22. 5th-6th shifting insert

23. 5th-6th synchronizer hub

24. 5th-6th coupling sleeve

25. 6th baulk ring

26. 6th input gear

27. 6th needle bearing

28. 6th input gear bushing

29. Snap ring

30. Input shaft rear bearing

31. Oil channel

32. Input shaft rear bearing adjusting

shim

33. Retaining pin

34. Reverse idler shaft

35. Thrust needle bearing

36. Reverse idler gear needle bearing

37. Reverse insert spring

38. Reverse idler gear (Front)

39. Reverse baulk ring

40. Reverse coupling sleeve

41. Reverse idler gear (Rear)

42. Reverse idler gear adjusting shim

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

PCIB1888E

TM-30

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

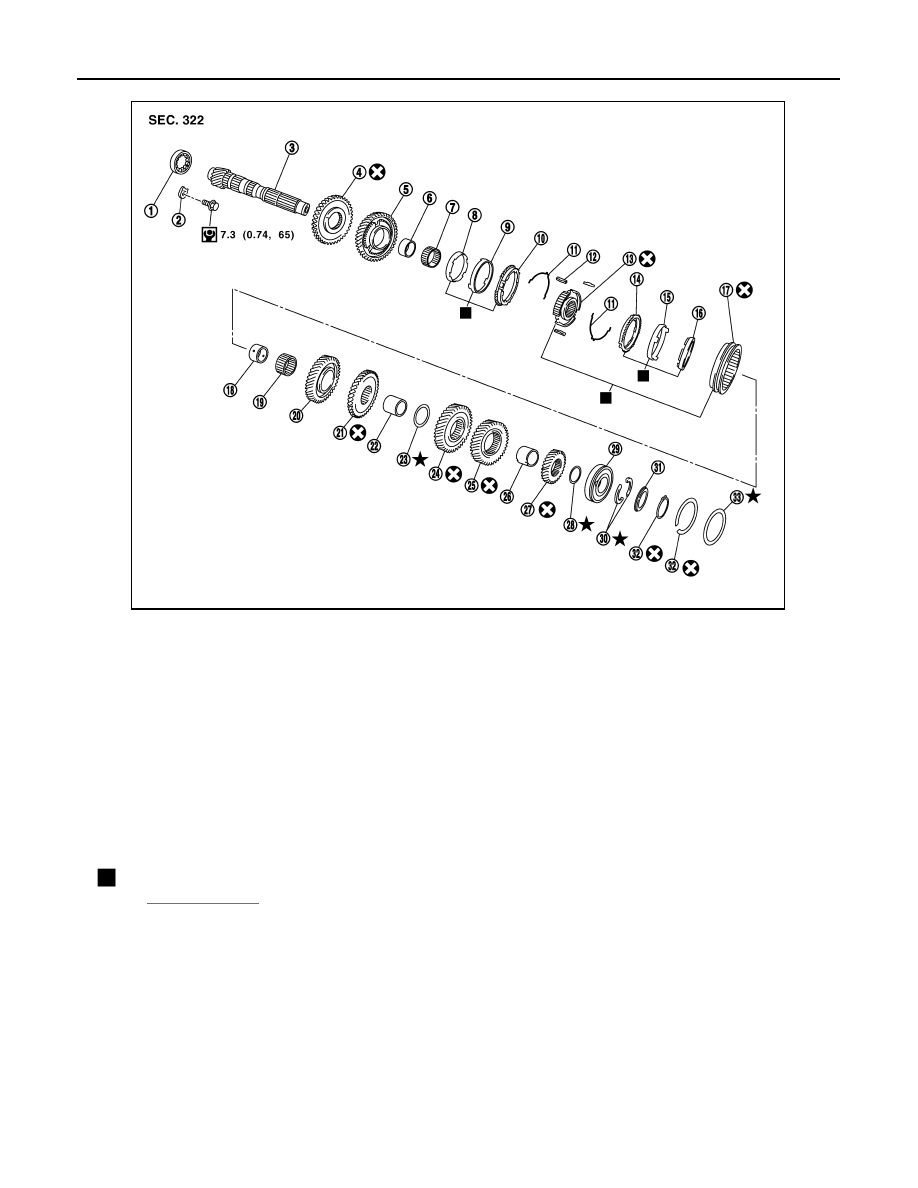

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

SHIFT FORK AND FORK ROD

1.

Mainshaft front bearing

2.

Mainshaft bearing retainer

3.

Mainshaft

4.

Reverse main gear

5.

1st main gear

6.

1st main gear bushing

7.

1st needle bearing

8.

1st inner baulk ring

9.

1st synchronizer cone

10. 1st outer baulk ring

11. 1st-2nd spread spring

12. 1st-2nd shifting insert

13. 1st-2nd synchronizer hub

14. 2nd outer baulk ring

15. 2nd synchronizer cone

16. 2nd inner baulk ring

17. 1st-2nd coupling sleeve

18. 2nd main gear bushing

19. 2nd needle bearing

20. 2nd main gear

21. 3rd main gear

22. 3rd-4th mainshaft spacer

23. 4th main adjusting shim

24. 4th main gear

25. 5th main gear

26. 5th-6th mainshaft spacer

27. 6th main gear

28. 6th main gear adjusting shim

29. Mainshaft rear bearing

30. Mainshaft C-ring

31. C-ring holder

32. Snap ring

33. Mainshaft rear bearing adjusting

shim

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

PCIB1889E

TRANSAXLE ASSEMBLY

TM-31

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

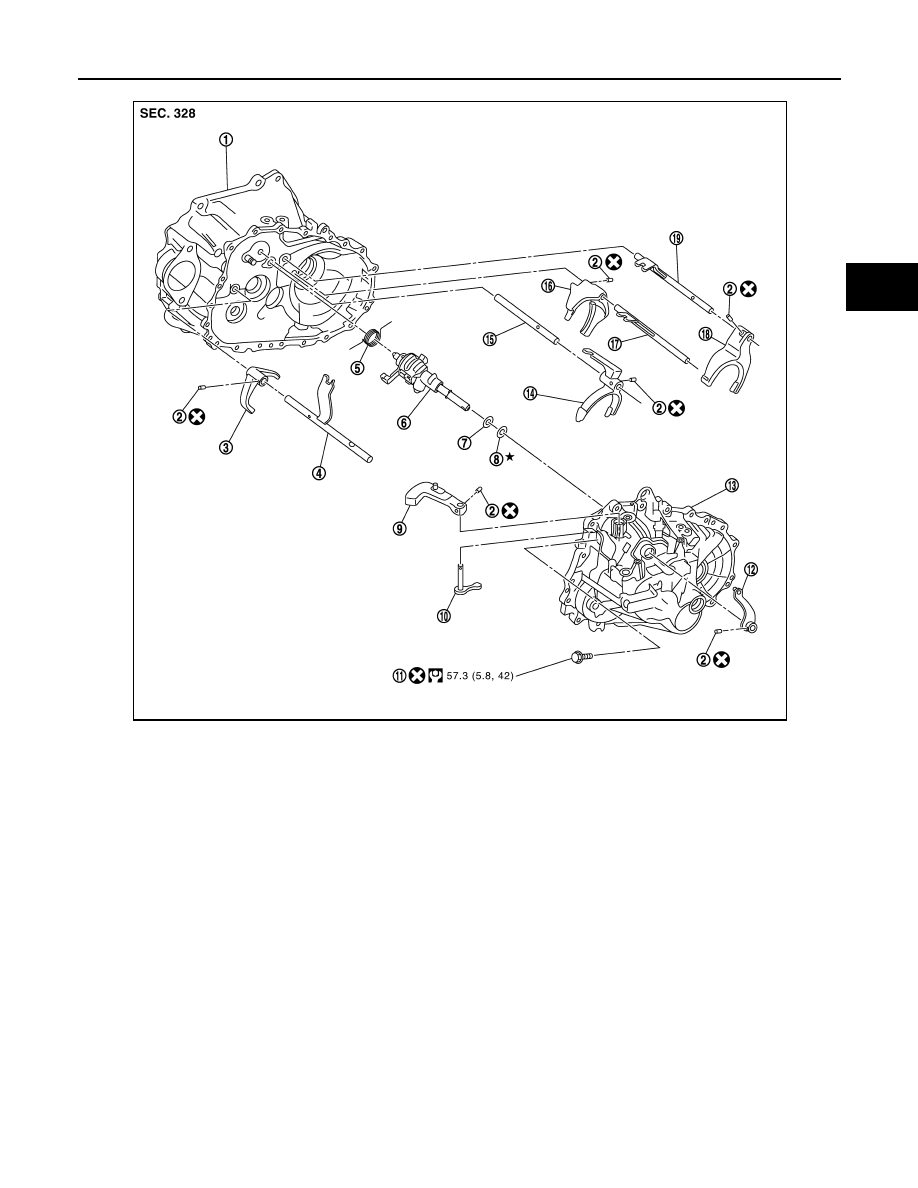

FINAL DRIVE

1.

Clutch housing

2.

Retaining pin

3.

Reverse shift fork

4.

Reverse fork rod

5.

Return spring

6.

Striking rod assembly

7.

Striking rod shim

8.

Striking rod adjusting shim

9.

Shifter lever A

10. Shifter lever B

11. Guide bolt

12. Selector lever

13. Transaxle case

14. 3rd-4th shift fork

15. 3rd-4th fork rod

16. 1st-2nd shift fork

17. 1st-2nd fork rod

18. 5th-6th shift fork

19. 5th-6th fork rod

PCIB1806E
