PARK/NEUTRAL POSITION SWITCH

PARK/NEUTRAL POSITION SWITCH

Removal and Installation

INFOID:0000000004201586

For removal and installation of park/neutral position switch, refer to

TM-28, "Exploded View"

.

Inspection

INFOID:0000000004201587

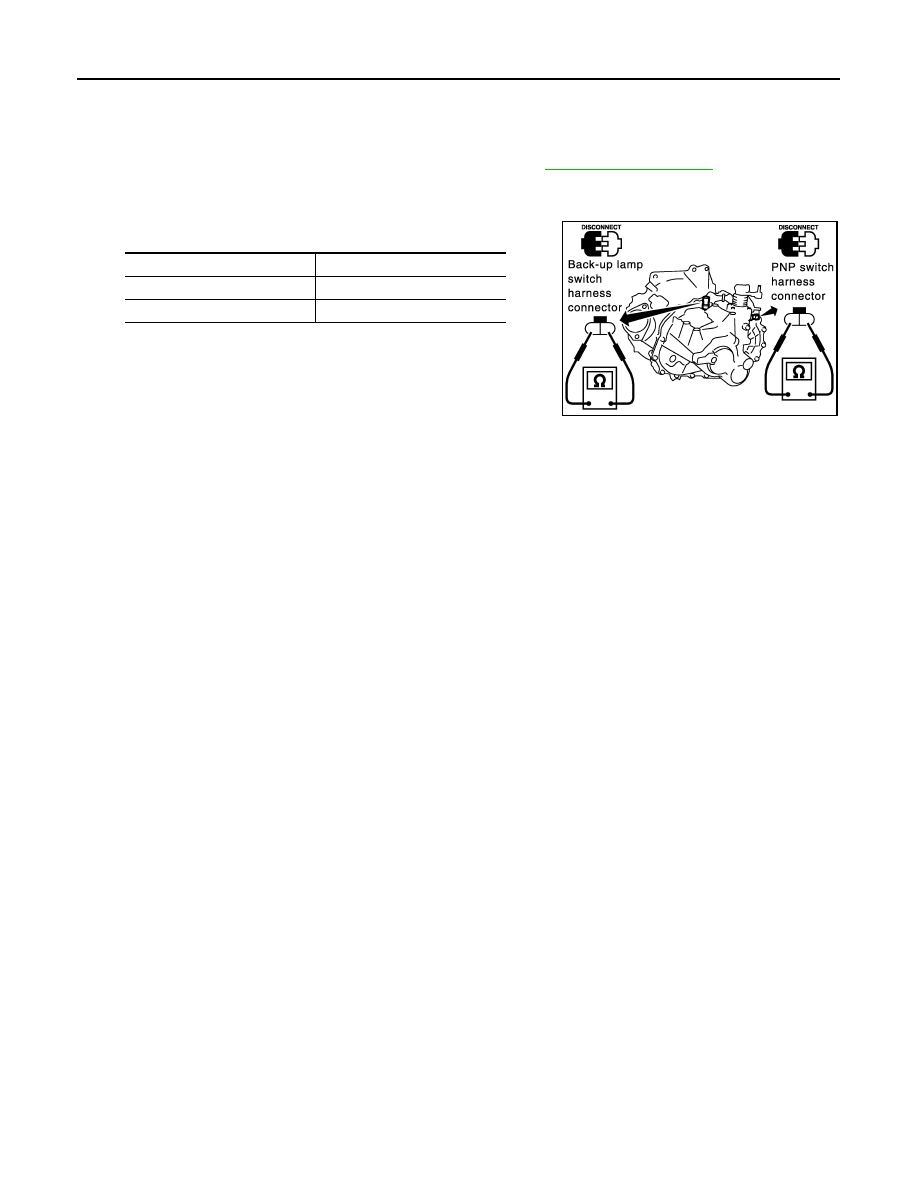

• Check continuity.

Gear position

Continuity

Neutral

Yes

Except neutral

No

SCIA0708E

CONTROL LINKAGE

TM-21

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

Exploded View

INFOID:0000000004201588

Removal and Installation

INFOID:0000000004201589

REMOVAL

1. Shift control lever to the neutral position.
2. Remove the air filter assembly. Refer to

EM-25, "Removal and Installation"

 (QR25DE),

EM-129, "Removal

and Installation"

 (VQ35DE).

3. Remove the shift cable from the shift lever and cable bracket.
4. Remove the select cable from the select lever and cable bracket.
5. Remove the center console. Refer to

IP-18, "Disassembly and Assembly"

.

6. Remove the shift cable from the control device assembly.
7. Remove the select cable from the control device assembly.
8. Remove the bracket covering the retainer grommet.

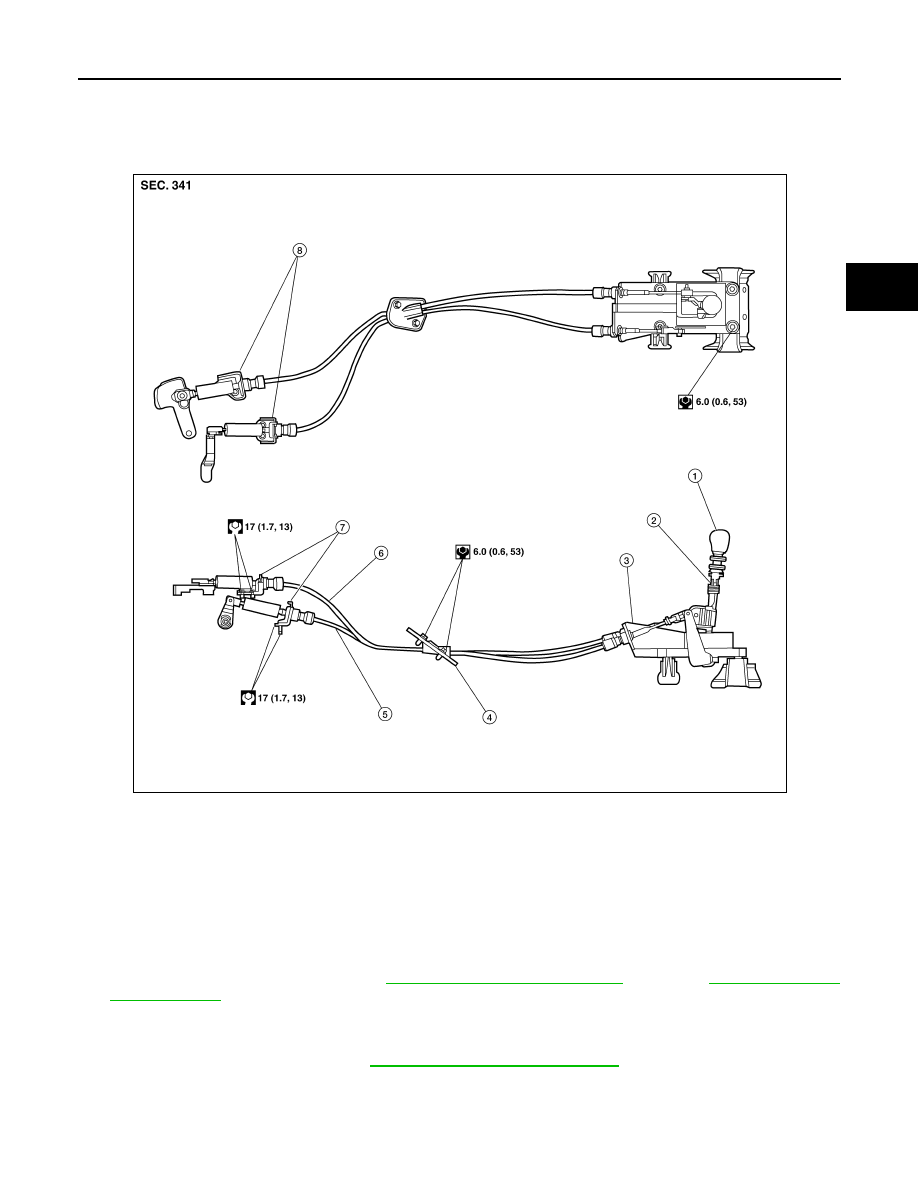

1.

Control lever knob

2.

Control lever

3.

Control device assembly

4.

Retainer grommet

5.

Select cable

6.

Shift cable

7.

Lock plate

8.

Cable bracket

ALDIA0025GB

TM-22

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

CONTROL LINKAGE

9. Remove the retainer grommet bolts and retainer grommet.
10. Remove the shift cable and select cable from the vehicle.
11. Remove the control device assembly bolts and the control device assembly.

INSTALLATION

Installation is in the reverse order of removal.

• After assembly, make sure control lever automatically returns to Neutral when it is moved to 1st, 2nd, or

Reverse.

• When control lever is shifted to each position, make sure there is no binding or disconnection at each con-

nection.

Adjustment

INFOID:0000000004201590

SELECT CABLE ADJUSTMENT

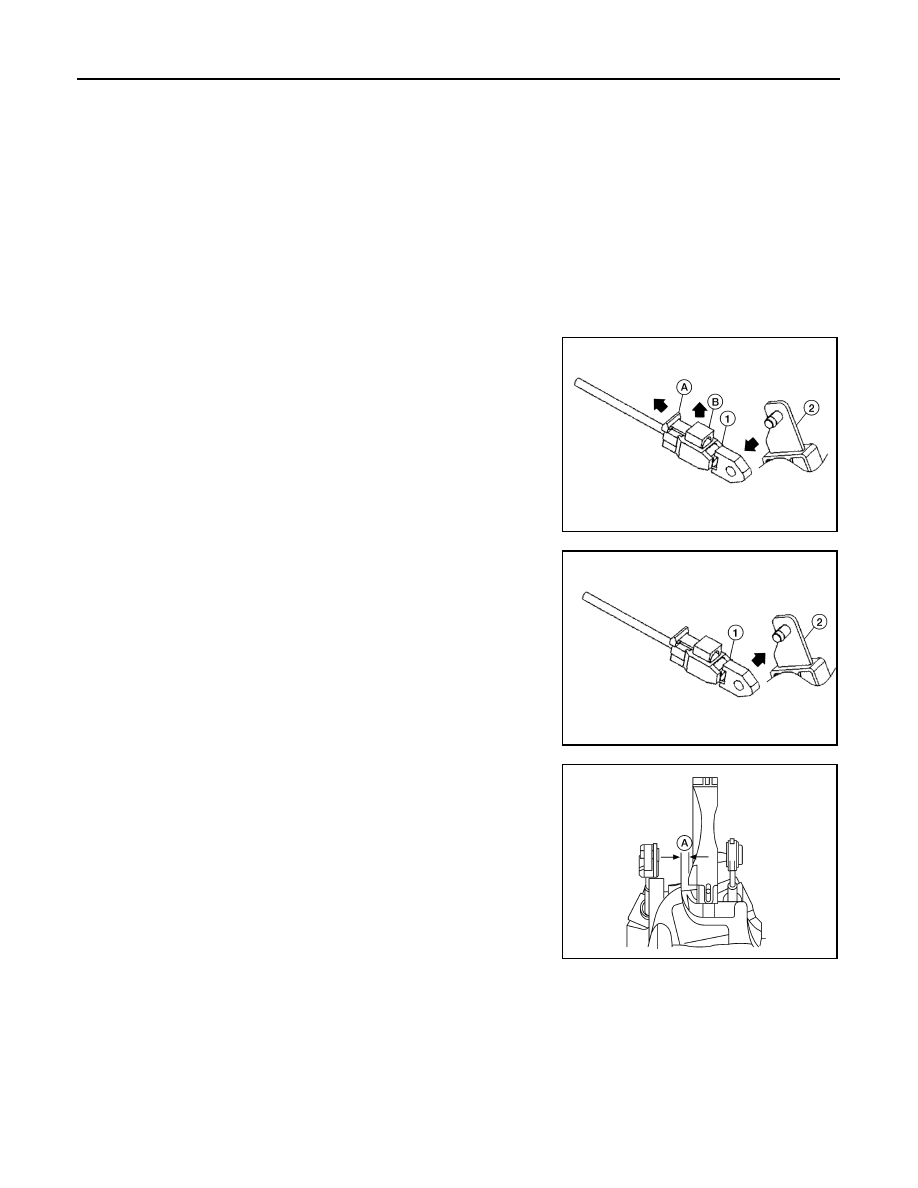

1. Remove the select cable eye end (1) from the select lever (2) of

the control device.

2. Slide the lock (A) on the select cable eye end (1) away from the

cable end.

3. Turn the select cable eye end (1) over and push the stopper (B)

to release the adjustment.

4. Install the select cable eye end (1) to the select lever (2) of the

control device

5. Hold the shift lever with the gap between the reverse gate stop-

per and the shifter base at the specified distance (A).

ALDIA0051ZZ

ALDIA0052ZZ

Distance "A"

: 6.3 – 7.0 mm (0.25 – 0.28 in)

ALDIA0053ZZ

CONTROL LINKAGE

TM-23

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

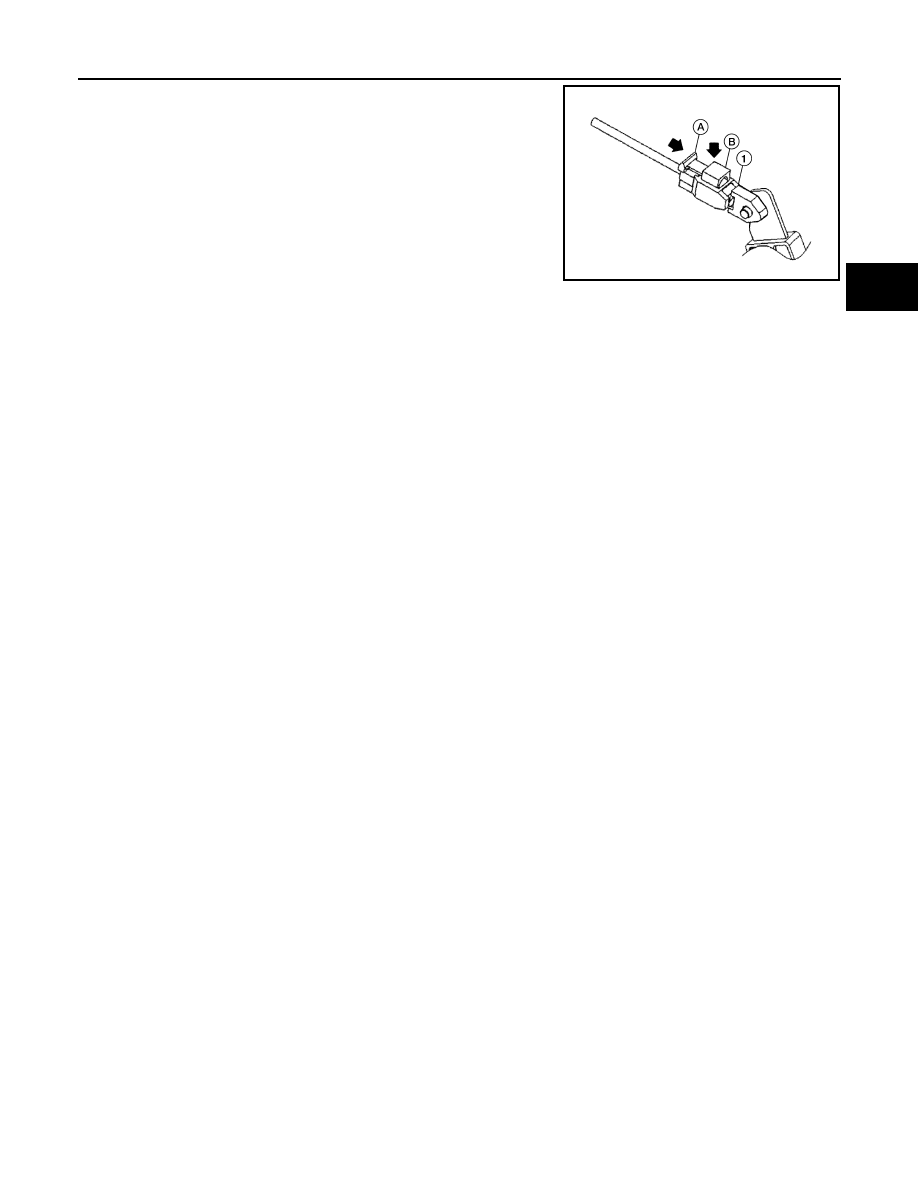

6. Push the stopper (B) into the cable eye end housing (1).
7. Slide the lock (A) over the stopper (B).
8. Check for smooth gear select operation.

ALDIA0054ZZ
