Nissan Altima L32. Manual - part 1418

TM-16

< PREPARATION >

[6MT: RS6F52A]

PREPARATION

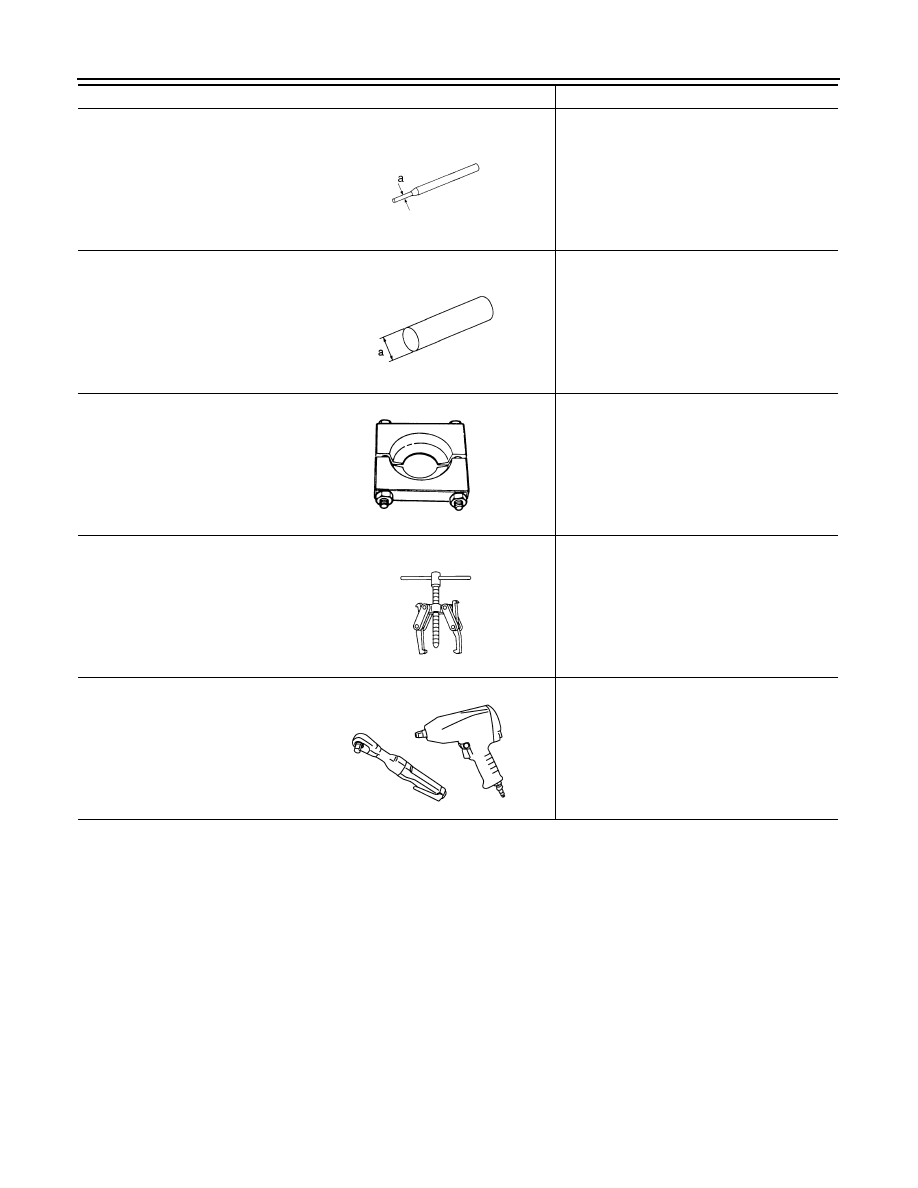

Pin punch

Removing and installing retaining pin of each
shifter lever
a: 7.5 mm (0.295 in) dia.

Drift

Installing striking rod oil seal and shifter lever
oil seal
a: 24.5 mm (0.965 in) dia.

Puller

Removing each bearing, gear, and bushing

Puller

Removing each bearing, gear, and bushing

Power tool

Loosening bolts and nuts

Tool name

Description

NT410

S-NT063

ZZA0537D

NT077

PBIC0190E

M/T OIL

TM-17

< ON-VEHICLE MAINTENANCE >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE MAINTENANCE

M/T OIL

Draining

INFOID:0000000004201580

1. Start engine and let it run to warm up transaxle oil.
2. Stop engine and remove the drain plug to drain the oil.
3. Install the drain plug with a new gasket to the transaxle case. Tighten the drain plug to the specified

torque. Refer to

TM-28, "Exploded View"

.

CAUTION:

Do not reuse gasket.

Refilling

INFOID:0000000004201581

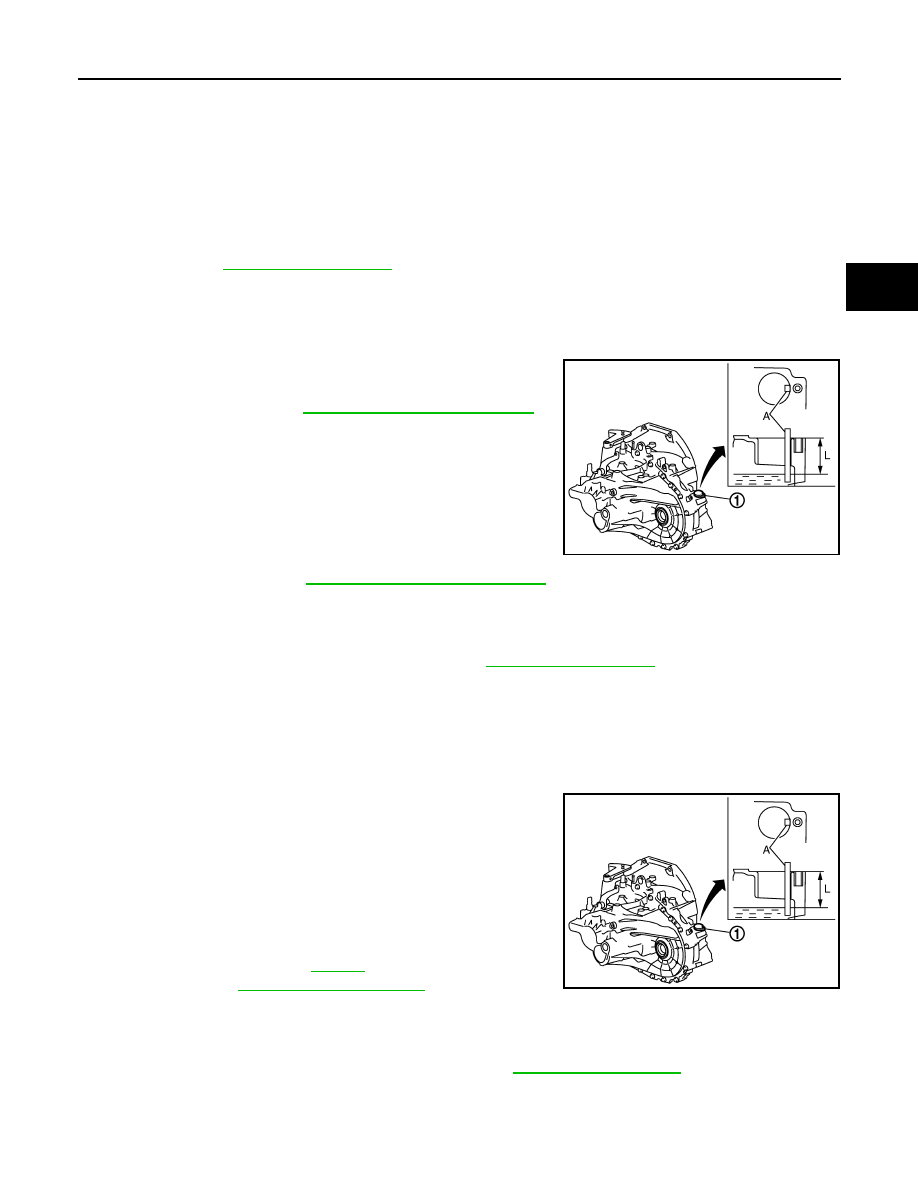

1. Remove the filler plug (1) and fill transaxle with new oil.

2. After refilling oil, measure oil level to check if it is within the spec-

ification using suitable gauge (A) as shown.

CAUTION:

• Do not start engine while checking oil level.

• Insert the suitable gauge straight and against the wall of

the filler plug hole, then measure the gauge from the top

of the filler plug hole to the oil level as shown.

3. Install the filler plug with a new O-ring to the clutch housing.

CAUTION:

Do not reuse O-ring.

4. Tighten filler plug bolt to the specified torque. Refer to

TM-28, "Exploded View"

.

Inspection

INFOID:0000000004201582

LEAKAGE

• Make sure that oil is not leaking from transaxle or around it.

LEVEL

1. Remove the filler plug (1).
2. Measure oil level to check if it is within the specification using a

suitable gauge (A) as shown.

CAUTION:

• Do not start engine while checking oil level.

• Insert the suitable gauge straight and against the wall of

the filler plug hole, then measure the gauge from the top

of the filler plug hole to the oil level as shown.

3. Install the filler plug with a new O-ring to the clutch housing.

CAUTION:

Do not reuse O-ring.

4. Tighten the filler plug bolt to the specified torque. Refer to

TM-28, "Exploded View"

.

Oil grade

: Refer to

MA-12, "Fluids and Lubricants"

.

Oil level “L” : Refer to

TM-82, "General Specifications"

.

JPDIC0138ZZ

Oil level “L” : Refer to

TM-82,

"General Specifications"

.

JPDIC0138ZZ

TM-18

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

SIDE OIL SEAL

ON-VEHICLE REPAIR

SIDE OIL SEAL

Removal and Installation

INFOID:0000000004201583

REMOVAL

1. Remove the drive shaft. Refer to

FAX-11, "Removal and Installation (Left Side)"

,

FAX-12, "Removal and

Installation (Right Side)"

.

2. Remove oil seal using suitable tool.

CAUTION:

Do not damage the transaxle case surface when removing

oil seal.

INSTALLATION

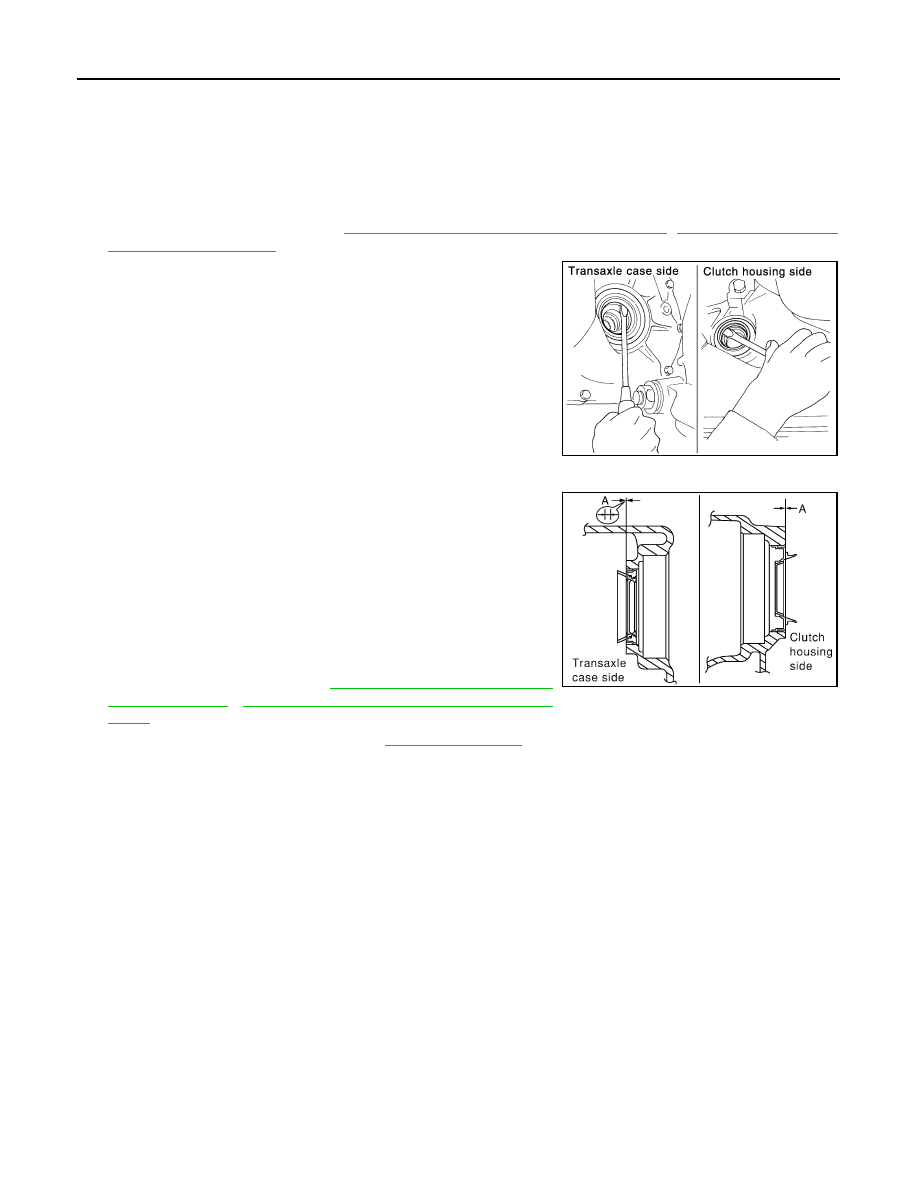

1. Drive the oil seal straight into the transaxle case and clutch

housing to the specified dimension "A" using Tools.

CAUTION:

Do not reuse oil seal.

2. Install the drive shaft. Refer to

FAX-11, "Removal and Installa-

tion (Left Side)"

,

FAX-12, "Removal and Installation (Right

Side)"

.

3. Check the transaxle fluid level. Refer to

TM-17, "Inspection"

.

SCIA0824E

Dimension “A” : 0

±± 0.5 mm (0 ± 0.020 in)

Tool numbers

: ST30720000 (J–25405)
: ST33400001 (J-26082)

SCIA1010E

BACK-UP LAMP SWITCH

TM-19

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

BACK-UP LAMP SWITCH

Removal and Installation

INFOID:0000000004201584

For removal and installation of back-up lamp switch, refer to

TM-28, "Exploded View"

.

Inspection

INFOID:0000000004201585

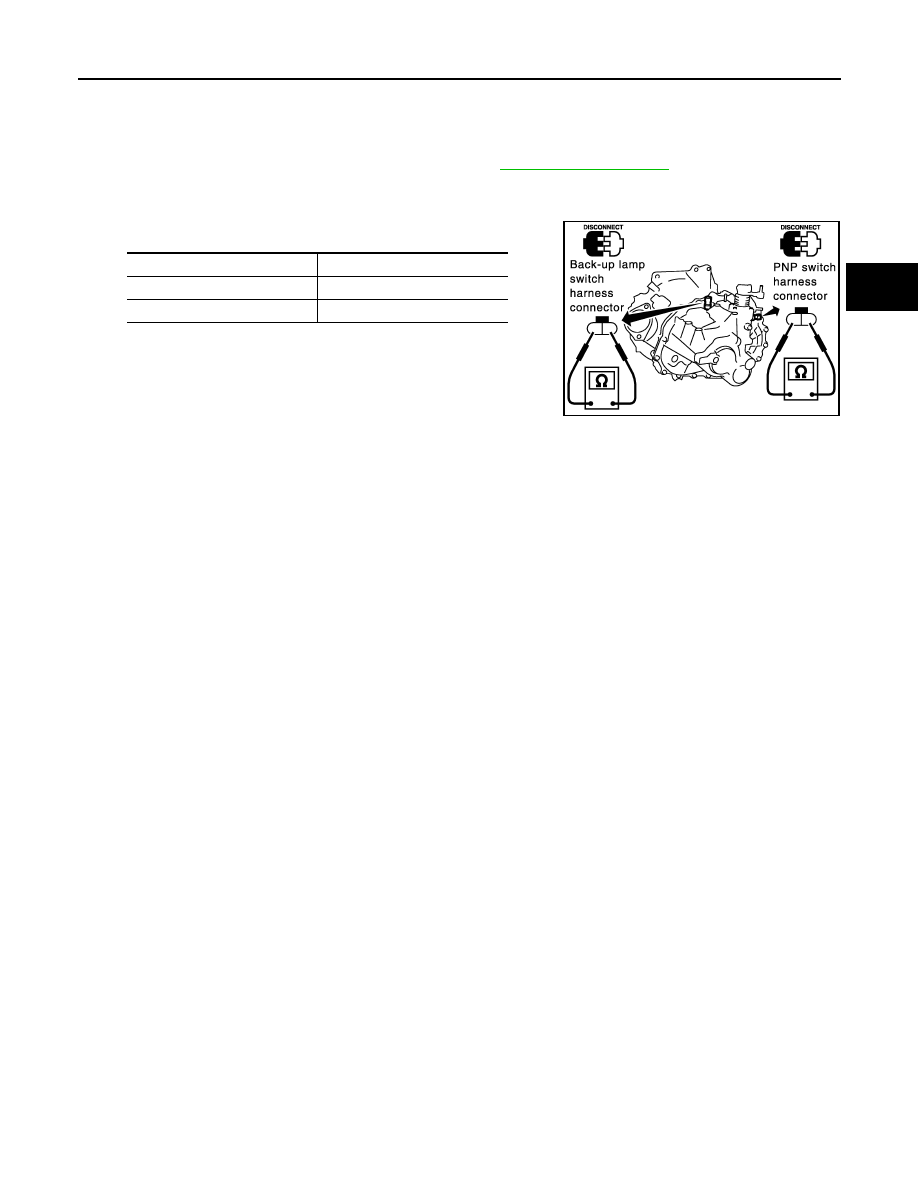

• Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

SCIA0708E
