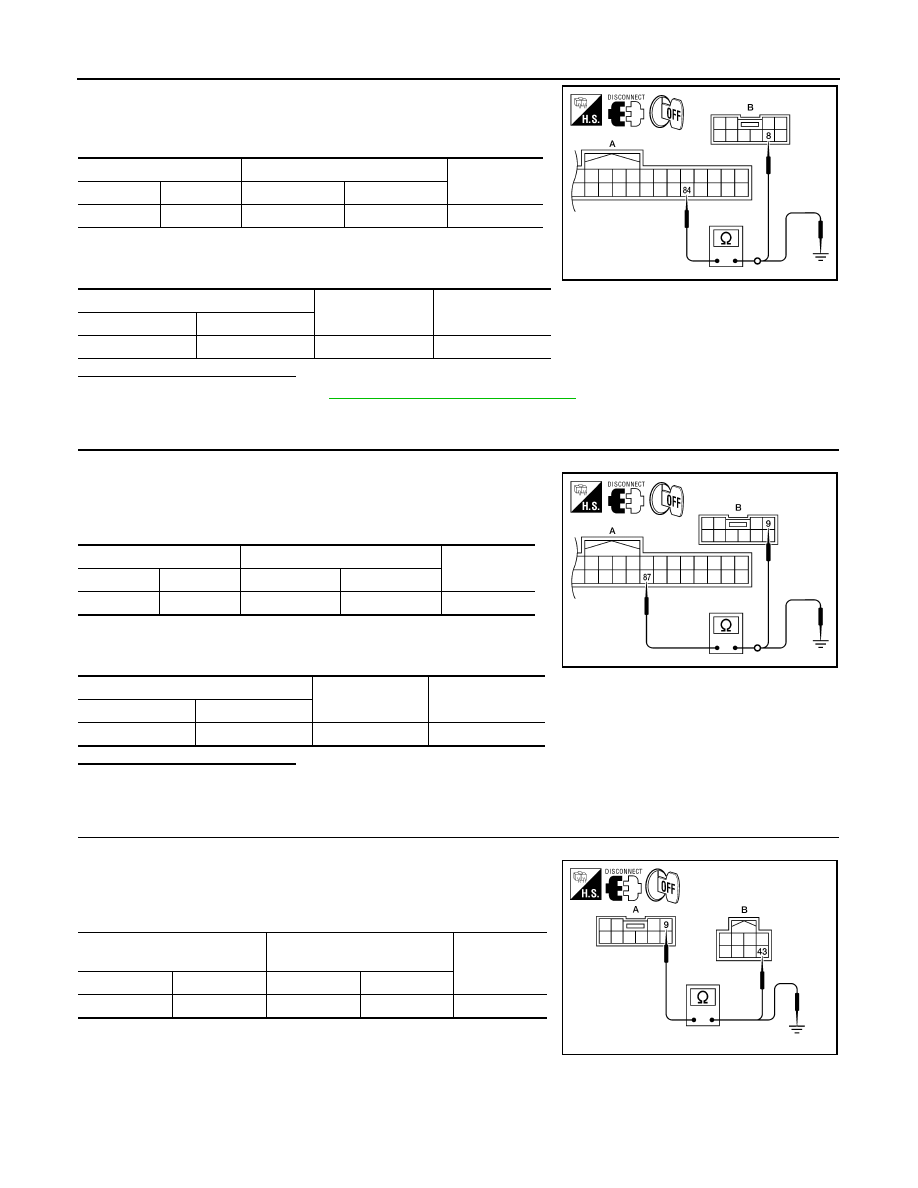

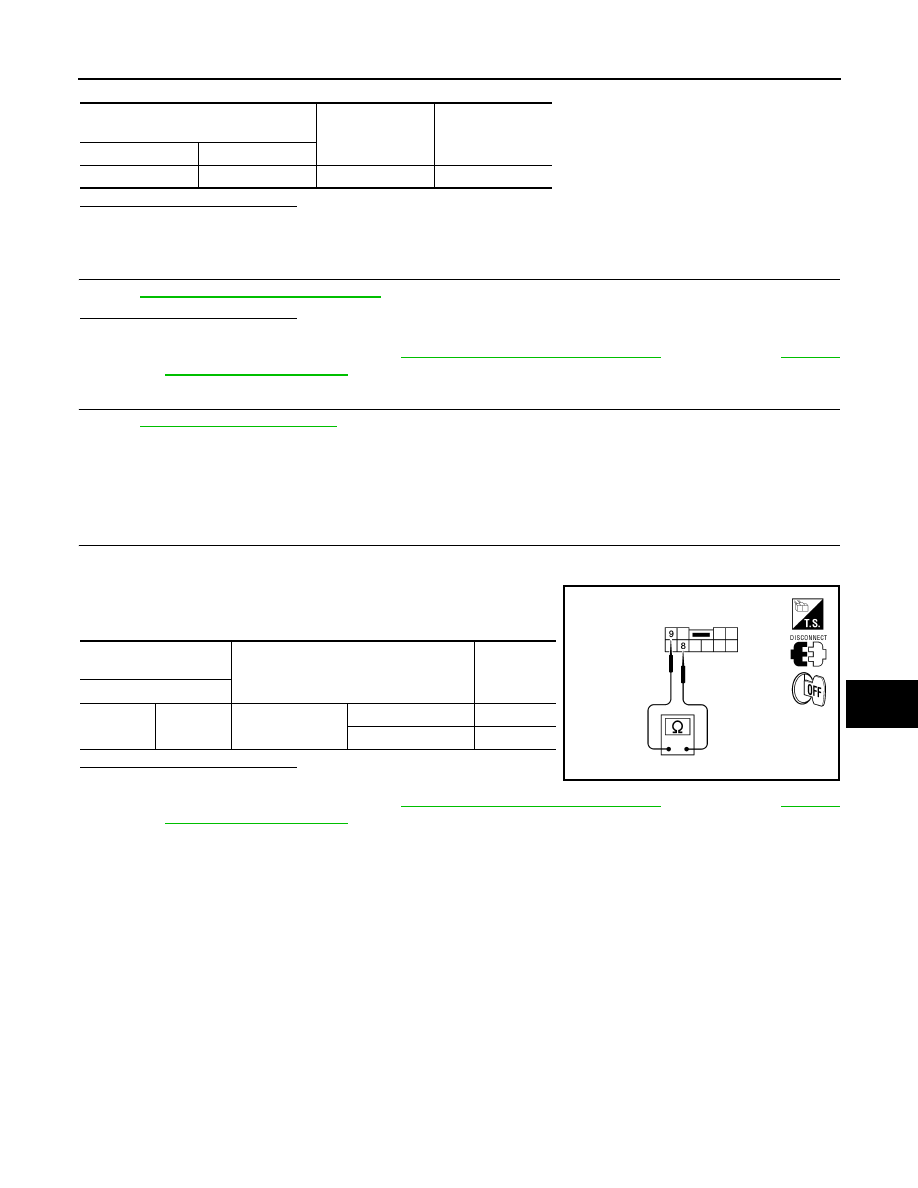

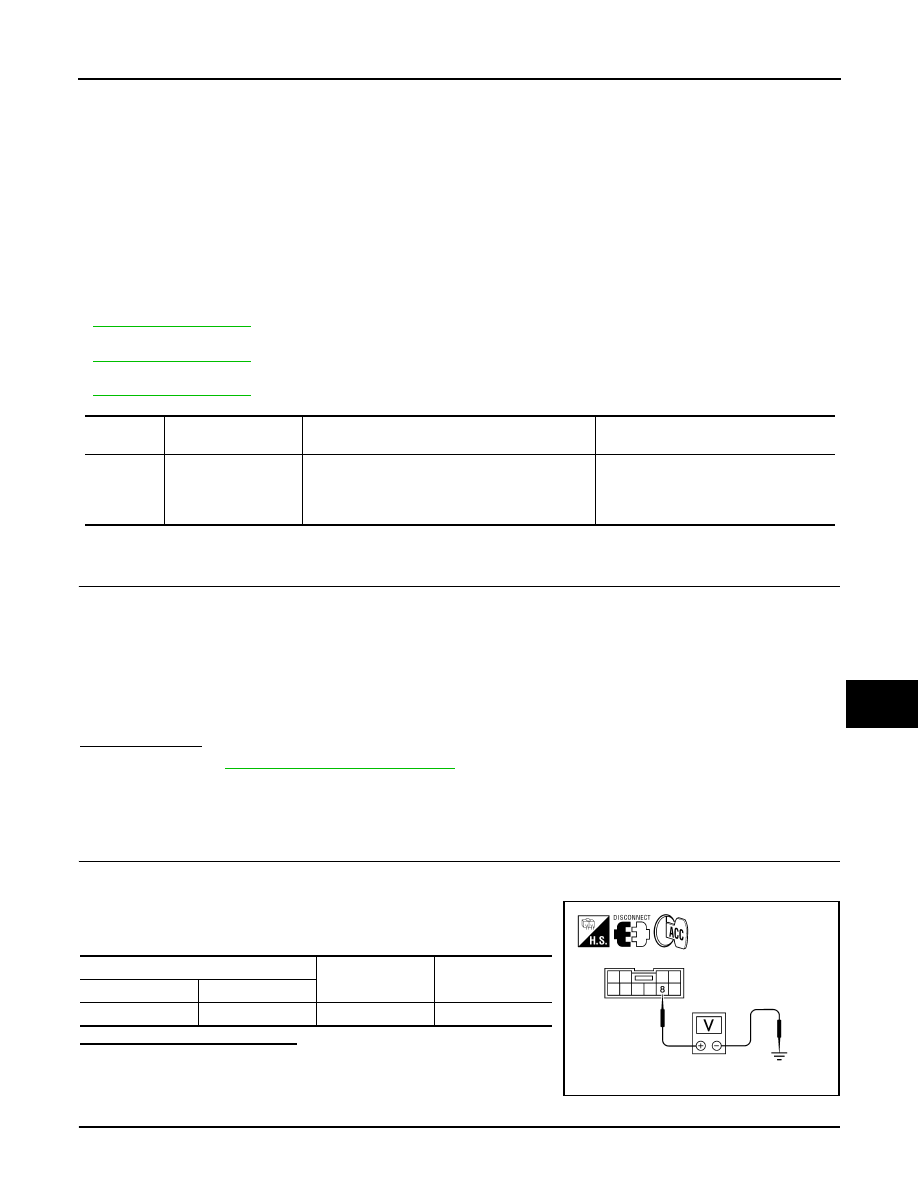

SEC-274 < COMPONENT DIAGNOSIS > [SEDAN WITH INTELLIGENT KEY] B2560 STARTER CONTROL RELAY B2560 STARTER CONTROL RELAY Description INFOID:0000000004206224 Starter control relay, integrated in IPDM E/R, permits the starter relay operation when in N or P position and the steering is locked or unlocked. It is installed in parallel with the starter relay. DTC Logic INFOID:0000000004206225 DTC DETECTION LOGIC NOTE: • If DTC B2560 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to • If DTC B2560 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to DTC CONFIRMATION PROCEDURE 1. PERFORM DTC CONFIRMATION PROCEDURE 1. Turn ignition switch ON under the following conditions and wait for at least 2 seconds: - CVT selector lever is in the P position. - Depress the brake pedal. 2. Check “Self Diagnostic Result” with CONSULT-III. YES >> Refer to SEC-274, "Diagnosis Procedure" NO >> Inspection End. Diagnosis Procedure INFOID:0000000004206226 1. CHECK DTC WITH IPDM E/R Check “Self Diagnostic Result” with CONSULT-III. Refer to . Is the inspection result normal? YES >> GO TO 2 NO >> Repair or replace malfunctioning parts. 2. CHECK INTERMITTENT INCIDENT GI-42, "Intermittent Incident" >> Inspection End. DTC Self-diagnosis name DTC detecting condition Possible causes B2560 STARTER CONTROL BCM detects a mismatch between the OFF re- • IPDM E/R |
