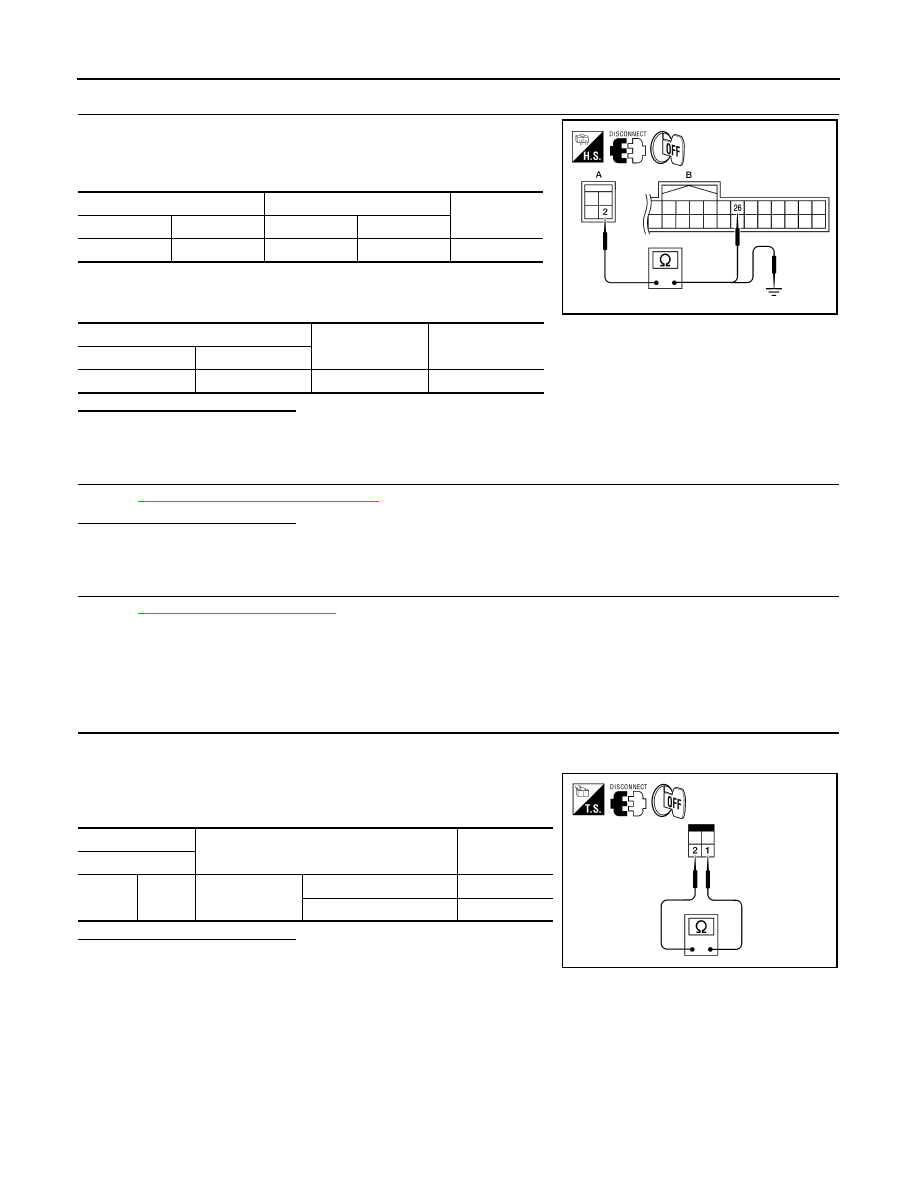

SEC-270

< COMPONENT DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

B2555 STOP LAMP

3.

CHECK STOP LAMP SWITCH CIRCUIT

1. Check continuity between stop lamp switch harness connector

E38 (A) terminal 2 and BCM harness connector M18 (B) termi-

nal 26.

2. Check continuity between stop lamp switch harness connector

E38 (A) terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK STOP LAMP SWITCH

Refer to

SEC-270, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace stop lamp switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000004206216

1.

CHECK STOP LAMP SWITCH

1. Turn ignition switch OFF.

2. Disconnect stop lamp switch harness connector.

3. Check continuity between stop lamp switch terminals under the

following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace stop lamp switch.

Stop lamp switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

A: E38

2

B: M18

26

Yes

Stop lamp switch

Ground

Continuity

Connector

Terminal

A: E38

2

Ground

No

ALKIA0439ZZ

Stop lamp switch

Condition

Continuity

Terminal

1

2

Brake pedal

Not depressed

No

Depressed

Yes

ALKIA0440ZZ

B2556 PUSH-BUTTON IGNITION SWITCH

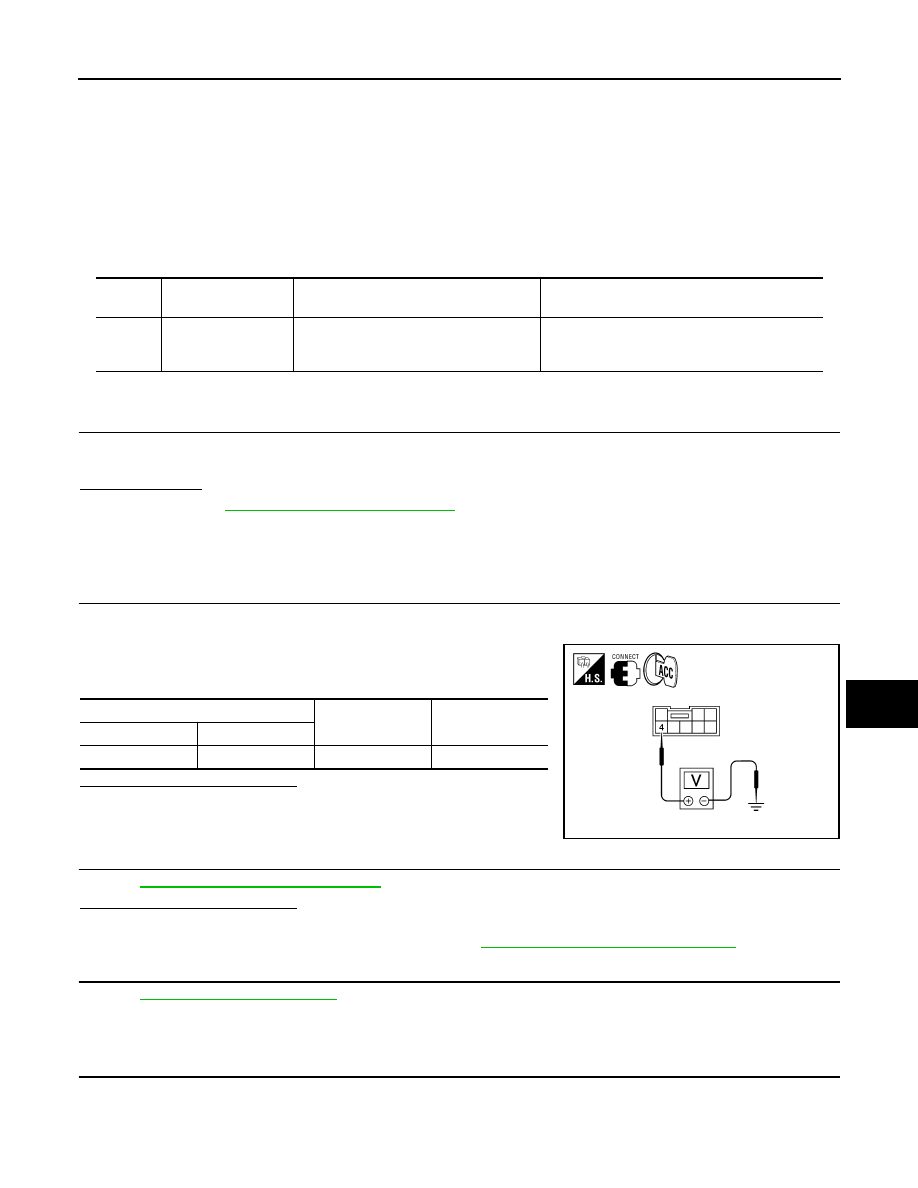

SEC-271

< COMPONENT DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2556 PUSH-BUTTON IGNITION SWITCH

Description

INFOID:0000000004206217

The switch that changes the power supply position. BCM maintains the power supply position status. BCM

changes the power supply position with the operation of the push-button ignition switch.

DTC Logic

INFOID:0000000004206218

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start the engine and wait for at least 100 seconds.

2. Check “Self Diagnostic Result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-271, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004206219

1.

CHECK PUSH-BUTTON IGNITION SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect push-button ignition switch harness connector.

3. Check voltage between push-button ignition switch harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> GO TO 4

2.

CHECK PUSH-BUTTON IGNITION SWITCH

Refer to

SEC-272, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace push-button ignition switch. Refer to

SEC-410, "Removal and Installation"

.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

4.

CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT FOR SHORT

1. Disconnect BCM harness connector and IPDM E/R harness connector.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2556

PUSH-BUTTON IG-
NITION SWITCH

BCM detects the push-button ignition
switch stuck to ON for 100 seconds or
more.

• Harness or connectors

(Push-button ignition switch circuit is shorted.)

• Push-button ignition switch

Push-button ignition switch

Ground

Voltage [V]

Connector

Terminal

M38

4

Ground

Battery voltage

ALKIA1350ZZ

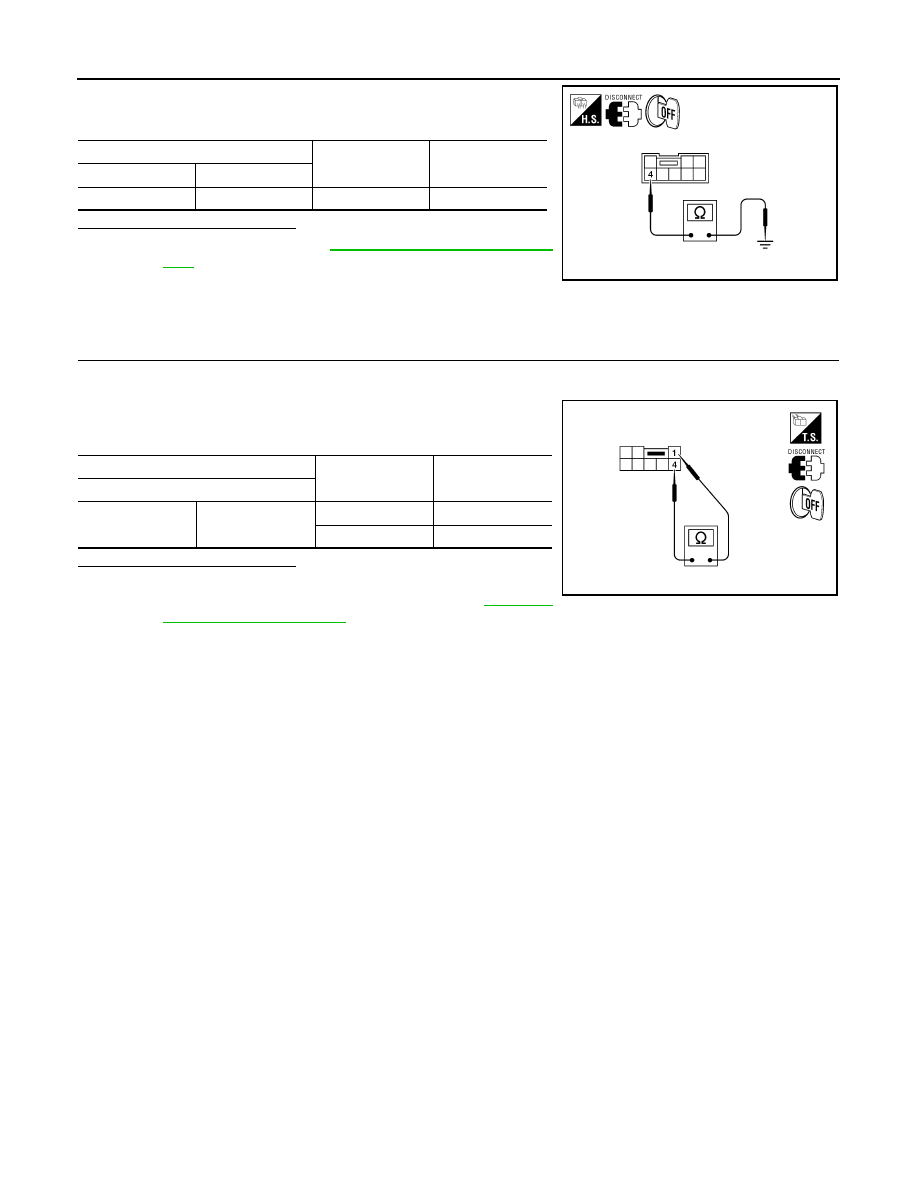

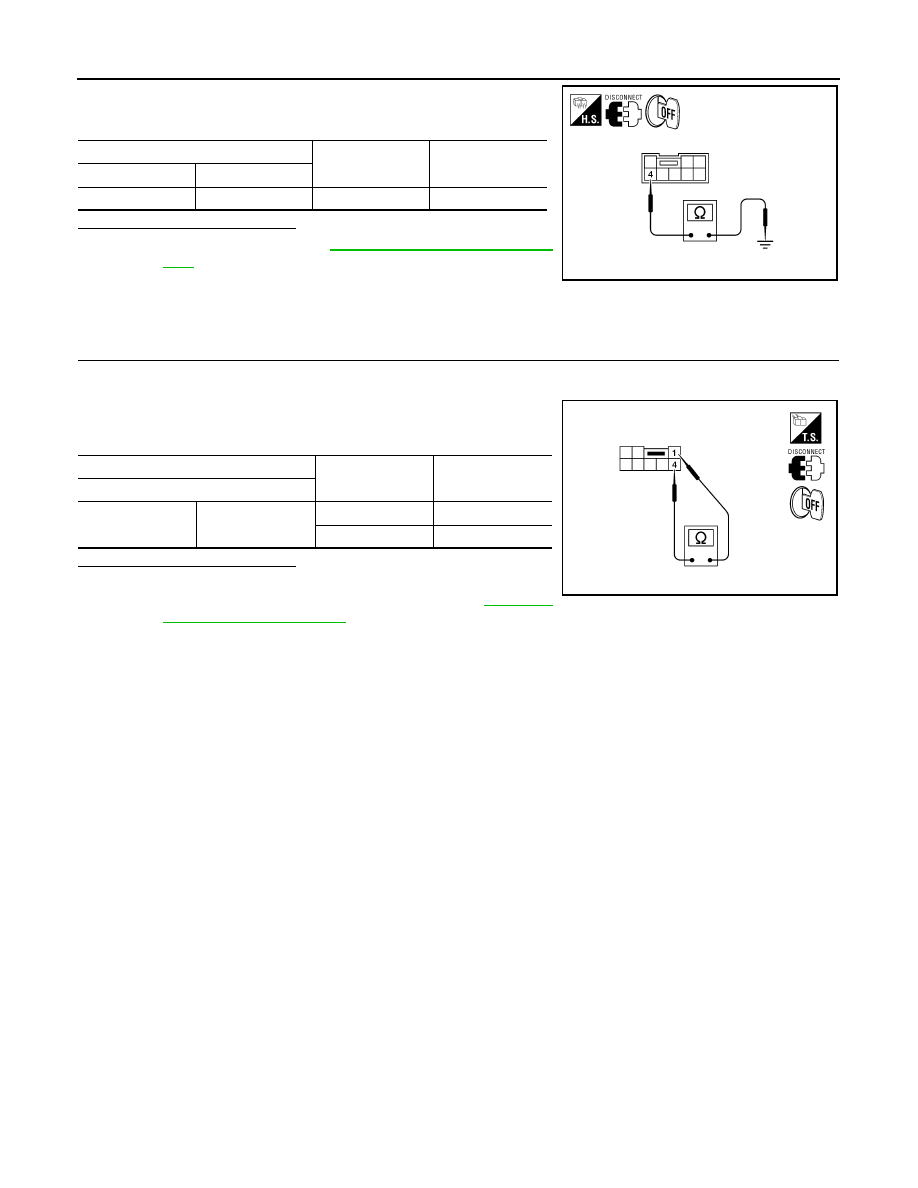

SEC-272

< COMPONENT DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

B2556 PUSH-BUTTON IGNITION SWITCH

2. Check continuity between push-button ignition switch harness

connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-96, "Removal and Installa-

tion"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000004206220

1.

CHECK PUSH-BUTTON IGNITION SWITCH

1. Turn ignition switch OFF.

2. Disconnect push-button ignition switch harness connector.

3. Check continuity between push-button ignition switch terminals

under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace push-button ignition switch. Refer to

SEC-410,

"Removal and Installation"

.

Push-button ignition switch

Ground

Continuity

Connector

Terminal

M38

4

Ground

No

ALKIA0442ZZ

Push-button ignition switch

Condition

Continuity

Terminal

1

4

Pressed

Yes

Not pressed

No

ALKIA0443ZZ

B2557 VEHICLE SPEED

SEC-273

< COMPONENT DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2557 VEHICLE SPEED

Description

INFOID:0000000004206221

BCM receives the 2 vehicle speed signals via CAN communication. One signal is transmitted by the “unified

meter”. Another signal is transmitted by “ABS actuator and electric unit (control unit)”. BCM compares both

signals to detect the vehicle speed.

DTC Logic

INFOID:0000000004206222

DTC DETECTION LOGIC

NOTE:

• If DTC B2557 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-235, "DTC Logic"

.

• If DTC B2557 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-236, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Drive the vehicle at the vehicle speed of 10 km/h or more and wait for at least 10 seconds.

2. Check “Self Diagnostic Result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-273, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004206223

1.

CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Check “Self Diagnostic Result” with CONSULT-III. Refer to

BRC-51, "DTC No. Index"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace malfunctioning parts.

2.

CHECK UNIFIED METER.

Check unified meter. Refer to

MWI-4, "Work Flow"

.

>> Inspection End.

DTC

Self-diagnosis

name

DTC detecting condition

Possible causes

B2557

VEHICLE

SPEED

BCM detects the following difference between the vehicle
speed from “unified meter” and the one from “ABS actuator
and electric unit” for 10 seconds continuously
• One is 10 km/h or more and the other is 4 km/h or less.

• Wheel sensor
• Unified meter
• ABS actuator and electric

unit (control unit)
