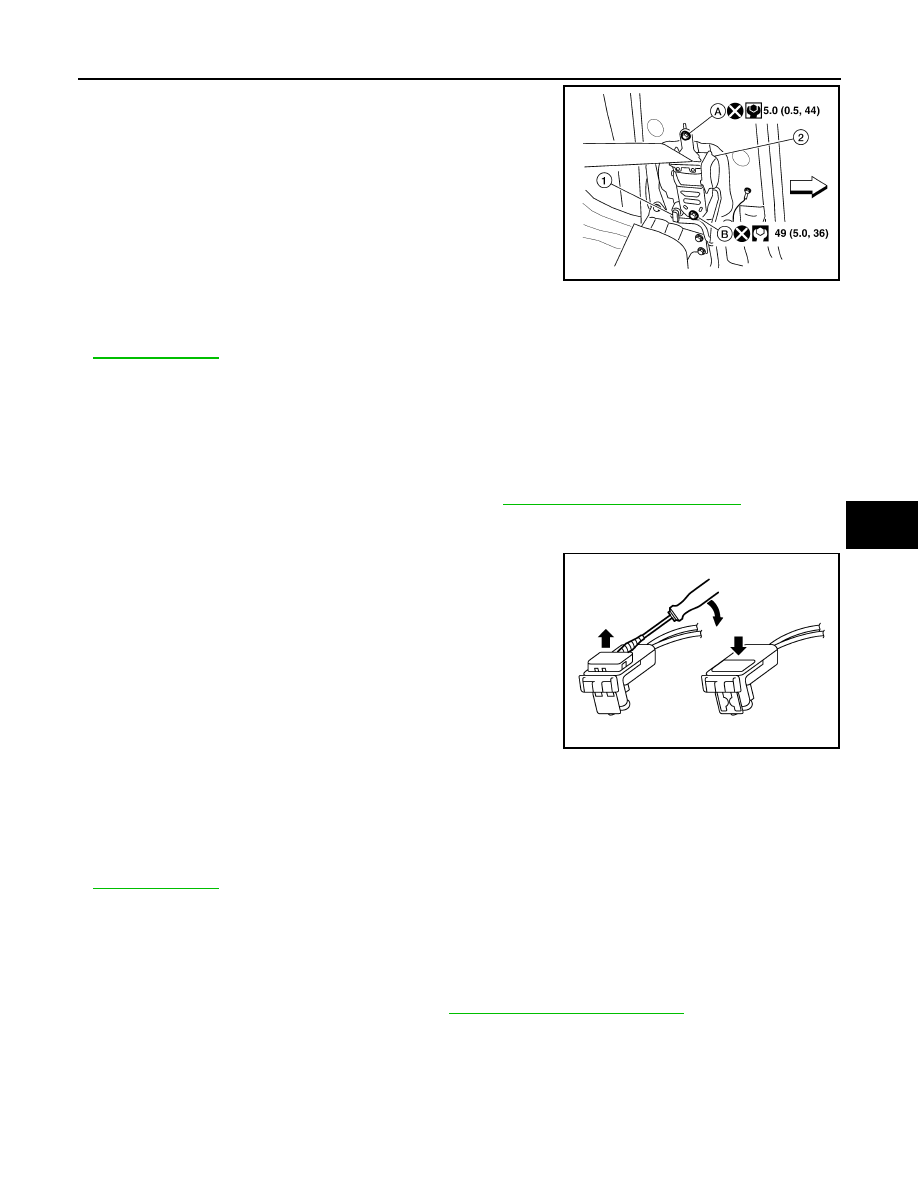

6. Disconnect seat belt pre-tensioner connector (1).

⇐: Vehicle front

CAUTION:

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped with tape into the

notch; lift locking tab then remove connector.

• Install connector with lock raised, then push locking tab

into connector.

7. Remove seat belt retractor screw (A) and retractor anchor bolt

(B), then remove seat belt retractor (2) from center pillar.

INSTALLATION OF SEAT BELT RETRACTOR - COUPE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-4, "Inspection"

.

REMOVAL OF SEAT BELT RETRACTOR - SEDAN

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both negative and positive battery termi-

nals, then wait at least three minutes.
1. Disconnect both negative and positive battery terminals, then wait at least three minutes.
2. Release the pawl, then remove outer anchor bolt cover and outer anchor bolt.
3. Remove center pillar lower and upper finishers. Refer to

INT-36, "Removal and Installation"

.

4. Remove D-ring anchor bolt from seat belt adjuster.
5. Remove seat belt retractor.

• Disconnect the seat belt pre-tensioner connector.

CAUTION:

• For installing/removing seat belt pre-tensioner connec-

tor, insert a thin screwdriver wrapped with tape into the

notch; lift locking tab then remove connector.

• Install connector with lock raised, then push locking tab

into connector.

• Remove screw and retractor anchor bolt, then remove seat belt retractor from center pillar.

6. Remove bolts, then remove seat belt adjuster from center pillar.

INSTALLATION OF SEAT BELT RETRACTOR- SEDAN

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-4, "Inspection"

.

REMOVAL OF SEAT BELT BUCKLE

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both negative and positive battery termi-

nals, then wait at least three minutes.
1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove the front seat from the vehicle. Refer to

SE-23, "Removal and Installation"

.

ALHIA0074GB

PHIA0953J

SB-10

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

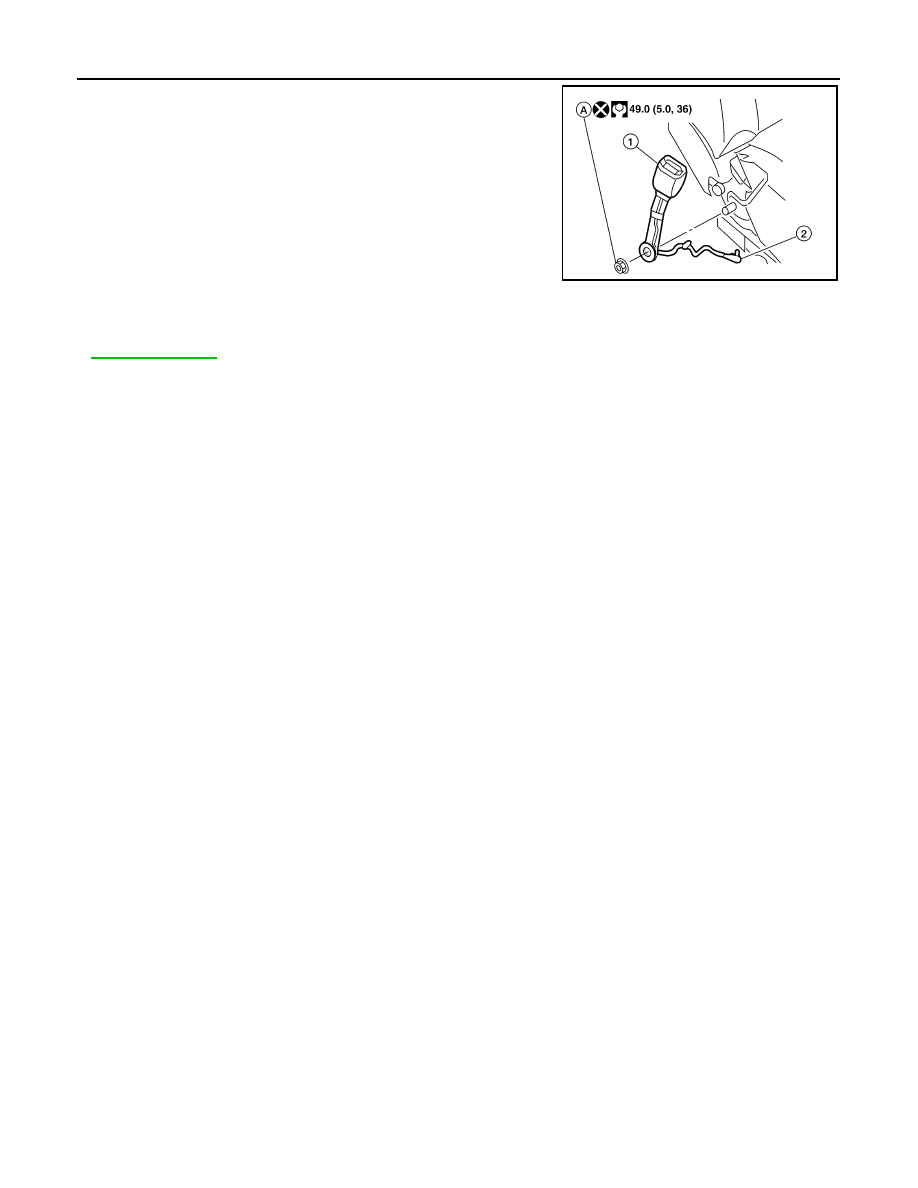

3. Remove anchor nut (A) from the seat belt buckle (1).
4. Disconnect the seat belt buckle harness connector (2), release

the harness clip(s), then remove the seat belt buckle (1).

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-4, "Inspection"

.

ALHIA0008GB

REAR SEAT BELT

SB-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

Exploded View

INFOID:0000000004205518

Sedan Models

AWHIA0196GB

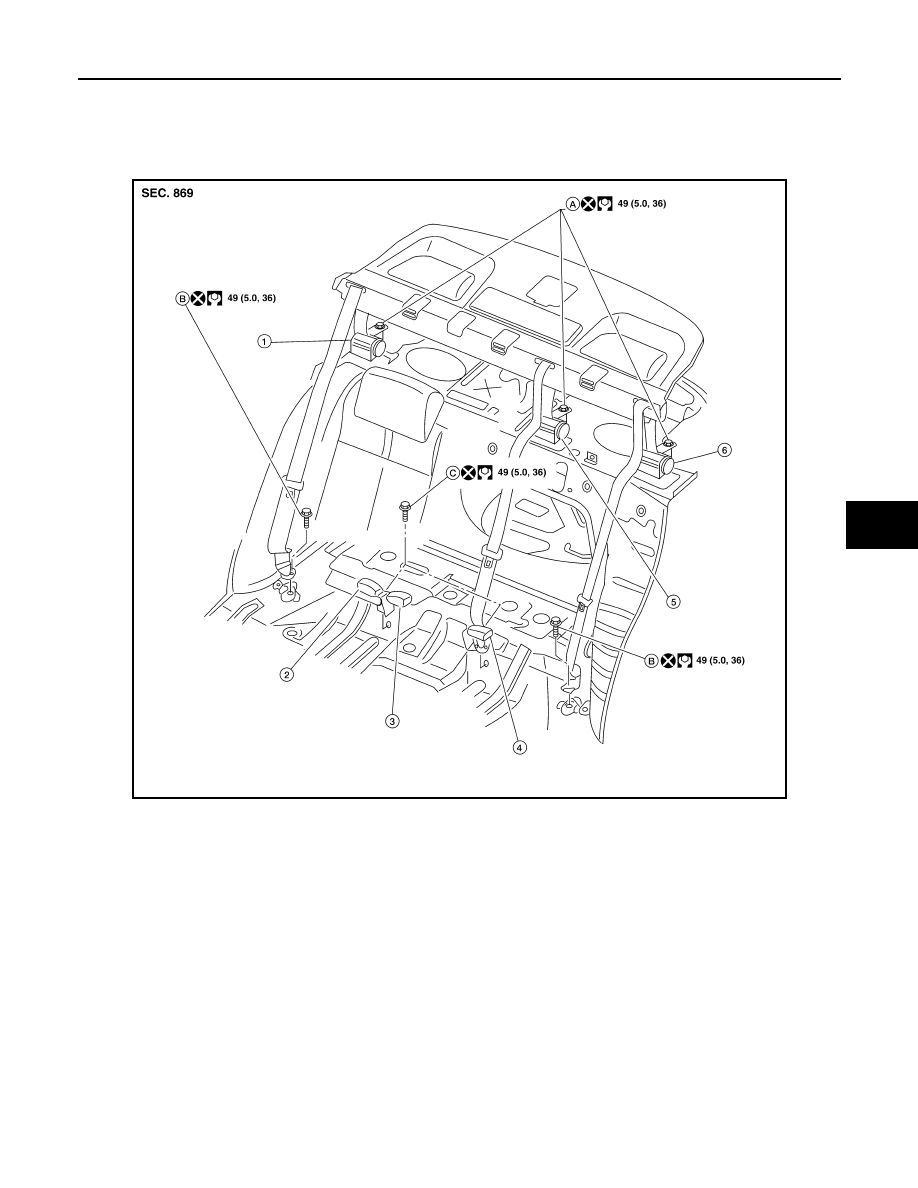

1.

Seat belt retractor RH

2.

Seat belt buckle RH

3.

Seat belt buckle center

4.

Seat belt buckle LH

5.

Seat belt retractor center

6.

Seat belt retractor LH

A.

Retractor anchor bolt

B.

Outer anchor bolt

C.

Buckle anchor bolt

SB-12

< ON-VEHICLE REPAIR >

REAR SEAT BELT

Coupe Models

Removal and Installation

INFOID:0000000004205519

REMOVAL OF SEAT BELT RETRACTOR (SEDAN)

1. Remove the rear seat cushion. Refer to

SE-53, "Removal and Installation"

.

2. Remove the outer anchor bolt.
3. Remove the rear parcel shelf finisher. Refer to

INT-38, "Removal and Installation"

.

4. Remove retractor anchor bolt, then remove seat belt retractor.

INSTALLATION OF SEAT BELT RETRACTOR (SEDAN)

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system in functioning within specifications. Refer to

SB-4, "Inspection"

.

REMOVAL OF SEAT BELT RETRACTOR (COUPE OUTER)

1. Remove the rear seat cushion and seat back. Refer to

SE-25, "Removal and Installation"

.

2. Remove upper pillar finisher and rear lower finisher. Refer to

INT-15, "Removal and Installation"

.

ALHIA0073GB

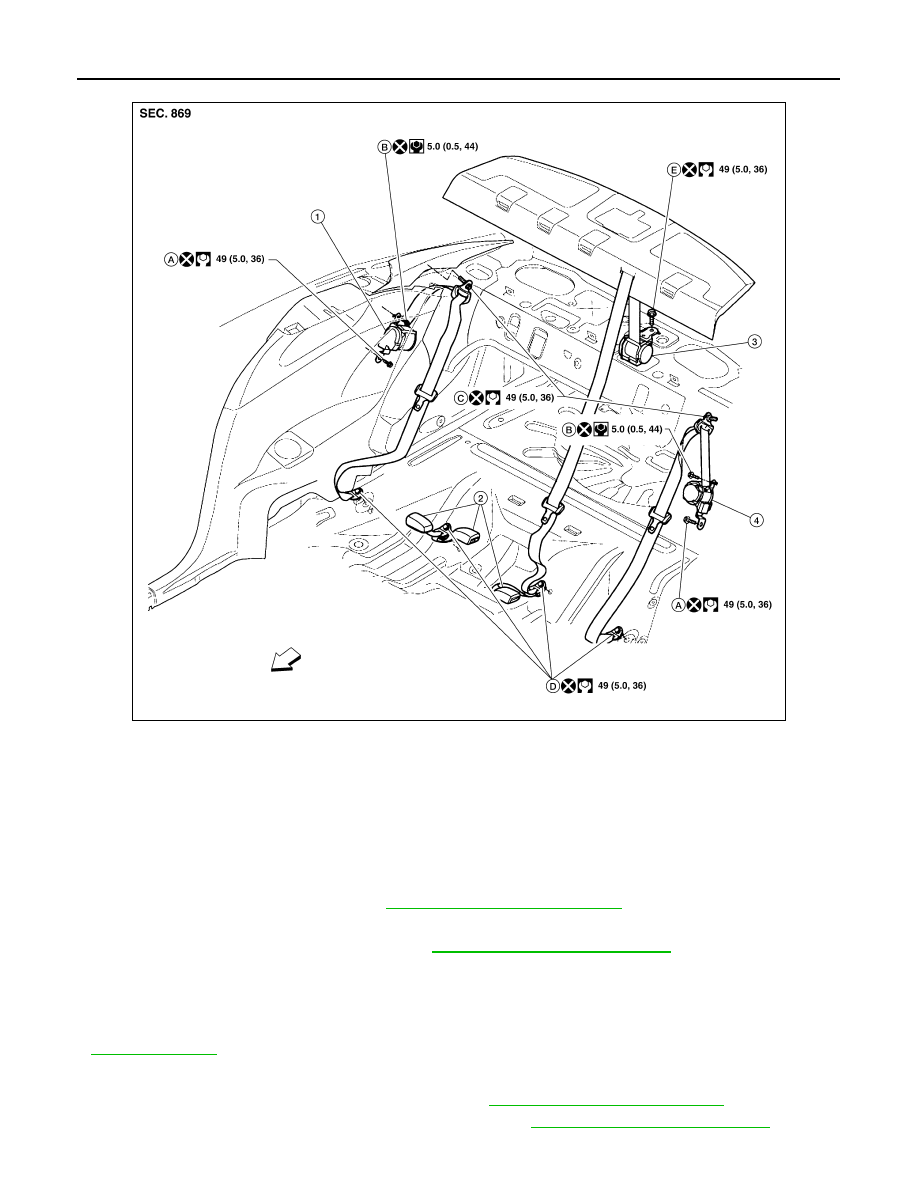

1.

Seat belt retractor outer RH

2.

Seat belt buckle

3.

Seat belt retractor center

4.

Seat belt retractor outer LH

A.

Retractor anchor bolt

B.

Retractor screw

C.

D-ring anchor bolt

D.

Anchor bolt

E.

Retractor anchor bolt center

⇐

Vehicle front
