Nissan Altima L32. Manual - part 1181
RF-66
< ECU DIAGNOSIS >
SUNROOF SYSTEM
SUNROOF SYSTEM
Reference Value
INFOID:0000000004205542

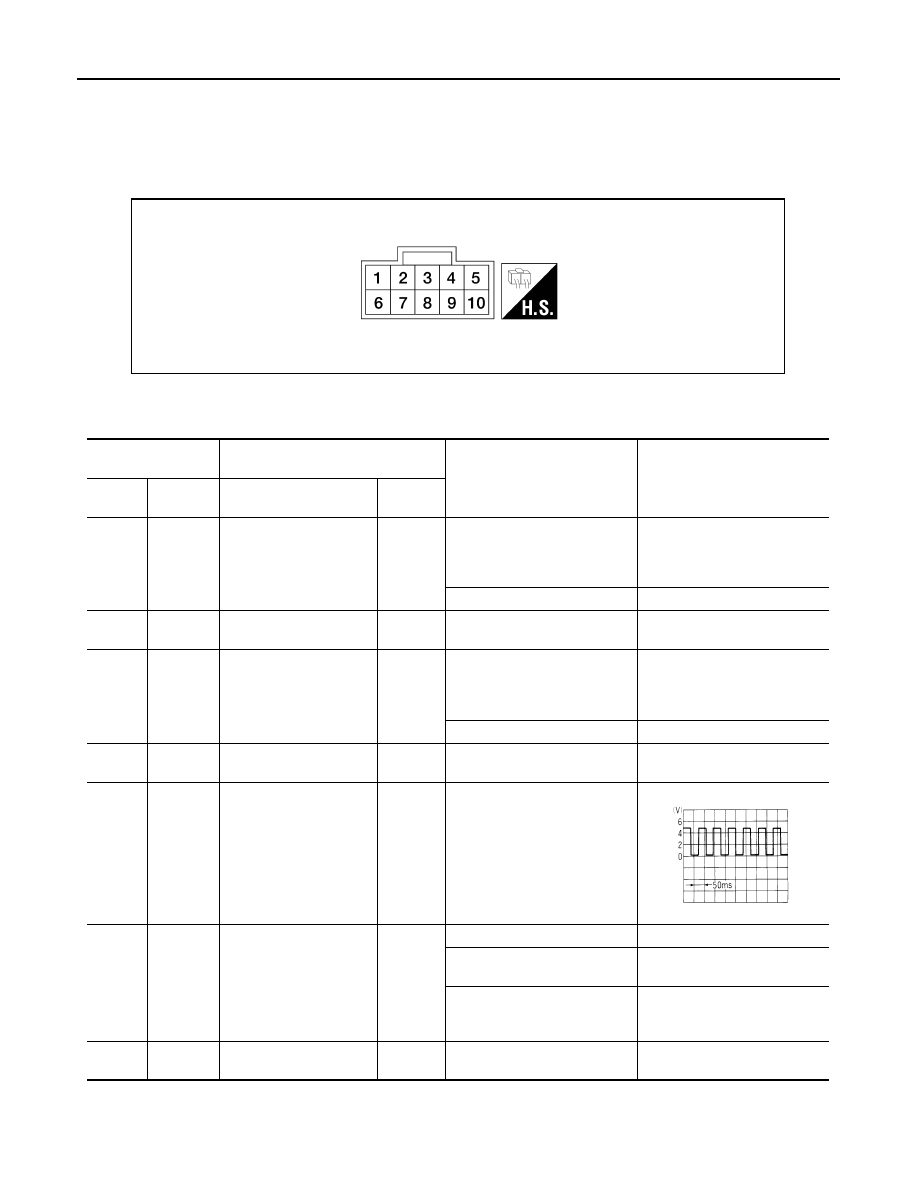

TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1344E
Terminal No.
(Wire color)
Description
Condition
Voltage (V)
(Approx.)
+
-
Signal name
Input/
Output
1
(G)
Ground
Sunroof close switch (BIT
1) signal
Input
Sunroof switch in following posi-
tion
• TILT UP
• SLIDE CLOSE
0
Other than above
Battery voltage
2
(B)
Ground
Ground
—
—
0
5
(Y)
Ground
Sunroof open switch (BIT
0) signal
Input
Sunroof switch in following posi-
tion
• TILT DOWN
• SLIDE OPEN
0
Other than above
Battery voltage
7
(R/Y)
Ground
Sunroof power supply
Input
—
Battery voltage
8
(L/B)
Ground
Vehicle speed signal (2-
pulse)
Input
Speedometer operated [When
vehicle speed is approx.40km/ h
(25MPH)]
9
(L/W)
Ground
RAP signal
Input
Ignition switch ON
Battery voltage
Within 45 second after ignition
switch is turned to OFF.
Battery voltage
When driver side or passenger
side door is opened during re-
tained power operation.
0
10
(R)
Ground
Ground
—
—
0
ELF1080D
