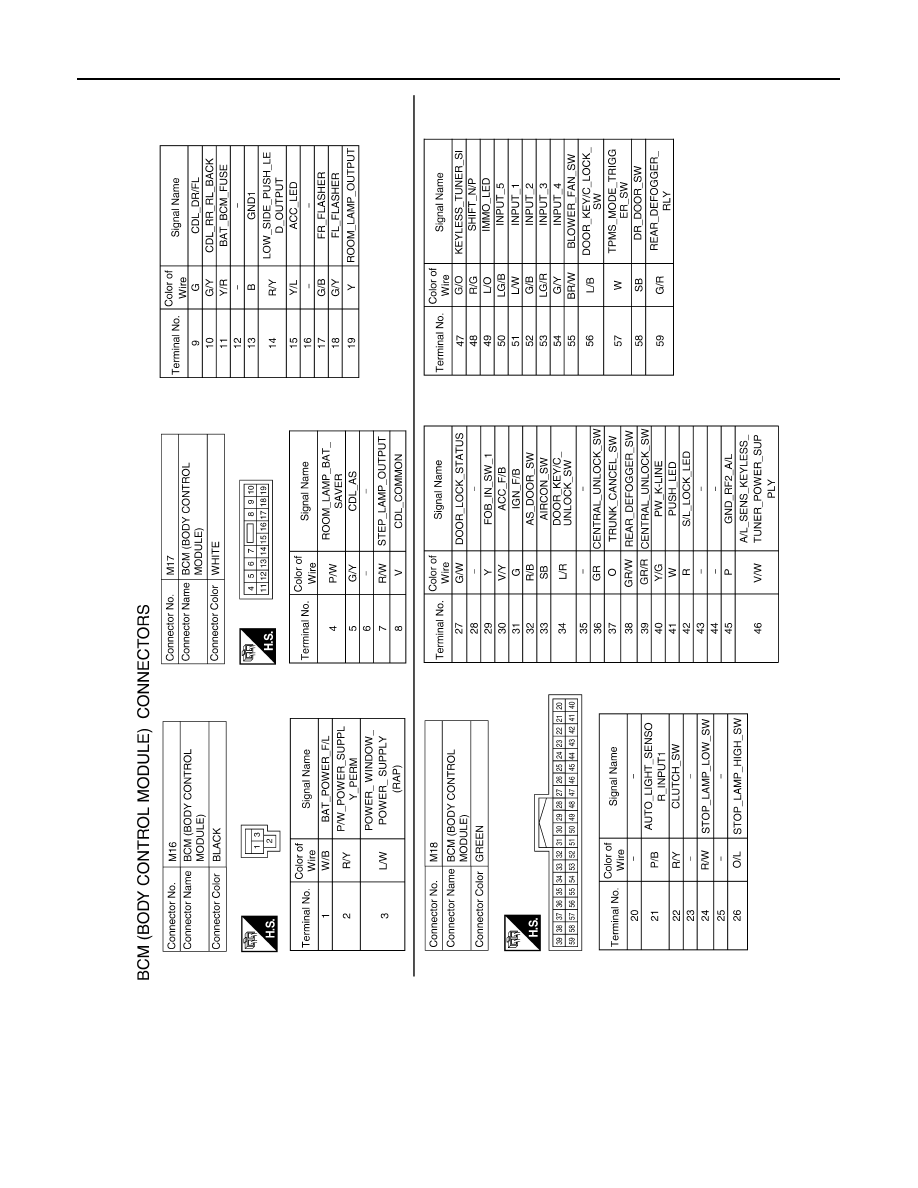

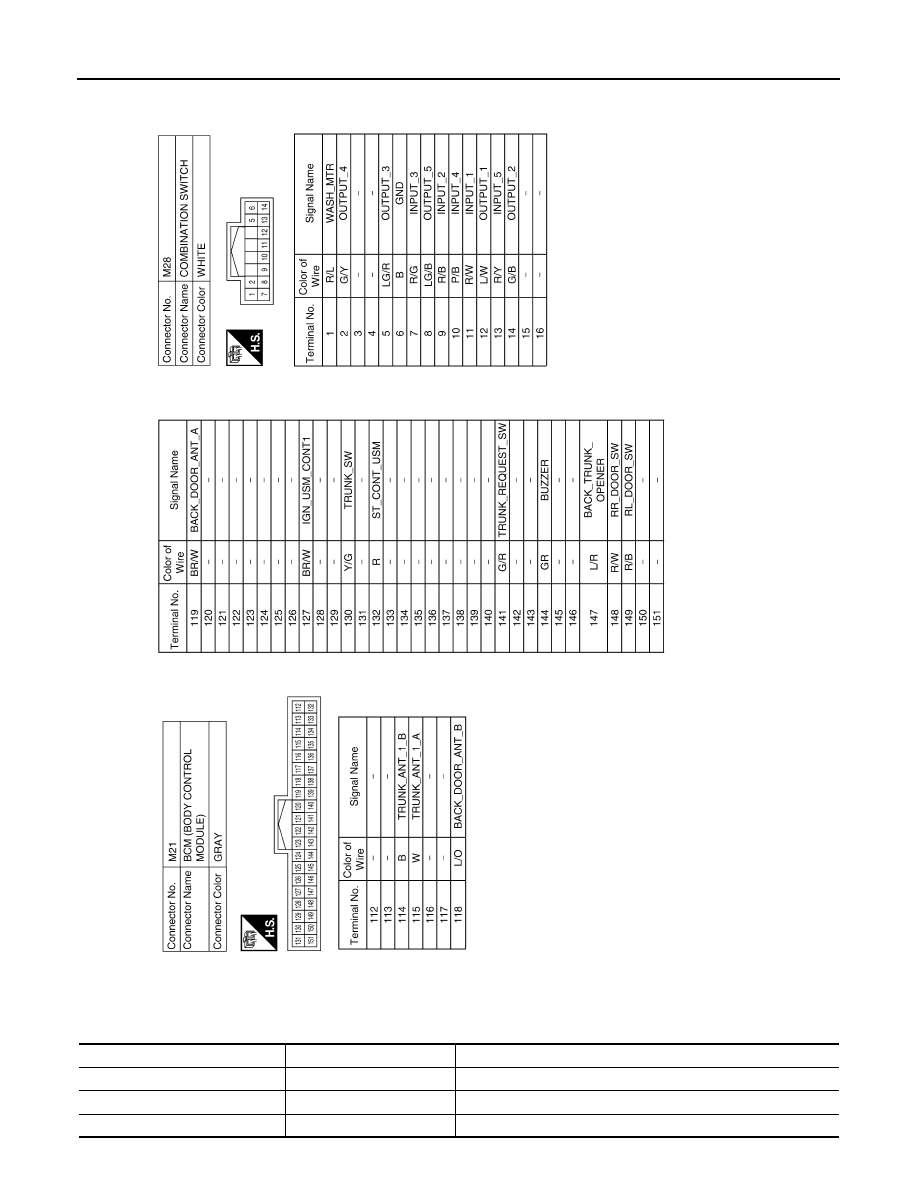

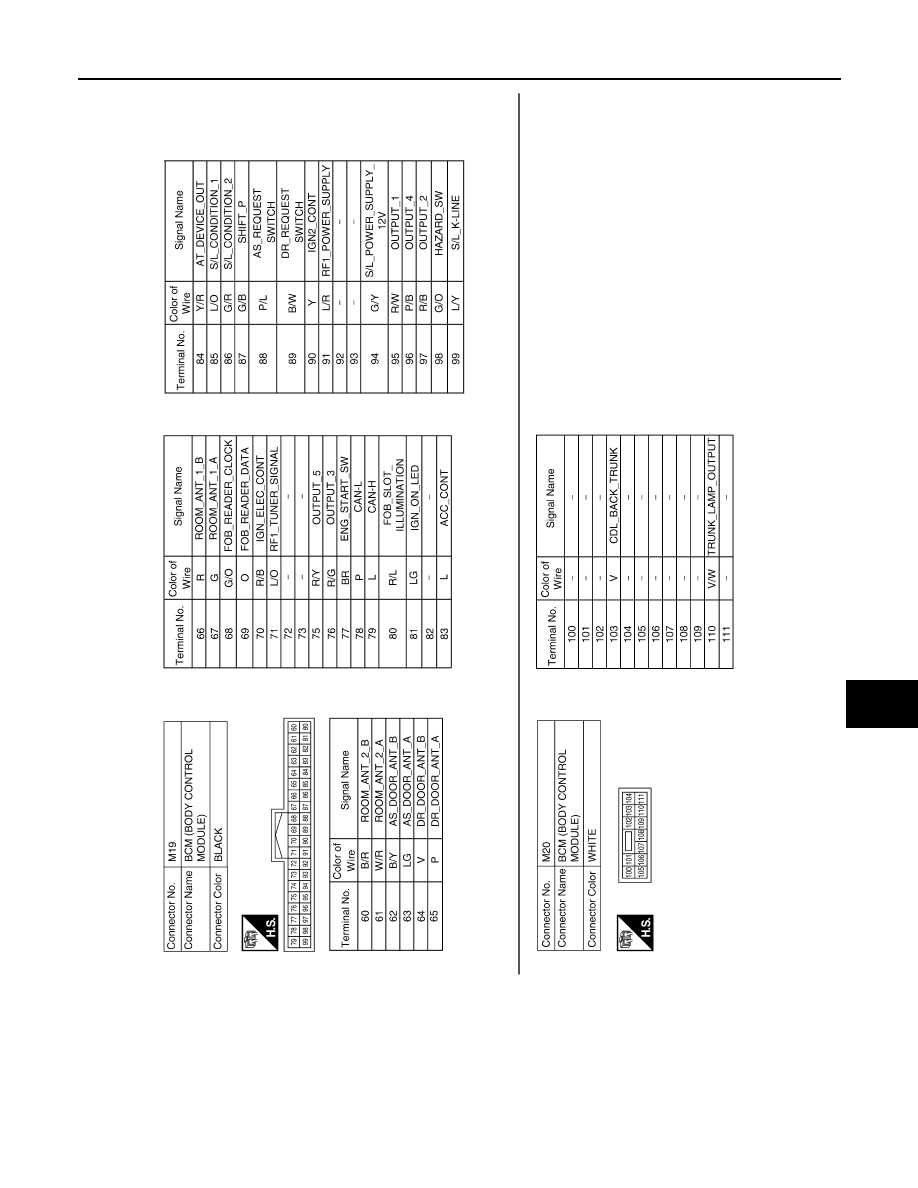

BCM (BODY CONTROL MODULE)

AWMIA0292GB

BCM (BODY CONTROL MODULE)

RF-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AWMIA0293GB

RF-60

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000004494660

AWMIA0294GB

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTTENA AMP

Inhibit engine cranking

Erase DTC

BCM (BODY CONTROL MODULE)

RF-61

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI-SCANNING

Inhibit engine cranking

Erase DTC

B2557: VEHICLE SPEED

Inhibit electronic steering
column lock

When normal vehicle speed signals have been received from ABS
actuator and electric unit (control unit) for 500 ms

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Starter control relay signal
• Starter relay status signal

B2562: LO VOLTAGE

• Inhibit engine cranking
• Inhibit electronic steering

column lock

100 ms after the power supply voltage increases to more than 8.8 V

B2563: HI VOLTAGE

• Inhibit engine cranking
• Inhibit electronic steering

column lock

500 ms after the power supply voltage decreases to less than 18 V

B2601: SHIFT POSITION

Inhibit electronic steering
column lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit electronic steering
column lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 /h or more

B2603: SHIFT POSI STATUS

Inhibit electronic steering
column lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit electronic steering
column lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit electronic steering
column lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

B2606: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Electronic steering column lock relay signal (Request signal)
• Electronic steering column lock relay signal (Condition signal)

Display contents of CONSULT

Fail-safe

Cancellation
