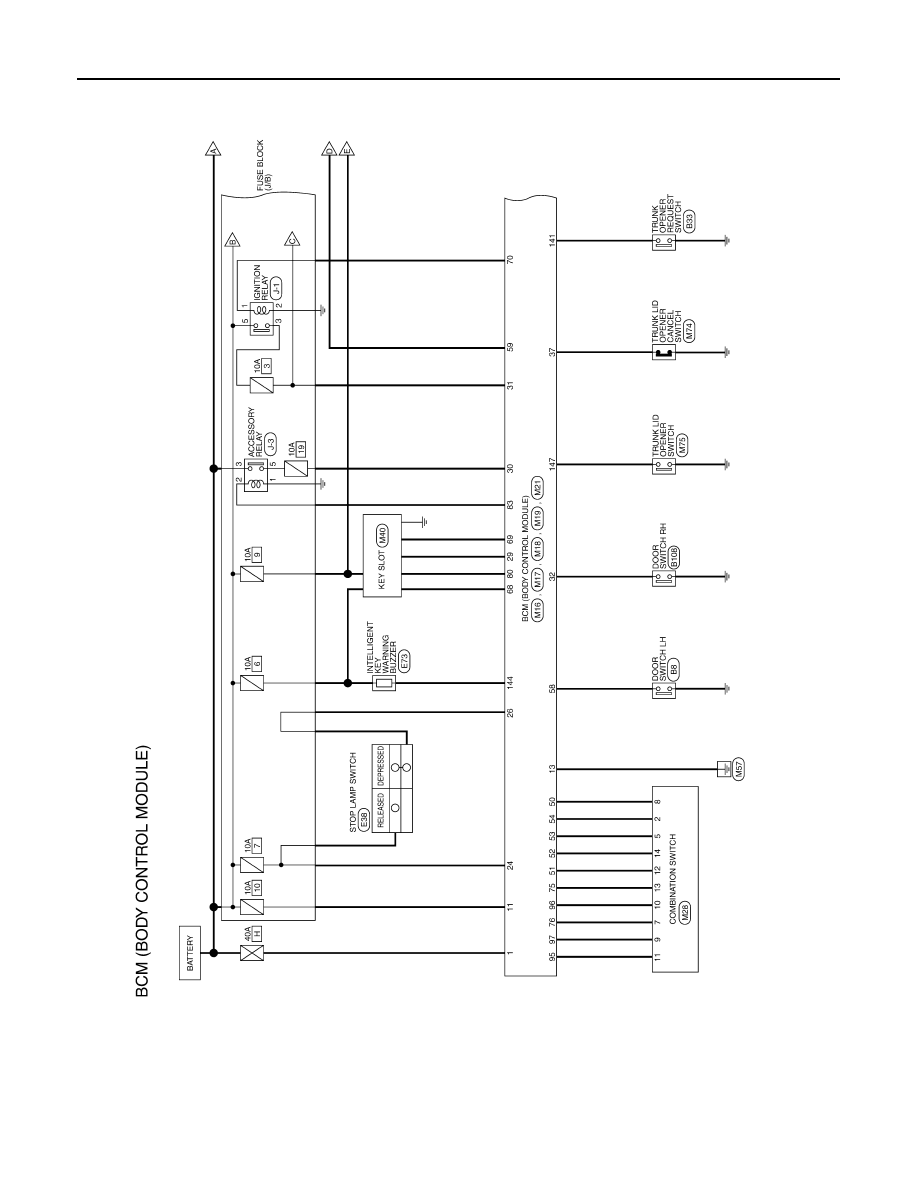

BCM (BODY CONTROL MODULE)
PWC-263
< ECU DIAGNOSIS >
[LH&RH FRONT ANTI-PINCH-COUPE]
C
D
E
F
G
H
I
J
L
M
A
B
PWC
N
O
P
1: Sedan only
2: With LH front window anti-pinch
3: With LH and RH front window anti-pinch
4: With Intelligent Key
5: Without Intelligent Key
149
1
(R/B)
Ground Rear door LH switch
Input
Rear door LH
switch
OFF (when rear door LH
closes)
11.8V
ON (when rear door LH
opens)
0V
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
Signal name
Input/
Output
(+)
(-)
JPMIA0011GB
