ANTENNA AMP.

ANTENNA AMP.

Removal and Installation - Coupe

INFOID:0000000004206513

REMOVAL

1. Remove the rear pillar finisher RH. Refer to

INT-20, "Exploded View"

.

2. Detach the antenna amp harness clip (B), disconnect the

antenna amp connectors (A), remove the antenna amp screw

(C) and remove the antenna amp (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206514

REMOVAL

1. Remove the rear pillar finisher RH. Refer to

INT-42, "Exploded View"

.

2. Partially remove the side curtain air bag module RH to gain access to the antenna amp. Refer to

SR-12,

"Removal and Installation"

.

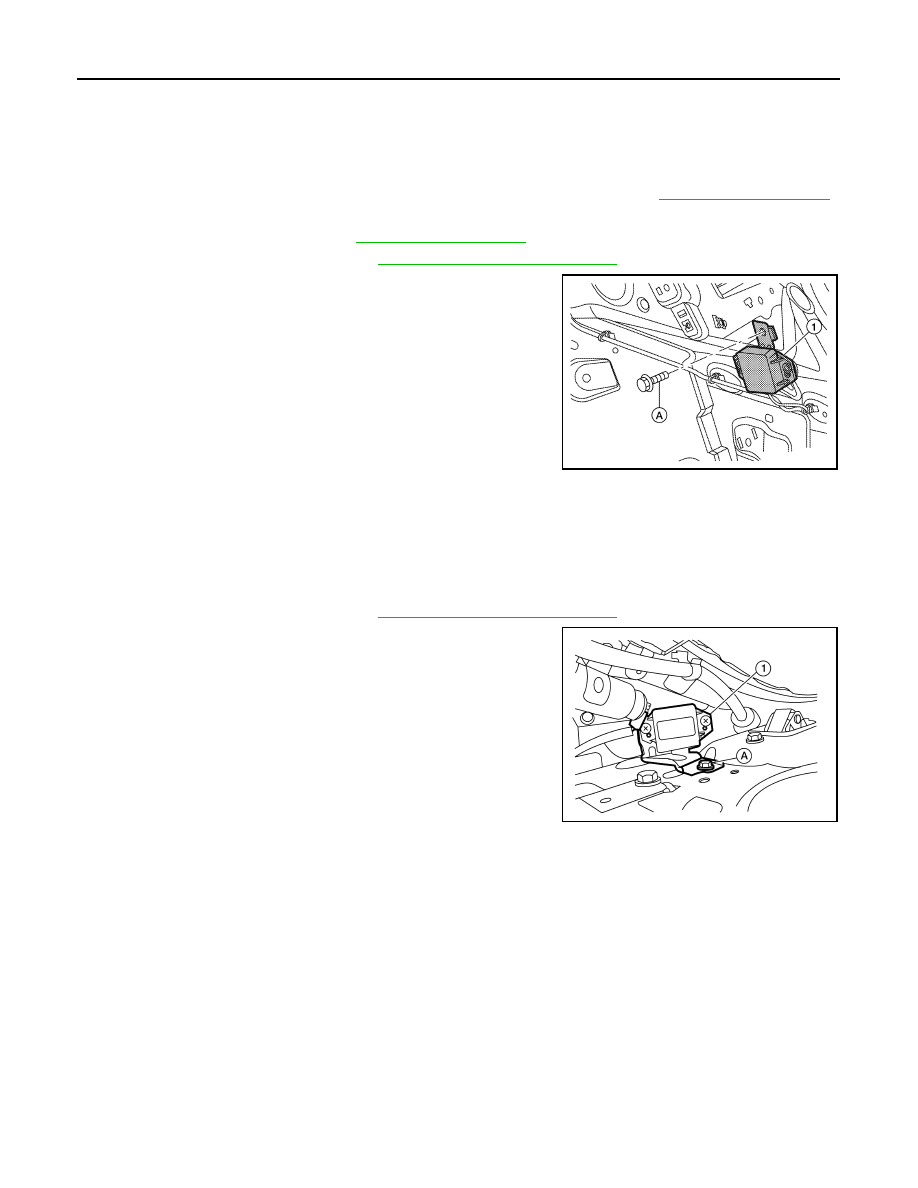

3. Detach the antenna amp harness clip (A), disconnect the

antenna amp connectors (B), remove the antenna amp screw

(C) and remove the antenna amp (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0917ZZ

ALNIA0043ZZ

AV

MICROPHONE

AV-233

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000004498155

REMOVAL

1. Remove the room/map lamp assembly. Refer to

INL-121, "Removal and Installation"

.

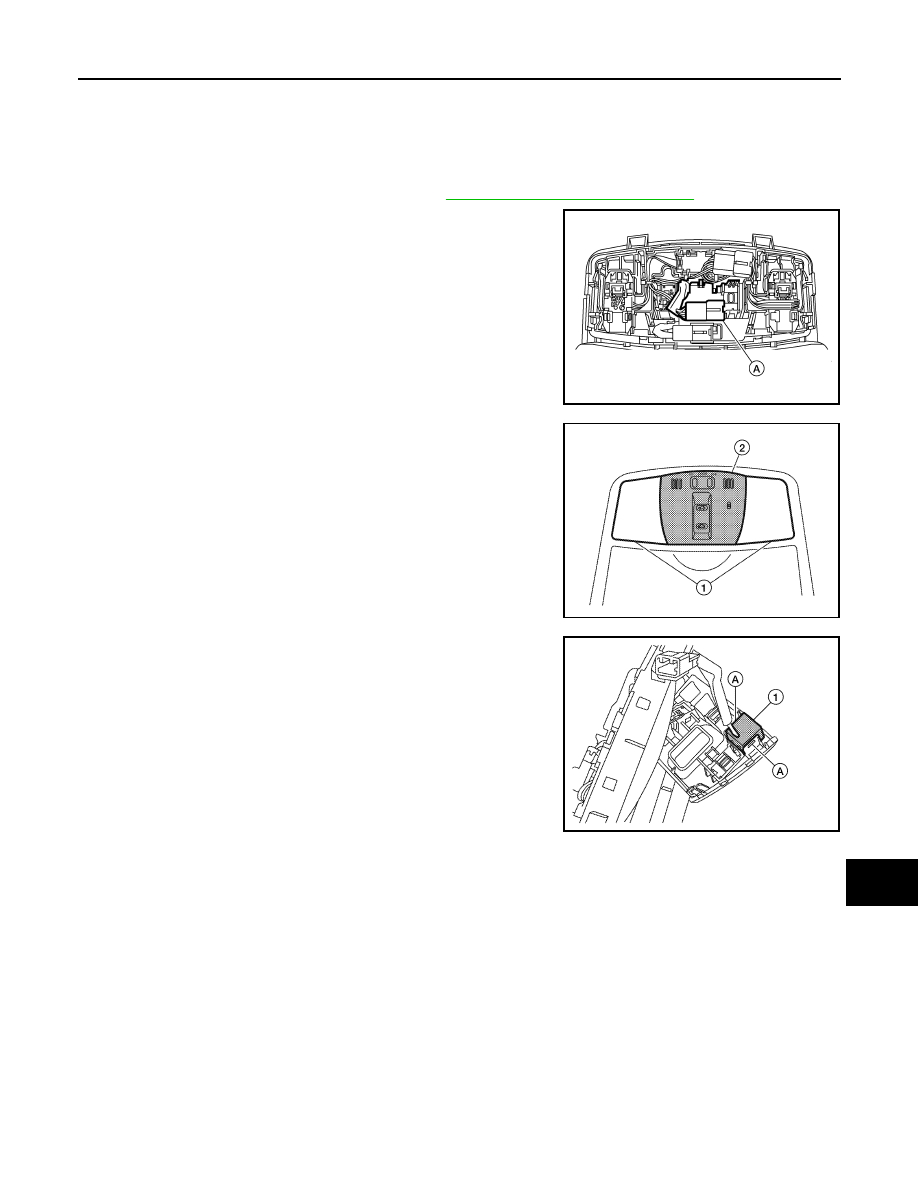

2. Detach the microphone connector (A).

3. Remove the map lamp covers (1), then remove the map lamp

assembly cover (2).

4. Release the microphone tabs (A), then remove the microphone

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0928ZZ

ALNIA0929ZZ

ALNIA0930ZZ

AV-234

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ANTENNA

TEL ANTENNA

Removal and Installation - Coupe

INFOID:0000000004206517

REMOVAL

1. Remove the trunk front finisher, trunk floor carpet and spare tire cover. Refer to

INT-22, "Exploded View"

.

2. Remove the LH trunk floor spacer.
3. Remove the rear pillar LH. Refer to

INT-20, "Exploded View"

.

4. Remove the rear parcel shelf. Refer to

INT-17, "Removal and Installation"

.

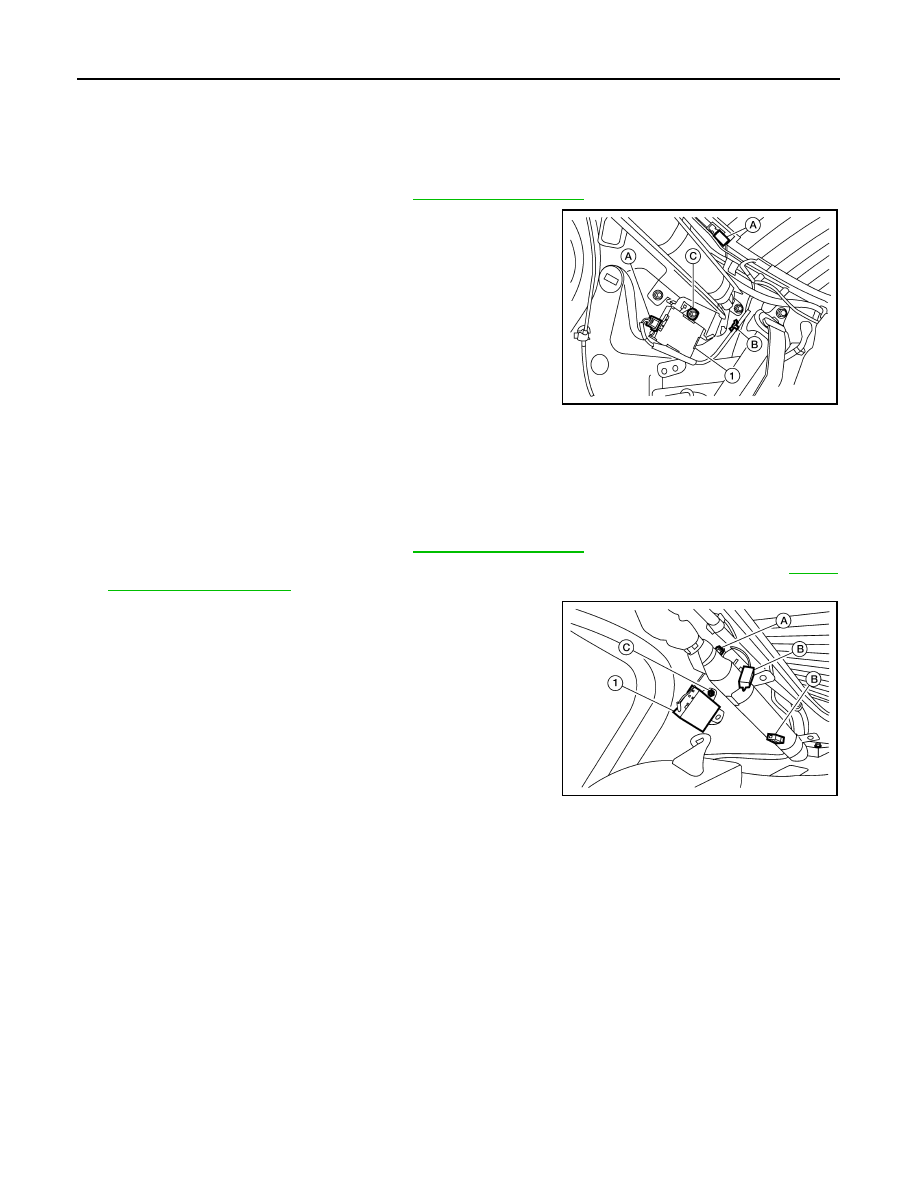

5. Remove the Bluetooth antenna screw (A), then detach the Blue-

tooth antenna harness clips, disconnect the Bluetooth antenna

connector and remove the Bluetooth antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206518

REMOVAL

1. Remove the rear parcel shelf. Refer to

INT-38, "Removal and Installation"

.

2. Remove the Bluetooth antenna screw (A), fold down the rear

seat, disconnect the Bluetooth antenna connector and remove

the Bluetooth antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0921ZZ

ALNIA0058ZZ

AV

BLUETOOTH CONTROL UNIT

AV-235

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation - Coupe

INFOID:0000000004206519

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the trunk floor carpet and spare tire cover. Refer to

INT-22, "Exploded View"

.

3. Remove the LH trunk floor spacer.

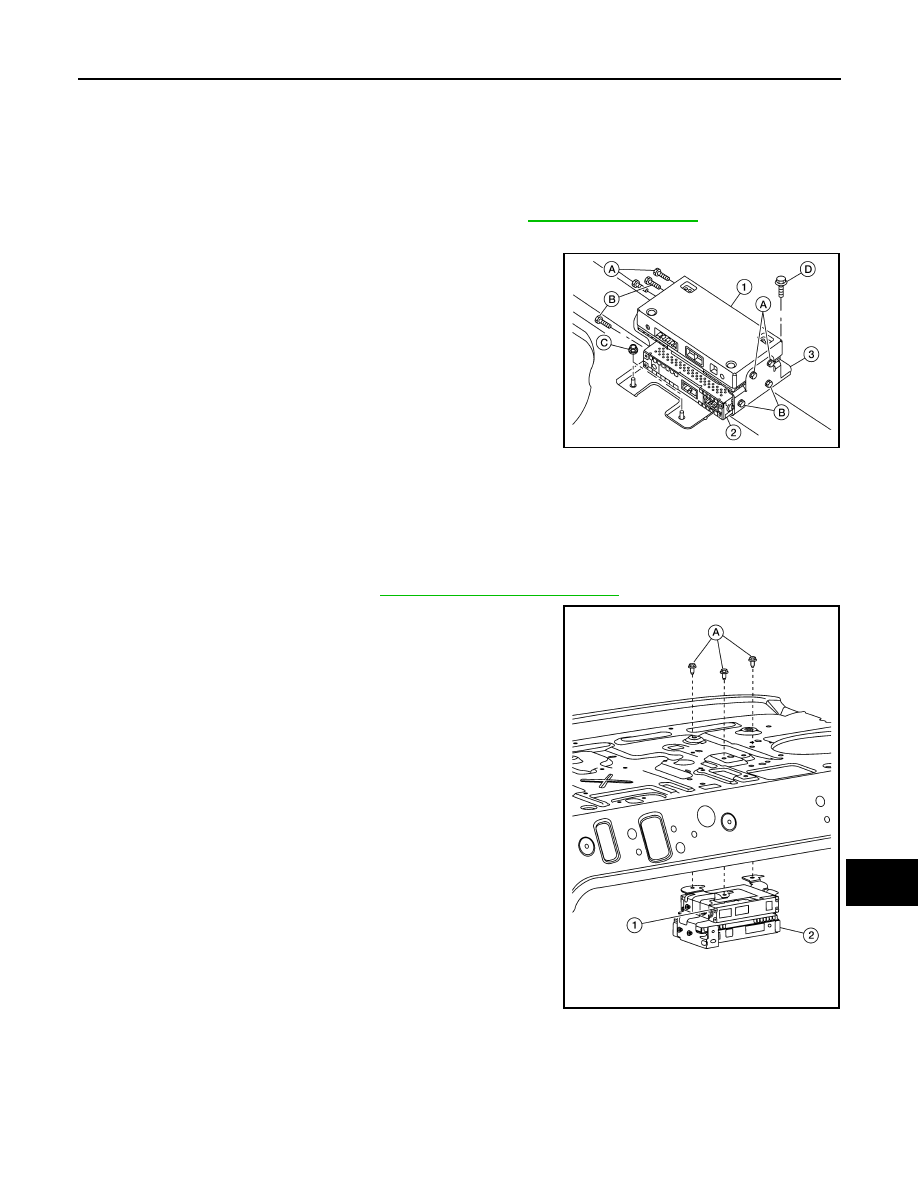

4. Remove the Bluetooth control unit screws (A), disconnect the

Bluetooth control unit connectors and remove the Bluetooth con-

trol unit (1).

• Satellite radio tuner (2)

• Satellite radio tuner screws (B)

• Satellite radio tuner bracket (3)

• Satellite radio tuner bracket nuts (C)

• Satellite radio tuner bracket screw (D)

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206520

REMOVAL

1. Remove the rear parcel shelf. Refer to

INT-38, "Removal and Installation"

.

2. Remove the Bluetooth control unit screws (A), disconnect the

Bluetooth control unit connectors and remove the Bluetooth con-

trol unit (2).

• Satellite radio tuner (1)

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0920ZZ

ALNIA0055ZZ
