SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000004523223

REMOVAL

1. Lower the headliner at the rear. Refer to

INT-20, "Removal and Installation"

 (coupe) and

INT-42,

"Removal and Installation"

 (sedan).

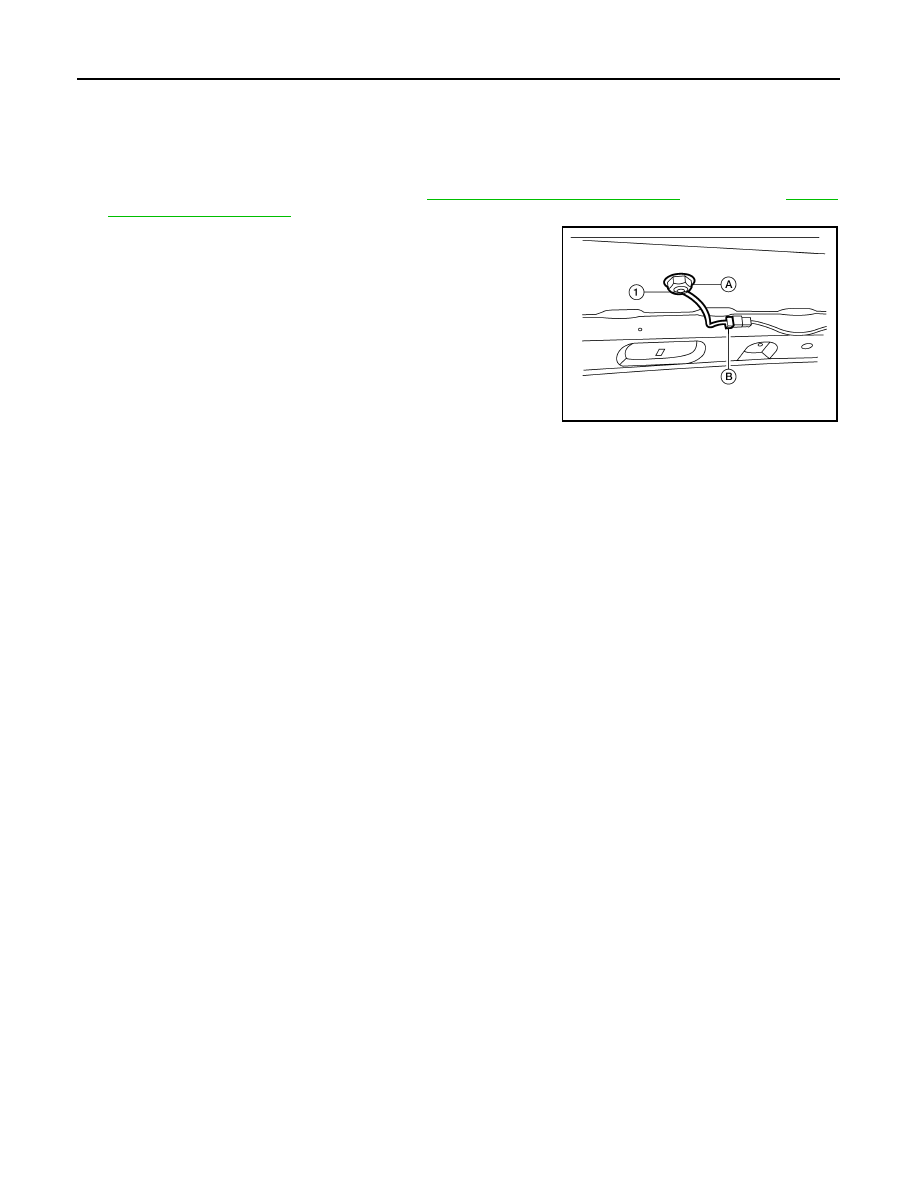

2. Remove the satellite radio antenna nut (A), then disconnect the

satellite radio antenna connector (B) and remove the satellite

radio antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0056ZZ

AV

STEERING SWITCH

AV-225

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000004206508

REMOVAL

1. Remove the driver airbag module. Refer to

SR-5, "Removal and Installation"

.

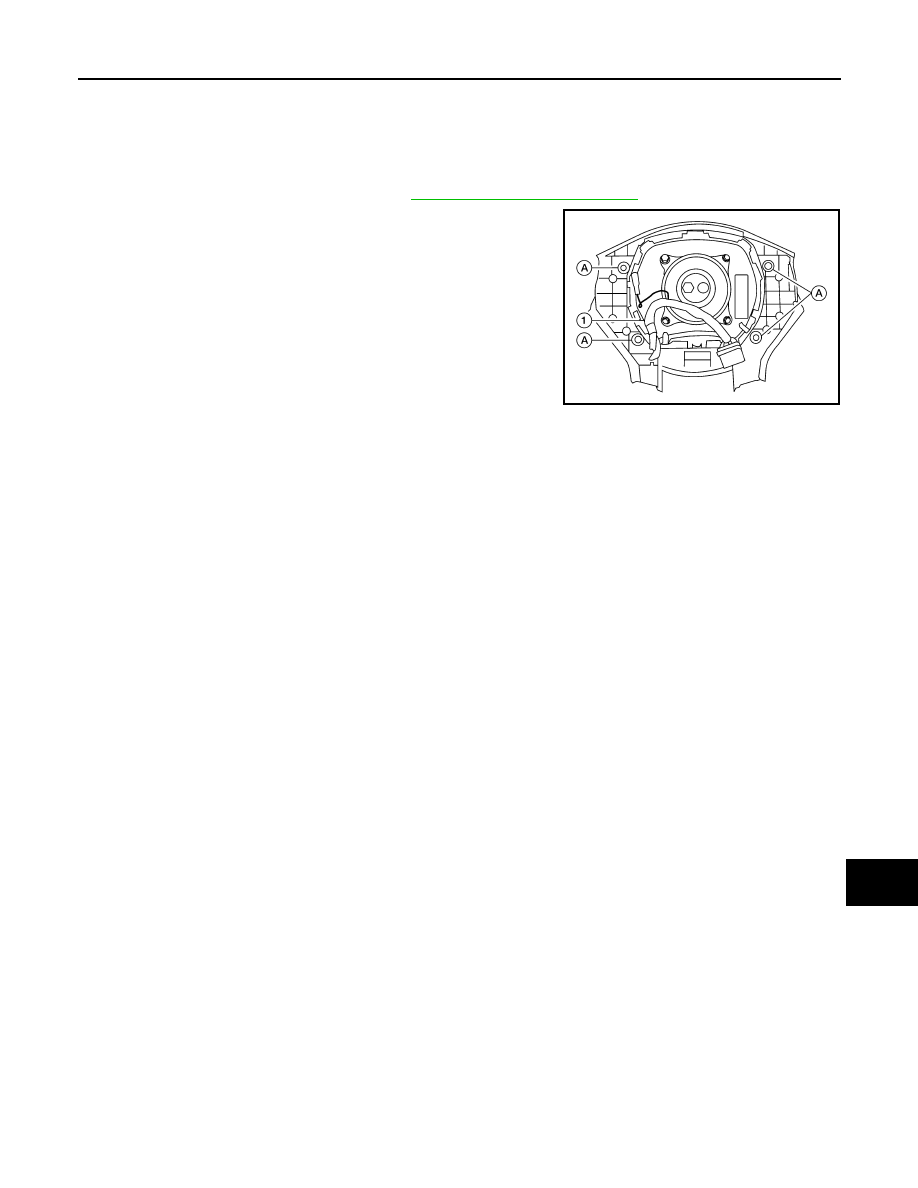

2. Remove the steering wheel switch assembly screws (A), then

remove the steering wheel switches (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0045ZZ

AV-226

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO ANTENNA (COUPE)

AUDIO ANTENNA (COUPE)

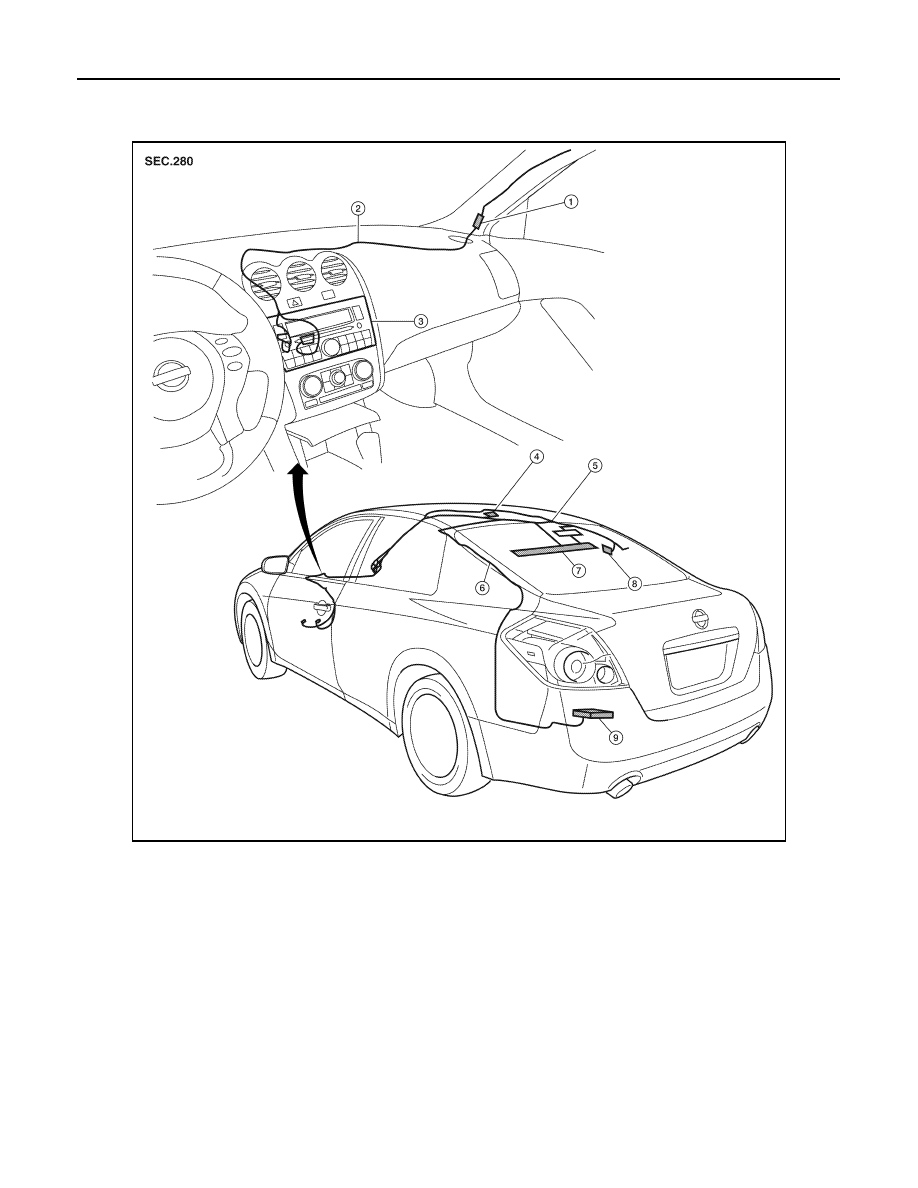

Location of Antenna

INFOID:0000000004206509

Window Antenna Repair

INFOID:0000000004206510

ELEMENT CHECK

AWNIA0748ZZ

1.

In-line connectors M87, M501

2.

Audio unit harness

3.

Audio unit

4.

Satellite antenna

5.

Audio antenna feeder

6.

Satellite radio antenna feeder

7.

Window Antenna

8.

Antenna amp.

9.

Satellite radio tuner

AV

AUDIO ANTENNA (COUPE)

AV-227

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

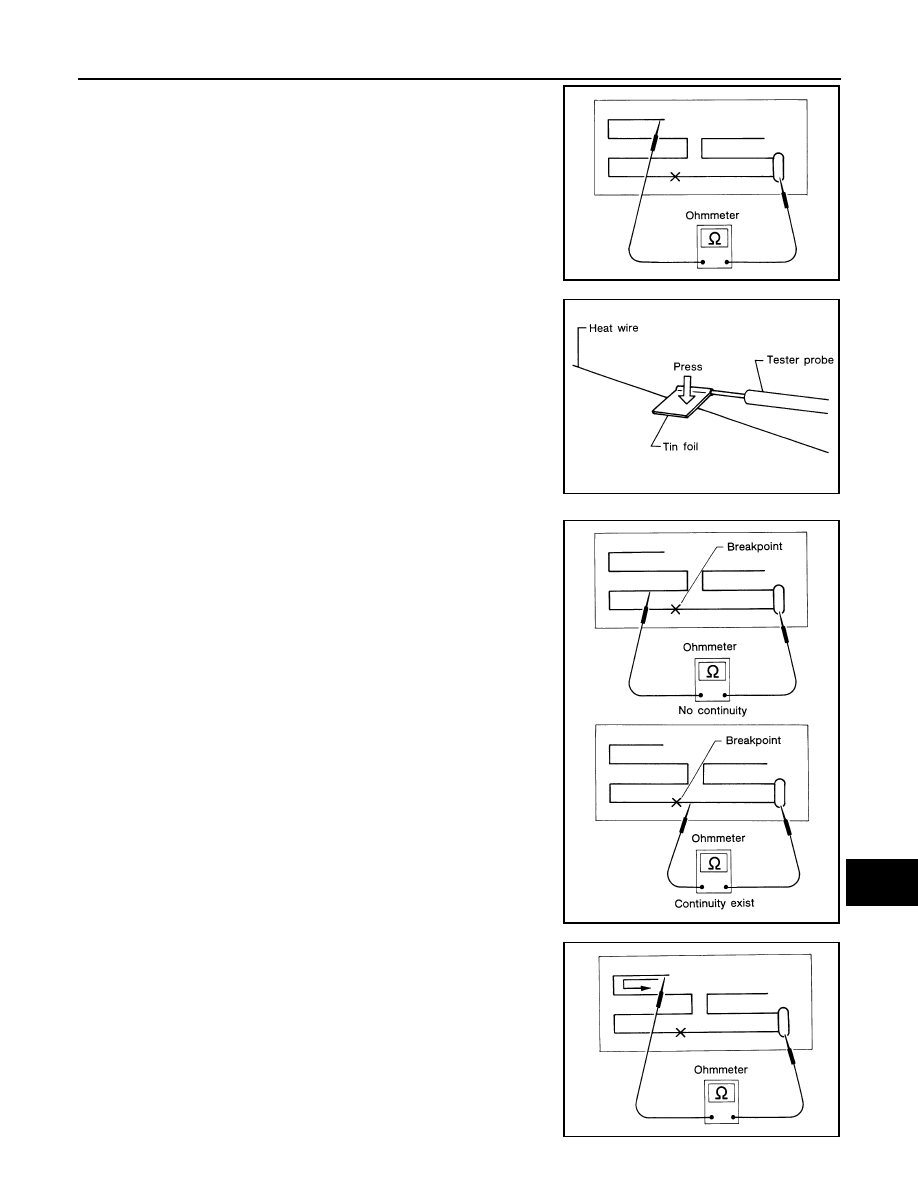

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL250I

SEL122R

SEL252I

SEL253I
