Nissan Titan. Manual - part 574

ST-32

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Power Steering Gear

INFOID:0000000009883518

Power Steering Oil Pump

INFOID:0000000009883519

Power Steering Fluid

INFOID:0000000009883520

Steering gear model

PR26AM

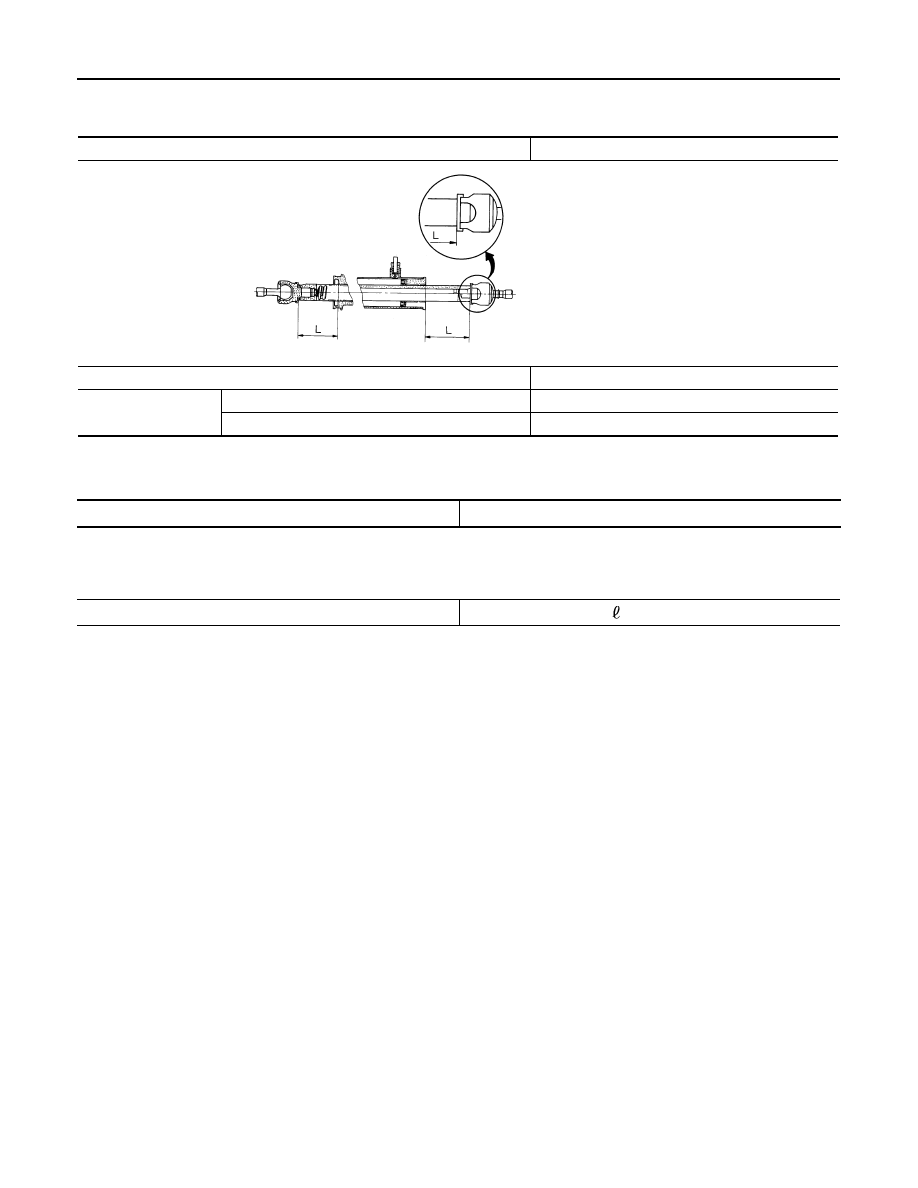

Rack neutral position, dimension (L) (rack stroke)

85.5 mm (3.36 in)

Rack sliding force

Standard

308

± 45 N (31.4 ± 4.6 kg-f, 69.2 ± 10.1 lb-f)

Service limit (Minimum)

240 N (24.5 kg-f, 54.0 lb-f)

STC0034D

Relief oil pressure

9.0

− 9.8 mPa (91.77 − 99.93 kg/cm

2

, 1305.34

− 1421.37 psi)

Power steering fluid capacity

Approx. 1.0   (1-1/8 US qt, 7/8 Imp qt)
