Nissan Titan. Manual - part 449

IP-22

< UNIT DISASSEMBLY AND ASSEMBLY >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Assembly is in the reverse order of disassembly.

CENTER CONSOLE ASSEMBLY

IP-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

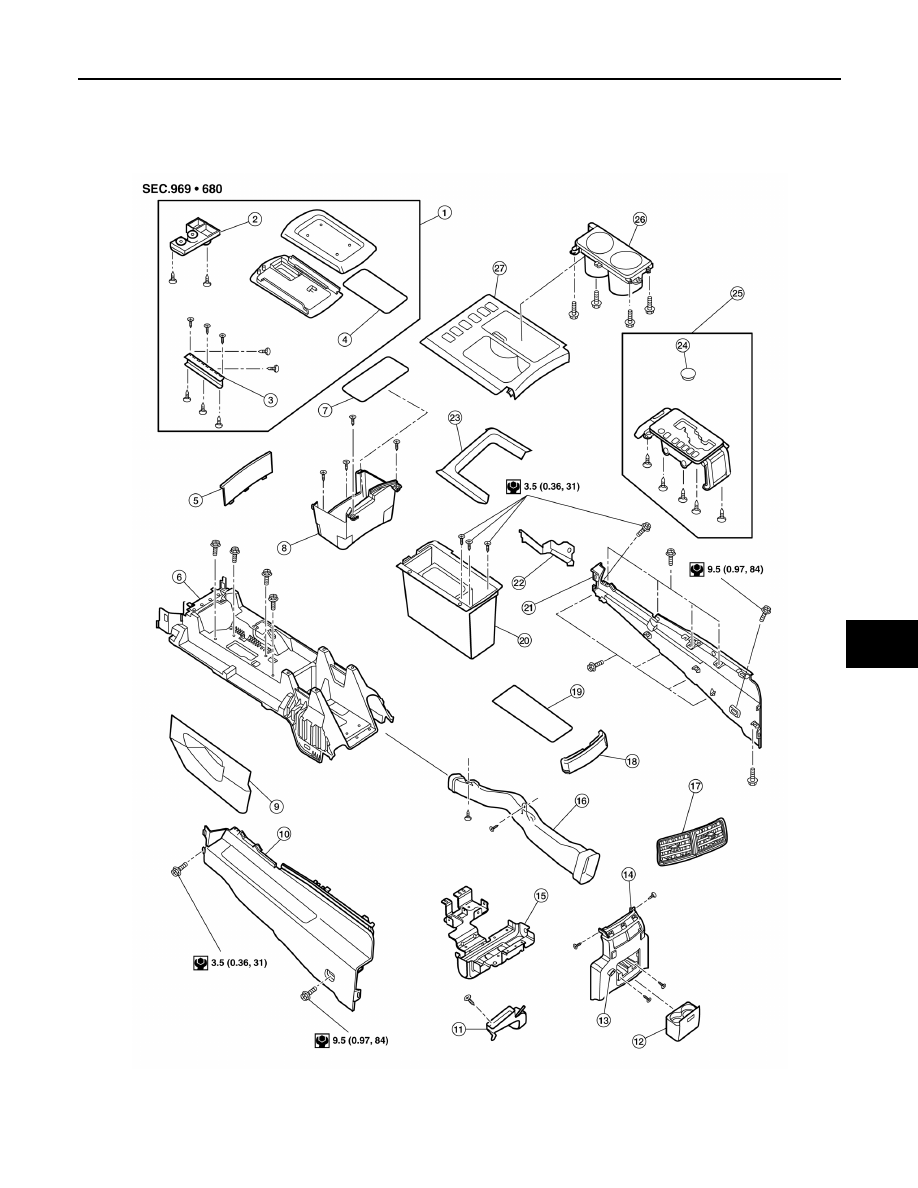

Exploded View

INFOID:0000000009881999

1.

Console lid assembly

2.

Console lid latch

3.

Console lid hinge

4.

Console lid bin mat

5.

Storage compartment mask

6.

Console reinforcement assembly

7.

Storage compartment bin mat

8.

Storage compartment

9.

Center console lower cover LH

AWJIA0940ZZ

IP-24

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

Disassembly and Assembly

INFOID:0000000009882000

DISASSEMBLY

1. Remove center console assembly. Refer to

IP-20, "Removal and Installation"

.

2. Remove latch from console lid.
3. Remove console lid and lid hinge.
4. Release console bin and position as necessary to disconnect the DVD player harness connector (if

equipped), then remove console bin.

5. Remove rear upper finisher.
6. Remove DVD player and brackets from console bin (if equipped).
7. Remove rear cup holder assembly.
8. Release rear finisher assembly and position as necessary to disconnect harness connectors, then

remove rear finisher assembly.

9. Remove console power socket. Refer to

PWO-9, "Removal and Installation"

.

10. Remove storage compartment.
11. Remove heat duct and rear console duct.
12. Remove the console cover screws, then remove console covers RH/LH.
13. Remove console rear bracket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

10. Console cover LH

11. Rear console duct

12. Rear cup holder assembly

13. Console power socket

14. Rear finisher assembly

15. Console rear bracket

16. Heat duct

17. Rear finisher ventilator

18. Rear upper finisher

19. Console bin mat

20. Console bin

21. Console cover RH

22. Center console lower cover RH

23. Console upper finisher

24. A/T shift lock release cover

25. Shift indicator assembly

26. Cup holder insert

27. A/T finisher

LU-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

LU

A

LU

N

O

P

CONTENTS

ENGINE LUBRICATION SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Liquid Gasket .....................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

SYSTEM DESCRIPTION  ..............................

6

LUBRICATION SYSTEM  ....................................

6

Lubrication Circuit  .....................................................

6

Schematic .................................................................

7

PERIODIC MAINTENANCE ..........................

8

ENGINE OIL  ........................................................

8

Inspection ..................................................................

8

Changing Engine Oil  .................................................

9

OIL FILTER  .......................................................

11

Removal and Installation  .........................................

11

REMOVAL AND INSTALLATION ...............

12

OIL COOLER  ....................................................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

OIL PUMP  .........................................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

UNIT DISASSEMBLY AND ASSEMBLY  ....

16

OIL PUMP  .........................................................

16

Disassembly and Assembly .....................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

18

Standard and Limit  ..................................................

18
