IP-18

< REMOVAL AND INSTALLATION >

A/T FINISHER

A/T FINISHER

Removal and Installation

INFOID:0000000009881994

REMOVAL

1. Remove the shift selector handle (1).
a. Push the shift selector handle cover downward and away from

the shift selector handle (1).

b. Rotate the shift selector handle (1) counterclockwise to remove.
2. Pull up on the front console upper finisher (4) to release the

metal clips and remove it from the front center console assem-

bly.

: Metal clip

3. Pull up on the storage compartment mask (3) to release the

pawls and remove it from the front center console assembly.

: Pawl

4. Remove the A/T finisher (2).
a. Pull up on A/T finisher (2) to release the metal clips and access the A/T finisher switch harness connec-

tors.

b. Disconnect A/T finisher switch harness connectors and remove the A/T finisher (2) from the front center

console assembly.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0654ZZ

CENTER CONSOLE

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE

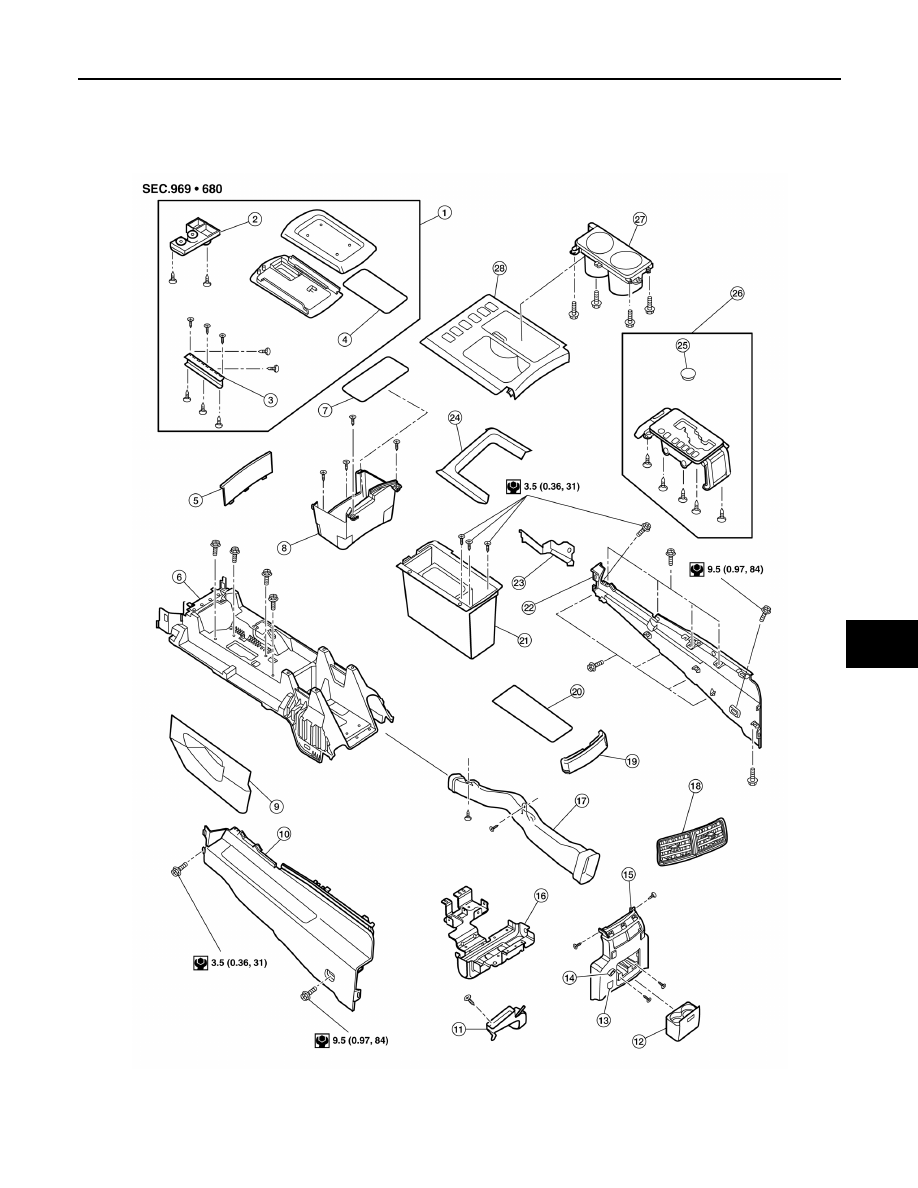

Exploded View

INFOID:0000000009881995

1.

Console lid assembly

2.

Console lid latch

3.

Console lid hinge

4.

Console lid bin mat

5.

Storage compartment mask

6.

Console reinforcement assembly

7.

Storage compartment bin mat

8.

Storage compartment

9.

Center console lower cover LH

AWJIA0951ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE

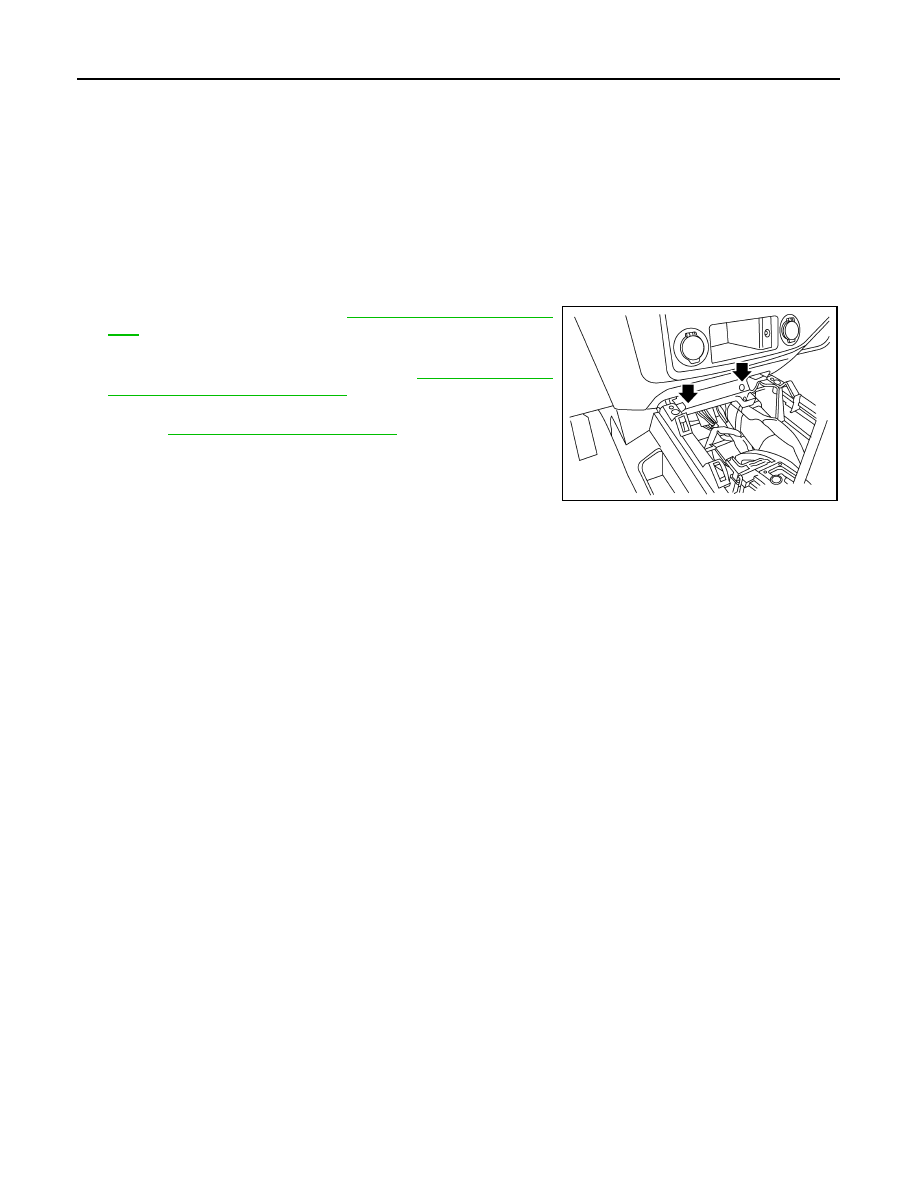

Removal and Installation

INFOID:0000000009881996

REMOVAL

1. Remove the A/T finisher. Refer to

IP-18, "Removal and Installa-

tion"

.

2. Remove the front center console assembly upper screws.
3. Remove shift selector assembly. Refer to

TM-189, "A/T Shift

Selector Removal and Installation"

.

4. Remove instrument lower panel RH and glove box assembly.

Refer to

IP-16, "Removal and Installation"

.

5. Remove center console lower cover RH/LH, then remove front

center console assembly lower screws.

6. Open the console lid assembly and remove console bin mat,

then remove the rear inner screws.

7. Move front seats forward.
8. Remove lower center console assembly screws at the rear.
9. Release center console assembly from floor and tilt to disconnect harness connectors.
10. Carefully remove center console assembly through rear door opening.

CAUTION:

Always use an assistant to steady the center console assembly during removal from vehicle inte-

rior.

INSTALLATION

Installation is in the reverse order of removal.

10. Console cover LH

11. Rear console duct

12. Rear cup holder assembly

13. A/C 120V outlet front

14. Console power socket

15. Rear finisher assembly

16. Console rear bracket

17. Heat duct

18. Rear finisher ventilator

19. Rear upper finisher

20. Console bin mat

21. Console bin

22. Console cover RH

23. Center console lower cover RH

24. Console upper finisher

25. A/T shift lock release cover

26. Shift indicator assembly

27. Cup holder insert

28. A/T finisher

ALJIA0084ZZ

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-21

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

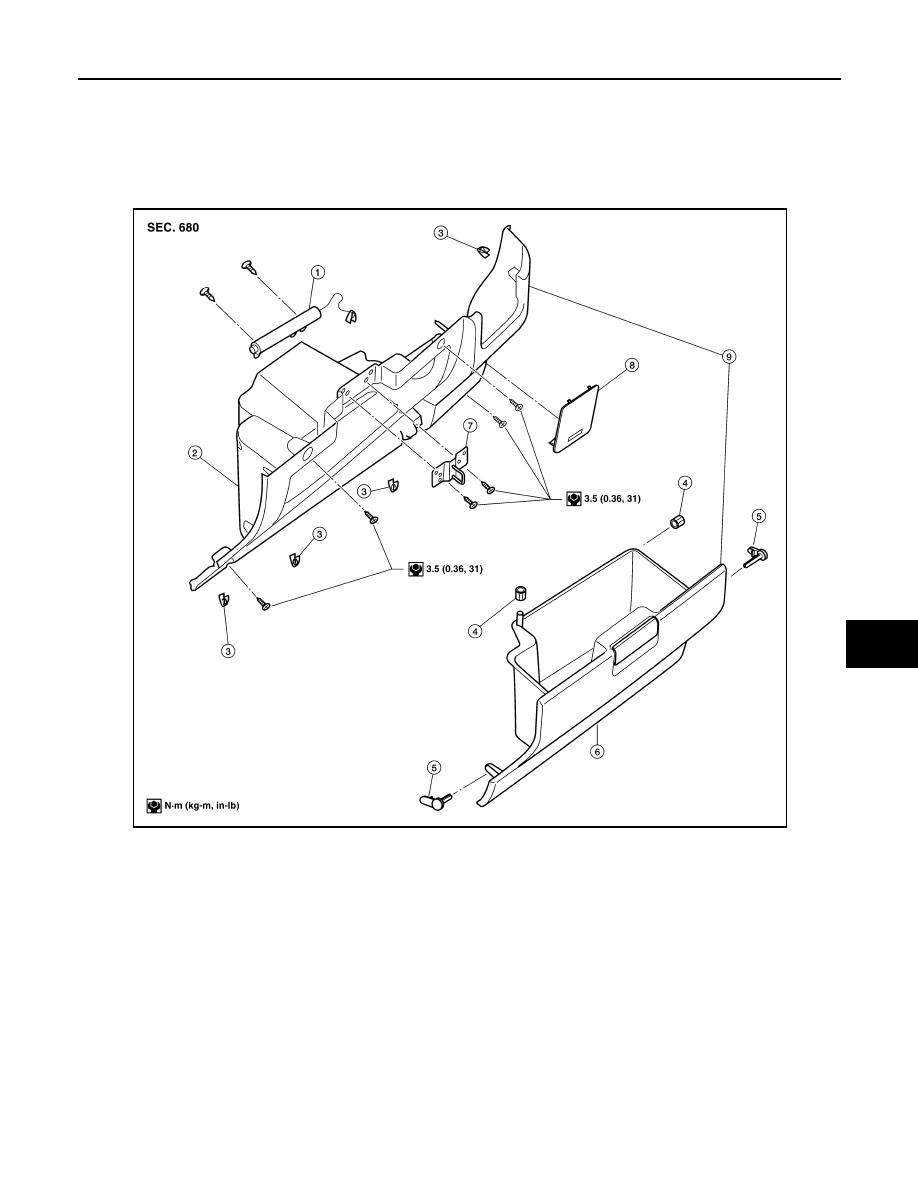

Exploded View

INFOID:0000000009881997

Disassembly and Assembly

INFOID:0000000009881998

DISASSEMBLY

1. Remove damper clip (if equipped) from glove box.
2. Remove glove box pins and glove box.
3. Remove glove box striker screws, using power tool and remove glove box striker.
4. Remove fuse block cover.
5. Remove glove box damper screws and remove glove box damper (if equipped).

ASSEMBLY

1.

Glove box damper (if equipped)

2.

Glove box housing

3.

Clips

4.

Rubber stoppers

5.

Glove box pins

6.

Glove box

7.

Glove box striker

8.

Fuse block cover

9.

Instrument lower panel RH and glove
box assembly
