Nissan Titan. Manual - part 152

DLN-180

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

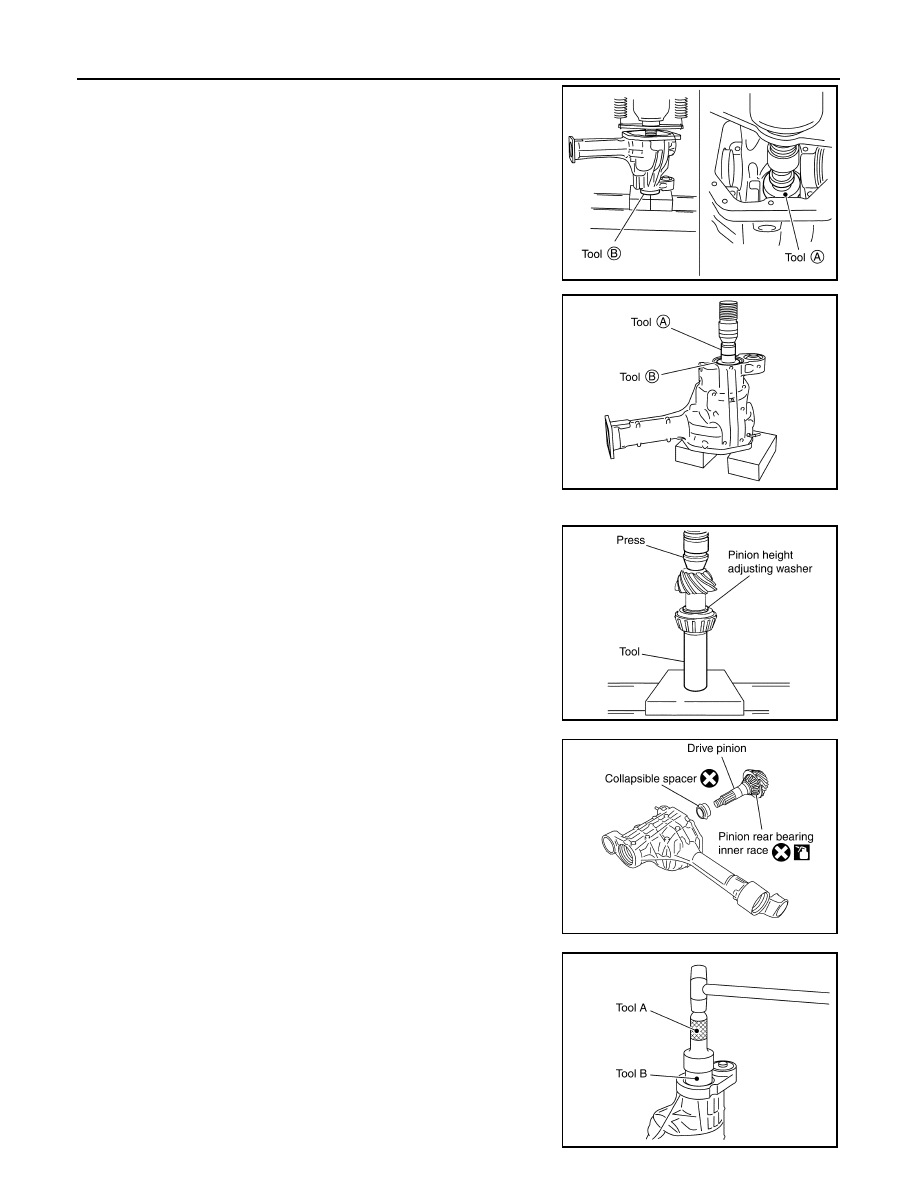

1. Install drive pinion rear bearing outer race using Tools.

2. Install drive pinion front bearing outer race using Tools.

3. Select drive pinion height adjusting washer.
4. Install the selected drive pinion height adjusting washer to the

drive pinion. Press the drive pinion rear bearing inner race to it

using Tool.

CAUTION:

Do not reuse drive pinion rear bearing inner race.

5. Install the collapsible spacer to the drive pinion.

CAUTION:

Do not reuse collapsible spacer.

6. Apply differential gear oil to the drive pinion rear bearing, and

install the drive pinion assembly to the gear carrier.

7. Apply differential gear oil to the drive pinion front bearing, and

install the drive pinion front bearing inner race to the drive pinion

assembly.

CAUTION:

Do not reuse drive pinion front bearing inner race.

8. Apply multi-purpose grease to the lips of the new front oil seal.

Then drive the new front oil seal in evenly using Tools.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips of the new front oil

seal.

Tool number

(A): ST30901000 ( — )
(B): KV40105230 ( — )

SDIA2251E

Tool number

(A): ST35271000 ( — )
(B): KV40104810 ( — )

SDIA2252E

Tool number

:  —

(C-4040)

SDIA2253E

PDIA0708E

Tool number

(A): KV38100500 (J-25273)
(B): KV38102200 ( — )

PDIA0717E

FRONT FINAL DRIVE

DLN-181

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

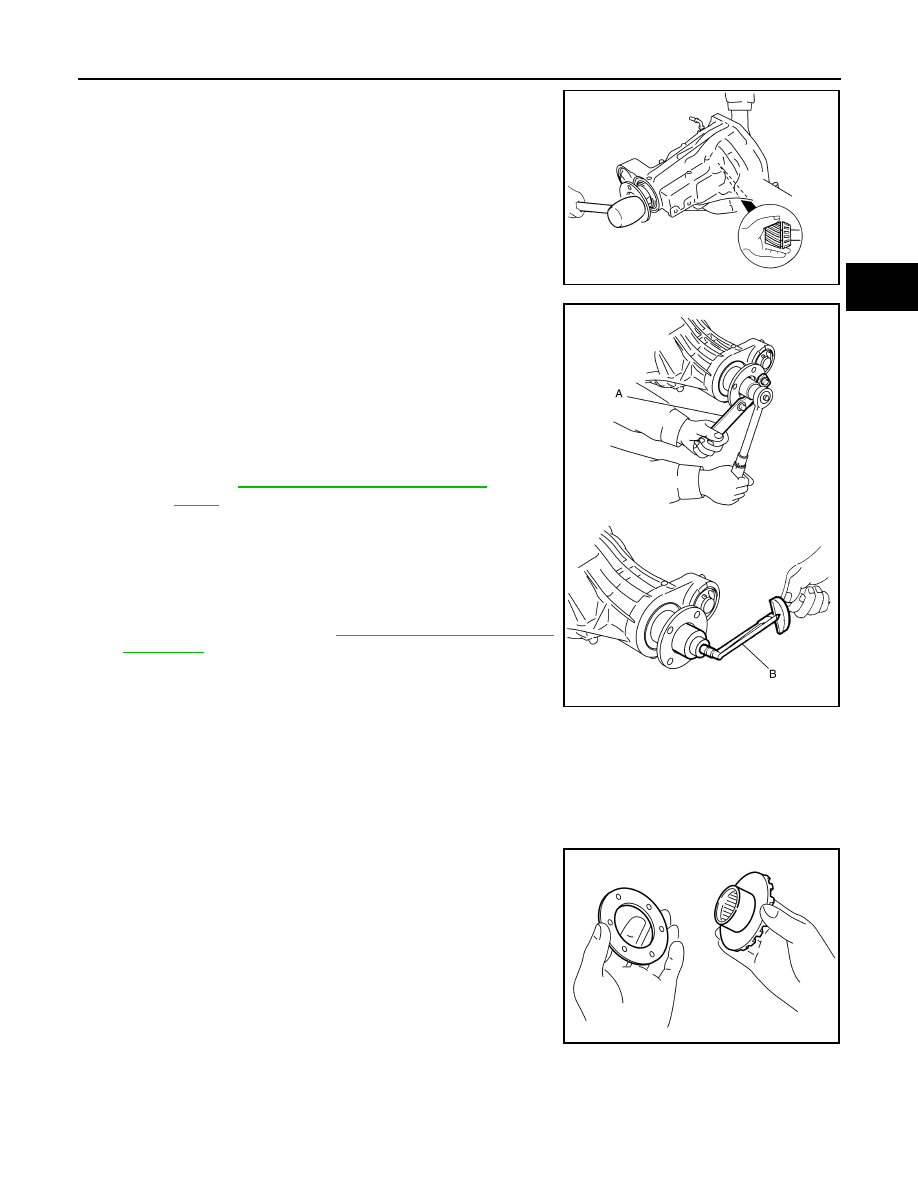

9. Install the companion flange to the drive pinion while aligning the

matching marks. Tap the companion flange until fully seated

using suitable tool.

10. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool (A),

and check the drive pinion bearing preload torque using Tool

(B).

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-169, "Disassembly and

Assembly"

.

• If the drive pinion bearing preload torque exceeds the

specified value, replace collapsible spacer and tighten it

again to adjust. Do not loosen drive pinion lock nut to

adjust the drive pinion bearing preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

11. Check companion flange runout.
12. Install the differential case assembly.

Differential Assembly

1. Install side gear thrust washers with the same thickness as the

ones installed prior to disassembly, or reinstall the old ones on

the side gears.

SDIA2266E

Tool number

(B): ST3127S000 (J-25765-A)

Drive pinion bearing preload torque:

Refer to

DLN-185, "Inspection and Adjust-

ment"

WDIA0382E

SDIA0193J

DLN-182

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

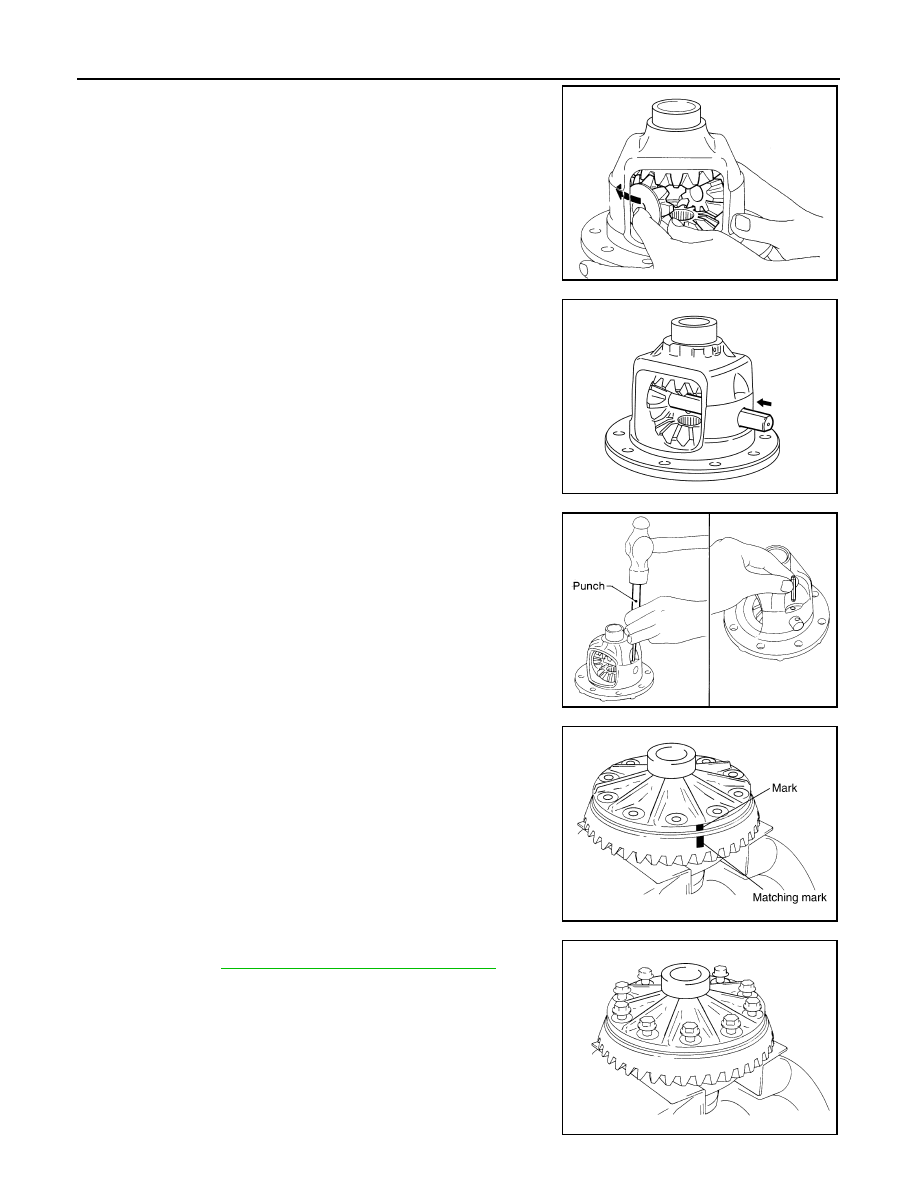

2. Install the side gears and side gear thrust washers into the dif-

ferential case.

3. Install the pinion mate thrust washers to the two pinion mate

gears. Then install the pinion mate gears with the pinion mate

thrust washers by aligning them in diagonally opposite positions

and rotating them into the differential case.

4. Install the pinion mate shaft and align the lock pin hole on the

pinion mate shaft with the lock pin hole on the differential case.

5. Measure the side gear end play. If necessary, select the appro-

priate side gear thrust washers.

6. Drive a new lock pin into the pinion mate shaft until it is flush

with the differential case using suitable tool.

CAUTION:

Do not reuse lock pin.

7. Align the matching mark of the differential case with the mark of

the drive gear, then place the drive gear onto the differential

case.

8. Install and tighten the new drive gear bolts to the specified

torque. Refer to

DLN-169, "Disassembly and Assembly"

.

CAUTION:

• Make sure the drive gear back and threaded holes are

clean.

• Do not reuse drive gear bolts.

• Tighten new drive gear bolts in a crisscross pattern.

SDIA2025E

SDIA0195J

SPD030

SDIA2593E

SDIA2239E

FRONT FINAL DRIVE

DLN-183

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

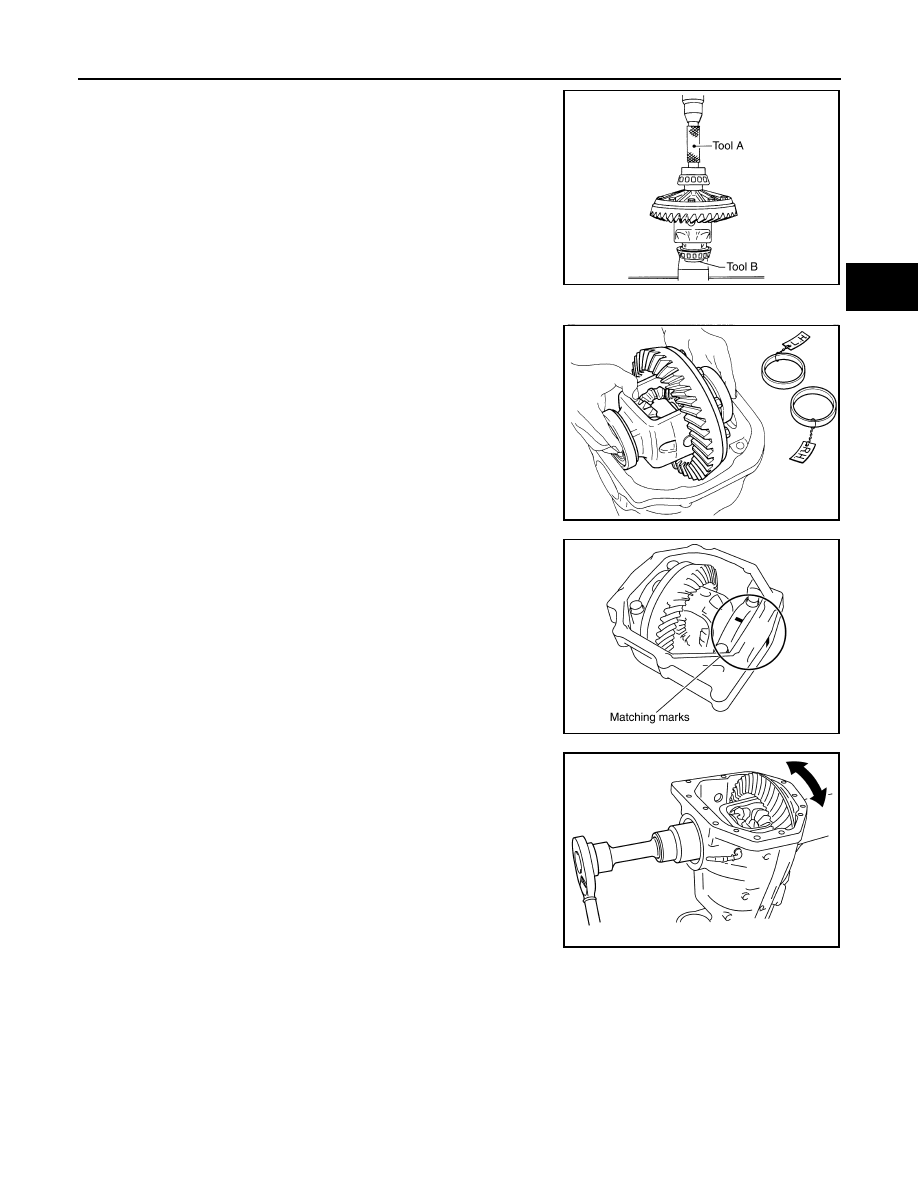

9. Press the new side bearing inner races to the differential case

using Tools.

CAUTION:

Do not reuse side bearing inner races.

10. Install side bearing adjusters into gear carrier.
11. Apply differential gear oil to the side bearings, and install the dif-

ferential case assembly with the side bearing outer races into

the gear carrier.

CAUTION:

Do not reuse side bearing outer race when replacing side

bearing inner race (replace as a set).

12. Install the side bearing caps with the matching marks aligned.

NOTE:

Do not tighten at this step. This allows further tightening of side

bearing adjusters.

13. Tighten each side bearing adjuster alternately turning drive gear.

14. Check and adjust tooth contact, backlash, drive gear runout and total preload torque.

Recheck above items.

Tool number

(A): KV38100300 (J-25523)
(B): ST33081000 ( — )

SPD353

SPD527

PDIA0700E

SDIA2265E
