DLN-172

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

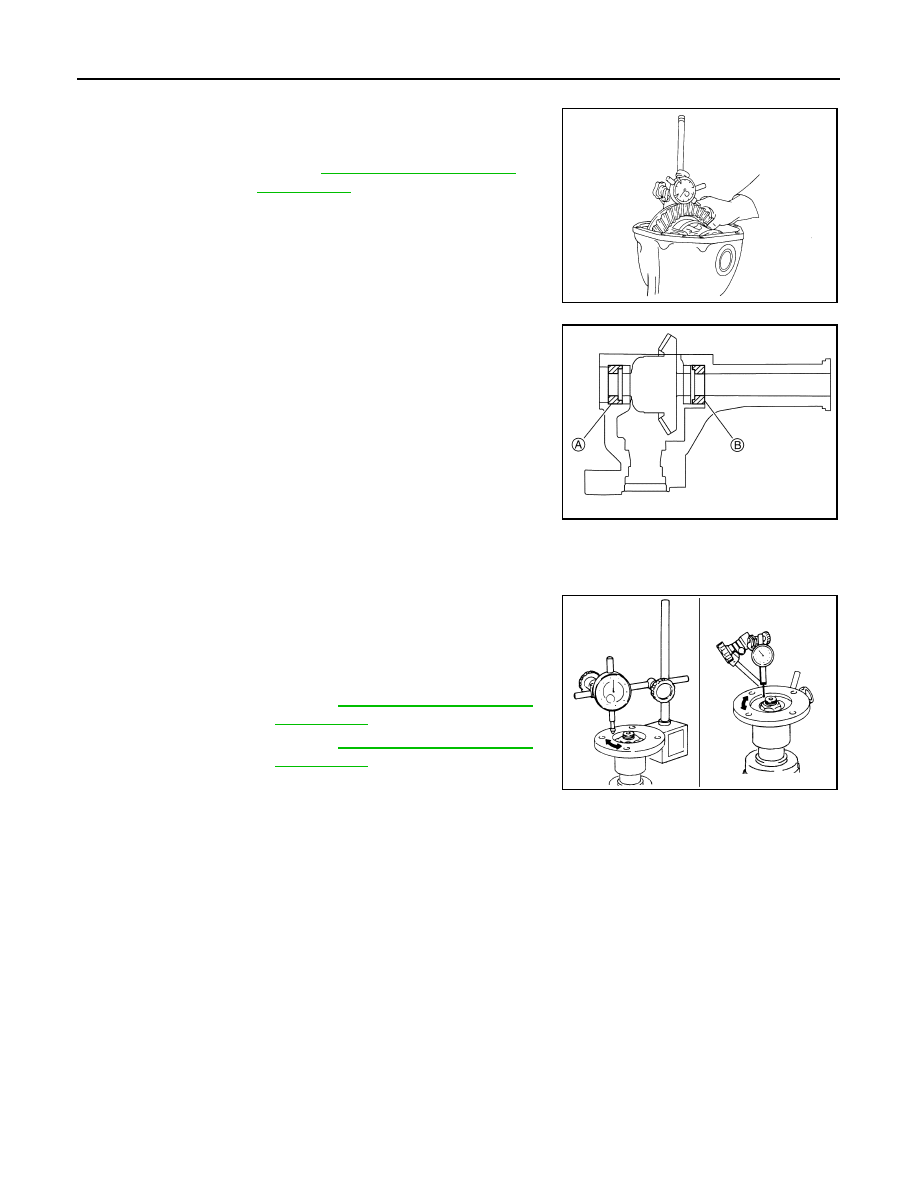

Backlash

1. Fit a dial indicator to the drive gear face to measure the back-

lash.

• If the backlash is outside of the specification, adjust each side

bearing adjuster.

CAUTION:

Do not change the side bearing adjusters by different

amounts as it will change the side bearing preload torque.

Companion Flange Runout

1. Rotate companion flange and check for runout on the compan-

ion flange face (inner side of the bolt holes) and companion

flange inner side (socket diameter) using suitable tool.

2. If the runout is outside the runout limit, follow the procedure

below to adjust.

a. Rotate the companion flange on the drive pinion by 90

°, 180° and 270° while checking for the position

where the runout is minimum.

b. If the runout is still outside of the runout limit after the companion flange has been rotated on the drive pin-

ion, possible cause could be an assembly malfunction of drive pinion and drive pinion bearing or a mal-

functioning drive pinion bearing.

c.

If the runout is still outside of the runout limit after repair of the assembly of drive pinion and drive pinion

bearing or drive pinion bearing, replace the companion flange.

DISASSEMBLY

Differential Assembly

1. Drain the differential gear oil if necessary.

Backlash:

Refer to

DLN-185, "Inspection and

Adjustment"

SPD513

If the backlash is greater than specification:

Loosen side bearing adjuster (A) and tighten side
bearing adjuster (B) by the same amount.

If the backlash is less than specification:

Loosen side bearing adjuster (B) and tighten side
bearing adjuster (A) by the same amount.

SDIA2262E

Runout limit
Companion
flange face:

Refer to

DLN-185, "Inspection and

Adjustment"

Companion
flange inner side:

Refer to

DLN-185, "Inspection and

Adjustment"

SDIA2078E

FRONT FINAL DRIVE

DLN-173

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

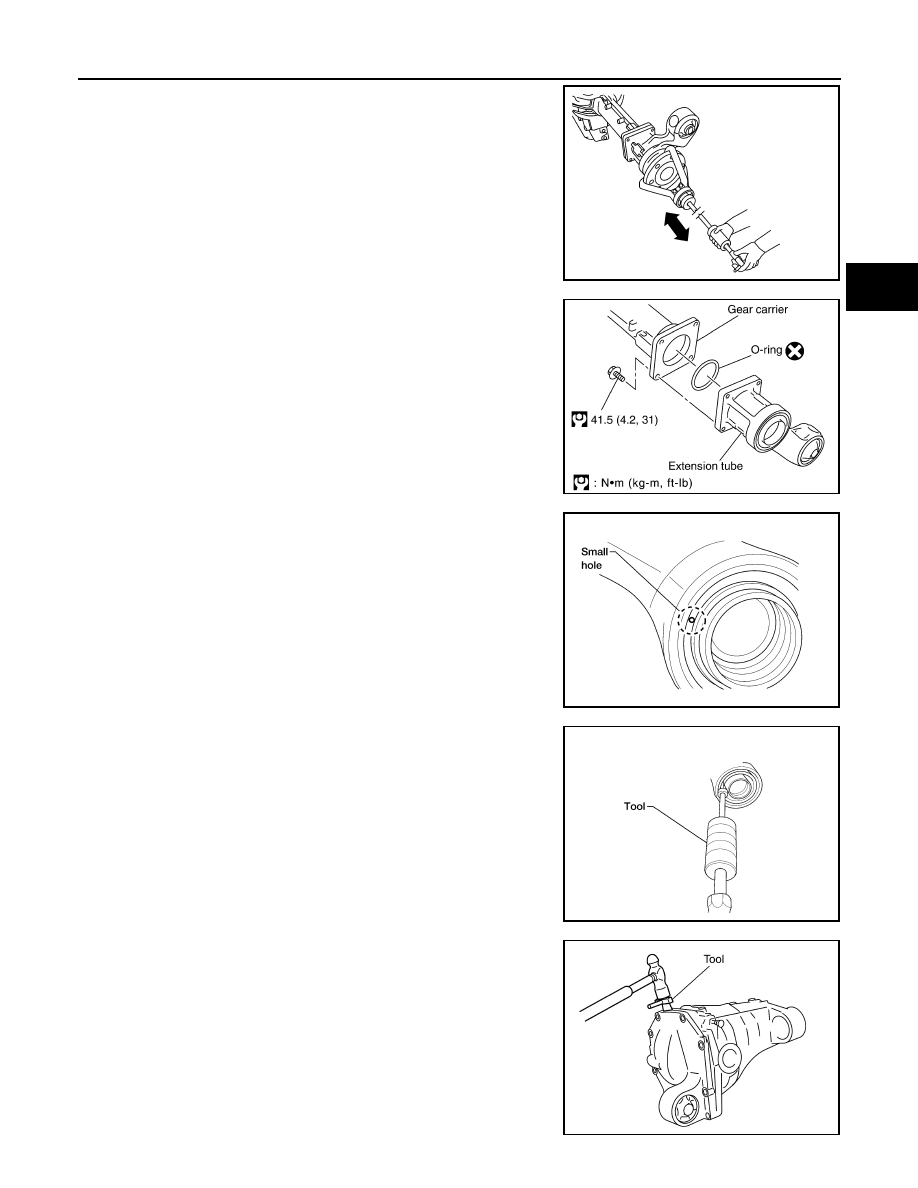

2. Remove the differential side shaft and differential side flange

using suitable tool.

3. Remove the extension tube and O-ring from the gear carrier.

CAUTION:

Do not reuse O-ring.

4. Place a small hole in the side oil seal case using suitable tool.

5. Remove the side oil seal using suitable tool as shown.

6. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

BDIA0006E

SDIA3205E

LDIA0129E

LDIA0130E

Tool number

: KV10111100 (J-37228)

PDIA0699E

DLN-174

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

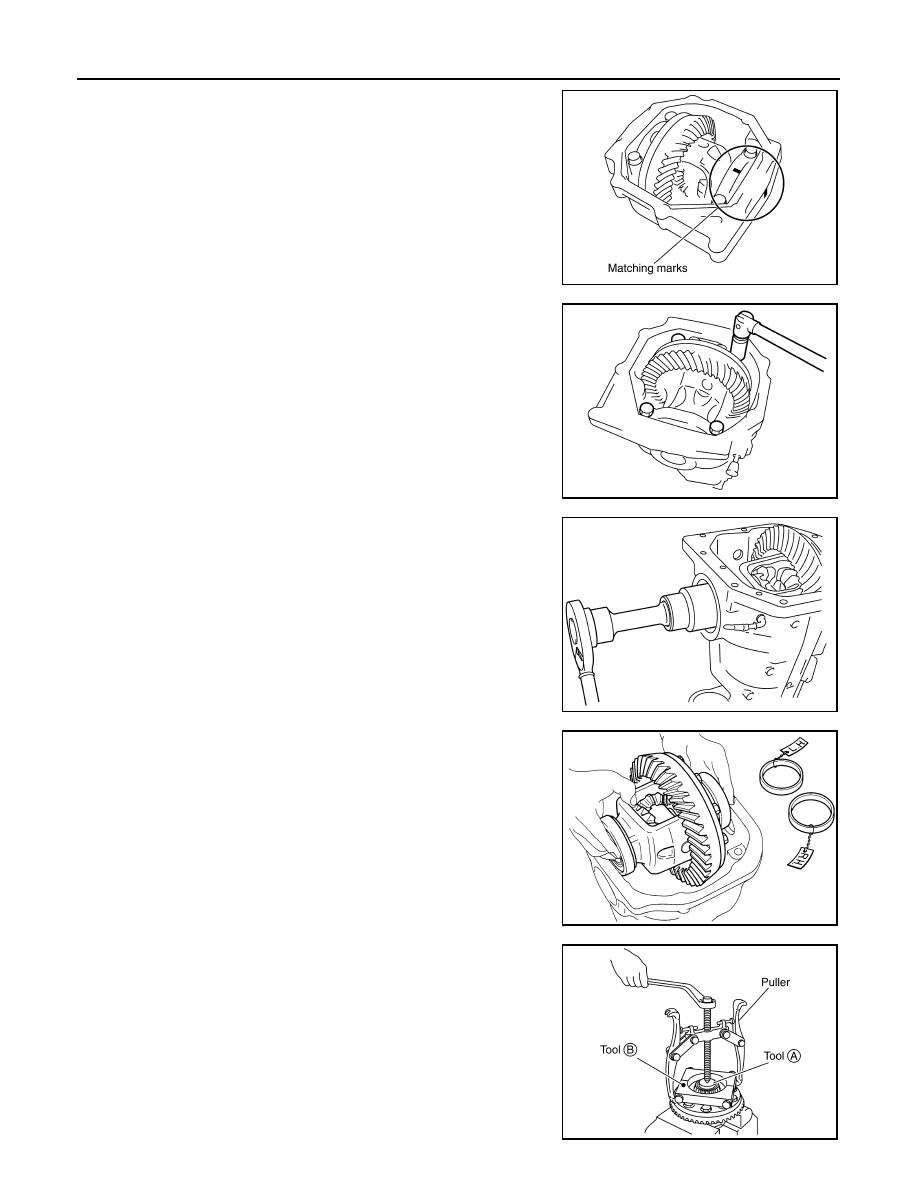

7. For proper reinstallation, paint matching marks on one side of

the side bearing cap and gear carrier.

CAUTION:

• For matching marks, use paint. Do not damage side bear-

ing cap or gear carrier.

• Side bearing caps are line-board during manufacture. The

matching marks are used to reinstall them in their original

positions.

8. Remove the side bearing caps.

9. Remove the side bearing adjuster.

10. Lift the differential case assembly out of the gear carrier.

CAUTION:

Keep side bearing outer races together with side bearing

inner races. Do not mix them up.

11. Remove side bearing inner race using Tools as shown.

CAUTION:

• Do not remove side bearing inner race unless it is being

replaced.

• Place copper plates between the vise and the side bearing

inner race and drive gear to prevent damage.

PDIA0700E

PDIA0701E

SDIA2230E

SPD527

Tool number

(A): ST33081000 ( — )
(B): ST30021000 ( — )

SDIA2237E

FRONT FINAL DRIVE

DLN-175

< UNIT DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• Engage puller jaws in groove to prevent damage to bearing.

• Keep side bearing outer races together with side bearing inner races. Do not mix them up.

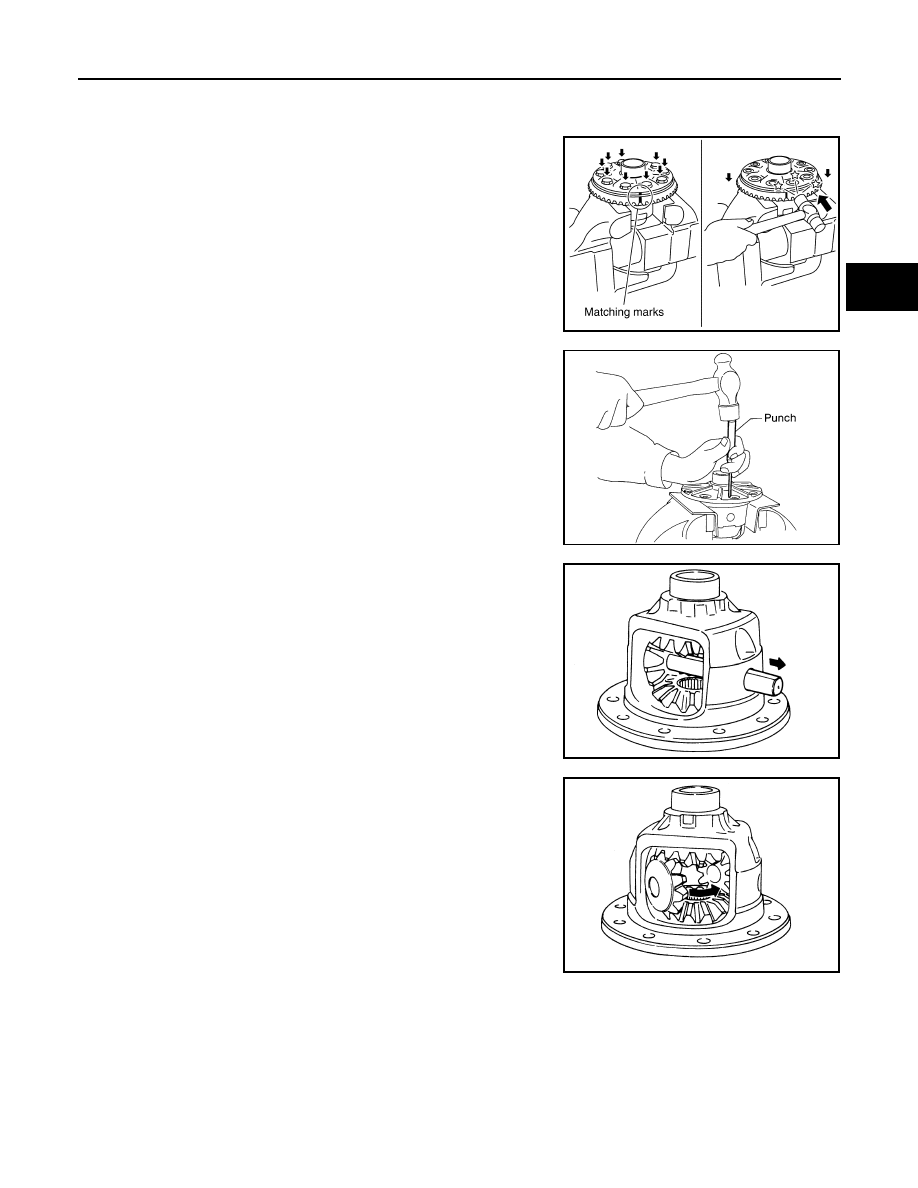

12. For proper reinstallation, paint matching marks on the differential

case and drive gear.

CAUTION:

Use paint for matching marks. Do not damage differential

case or drive gear.

13. Remove the drive gear bolts.
14. Tap the drive gear off the differential case using suitable tool.

CAUTION:

Tap evenly all around to keep drive gear from bending.

15. Remove the lock pin of the pinion mate shaft from the drive gear

side using suitable tool.

16. Remove the pinion mate shaft.

17. Turn the pinion mate gear, then remove the pinion mate gear,

pinion mate thrust washer, side gear and side gear thrust

washer from the differential case.

Drive Pinion Assembly

1. Remove the differential assembly.

PDIA0496E

SPD025

SDIA0031J

SDIA0032J
