FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

5.

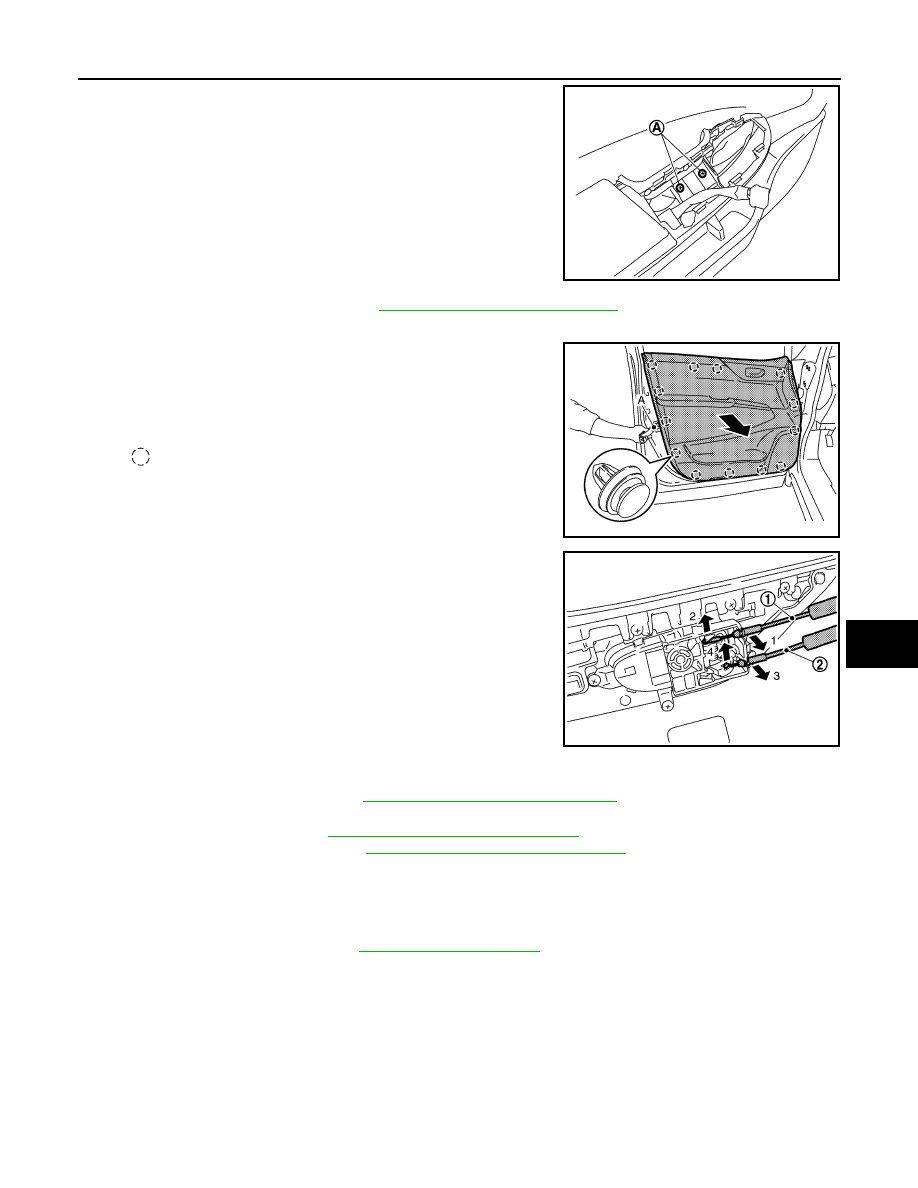

Remove front door finisher fixing screws (A).

6.

Remove step lamp assembly. Refer to

INL-75, "Removal and Installation"

.

7.

Remove front door finisher.

a.

Disengage fixing clips using a remover tool (A), and then pull out
front door finisher.

CAUTION:

Insert a remover tool between door panel and clip and dis-
engage pawl.

b.

Disconnect lock knob cable (1) and inside handle cable (2), and
then remove front door finisher.

NOTE:
• Remove seat memory switch. Refer to

ADP-113, "Removal and Installation"

.

• Remove power window switch.

Front window anti-pinch. Refer to

PWC-68, "Removal and Installation"

.

Driver side window anti-pinch. Refer to

PWC-123, "Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• One of the front door finisher fixing clips is not reusable. Always replace that clip after every front

door finisher disassembly. Refer to

INT-13, "Exploded View"

.

• When installing, check in advance that clips are accurately aligned with the holes on door panel side,

and then install by pressing in.

JMJIA6194ZZ

: Clip

JMJIA6195ZZ

JMJIA6196ZZ

INT-16

< REMOVAL AND INSTALLATION >

SLIDE DOOR FINISHER

SLIDE DOOR FINISHER

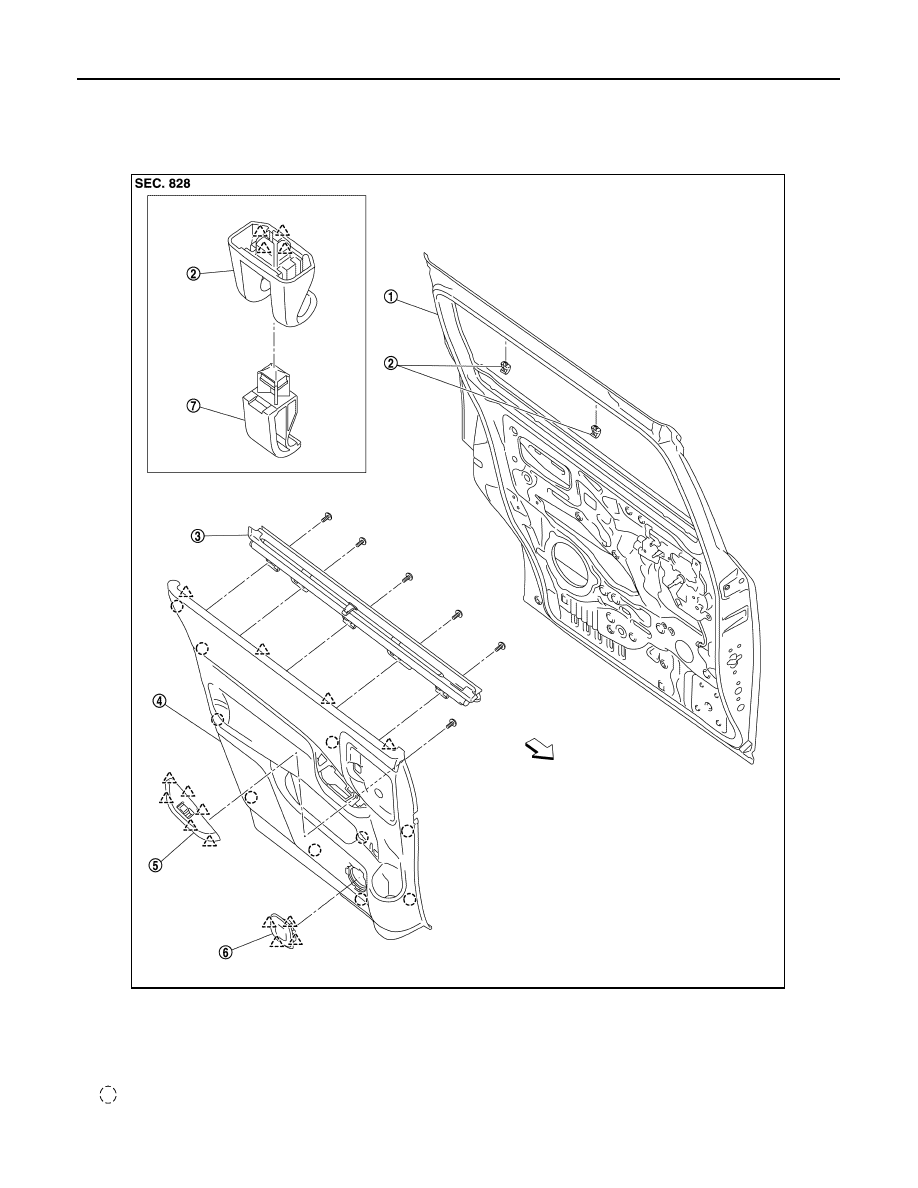

Exploded View

INFOID:0000000009650276

1.

Rear door panel

2.

Shade hook

3.

Second roll sunshade assembly
(with roll sunshade)

4.

Slide door finisher

5.

Power window switch finisher

6.

Speaker grille

7.

Hook pin

: Clip

JMJIA6197ZZ

SLIDE DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000009650277

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the slide door panel.

REMOVAL

1.

Fully open slide door.

2.

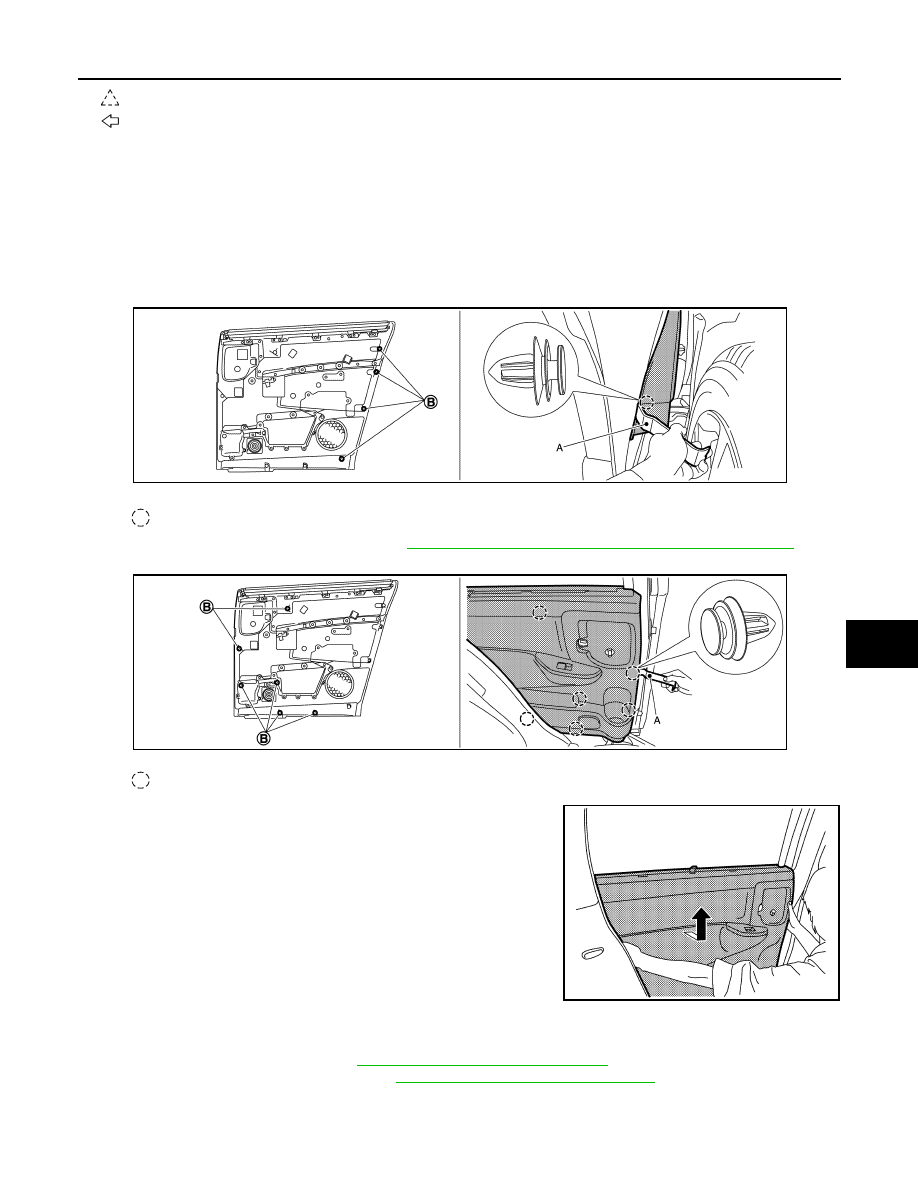

Disengage fixing clips (B) on rear portion of door finisher using a remover tool (A).

3.

Remove slide door inside handle. Refer to

DLK-471, "INSIDE HANDLE : Removal and Installation"

.

4.

Disengage remaining fixing clips (B) using a remover tool (A).

5.

Pull toward the direction of the arrows as shown in the figure to
remove.

6.

Disconnect harness connector, and then remove slide door fin-
isher.

7.

Remove the following parts after removing slide door finisher.
Remove power window switch.
• Front window anti-pinch: Refer to

PWC-69, "Removal and Installation"

.

• Driver side window anti-pinch: Refer to

PWC-123, "Removal and Installation"

.

8.

Remove shade hook, if shade hook must be replaced.

: Pawl

: Vehicle front

: Clip

: Clip

JMJIA6198ZZ

JMJIA6199ZZ

JMJIA6200ZZ

INT-18

< REMOVAL AND INSTALLATION >

SLIDE DOOR FINISHER

a.

Remove hook pin using a remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Pull toward vehicle lower, disengage shade hook fixing pawl,
and then remove.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on body panel side,
and then install by pressing in.

SECOND ROLL SUNSHADE

SECOND ROLL SUNSHADE : Disassembly

INFOID:0000000009650278

SECOND ROLL SUNSHADE : Disassembly and Assembly

INFOID:0000000009650279

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

DISASSEMBLY

1.

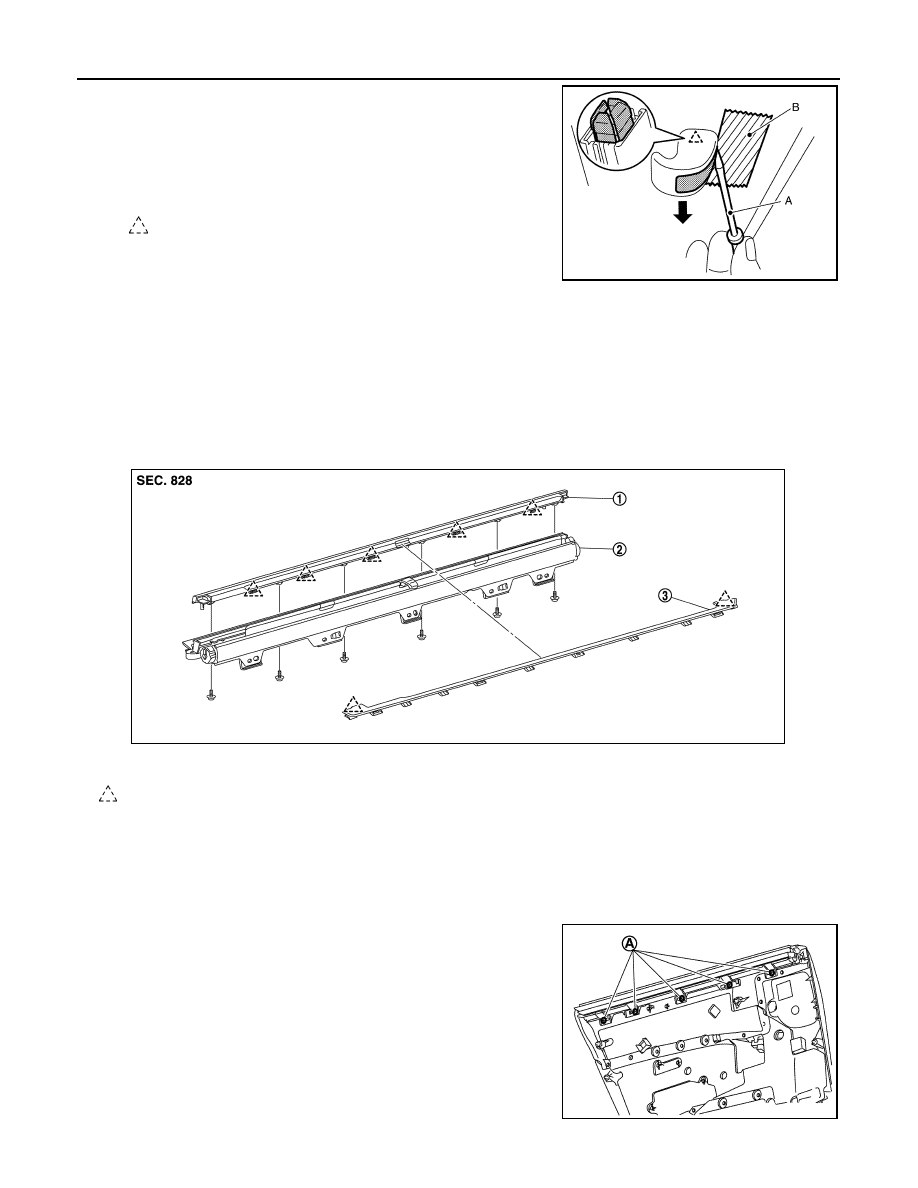

Remove roll sunshade assembly fixing screws (A).

: Pawl

JMJIA4864ZZ

1.

Slide door sunshade escutcheon B

2.

Roll sunshade assembly

3.

Slide door sunshade escutcheon A

: Pawl

JMJIA4827ZZ

JMJIA4831ZZ
