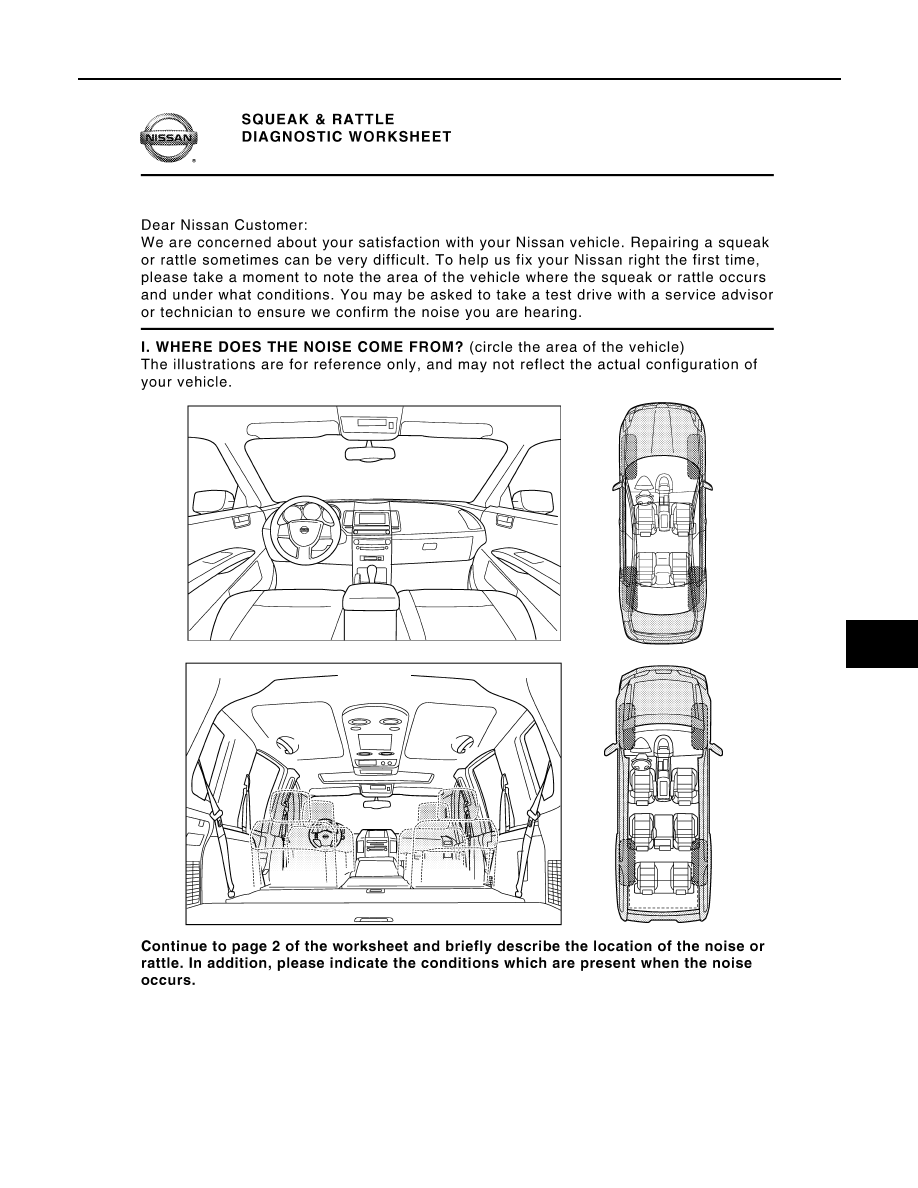

Diagnostic Worksheet

INFOID:0000000009650273

PIIB8740E

INT-12

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

FRONT DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

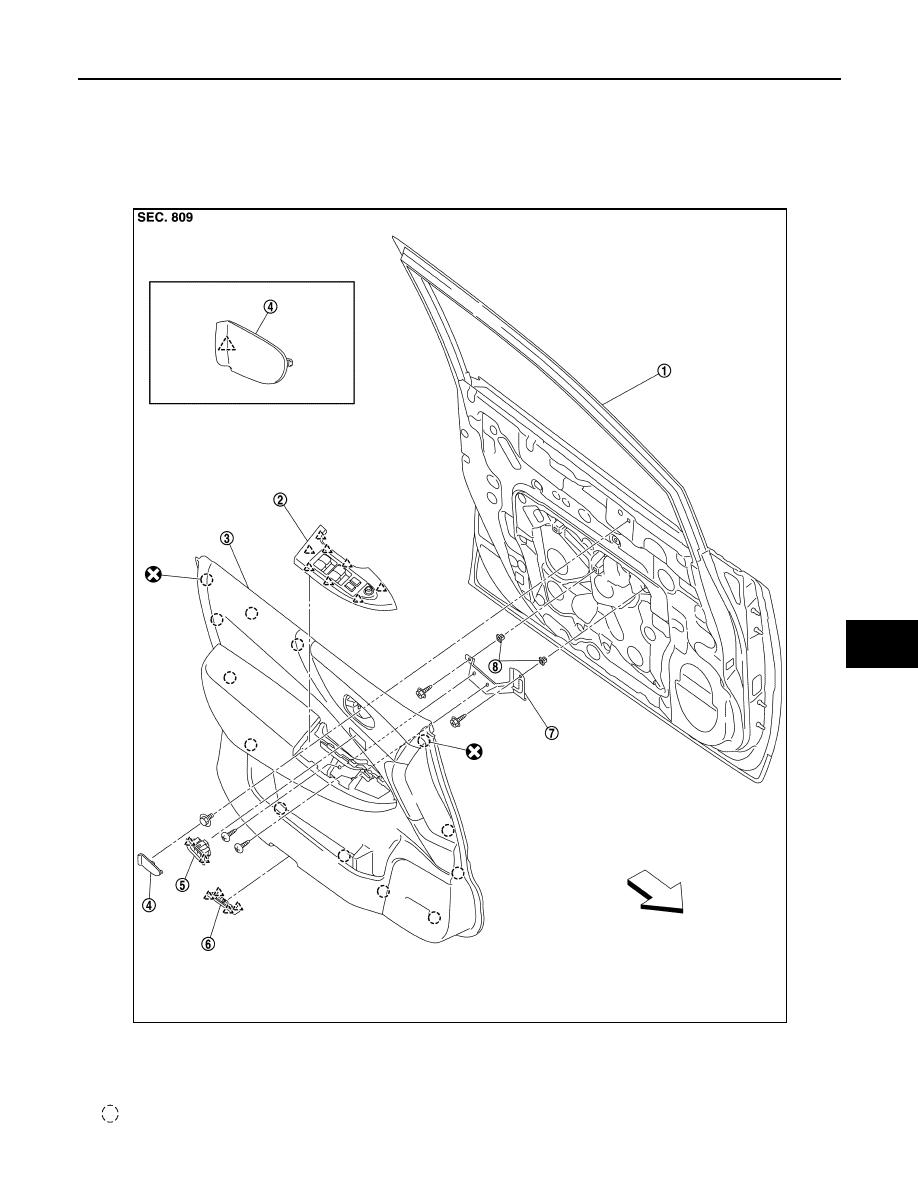

Exploded View

INFOID:0000000009650274

1.

Front door panel

2.

Power window switch finisher

3.

Front door finisher

4.

Inside handle escutcheon

5.

Seat memory switch finisher

6.

Step lamp

7.

Pull handle bracket

8.

Grommet

: Clip

JMJIA6911ZZ

INT-14

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

Removal and Installation

INFOID:0000000009650275

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the front door panel.

REMOVAL

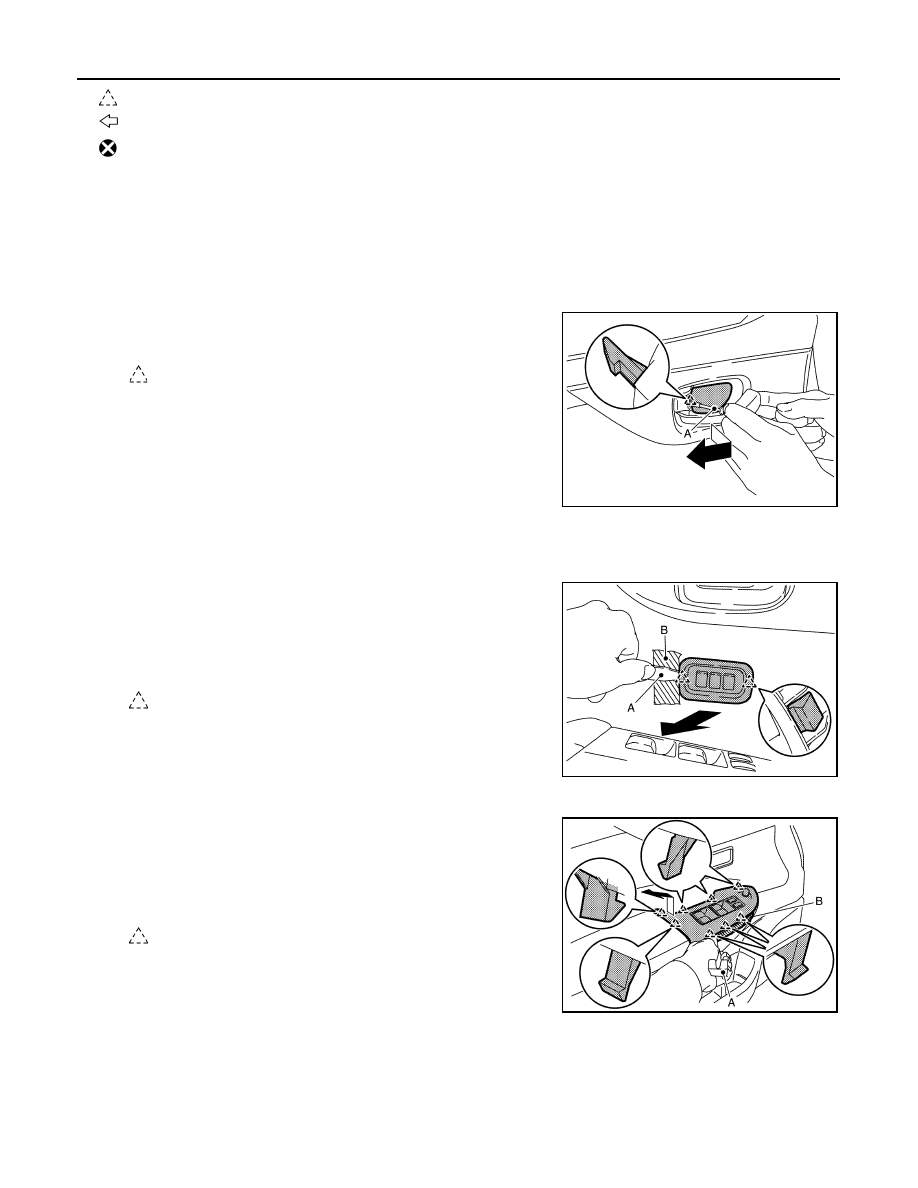

1.

Remove inside handle escutcheon.
Pull inside handle forward, and then disengage pawls using a
remover tool (A). Remove inside handle escutcheon.

2.

Remove bolt located on the back side of inside handle escutcheon.

3.

Remove seat memory switch finisher and seat memory switch as a set (with personal driving position
memory system).

a.

Disengage seat memory switch finisher fixing pawls using a
remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Pull out seat memory switch finisher and seat memory switch as
a set, and then disconnect harness connector. Remove seat
memory switch finisher and seat memory switch as a set.

4.

Remove power window switch finisher and power window switch as a set.

a.

Remove power window switch finisher fixing pawls using a
remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Disconnect harness connector, and then remove power window
switch finisher and power window switch as a set.

: Pawl

: Vehicle front

: Always replace after every disassembly.

: Pawl

JMJIA6191ZZ

: Pawl

JMJIA6192ZZ

: Pawl

JMJIA6193ZZ
