The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

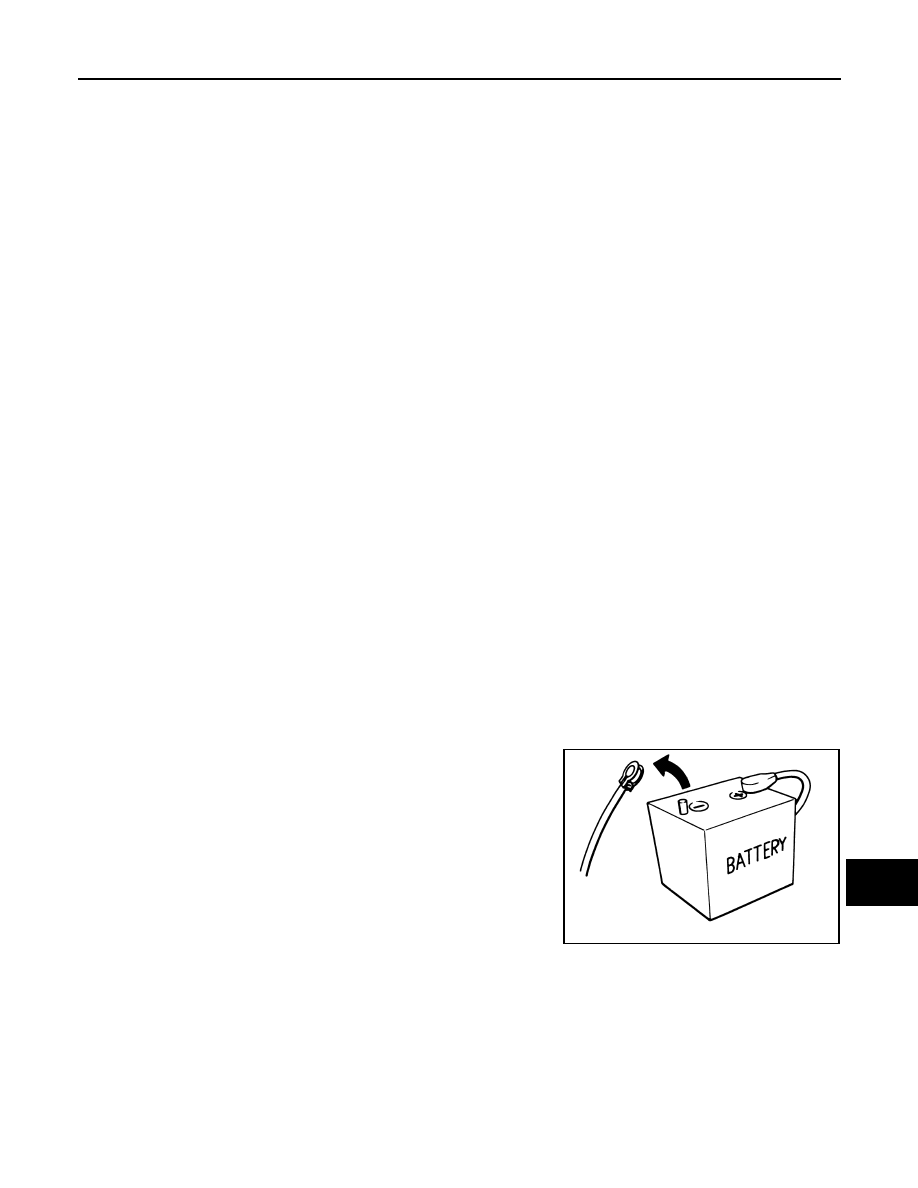

Precautions for Removing Battery Terminal

INFOID:0000000009864180

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

WCS-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

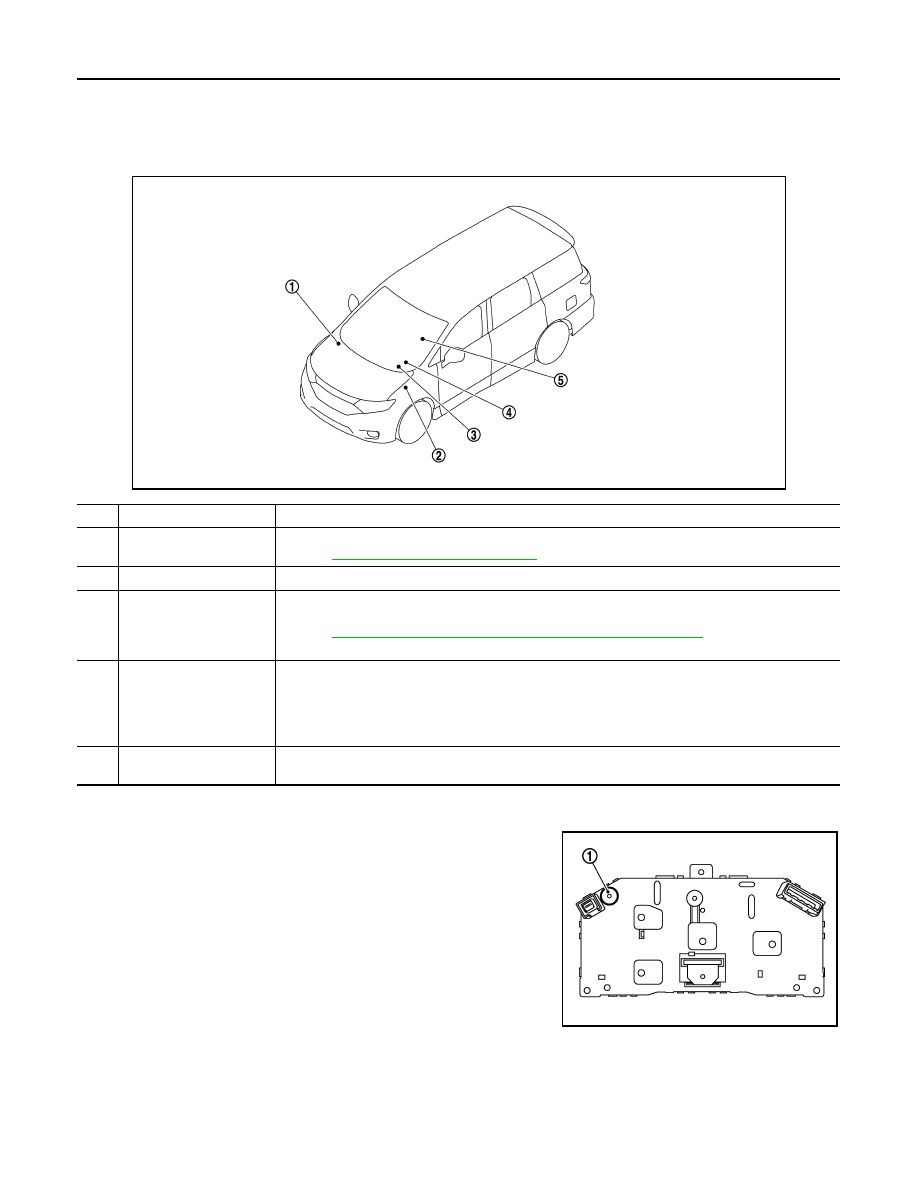

Component Parts Location

INFOID:0000000009650440

Combination Meter

INFOID:0000000009650441

The buzzer (1) for the warning chime system is integrated in the
combination meter.

JSNIA4337ZZ

Component

Function

ABS actuator and electric
unit (control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to

BRC-9, "Component Parts Location"

for detailed installation location.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

BCM

Based on the signals received from various units and switches, transmits the buzzer output signal
to the combination meter via CAN communication.
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"

for detailed installation

location.

Combination meter

• Receives a buzzer output signal from the BCM with CAN communication line and sounds the

buzzer.

• Judges whether the parking brake is released from the vehicle speed signal received from the

ABS actuator and electric unit (control unit) with CAN communication line and the parking brake
switch signal from the parking brake switch, and sounds the buzzer if necessary.

Seat belt buckle switch
(driver side)

Transmits the seat belt buckle switch signal (driver side) to the combination meter.

JSNIA3387ZZ

WCS

SYSTEM

WCS-5

< SYSTEM DESCRIPTION >

SYSTEM

WARNING CHIME SYSTEM

WARNING CHIME SYSTEM : System Description

INFOID:0000000009650442

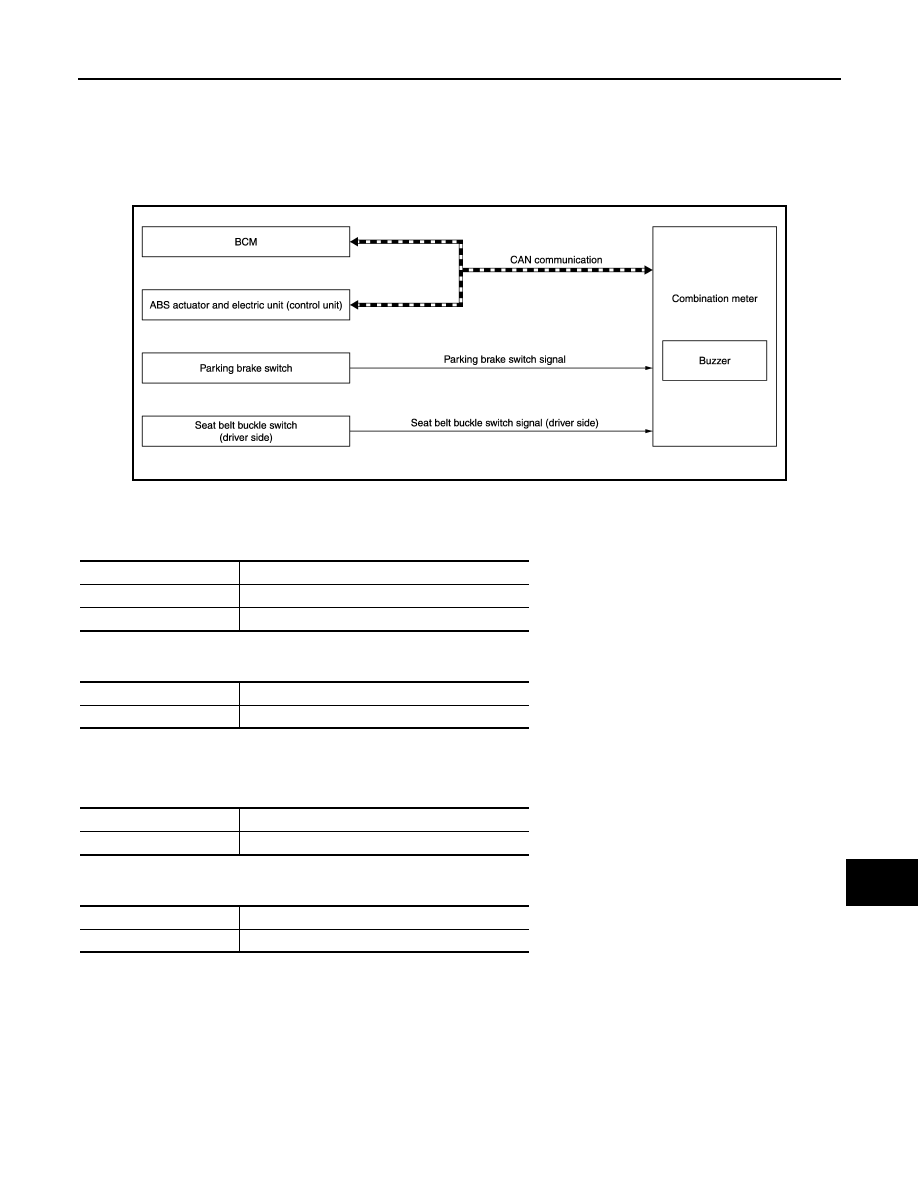

SYSTEM DIAGRAM

COMBINATION METER INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)

Input signal

Output signal

BCM INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)

Input signal

Output signal

COMBINATION METER

The combination meter sounds the alarm buzzer installed in the combination meter when receiving the buzzer
output signal transmitted from each unit.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the combination meter via
CAN communication if it judges that the warning buzzer should be activated.

WARNING CHIME FUNCTION LIST

JSNIA3116GB

Signal name

Transmit unit

Vehicle speed signal

ABS actuator and electric unit (control unit)

Buzzer output signal

BCM

Signal name

Reception unit

Vehicle speed signal

BCM

Signal name

Transmit unit

Vehicle speed signal

Combination meter

Signal name

Reception unit

Buzzer output signal

Combination meter
