VTL-18

< REMOVAL AND INSTALLATION >

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000009650651

FRONT BLOWER MOTOR

Refer to

VTL-16, "Exploded View"

.

REAR BLOWER MOTOR

Refer to

HA-56, "Exploded View"

.

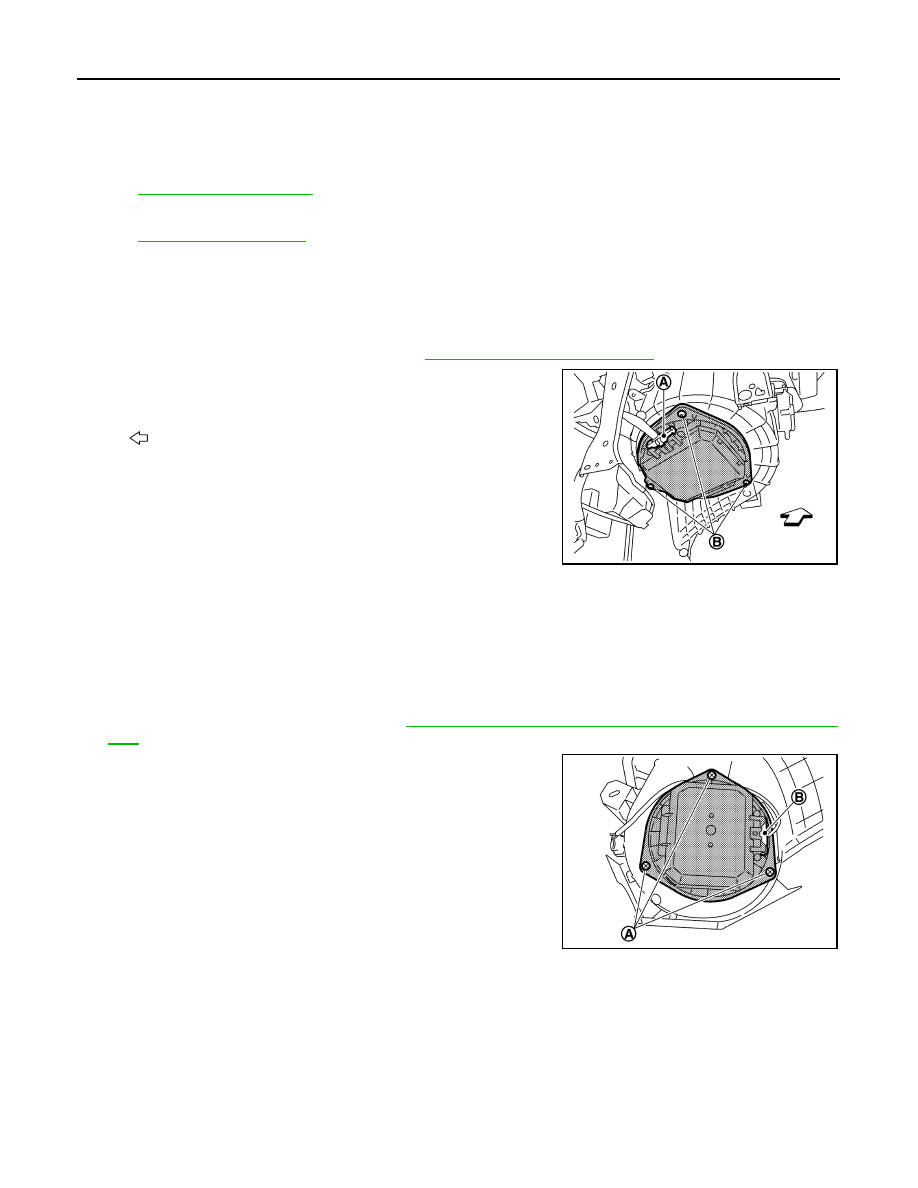

FRONT BLOWER MOTOR

FRONT BLOWER MOTOR : Removal and Installation

INFOID:0000000009650652

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect harness connector (A).

3.

Remove fixing screws (B), and then remove front blower motor.

INSTALLATION

Install in the reverse order of removal.

REAR BLOWER MOTOR

REAR BLOWER MOTOR : Removal and Installation

INFOID:0000000009650653

REMOVAL

1.

Removal rear A/C unit assembly. Refer to

HA-57, "REAR A/C UNIT ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove fixing screws (A), and then disconnect harness connec-
tor (B).

3.

Remove rear blower motor.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMIIA1810ZZ

JMIIA1164ZZ

IN-CABIN MICROFILTER

VTL-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-CABIN MICROFILTER

Exploded View

INFOID:0000000009650654

Refer to

HA-47, "Exploded View"

.

Removal and Installation

INFOID:0000000009650655

REMOVAL

1.

Remove instrument lower cover RH. Refer to

IP-14, "Removal and Installation"

.

2.

Remove filter cover.

3.

Compress in-cabin microfilter while sliding it towards vehicle right side.

4.

Remove in-cabin microfilter from heater & cooling unit assembly.

CAUTION:

If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter
may deteriorate the dust collecting performance.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000009650656

Replace in-cabin microfilter.
Refer to

VTL-20, "In-cabin microfilter"

.

VTL-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

In-cabin microfilter

INFOID:0000000009650657

Replacement interval

MA-6, "Introduction of Periodic Maintenance"

.

WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

WCS

A

O

P

CONTENTS

WARNING CHIME SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Combination Meter ....................................................

4

SYSTEM ..............................................................

5

WARNING CHIME SYSTEM  .......................................

5

WARNING CHIME SYSTEM : System Description

......

5

WARNING CHIME SYSTEM : Circuit Diagram .........

7

WARNING CHIME SYSTEM : Fail-Safe ...................

7

LIGHT REMINDER WARNING CHIME  .......................

8

LIGHT REMINDER WARNING CHIME : System
Description ................................................................

8

FRONT FOG LIGHT REMINDER WARNING
CHIME ..........................................................................

9

FRONT FOG LIGHT REMINDER WARNING
CHIME : System Description .....................................

9

SEAT BELT WARNING CHIME  ................................

10

SEAT BELT WARNING CHIME : System Descrip-
tion ..........................................................................

10

PARKING BRAKE RELEASE WARNING CHIME ....

11

PARKING BRAKE RELEASE WARNING CHIME
: System Description  ...............................................

11

DIAGNOSIS SYSTEM (COMBINATION
METER) ..............................................................

14

CONSULT Function  ................................................

14

DIAGNOSIS SYSTEM (BCM)  ...........................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

BUZZER .....................................................................

19

BUZZER : CONSULT Function (BCM - BUZZER) ....

20

ECU DIAGNOSIS INFORMATION ..............

21

COMBINATION METER  ...................................

21

Reference Value ......................................................

21

Fail-Safe ..................................................................

28

DTC Index  ...............................................................

29

BCM ...................................................................

30

List of ECU Reference .............................................

30

WIRING DIAGRAM  ......................................

31

WARNING CHIME SYSTEM .............................

31

Wiring Diagram ........................................................

31

BASIC INSPECTION  ...................................

37

DIAGNOSIS AND REPAIR WORKFLOW  ........

37

Work Flow ................................................................

37

DTC/CIRCUIT DIAGNOSIS  .........................

39

POWER SUPPLY AND GROUND CIRCUIT  ....

39

COMBINATION METER  ............................................

39

COMBINATION METER : Diagnosis Procedure  .....

39

METER BUZZER CIRCUIT  ...............................

40

Component Function Check  ....................................

40

Diagnosis Procedure ..............................................

40

SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ..................................................................

41

Component Function Check ..................................

41

Diagnosis Procedure ..............................................

41
