TRUNK LID

TRUNK LID ASSEMBLY : Adjustment

INFOID:0000000009269000

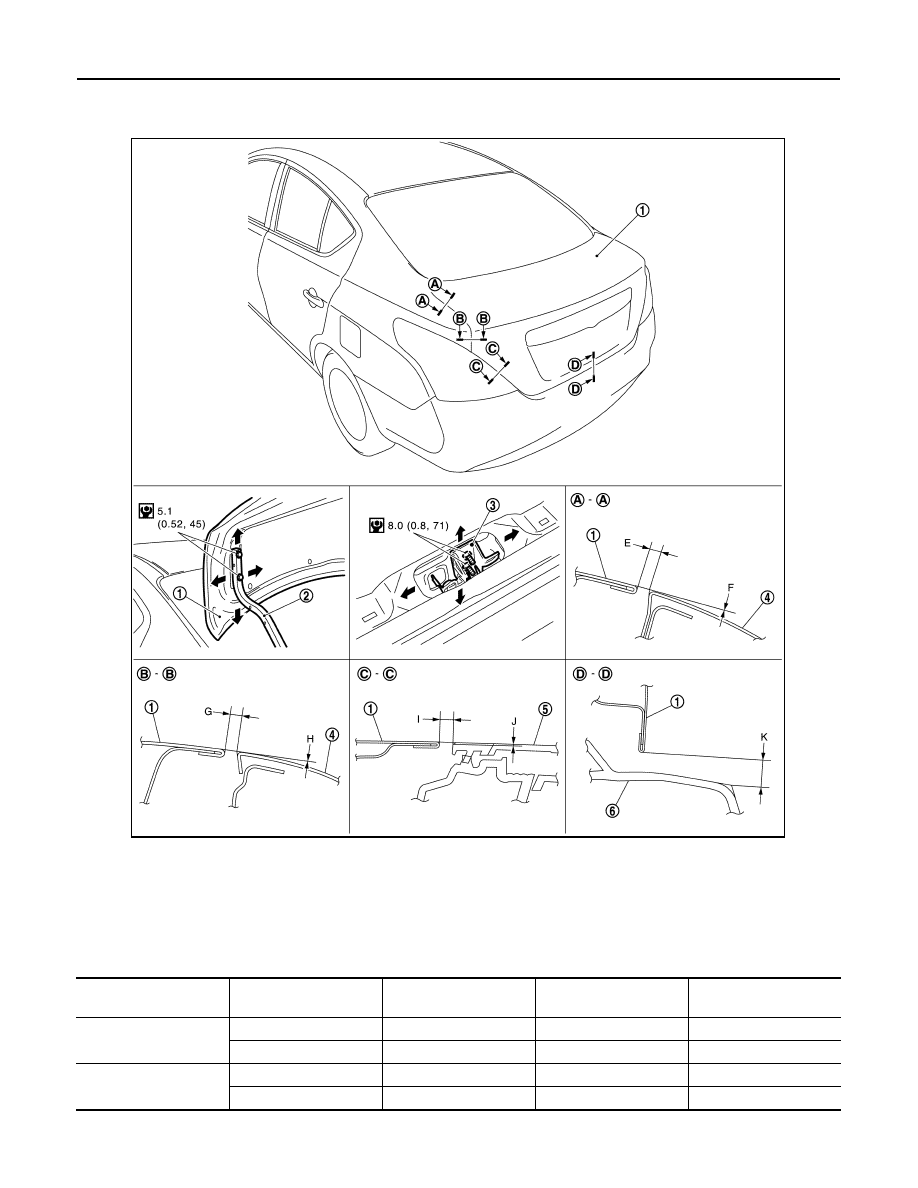

Check the clearance and surface height between trunk lid and each part by visual inspection and tactile feel.

If the clearance and surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1.

Trunk lid assembly

2.

Trunk lid hinge

3.

Trunk lid striker

4.

Body side outer

5.

Rear combination lamp

6.

Rear bumper fascia

JMKIA8147GB

Section

Item

Measurement

Standard

Difference            (RH/LH,

MAX)

A – A

E

Clearance

3.5

± 1.0 (0.14 ± 0.04)

1.5 (0.06)

F

Surface height

0.0

± 1.0 (0.00 ± 0.04)

1.5 (0.06)

B – B

G

Clearance

3.5

± 1.0 (0.14 ± 0.04)

1.5 (0.06)

H

Surface height

-0.5

± 1.0 (0.02 ± 0.04)

1.5 (0.06)

TRUNK LID

DLK-295

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Loosen trunk lid hinge bolts (trunk lid side).
2. Remove trunk rear plate. Refer to

INT-32, "TRUNK REAR PLATE : Removal and Installation"

.

3. Loosen trunk lid striker bolts.
4. Lift up trunk lid approximately 100 – 150 mm (3.9 – 5.9 in) then close it lightly and check that it is engaged

firmly with trunk lid closed.

5. Check the clearance and surface height.
6. Tighten trunk lid hinge and trunk lid striker.
7. Install trunk rear plate. Refer to

INT-32, "TRUNK REAR PLATE : Removal and Installation"

.

TRUNK LID STRIKER ADJUSTMENT

Adjust trunk lid striker so that it becomes parallel with trunk lid lock insertion direction.

TRUNK LID STRIKER
TRUNK LID STRIKER : Removal and Installation

INFOID:0000000009269001

REMOVAL

1. Remove trunk rear plate. Refer to

INT-32, "TRUNK REAR PLATE : Removal and Installation"

.

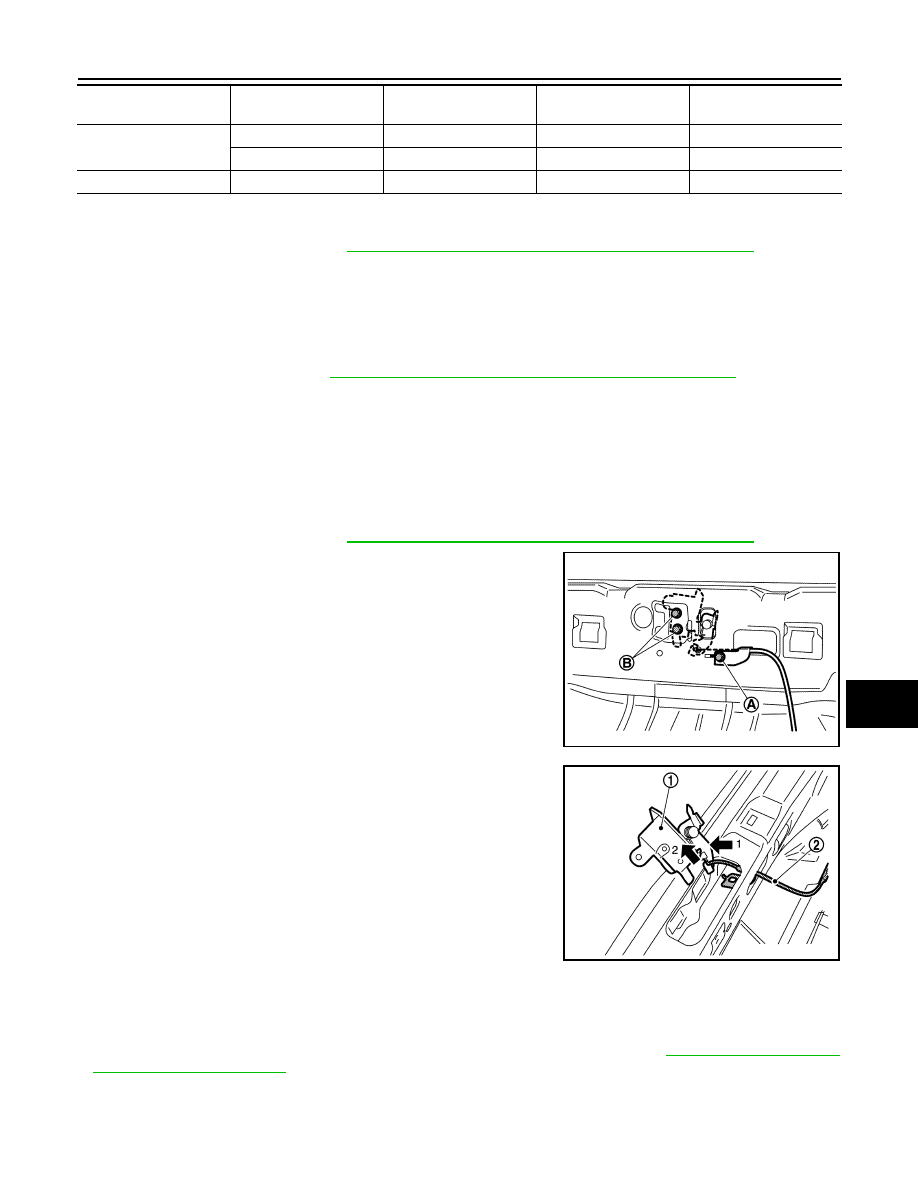

2. Remove trunk lid opener cable bolt (A) and trunk lid striker bolts

(B).

3. Remove trunk lid striker (1), disconnect trunk lid opener cable

(2) from trunk lid striker and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check trunk lid open/close, lock/unlock operation.

• After installation, perform the trunk lid adjustment procedure. Refer to

DLK-294, "TRUNK LID

ASSEMBLY : Adjustment"

.

TRUNK LID HINGE

C –C

I

Clearance

4.5

± 1.9 (0.18 ± 0.07)

2.9 (0.11)

J

Surface height

2.1

± 0.75 (0.08 ± 0.03)

3.0 (0.12)

D – D

K

Clearance

7.0

± 2.0 (0.28 ± 0.08)

2.5 (0.10)

Section

Item

Measurement

Standard

Difference            (RH/LH,

MAX)

JMKIA8124ZZ

JMKIA8125ZZ

DLK-296

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

TRUNK LID

TRUNK LID HINGE : Removal and Installation

INFOID:0000000009269002

REMOVAL

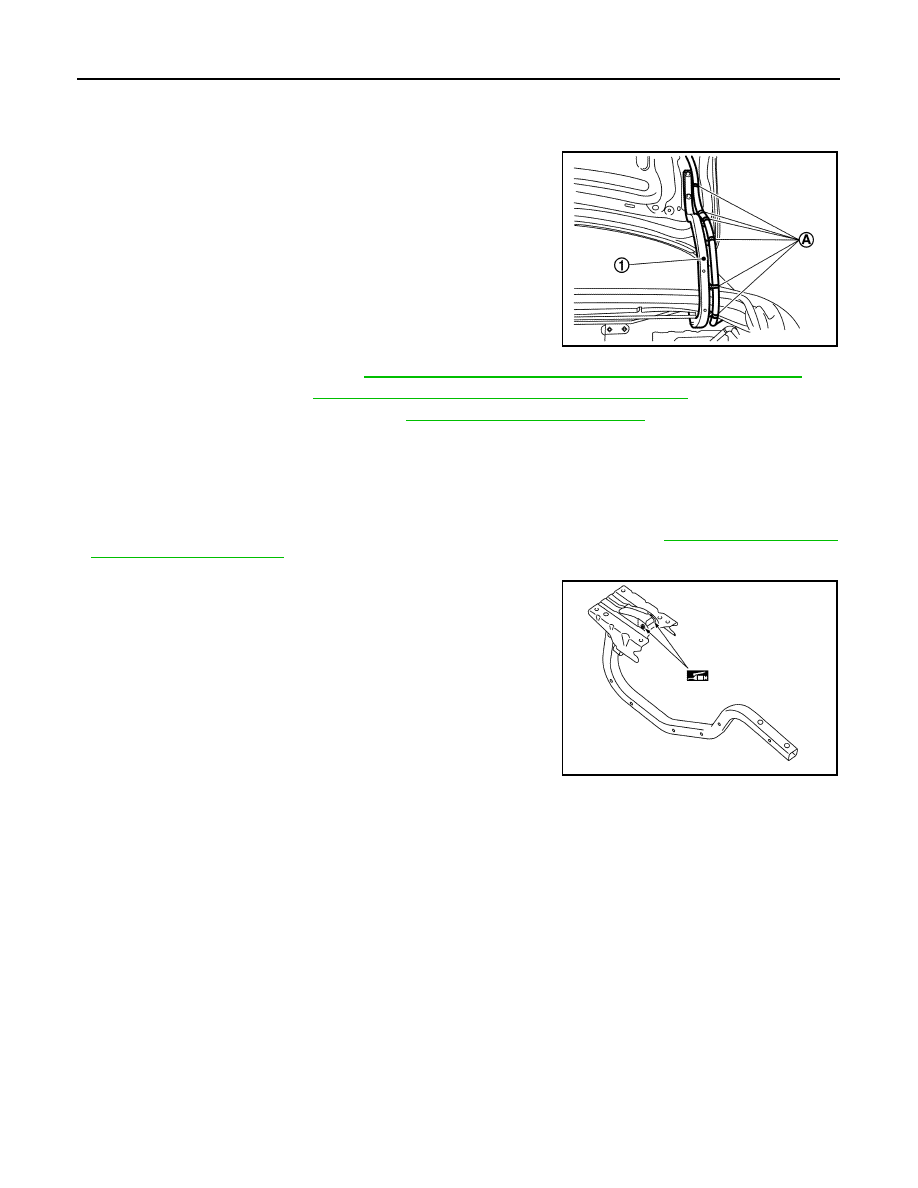

1. Remove harness clips (A) from trunk lid hinge (RH only) (1).

2. Remove trunk lid assembly. Refer to

DLK-293, "TRUNK LID ASSEMBLY : Removal and Installation"

.

3. Remove torsion bar. Refer to

DLK-296, "TORSION BAR : Removal and Installation"

.

4. Remove rear parcel shelf finisher. Refer to

INT-25, "Removal and Installation"

.

5. Remove trunk lid hinge bolts (body side) and then trunk lid hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check trunk lid open/close, lock/unlock operation.

• After installation, perform the trunk lid adjustment procedure. Refer to

DLK-294, "TRUNK LID

ASSEMBLY : Adjustment"

.

• Apply touch-up paint (body color) onto the heads of trunk lid hinge bolts.

• Check trunk lid hinge rotating point for poor lubrication. If

necessary, apply a suitable multi-purpose grease.

TORSION BAR
TORSION BAR : Removal and Installation

INFOID:0000000009269003

REMOVAL

1. Remove torsion bar clamp.
2. Support trunk lid with a suitable tool.

WARNING:

Bodily injury may occur if trunk lid is not supported properly when removing the torsion bars.

JMKIA8126ZZ

JMKIA8127ZZ

TRUNK LID

DLK-297

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

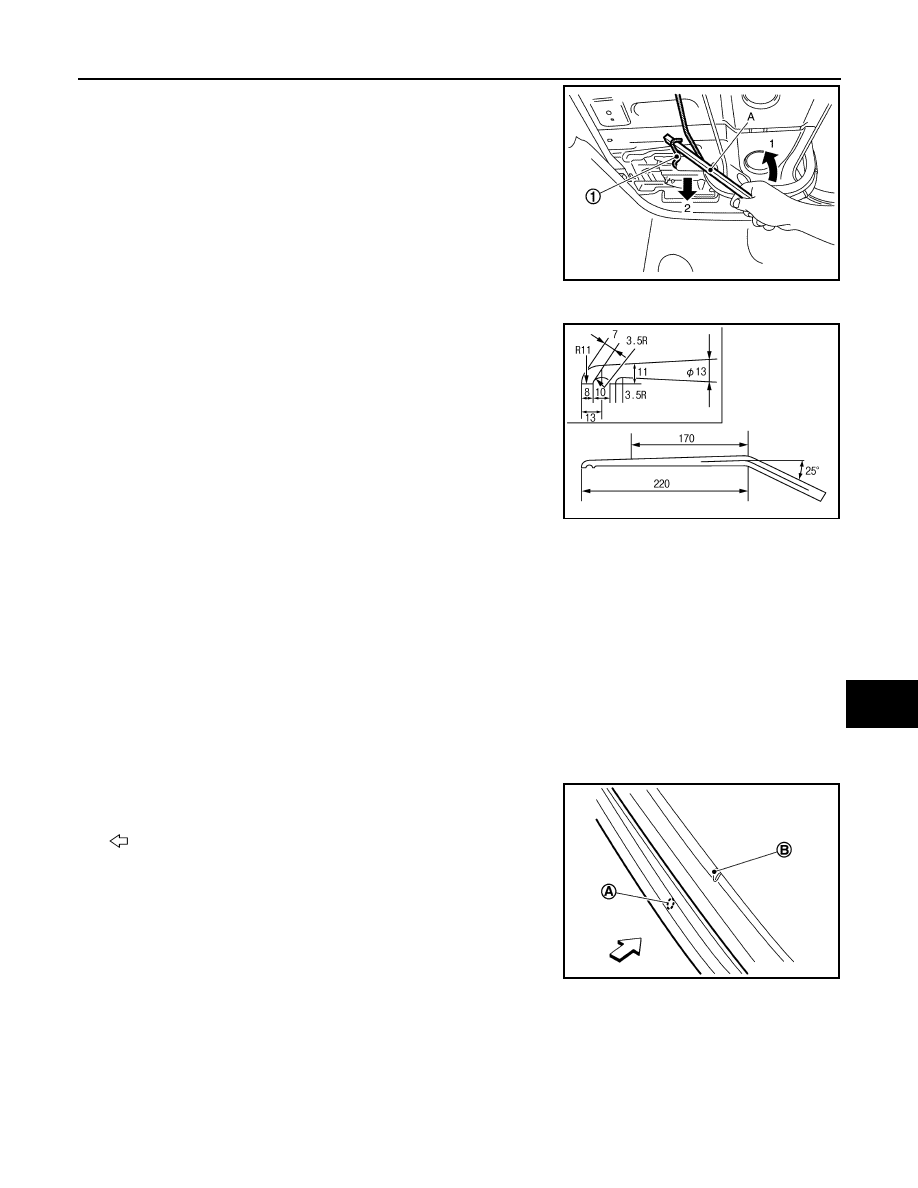

3. Apply a torsion bar wrench (A) to torsion bar (1) and lift torsion

bar to remove it.

NOTE:

For torsion bar wrench, refer to the figure.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Check trunk lid open/close operation after installation.

TRUNK LID WEATHER-STRIP
TRUNK LID WEATHER-STRIP : Removal and Installation

INFOID:0000000009269004

REMOVAL

Remove trunk lid weatherstrip from the trunk lid opening.

CAUTION:

Do not pull excessively on weatherstrip.

INSTALLATION

1. Working from the upper section, align weatherstrip center mark

(A) with vehicle center mark (B) and install weatherstrip onto the

vehicle.

: Front

JMKIA8128ZZ

PIIB3774J

JMKIA8129ZZ
