REAR WIPER MOTOR

WW-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

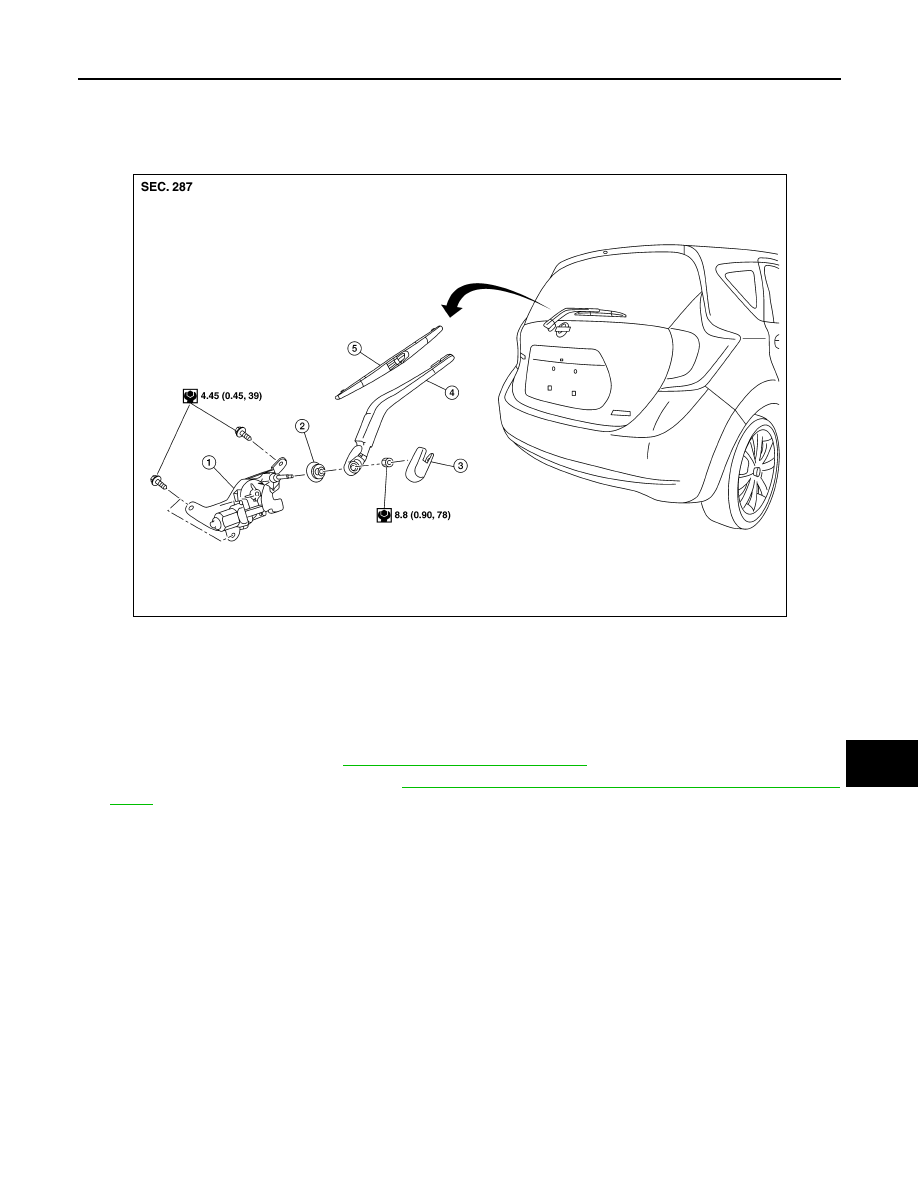

REAR WIPER MOTOR

Exploded View

INFOID:0000000009606300

Removal and Installation

INFOID:0000000009606301

REMOVAL

1. Remove rear wiper arm. Refer to

WW-64, "Removal and Installation"

.

2. Remove back door inner finisher. Refer to

INT-34, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

3. Disconnect the harness connector from the rear wiper motor.
4. Remove bolts and rear wiper motor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear wiper motor

2.

Rear wiper arm seal

3.

Rear wiper arm cover

4.

Rear wiper arm

5.

Rear wiper blade

ALLIA1312ZZ

WW-68

< REMOVAL AND INSTALLATION >

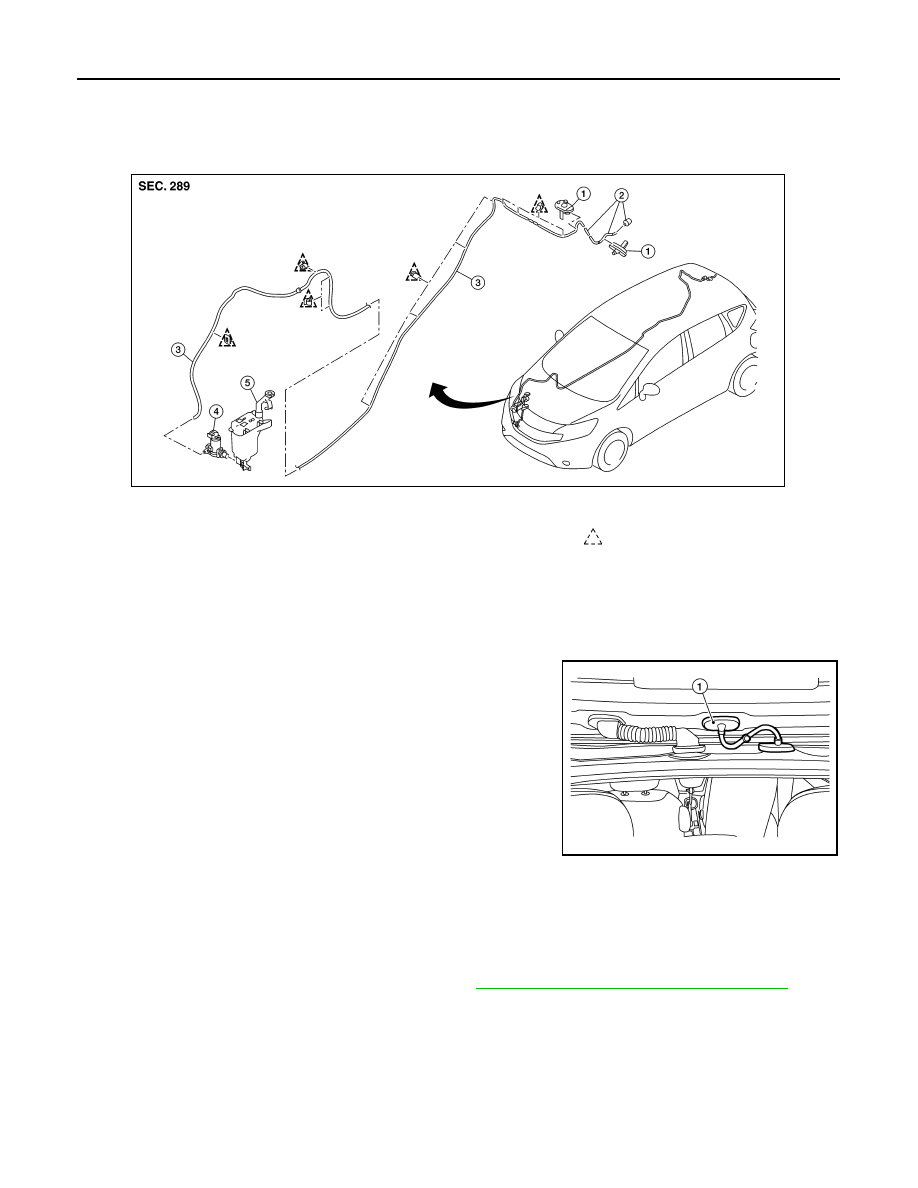

REAR WASHER NOZZLE AND TUBE

REAR WASHER NOZZLE AND TUBE

Component Parts Location

INFOID:0000000009606337

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009606302

REMOVAL

1. Disconnect the rear washer tube grommet (1) from the back

door.

2. Disconnect the rear washer tube from the rear washer nozzle.
3. Remove the rear washer nozzle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Adjust the rear washer nozzle spray pattern. Refer to

WW-68, "WASHER NOZZLE : Adjustment"

.

WASHER NOZZLE : Adjustment

INFOID:0000000009606303

WASHER NOZZLE SPRAY PATTERN

1.

Grommet

2.

Rear washer nozzle

3.

Rear washer tube

4.

Front washer motor

5.

Washer tank

Clip

ALLIA1321ZZ

ALKIA3188ZZ

REAR WASHER NOZZLE AND TUBE

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

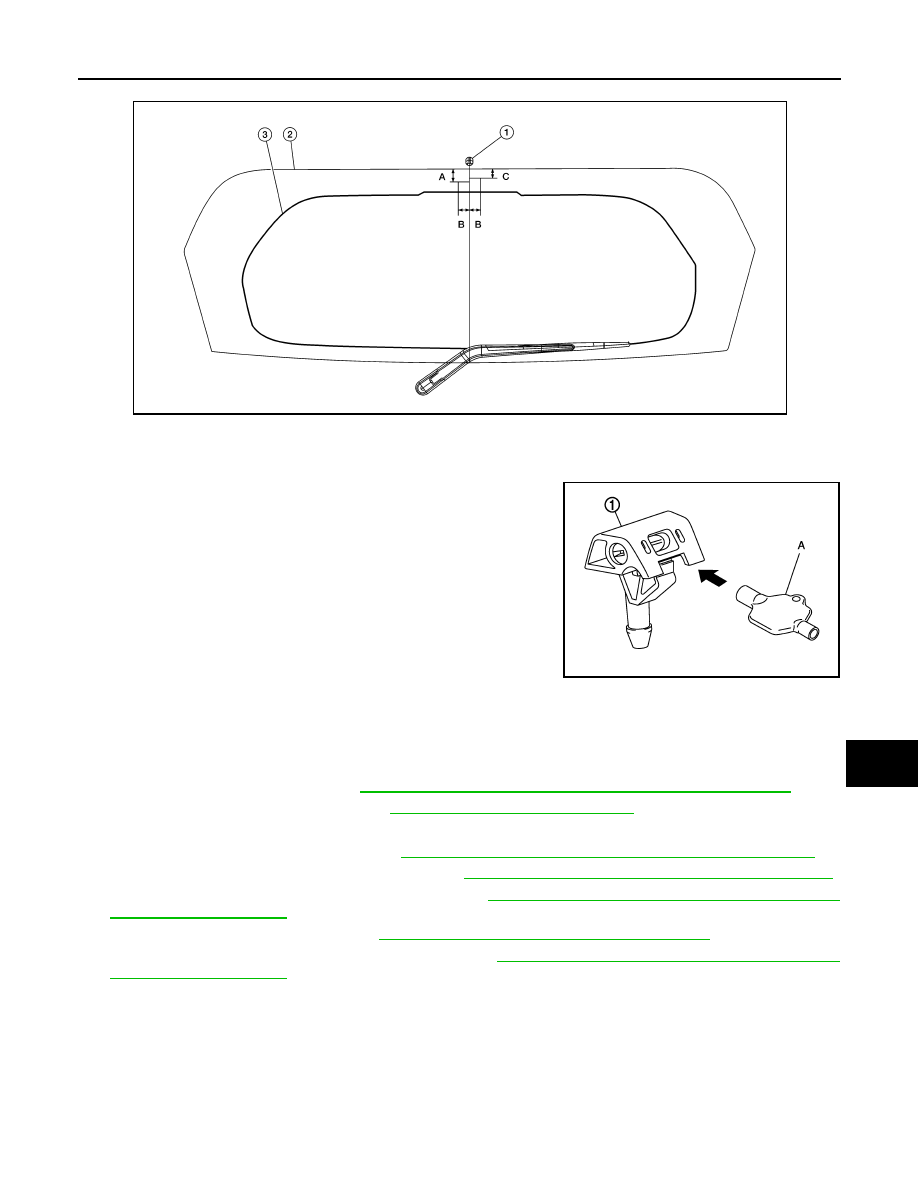

If washer nozzle (1) spray pattern is not within specification, adjust

using a suitable tool (A).

WASHER TUBE
WASHER TUBE : Removal and Installation

INFOID:0000000009606304

REMOVAL

1. Remove front under cover. Refer to

EXT-25, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove fender protector (RH). Refer to

EXT-24, "Removal and Installation"

.

3. Disconnect the rear washer tube from the washer pump.
4. Remove dash side finisher (RH). Refer to

INT-22, "DASH SIDE FINISHER : Removal and Installation"

.

5. Remove front and rear kicking plate (RH). Refer to

INT-20, "KICKING PLATE : Removal and Installation"

.

6. Remove center pillar lower finisher (RH). Refer to

INT-23, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

7. Remove rear seat back (RH). Refer to

SE-19, "SEATBACK : Removal and Installation"

.

8. Remove luggage side upper finisher (RH). Refer to

INT-33, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

1.

Rear washer nozzle

2.

Back door window glass

3.

Black printed area line

A.

30.8 mm (1.21 in)

B.

23.6 mm (0.93 in)

C.

21.1 mm (0.83 in)

ALLIA1314ZZ

JMLIA1327ZZ

WW-70

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

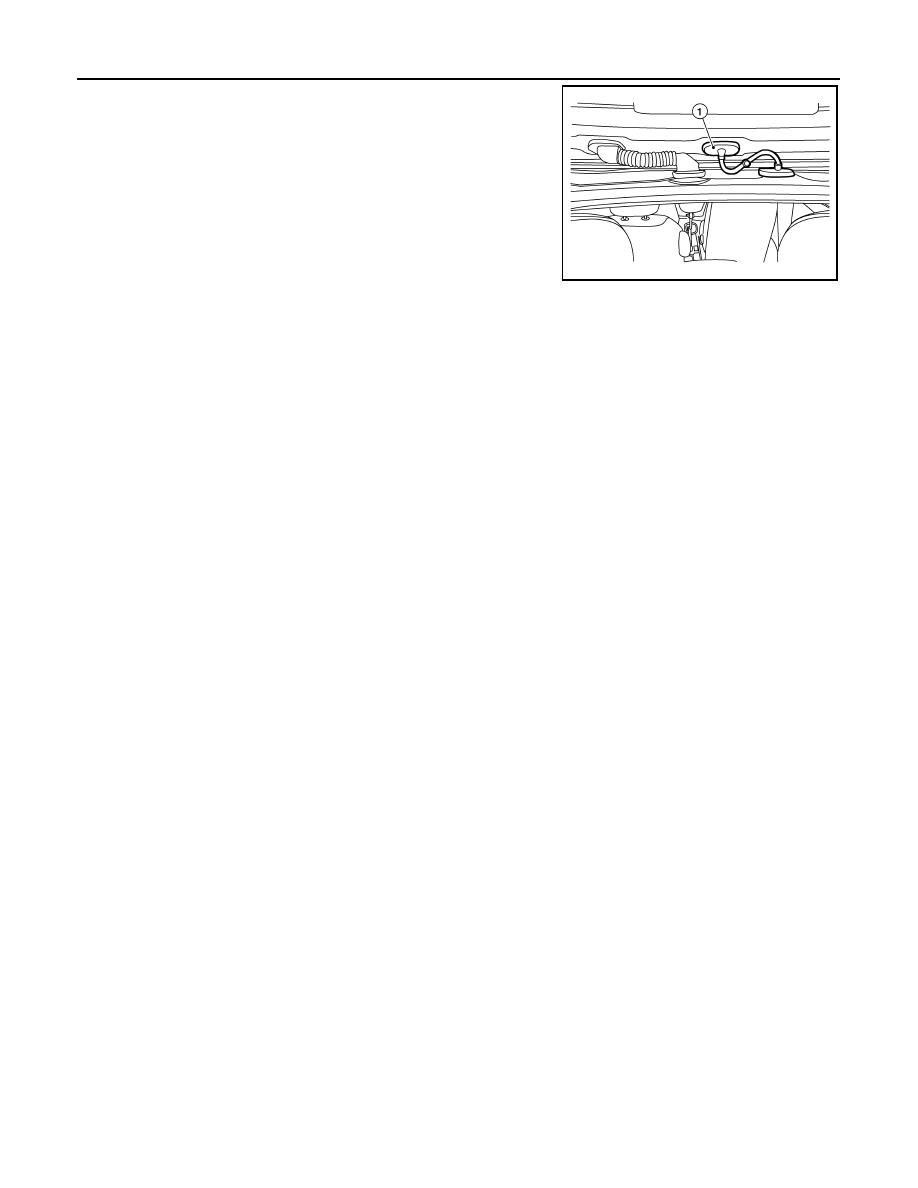

9. Disconnect the rear washer tube grommet (1) from the back

door.

10. Disconnect the rear washer tube from the rear washer nozzle.
11. Release the clips using a suitable tool and remove the rear washer tube.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3188ZZ
