WARNING CHIME SYSTEM

WCS-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

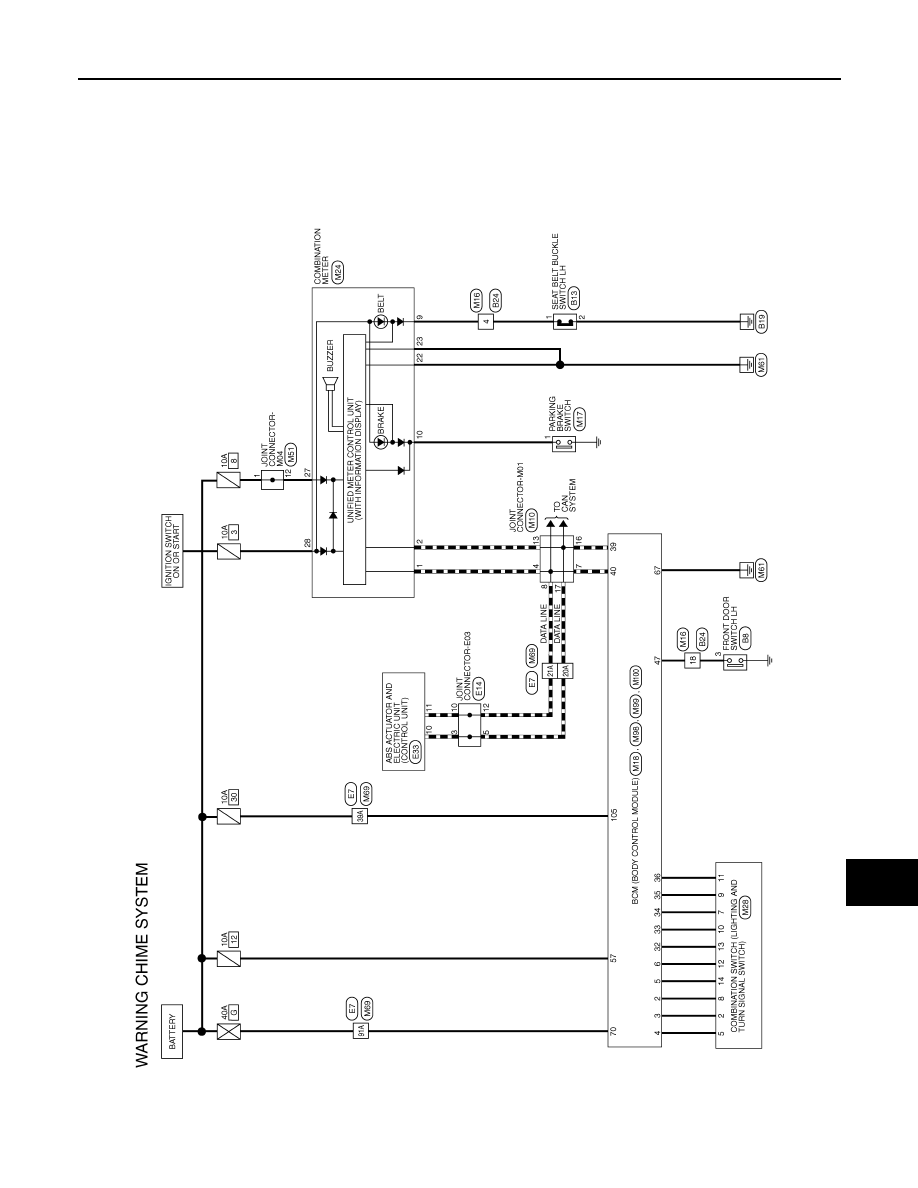

WARNING CHIME SYSTEM

Wiring Diagram

INFOID:0000000009014788

AANWA0863GB

WCS-20

< WIRING DIAGRAM >

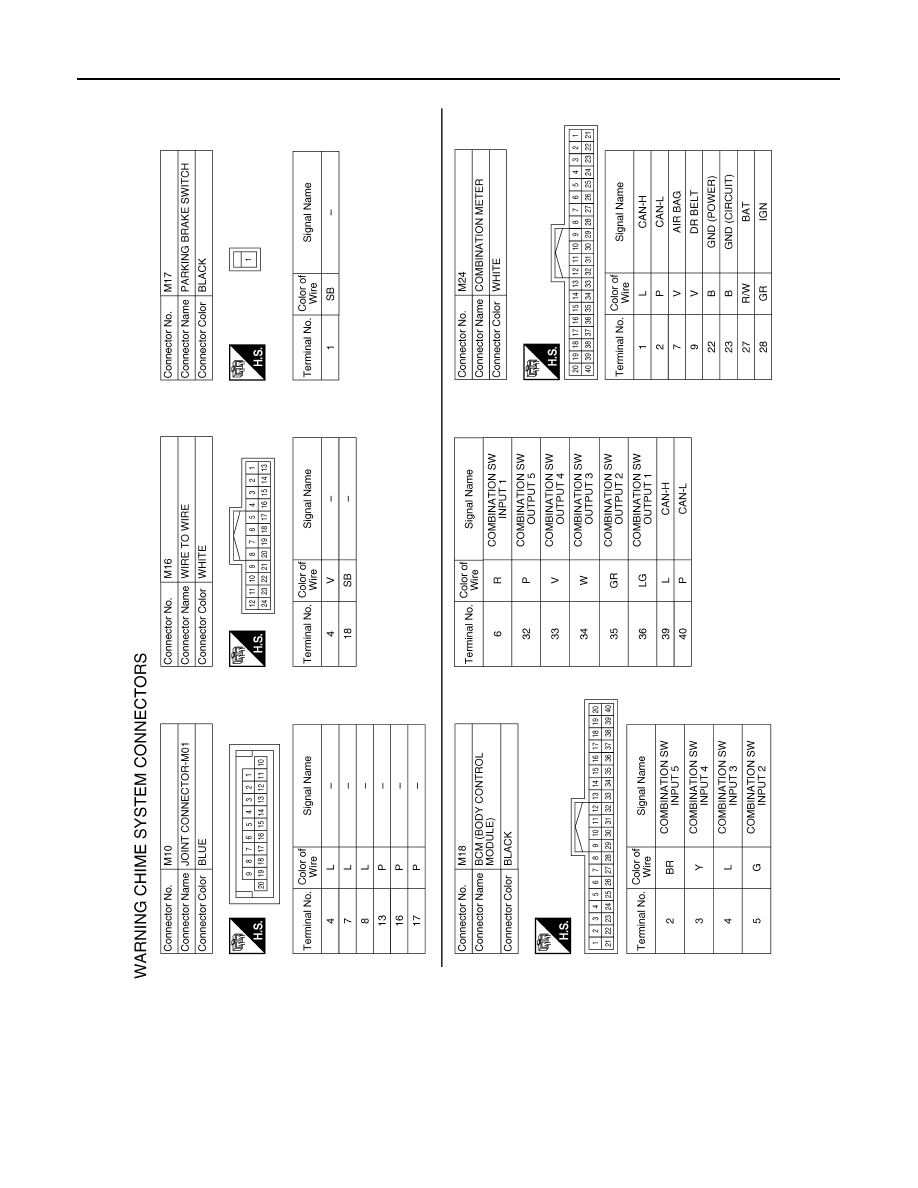

WARNING CHIME SYSTEM

AANIA1730GB

WCS

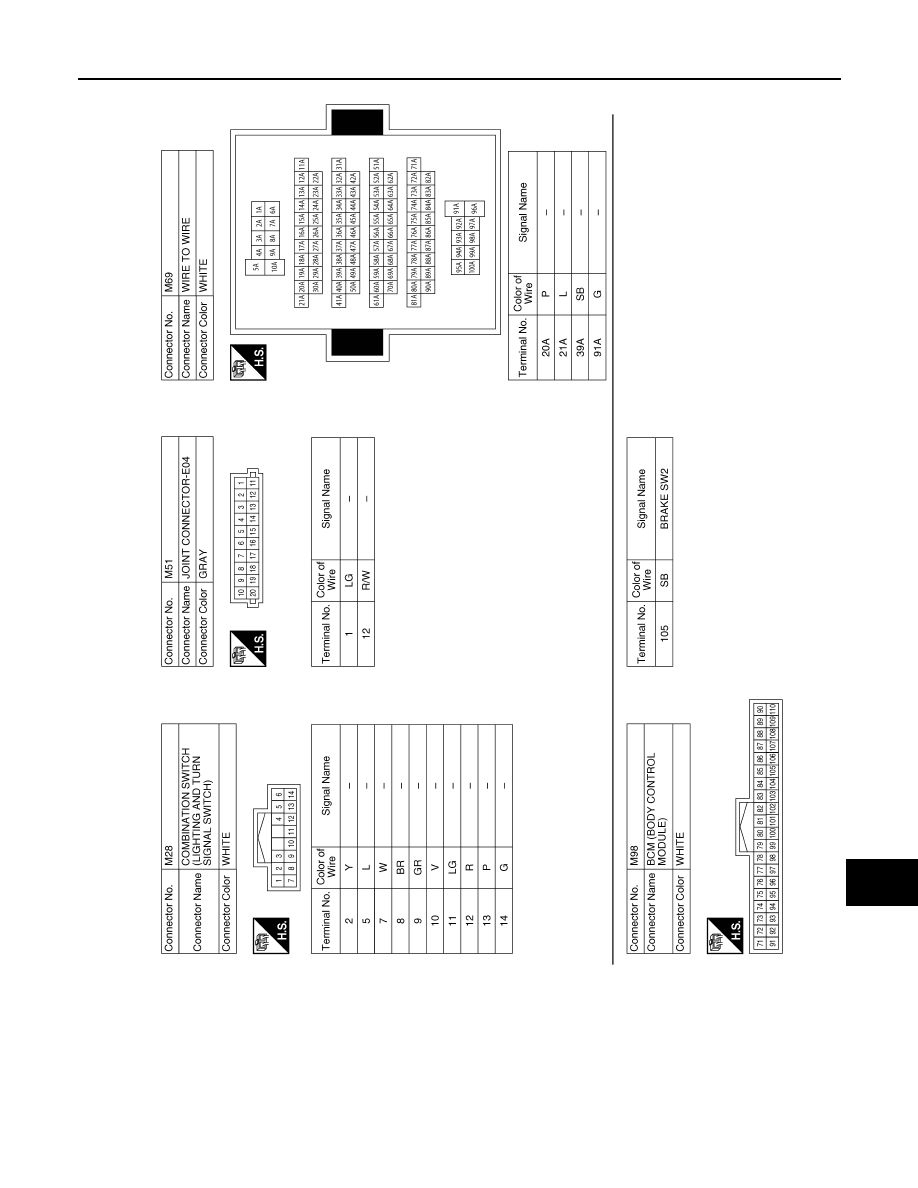

WARNING CHIME SYSTEM

WCS-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1731GB

WCS-22

< WIRING DIAGRAM >

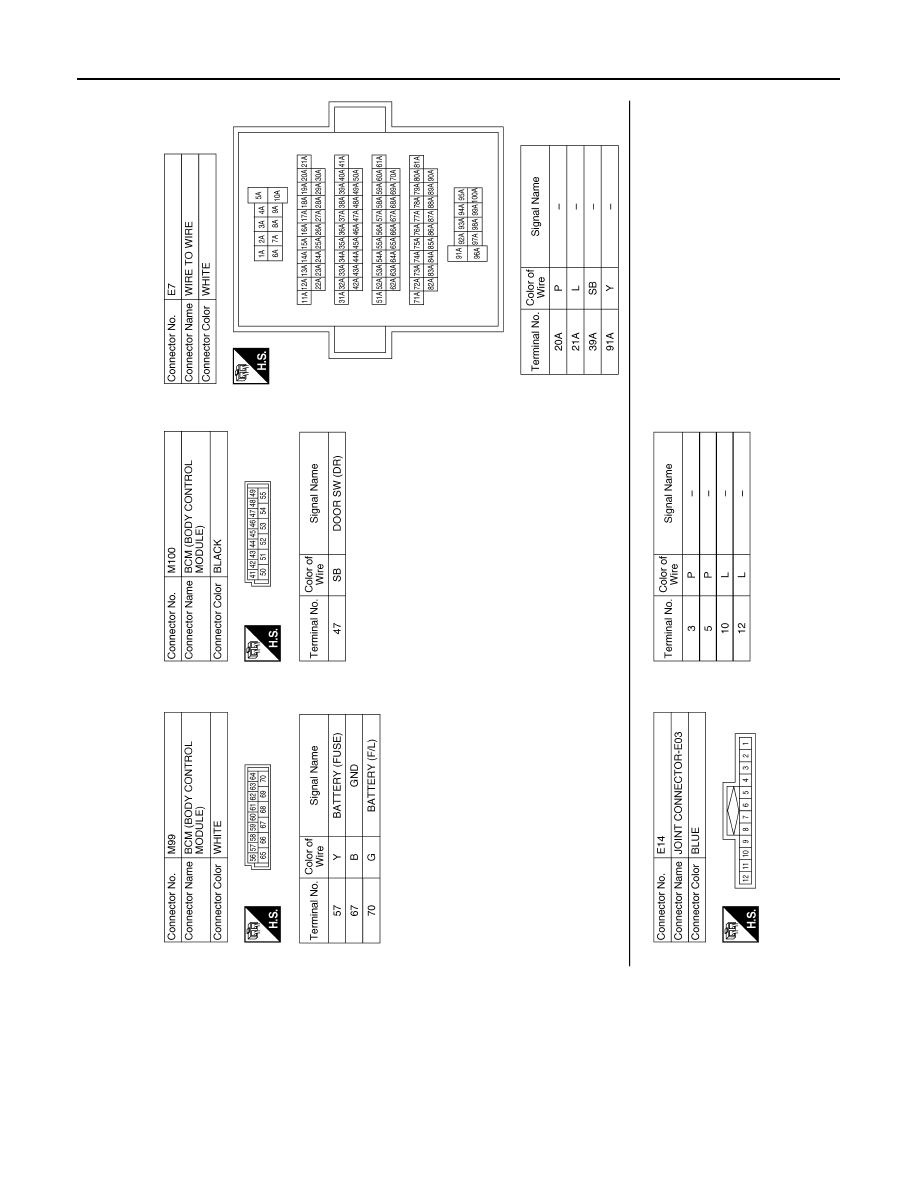

WARNING CHIME SYSTEM

AANIA1732GB
