PREPARATION

VTL-3

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PREPARATION

PREPARATION

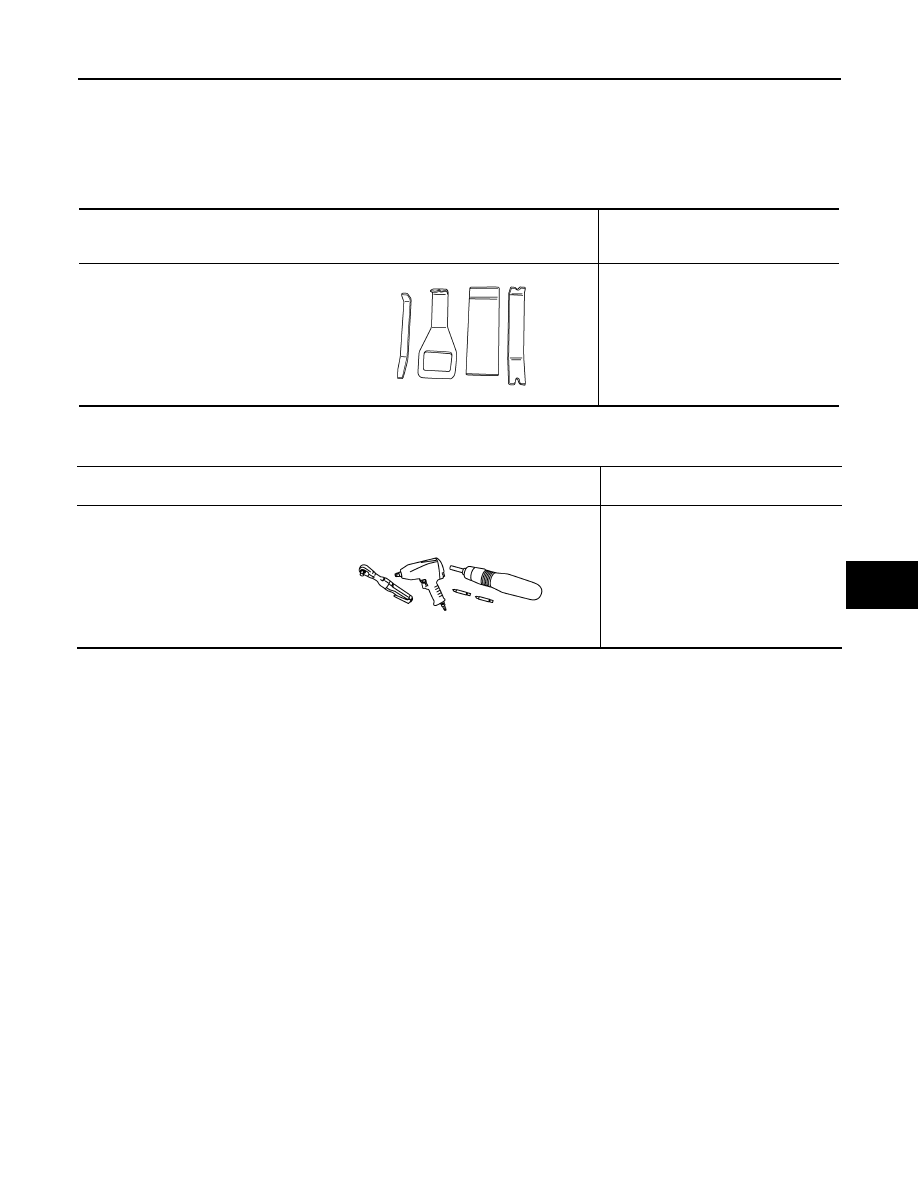

Special Service Tool

INFOID:0000000009429691

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009429692

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

( — )
Power tool

Loosening nuts, screws and bolts

PIIB1407E

VTL-4

< SYSTEM DESCRIPTION >

VENTILATION SYSTEM

SYSTEM DESCRIPTION

VENTILATION SYSTEM

System Description

INFOID:0000000009429695

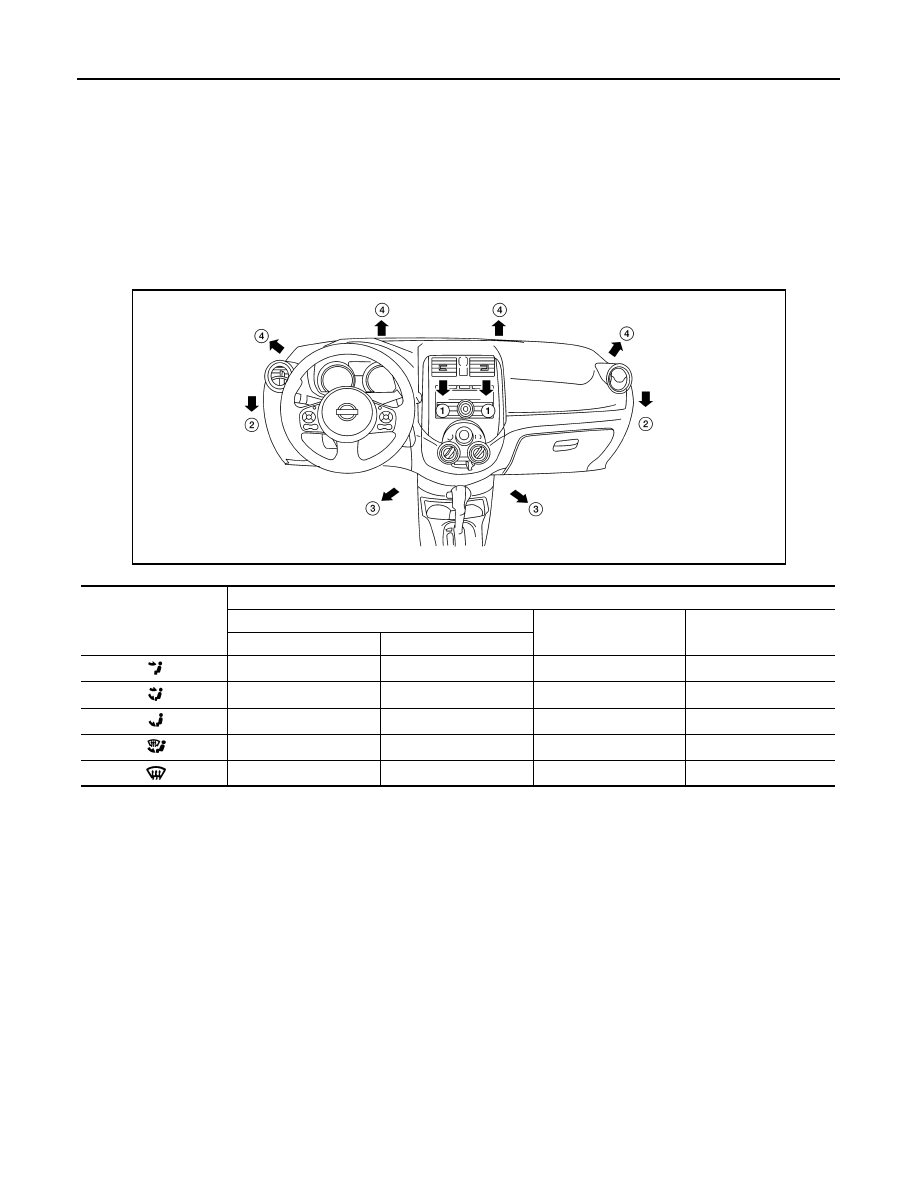

OUTLINE

The ventilation system is controlled by the front air control.

AIR FLOW

Front

×: Applicable

AWIIA1690ZZ

MODE/DEF setting

AIR OUTLET

Ventilator

Foot (3)

Defroster (4)

Center (1)

Side (2)

×

×

—

—

×

×

×

—

—

×

×

×

—

×

×

×

—

×

—

×

DUCT AND GRILLE

VTL-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

DUCT AND GRILLE

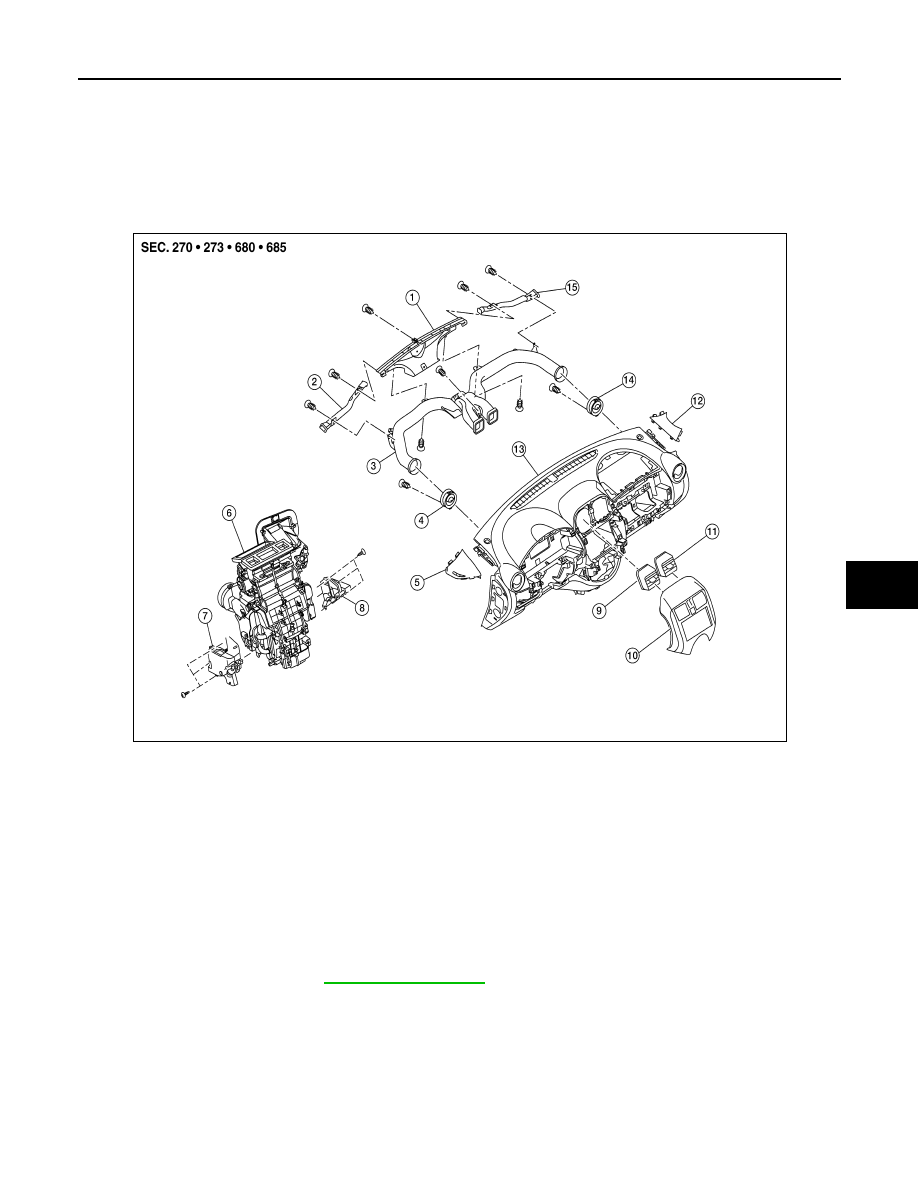

Exploded View

INFOID:0000000009014885

FRONT

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009405603

REMOVAL

1. Remove cluster lid C. Refer to

IP-14, "Exploded View"

.

2. Release pawls and remove the center ventilator grille from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE

1.

Center defroster duct

2.

Side defroster duct (LH)

3.

Center ventilator duct

4.

Side ventilator grille (LH)

5.

Side defroster grille LH

6.

Heating and cooling unit assembly

7.

Foot duct (LH)

8.

Foot duct (RH)

9.

Center ventilator grille (LH)

10.

Cluster lid C

11.

Center ventilator grille (RH)

12.

Side defroster grille RH

13.

Instrument panel assembly

14.

Side ventilator grille (RH)

15.

Side defroster duct (RH)

AWIIA1679ZZ

VTL-6

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

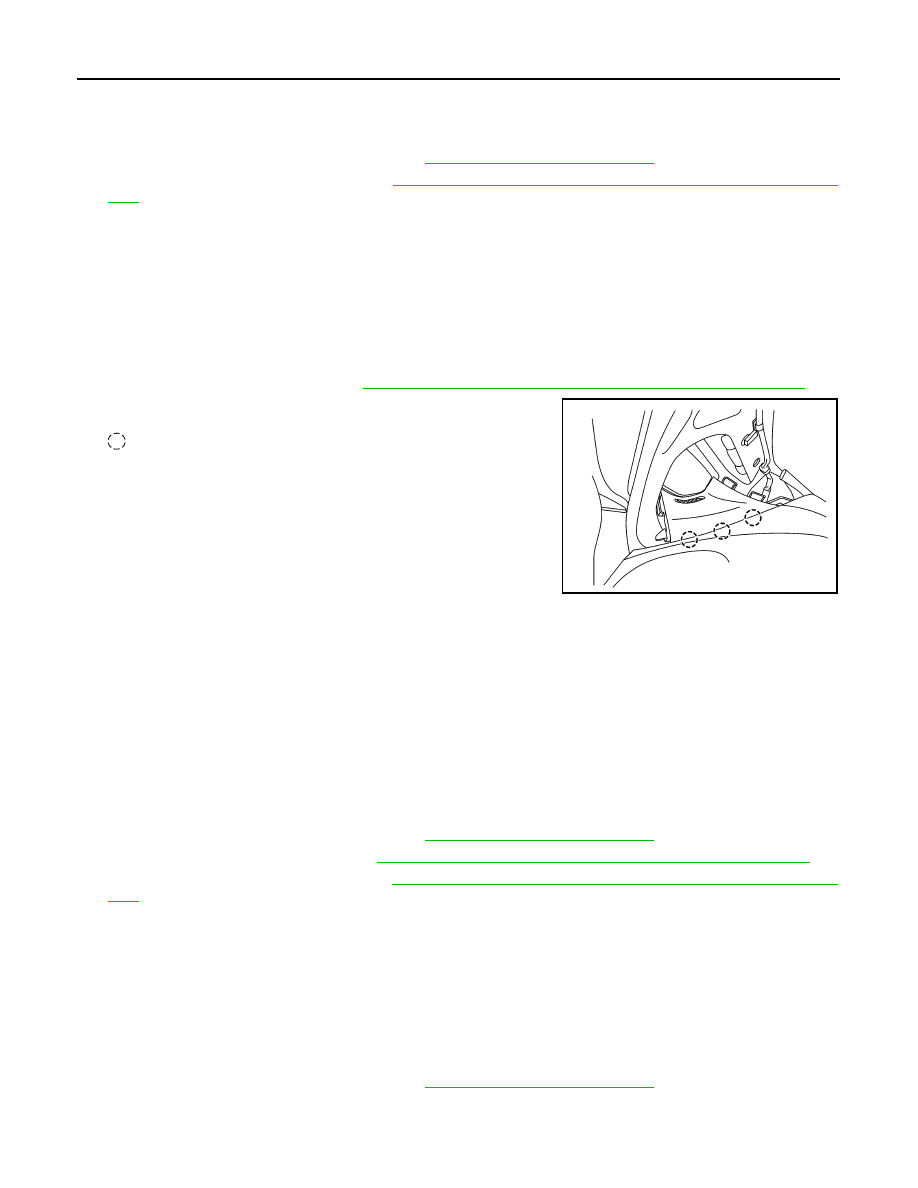

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009405604

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove center ventilator duct. Refer to

VTL-6, "CENTER VENTILATOR DUCT : Removal and Installa-

tion"

.

3. Remove screw and the side ventilator grille.

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009405606

REMOVAL

1. Remove front pillar finisher. Refer to

INT-19, "FRONT PILLAR FINISHER : Removal and Installation"

.

2. Release side defroster grille pawls using a suitable tool and

remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls for deformation and damage during installation. Replace with a new com-

ponent if necessary.

• When installing side defroster grille, check that all pawls are securely placed into instrument panel

assembly.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009405607

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove side defroster ducts. Refer to

VTL-7, "SIDE DEFROSTER DUCT : Removal and Installation"

.

3. Remove center defroster duct. Refer to

VTL-6, "CENTER DEFROSTER DUCT : Removal and Installa-

tion"

.

4. Remove screw and center ventilator duct from instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

CENTER DEFROSTER DUCT
CENTER DEFROSTER DUCT : Removal and Installation

INFOID:0000000009405608

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and center defroster duct from instrument panel assembly.

INSTALLATION

AWJIA1098ZZ
