DIAGNOSIS SYSTEM (TCM)

DIAGNOSIS SYSTEM (TCM)

DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Trip Detection Diagnosis and 2 Trip Detection Diagno-
sis

INFOID:0000000009019872

NOTE:

“Start the engine and turn OFF the ignition switch after warm-up.” This is defined as 1 trip.

1 TRIP DETECTION DIAGNOSIS

When initial malfunction is detected, TCM memorizes DTC. In these diagnoses, some illuminate MIL and

some do not. Refer to

TM-111, "DTC Index"

2 TRIP DETECTION DIAGNOSIS

When initial malfunction is detected, TCM memorizes DTC of the 1st trip. MIL does not light at this stage. <1

trip>

If the same malfunction is detected again in next driving, TCM memorizes DTC. When DTC is memorized, MIL

lights. <2 trip>

“Trip” of the “2 trip detection diagnosis” indicates the driving mode that executes self-diagnosis during driving.

×: Check possible —: Check not possible

DIAGNOSIS DESCRIPTION : DTC and DTC of 1st Trip

INFOID:0000000009019873

2 TRIP DETECTION DIAGNOSIS THAT ILLUMINATES MIL

• The DTC number of the 1st trip is the same as the DTC number.

• When a malfunction is detected at the 1st trip, TCM memorizes DTC of the 1st trip. MIL does not light at this

stage. If the same malfunction is not detected at the 2nd trip (conforming to necessary driving conditions),

DTC at the 1st trip is erased from TCM. If the same malfunction is detected at the 2nd trip, TCM memorizes

DTC and MIL lights at the same time.

• The DTC of the 1st trip is specified in Service $01 of SAE J1979/ISO 15031-5. Since detection of DTC at the

1st trip does not illuminate MIL, warning for a problem is not given to a driver.

• For procedure to delete DTC and 1st trip DTC from TCM, refer to

TM-92, "CONSULT Function"

• If DTC of the 1st trip is detected, it is necessary to check the cause according to the “Diagnosis flow”. Refer

TM-123, "Flowchart of Trouble Diagnosis"

DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)

INFOID:0000000009019874

• TCM not only detects DTC, but also sends the MIL signal to ECM through CAN communication. ECM sends

the MIL signal to the combination meter through CAN communication according to the signal, and illumi-

nates MIL.

• For malfunction indicator lamp (MIL) description, refer to

EC-24, "WARNING LAMPS/INDICATOR LAMPS :

Malfunction Indicator Lamp (MIL)"

DIAGNOSIS DESCRIPTION : Counter System

INFOID:0000000009019875

RELATION BETWEEN DTC AT 1ST TRIP/DTC/MIL AND DRIVING CONDITIONS (FOR 2 TRIP DE-
TECTION DIAGNOSIS THAT ILLUMINATES MIL)

• When initial malfunction is detected, TCM memorizes DTC of the 1st trip. MIL does not light at this stage.

• If the same malfunction is detected at the 2nd trip, TCM memorizes DTC and MIL lights at the same time.

• Then, MIL goes after driving the vehicle for 3 trips under “Driving condition B” without malfunction.

• DTC is displayed until 40 trips of “Driving condition A” are satisfied without detecting the same malfunction.

DTC is erased when 40 trips are satisfied.

Item

DTC at the 1st trip

DTC

MIL

Display at the

1st trip

Display at the

2nd trip

Display at the

1st trip

Display at the

2nd trip

Illumination at

the 1st trip

Illumination at

the 2nd trip

1 trip detection diagnosis
(Refer to

TM-111, "DTC Index"

)

—

2 trip detection diagnosis
(Refer to

TM-111, "DTC Index"

)

—

DIAGNOSIS SYSTEM (TCM)

TM-91

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

• When the self-diagnosis result is acceptable at the 2nd trip (conforming to driving condition B), DTC of the

1st trip is erased.

COUNTER SYSTEM LIST

DRIVING CONDITION

Driving condition A

Driving condition A is the driving condition that provides warm-up.

In specific, count-up is performed when all of the following conditions are satisfied.

• Engine speed is 400 rpm or more.

• After start of the engine, the water temperature increased by 20

°C (36 °F) or more.

• Water temperature was 70

°C (158 °F) or more.

• The ignition switch was changed from ON to OFF.

NOTE:

• If the same malfunction is detected regardless of the driving condition, reset the A counter.

• When the above is satisfied without detecting the same malfunction, count up the A counter.

• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.

Driving condition B

Driving condition B is the driving condition that performs all diagnoses once.

In specific, count-up is performed when all of the following conditions are satisfied.

• Engine speed is 400 rpm or more.

• Water temperature was 70

°C (158 °F) or more.

• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.

• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.

• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12

seconds or more.

• After start of the engine, 22 minutes or more have passed.

• The condition that the vehicle speed is 10km/h (6 MPH) or more continued for 10 seconds or more in total.

• The ignition switch was changed from ON to OFF.

NOTE:

• If the same malfunction is detected regardless of the driving condition, reset the B counter.

• When the above is satisfied without detecting the same malfunction, count up the B counter.

• When the B counter reaches 3 without malfunction, MIL goes off.

• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of

the 1st trip, DTC of the 1st trip is erased.

Item

Driving condition

Trip

MIL (OFF)

DTC (clear)

DTC at 1st trip (clear)

TM-92

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

DIAGNOSIS SYSTEM (TCM)

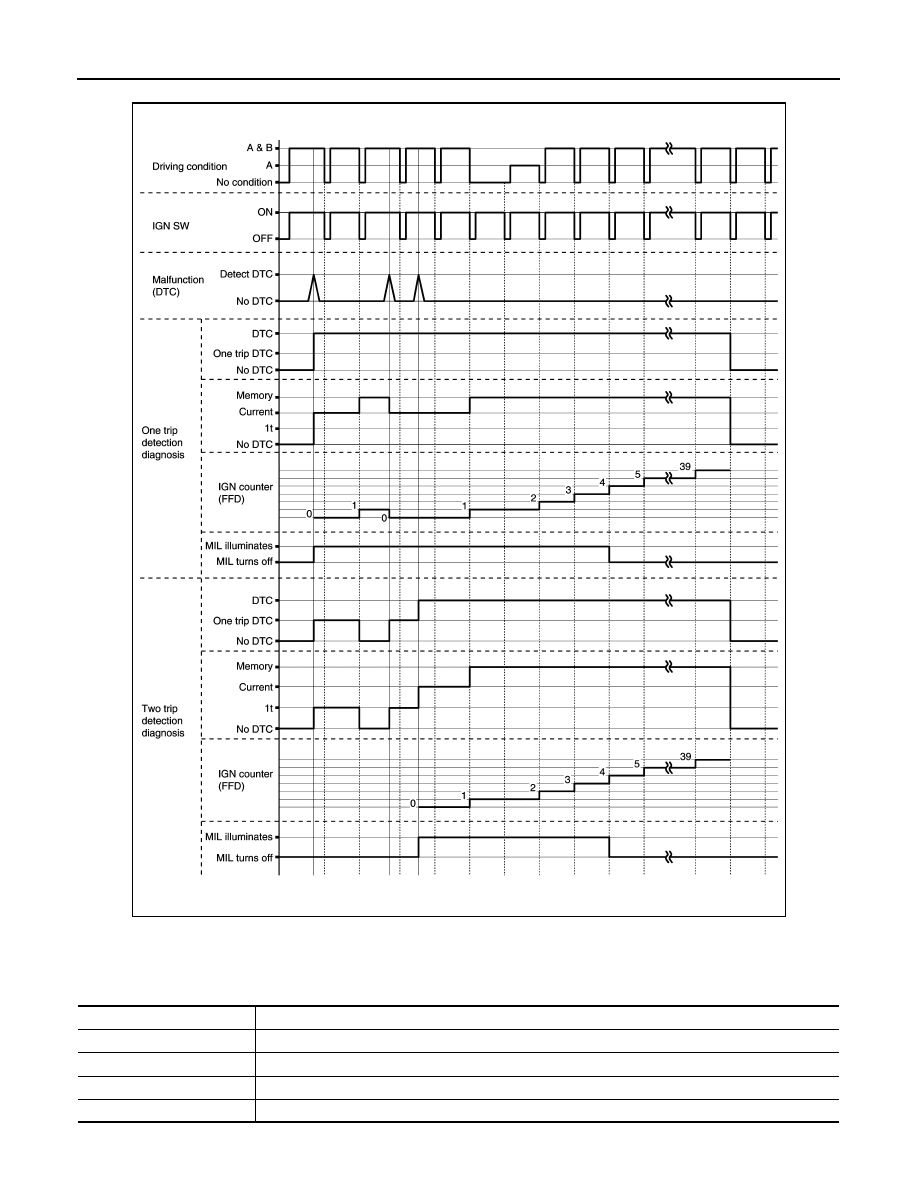

TIME CHART

CONSULT Function

INFOID:0000000009019876

APPLICATION ITEMS

JSDIA1868GB

Conditions

Function

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Self Diagnostic Results

Retrieve DTC from ECU and display diagnostic items.

Data Monitor

Monitor the input/output signal of the control unit in real time.

CAN Diagnosis

This mode displays a network diagnosis result about CAN by a diagram.

DIAGNOSIS SYSTEM (TCM)

TM-93

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SELF DIAGNOSTIC RESULTS

Display Item List

Refer to

TM-111, "DTC Index"

DTC at 1st trip and method to read DTC

• DTC (P0705, P0711, P0720, etc.) is specified by SAE J2012/ISO 15031-6.

• DTC and DTC at 1st trip are displayed on “Self Diagnostic results” of CONSULT.

When DTC is currently detected, “CRNT” is displayed. If “PAST” is displayed, it shows a malfunction

occurred in the past.The trip number of drive without malfunction of concerned DTC can be confirmed with

“IGN counter” inside “FFD”.

• When the DTC at the 1st trip is detected, the “timing” is displayed as “1t”.

DTC deletion method

NOTE:

• If the battery terminal is disconnected, the TCM memory is erased. (The disconnection time varies from sev-

eral seconds to several hours.

• If the ignition switch is left ON after repair, turn OFF the ignition switch and wait for 10 seconds or more.

Then, turn the ignition ON again. (Engine stop)

1. Touch “TRANSMISSION” of CONSULT.

2. Touch “Self Diagnostic Result”.

3. Touch “Erase”. (DTC memorized in TCM is erased.)

IGN counter

The ignition counter is displayed in “FFD” and the number of times of satisfied “Driving condition A” is dis-

played after normal recovery of DTC. Refer to

TM-90, "DIAGNOSIS DESCRIPTION : Counter System"

• If malfunction (DTC) is currently detected, “0” is displayed.

• After normal recovery, every time “Driving condition A” is satisfied, the display value increases from 1

→ 2 →

3...38

→ 39.

• When MIL turns OFF due to the malfunction and the counter reaches 40, the DTC is erased.

NOTE:

The counter display of “40” cannot be checked.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

×: Application

: Optional selection

CAN Diagnosis Support Mon-
itor

It monitors the status of CAN communication.

ECU Identification

Display the ECU identification number (part number etc.) of the selected system.

CALIB DATA

The calibration data status of TCM can be checked.

Conditions

Function

Monitored item

(Unit)

Monitor item selection

Remarks

MAIN SIG-

NALS

ECU IN-

PUT SIG-

NALS

VSP SENSOR

(km/h or mph)

Displays the vehicle speed calculated from the CVT out-
put shaft speed.

ESTM VSP SIG

(km/h or mph)

Displays the vehicle speed signal (ABS) received
through CAN communication.

PRI SPEED SEN

(rpm)

Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.

SEC REV SENSOR

(rpm)

Displays the secondary pulley speed calculated from the
pulse signal of the secondary speed sensor.

VHCL/S SE (REV)

(rpm)

Displays the CVT output shaft speed calculated from the
pulse signal of the output speed sensor.

ENG SPEED SIG

(rpm)

Displays the engine speed received through CAN com-
munication.
