DIAGNOSIS SENSOR UNIT

SRC-13

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Flash Code Index

INFOID:0000000009520718

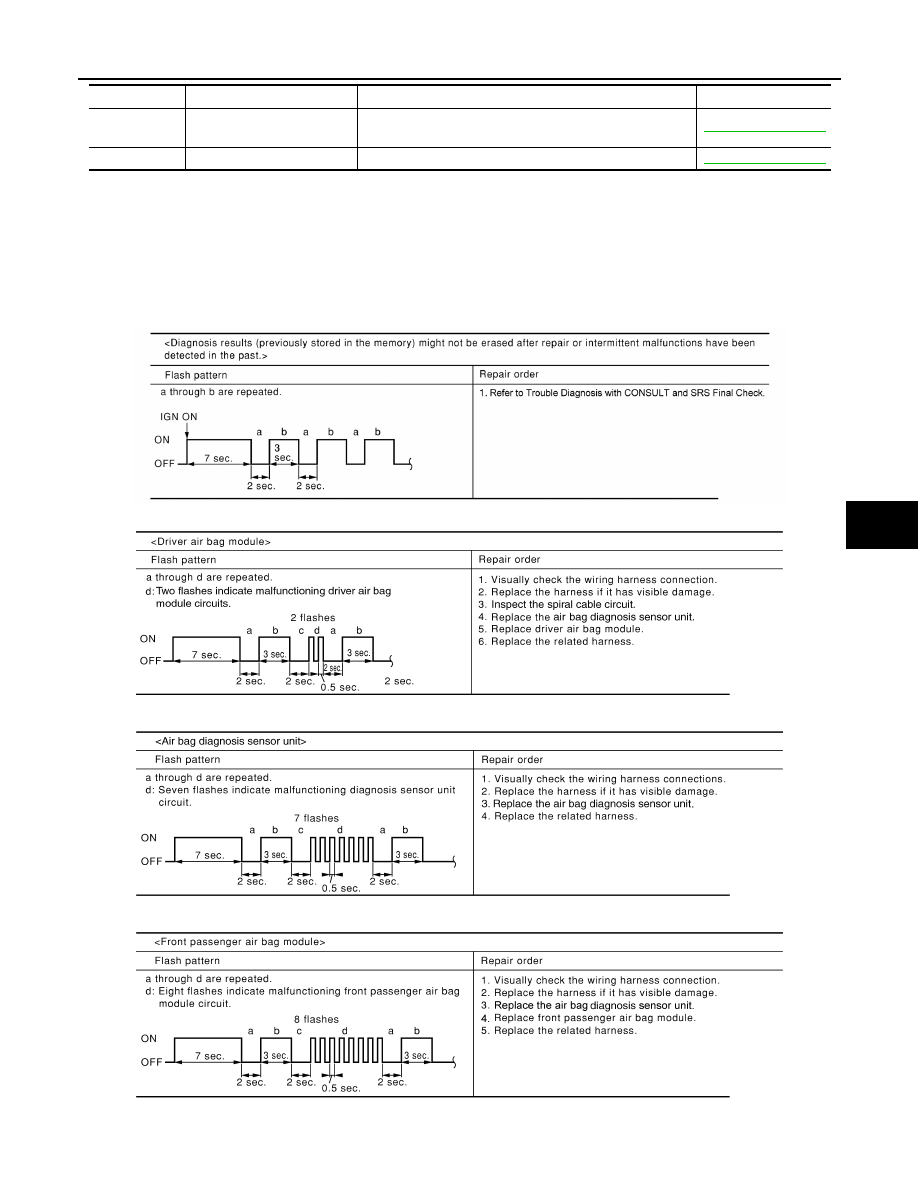

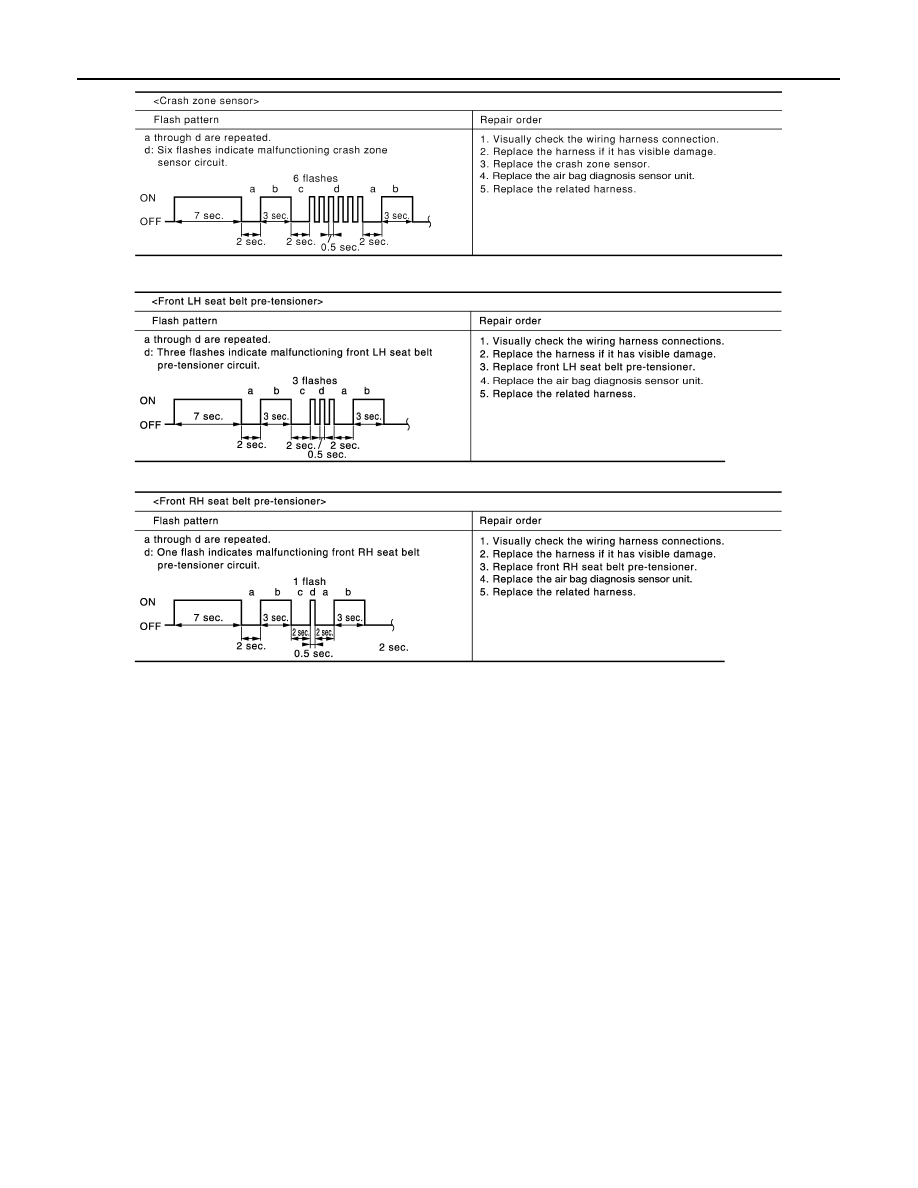

WARNING LAMP FLASH CODE CHART

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is

eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to

the next step. When malfunction is eliminated, further repair work is not required.

B1209

FRONTAL COLLISION
DETECTION

Driver and/or front passenger air bag modules are
deployed.

SRC-62, "DTC Logic"

B1XXX

CONTROL UNIT

Air bag diagnosis sensor unit malfunctioning.

SRC-63, "DTC Logic"

DTC

Diagnostic item

Explanation

Reference page

AWHIA0300GB

AWHIA0306GB

WHIA0198E

AWHIA0307GB

SRC-14

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

WHIA0200E

WHIA0263E

WHIA0262E

SRS AIR BAG SYSTEM

SRC-15

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

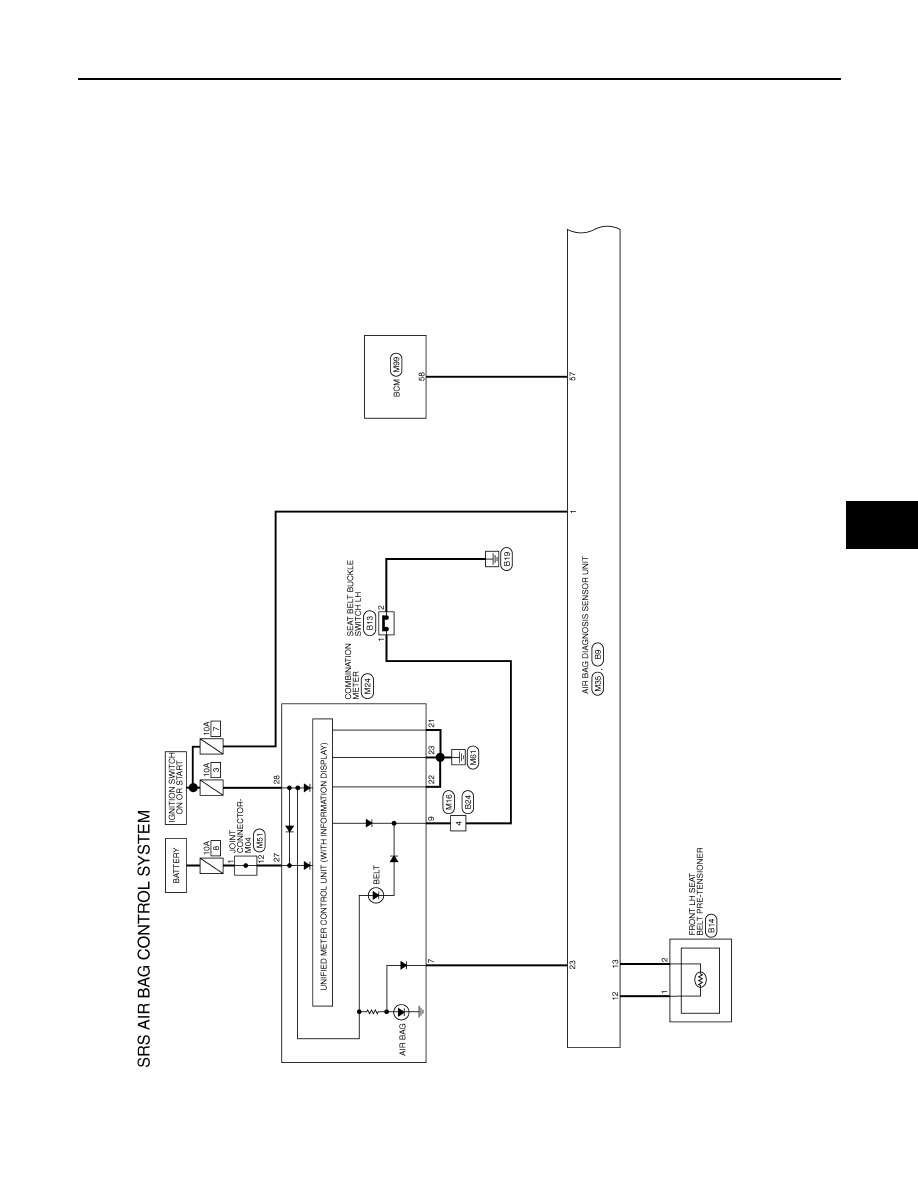

WIRING DIAGRAM

SRS AIR BAG SYSTEM

Wiring Diagram

INFOID:0000000009015648

AAHWA0061GB

SRC-16

< WIRING DIAGRAM >

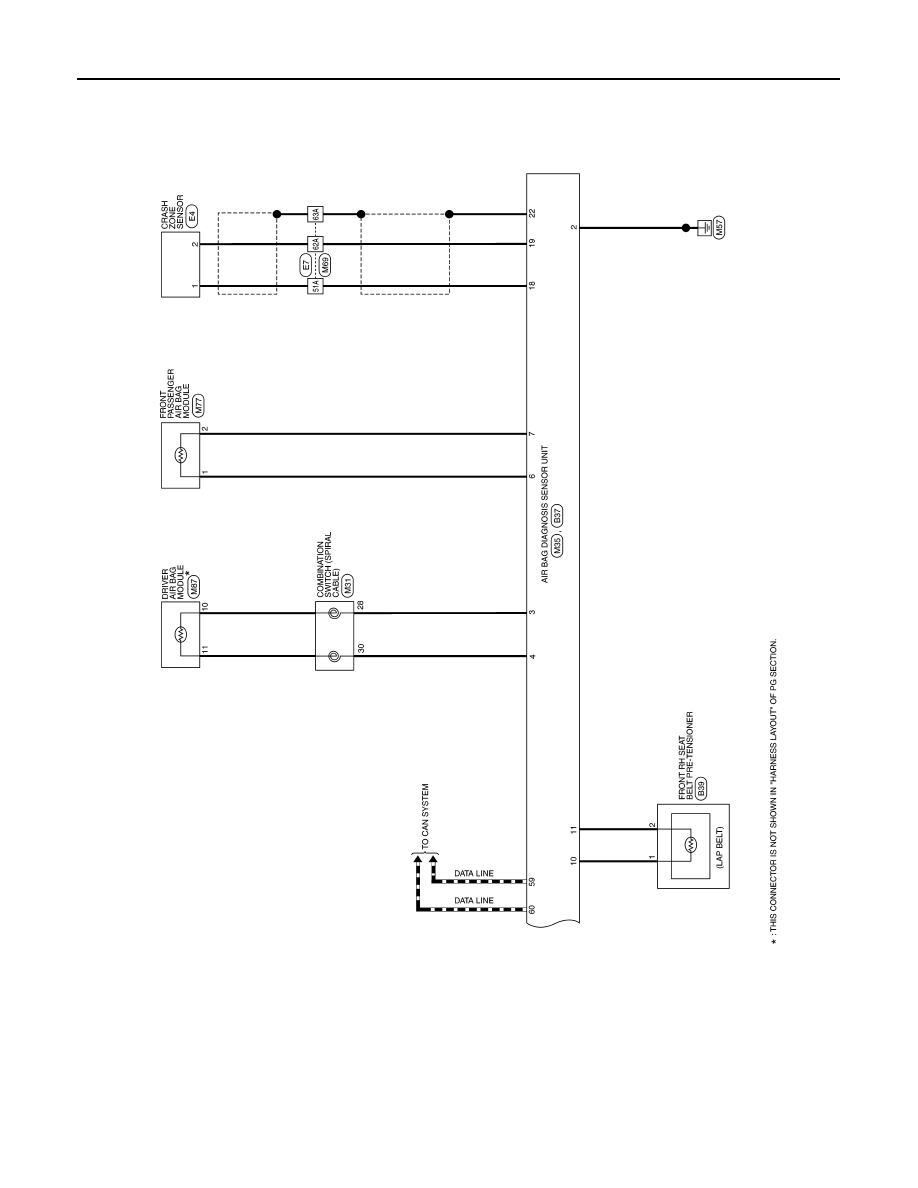

SRS AIR BAG SYSTEM

AAHWA0062GB
