SEC-12

< SYSTEM DESCRIPTION >

SYSTEM

Vehicle speed: 4 km/h (2.5 MPH) or more

Emergency stop operation
• Press and hold the push-button ignition switch for 2 seconds or more.
• Press the push-button ignition switch 3 times or more within 1.5 seconds.

NISSAN ANTI-THEFT SYSTEM

Power supply position

Condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

OFF

→ ACC

—

Not depressed

OFF

→ ACC → ON

—

Not depressed

OFF

→ ACC → ON →

OFF

—

Not depressed

OFF

→ START

ACC

→ START

P or N position

Depressed

Engine is running

→

OFF

—

Power supply position

Condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

Engine is running

→

ACC

—

Emergency stop operation

Engine stall return oper-
ation while driving

N position

Not depressed

SYSTEM

SEC-13

< SYSTEM DESCRIPTION >

SEC

NISSAN ANTI-THEFT SYSTEM : System Description

INFOID:0000000009606331

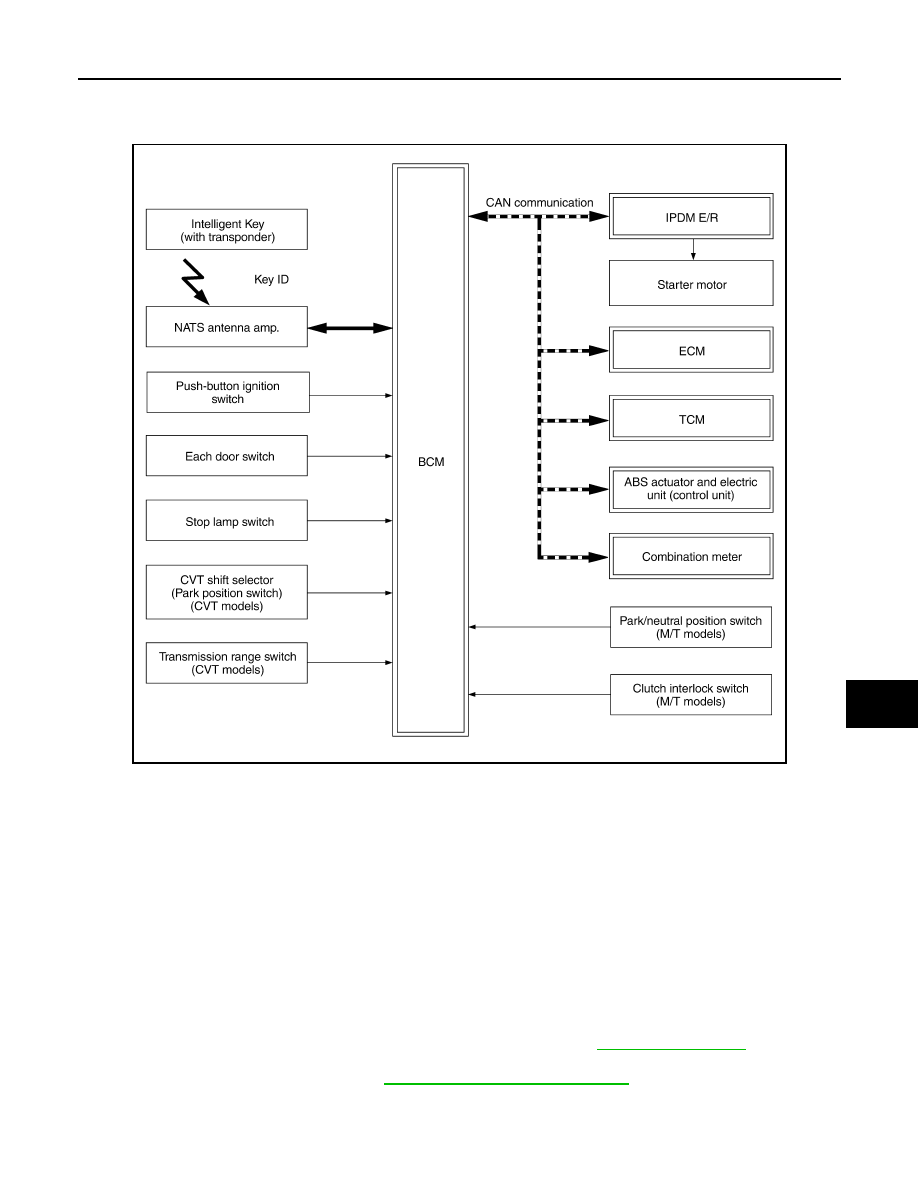

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The Nissan Anti-Theft System (NATS) prevents the engine from being started by Intelligent Key whose ID is

not registered to the vehicle (BCM). It has higher protection against auto theft involving the duplication of

mechanical keys.

• The ignition key integrated in the Intelligent Key cannot start the engine. When the Intelligent Key battery is

discharged, the NATS ID verification is performed between the transponder integrated with Intelligent Key

and BCM via NATS antenna amp. when the Intelligent Key backside is contacted to push-button ignition

switch while brake pedal is depressed. If the verification result is OK, the engine start operation can be per-

formed by the push-button ignition switch operation.

• Locate the security indicator lamp and always blinks it when the ignition switch is in any position except ON

to warn that the vehicle is equipped with Nissan Anti-Theft System (NATS).

• Up to 4 Intelligent Keys can be registered (including the standard ignition key) upon request from the owner.

• When replacing ECM, BCM or Intelligent Key, the specified procedure (Initialization and registration) using

CONSULT is required.

• Possible symptom of NATS malfunction is “Engine can not start”. This symptom also occurs because of

other than NATS malfunction, so start the trouble diagnosis according to

SEC-58, "Work Flow"

• If ECM other than genuine part is installed, the engine cannot be started.

For ECM replacement procedure, refer to

EC-338, "Removal and Installation"

PRECAUTIONS FOR KEY REGISTRATION

ALKIA3205GB

SEC-14

< SYSTEM DESCRIPTION >

SYSTEM

• The ID registration is a procedure that erases the current NATS ID once, and then registers a new ID. There-

fore before starting the registration operation, collect all registered Intelligent Keys from the customer.

• When registering the Intelligent Key, perform only one procedure to simultaneously register both IDs (NATS

ID and Intelligent Key ID).

SECURITY INDICATOR LAMP

• Security indicator lamp warns that the vehicle is equipped with NATS.

• Security indicator lamp always blinks when the ignition switch is in any position other than ON.

NOTE:

Because security indicator lamp is highly efficient, the battery is barely affected.

ENGINE START OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO PUSH-BUTTON IG-
NITION SWITCH

1. When brake pedal is depressed while selector lever is in the P position the BCM activates NATS antenna

amp. that is located behind push-button ignition switch.

2. When Intelligent Key (transponder built-in) backside is contacted to push-button ignition switch, BCM

starts NATS ID verification between BCM and Intelligent Key (transponder built-in) via NATS antenna

amp.

3. When NATS ID verification result is OK, buzzer in combination meter sounds and BCM transmits the

result to ECM.

4. BCM turns ACC relay ON and transmits ignition power supply ON signal to IPDM E/R.
5. IPDM E/R turns the ignition relay ON and starts the ignition power supply.
6. IPDM E/R turns the starter control relay ON for engine starting in advance.
7. BCM detects that the selector lever position and brake pedal operation condition.
8. BCM transmits starter request signal to IPDM E/R and turns the starter relay ON if BCM judges that the

engine start condition* is satisfied.

9. Power supply is supplied through the starter relay and the starter control relay to operate the starter motor.
10. When BCM receives feedback signal from ECM indicating that the engine is started, BCM transmits a

stop signal to IPDM E/R and stops cranking by turning off the starter motor relay. (If engine start is unsuc-

cessful, cranking stops automatically within 5 seconds.)

*: For the engine start condition, refer to “IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUT-

TON IGNITION SWITCH OPERATION” below.

IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERA-
TION

The ignition switch position can be changed by the following operations.

NOTE:

• When an Intelligent Key is within the detection area of inside key antenna or when Intelligent Key backside is

contacted to push-button ignition switch, it is equivalent to the operations below.

• When starting the engine, the BCM monitors under the engine start conditions,

- Brake pedal operation condition

- Selector lever position

- Vehicle speed

Vehicle speed: less than 4 km/h (2.5 MPH)

Power supply position

Condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

OFF

→ ACC

—

Not depressed

OFF

→ ACC → ON

—

Not depressed

OFF

→ ACC → ON →

OFF

—

Not depressed

SYSTEM

SEC-15

< SYSTEM DESCRIPTION >

SEC

Vehicle speed: 4 km/h (2.5 MPH) or more

Emergency stop operation
• Press and hold the push-button ignition switch for 2 seconds or more.
• Press the push-button ignition switch 3 times or more within 1.5 seconds.

VEHICLE SECURITY SYSTEM
VEHICLE SECURITY SYSTEM : System Description

INFOID:0000000009606332

THEFT WARNING ALARM

• The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any

door is opened by unauthorized means while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when power supply position is any position other

than ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

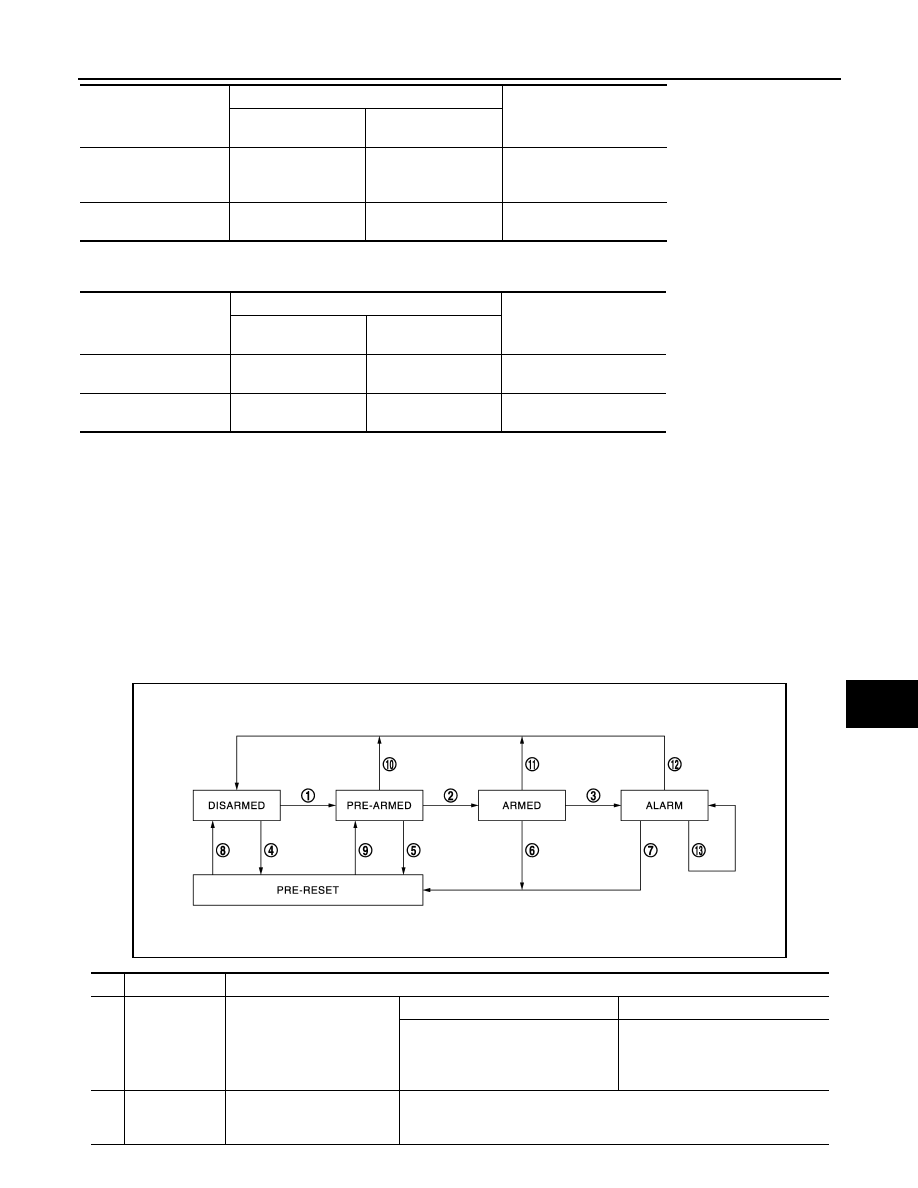

Operation Flow

OFF

→ START

ACC

→ START

P or N position

Depressed

Engine is running

→

OFF

—

Power supply position

Condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

Power supply position

Condition

Push-button ignition switch

operation frequency

Selector lever

Brake pedal operation

condition

Engine is running

→

ACC

—

Emergency stop operation

Engine stall return oper-
ation while driving

N position

Not depressed

JMKIA5416GB

No.

System state

Switching condition

DISARMED to
PRE-ARMED

When all conditions of A and
one condition of B is satis-
fied.

• Power supply position: OFF/LOCK
• All doors: Closed

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch

PRE-ARMED
to ARMED

When all of the following
conditions are satisfied for
30 seconds.

• Power supply position: OFF/LOCK
• All doors: Locked
