FUSE BLOCK - JUNCTION BOX (J/B)

PG-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

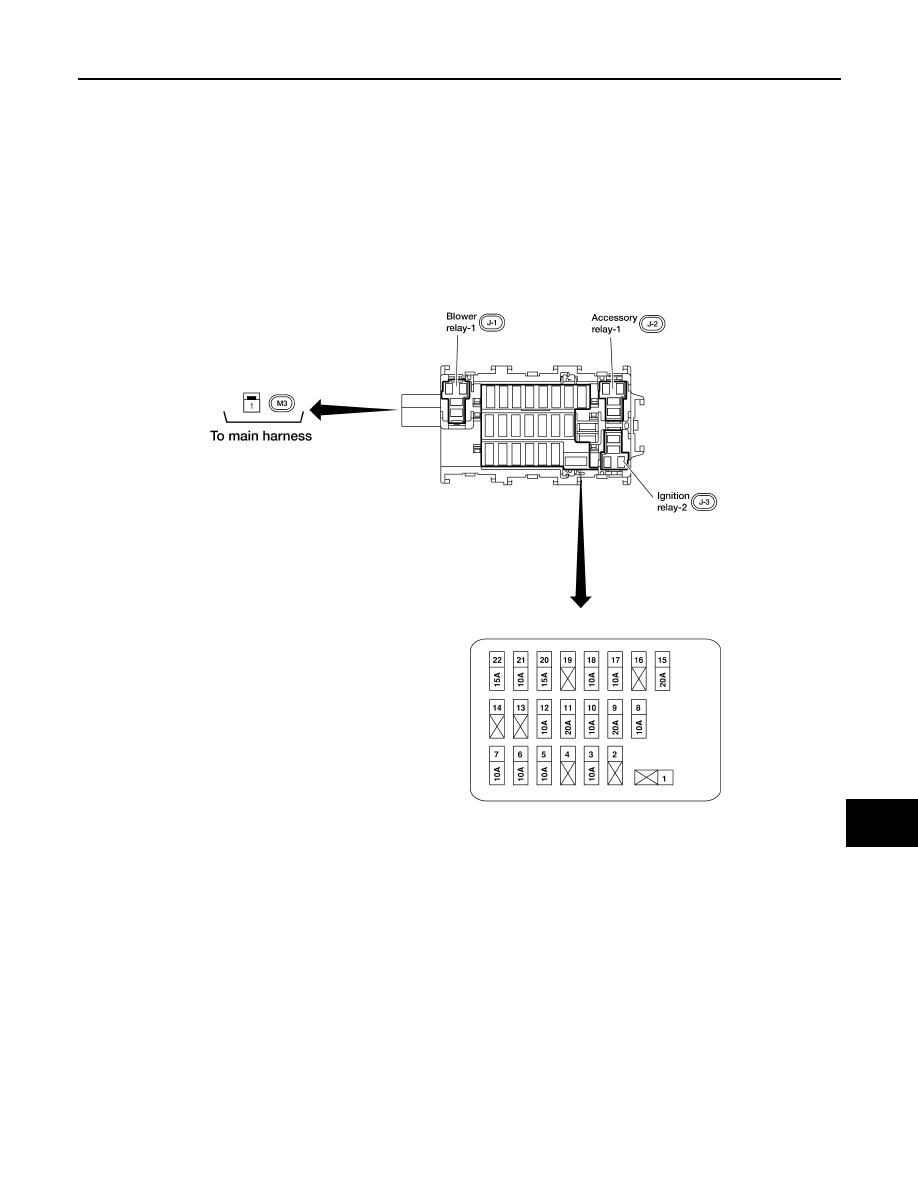

FUSE BLOCK - JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000009707862

AAMIA1762GB

PG-38

< WIRING DIAGRAM >

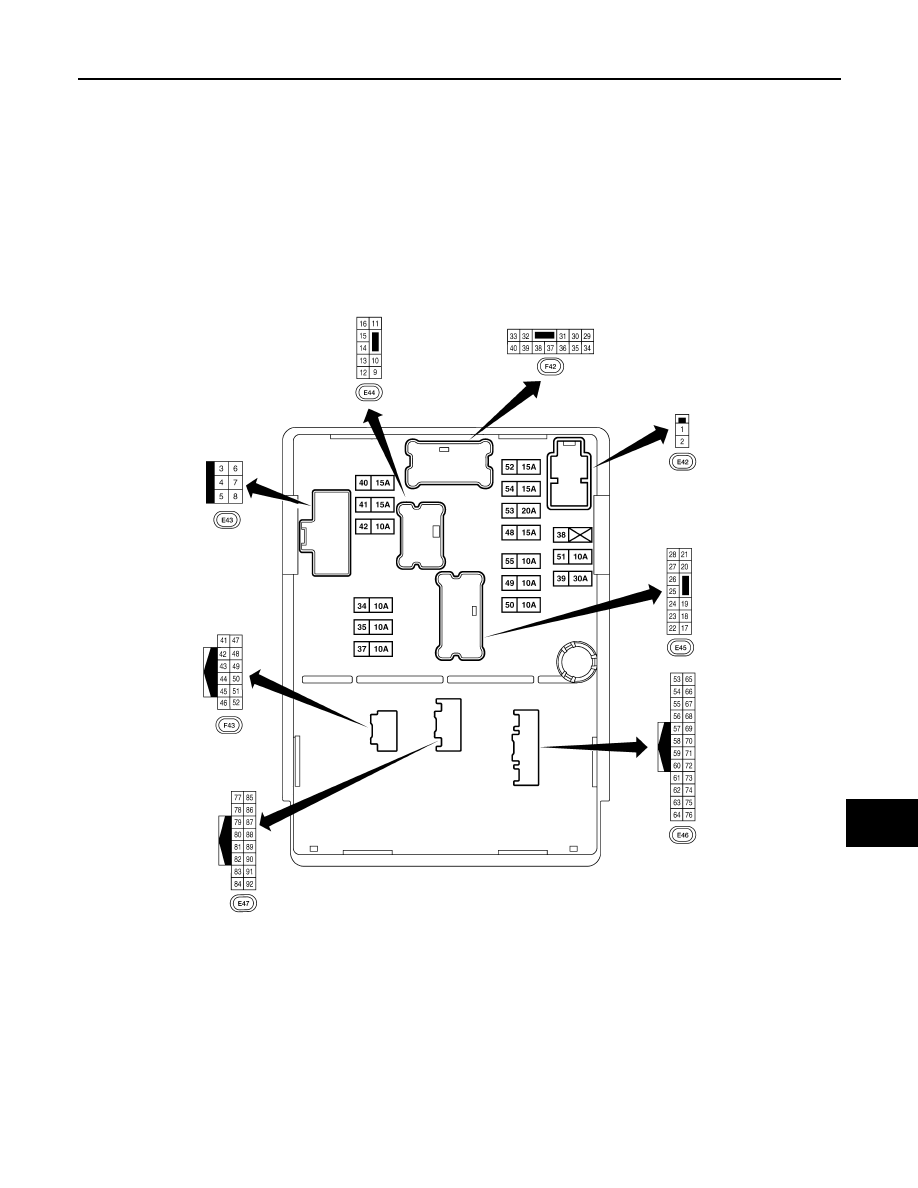

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000009707863

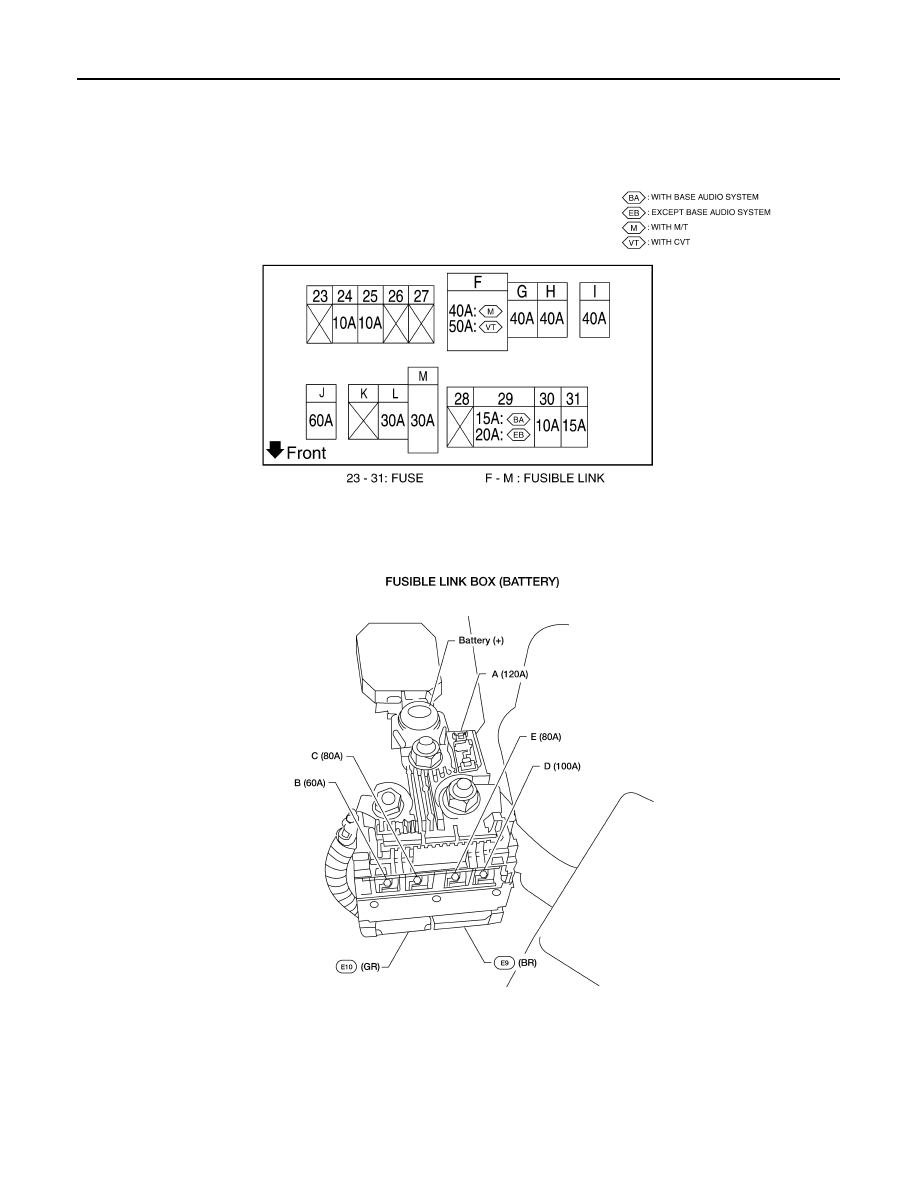

FUSE, FUSIBLE LINK AND RELAY BOX

AAMIA1763GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

IPDM E/R Terminal Arrangement

INFOID:0000000009707864

AAMIA0161ZZ

PG-40

< WIRING DIAGRAM >

HARNESS

HARNESS

Harness Layout

INFOID:0000000009707858

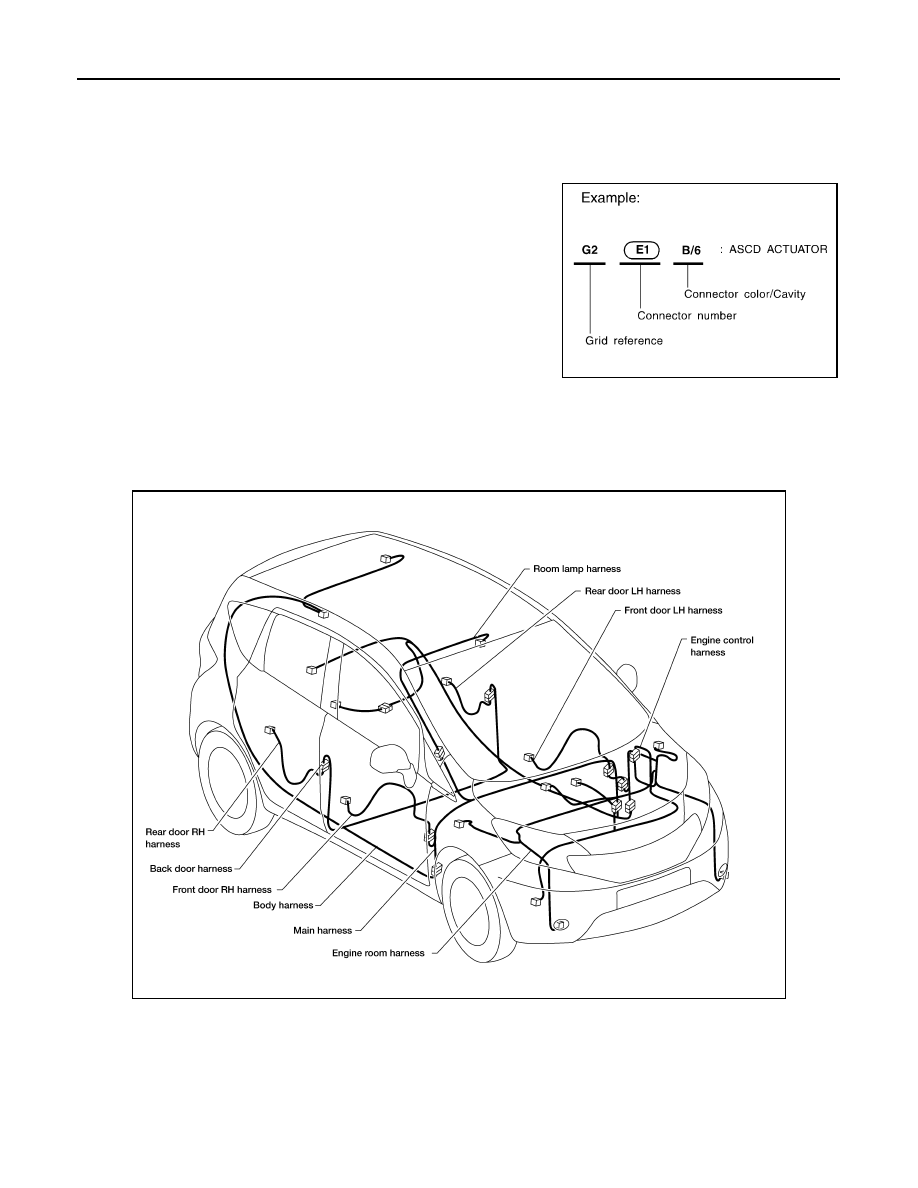

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness

• Engine Room Harness

• Engine Room Harness (Passenger Compartment)

• Engine Control Harness

• Body Harness

• Room Lamp Harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter col-

umn and number row.

4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

AAMIA1764GB
