DIAGNOSIS SYSTEM (BCM)

PCS-39

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Initial Setting

AUTO LOCK SET

MODE7

5 min

Auto door lock time setting.

MODE6

4 min

MODE5

3 min

MODE4

2 min

MODE3*

1 min

MODE2

30 sec

MODE1

Off

Support Item

Setting

Description

PCS-40

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009567591

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-44, "Fail-safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-46, "DTC Index"

PCS

POWER DISTRIBUTION SYSTEM

PCS-41

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

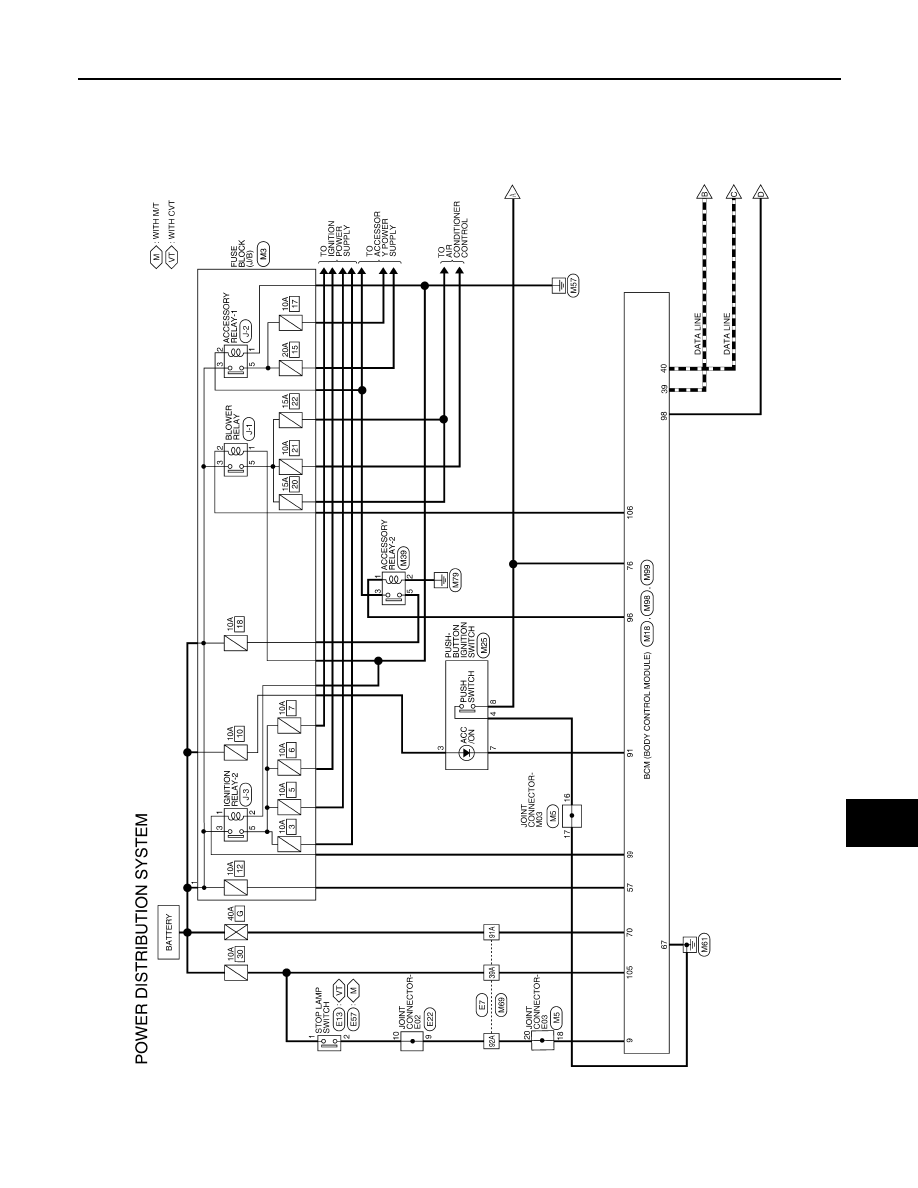

WIRING DIAGRAM

POWER DISTRIBUTION SYSTEM

Wiring Diagram

INFOID:0000000009567592

AAMWA0772GB

PCS-42

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

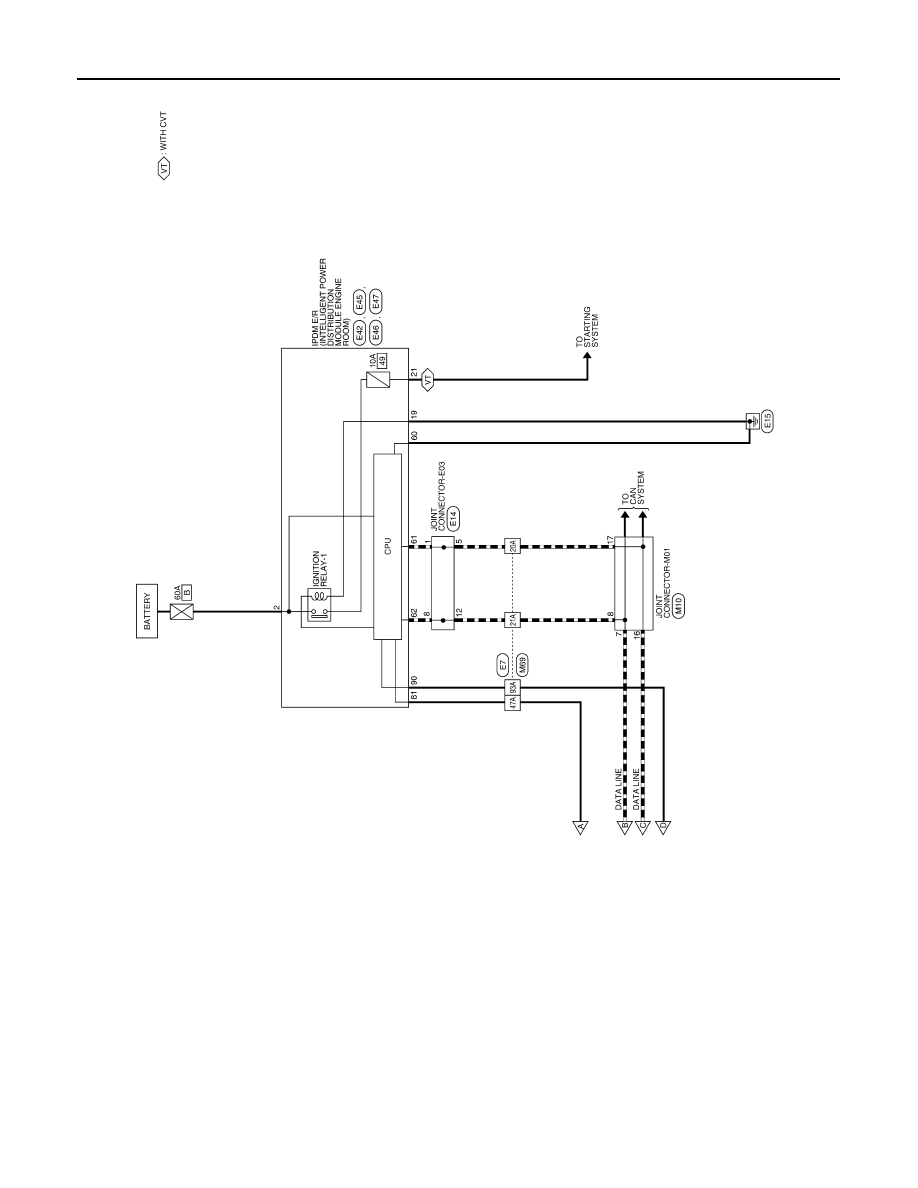

POWER DISTRIBUTION SYSTEM

AAMWA0773GB
