IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.

• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation

coil circuit.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

NOTE:
The tail lamp turns OFF when the ignition switch is turned ON.

FRONT WIPER CONTROL

IPDM E/R detects front wiper stop position by a front wiper auto stop signal.

When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 second activation and 20 second stop five times.

NOTE:

This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item

“WIP PROT” while the wiper is stopped.

STARTER MOTOR PROTECTION FUNCTION

IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains

active for 90 seconds.

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high relay OFF

• Parking  lamp
• License plate lamp
• Illumination
• Tail lamp

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper motor

• The status just before activation of fail-safe control is maintained until the ignition switch is

turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-safe control

is activated while the front wiper is set in the INT mode and the front wiper motor is operating.

• Returns automatically wiper to stop position when ignition switch is turned ON if fail-safe control

is activated while front wiper motor is operated and wiper stop in the other position than stop
position.

Front fog lamp

Front fog lamp relay OFF

Horn

Horn OFF

Ignition relay

The status just before activation of fail-safe is maintained.

Starter motor

Starter control relay OFF

DTC

Ignition switch

Ignition relay

Tail lamp relay

ON

ON

OFF

OFF

B2098: IGN RELAY ON

OFF

ON

ON (10 minutes)

B2099: IGN RELAY OFF

ON

OFF

Ignition switch

Front wiper switch

Auto stop signal

ON

OFF

Front wiper stop position signal cannot be
input 10 seconds.

ON

The signal does not change for 10 seconds.

PCS-20

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

DTC Index

INFOID:0000000009567569

NOTE:

The details of TIME display are as follows.

• CRNT: The malfunctions that are detected now

• 1 - 39: The number is indicated when it is normal at present and a malfunction was detected in the past. It

increases like 0

→ 1 → 2 ··· 38 → 39 after returning to the normal condition whenever IGN OFF → ON. It is

fixed to 39 until the self-diagnosis results are erased if it is over 39. It returns to 0 when a malfunction is

detected again in the process.

CONSULT display

Fail-safe

TIME

NOTE

Refer to

No DTC is detected. Further testing may be required.

U1000: CAN COMM CIRCUIT

×

CRNT

1 – 39

PCS-26

B2098: IGN RELAY ON

×

CRNT

1 – 39

PCS-27

B2099: IGN RELAY OFF

CRNT

1 – 39

PCS-28

B210B: PNP RELAY ON stuck failure

CRNT

1 – 39

SEC-108

B210C: PNP RELAY OFF stuck failure

CRNT

1 – 39

SEC-109

B210D: STARTER relay ON stuck failure

CRNT

1 – 39

SEC-111

B210E: STARTER relay OFF stuck failure

CRNT

1 – 39

SEC-113

B210F: Interlock/NP switch ON stuck failure

CRNT

1 – 39

SEC-115

B2110: Interlock/NP switch OFF stuck failure

CRNT

1 – 39

SEC-117

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-21

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WIRING DIAGRAM

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

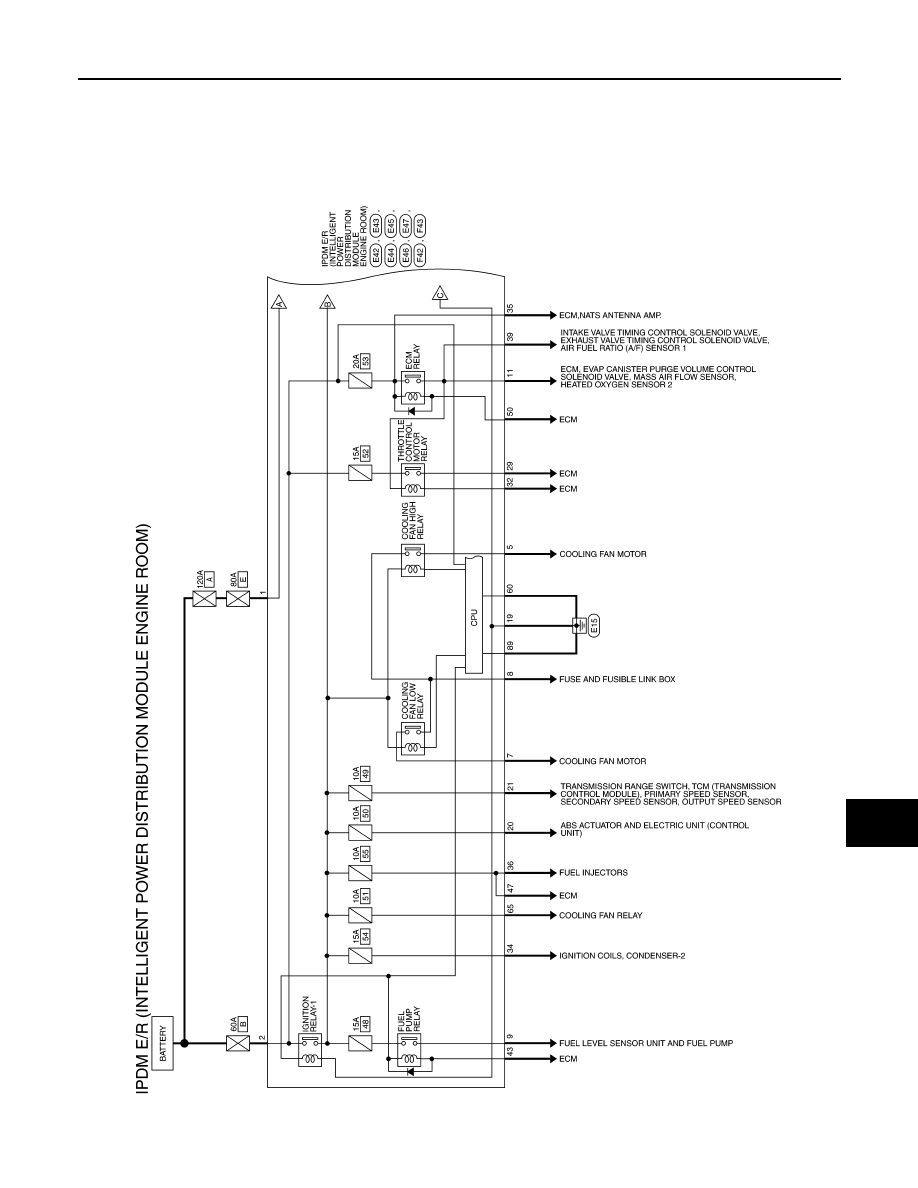

Wiring Diagram

INFOID:0000000009567570

AAMWA0770GB

PCS-22

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

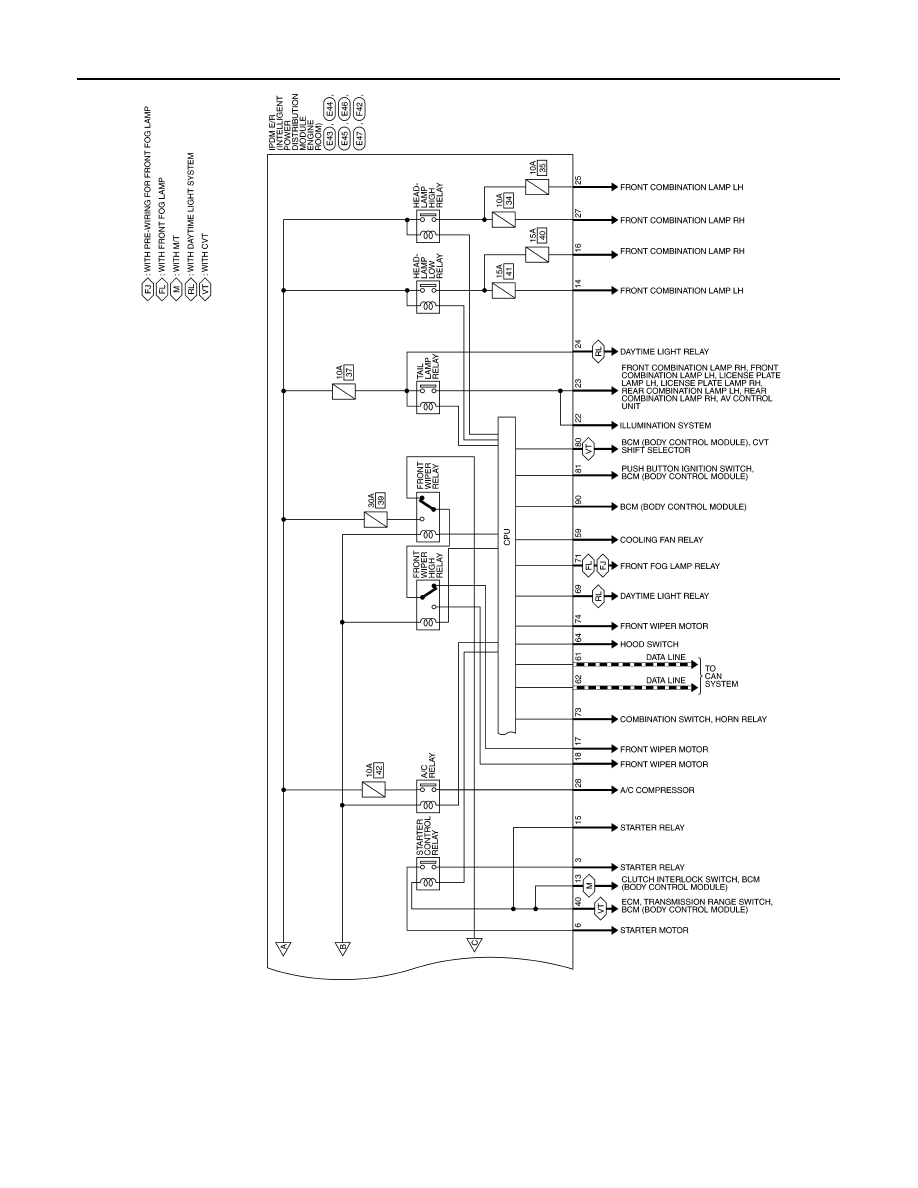

AAMWA0771GB
