PARKING BRAKE SYSTEM

PB-5

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

To prevent damage to parts, do not bend the parking brake cables.

a. Adjust the parking brake lever stroke by turning the adjusting nut using suitable tool.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

b. Operate the parking brake lever with a force of 196 N (20.0 kg-f, 44.1lb-f). Check that the lever stroke is

within the specified number of notches. (Check by listening and counting the number of the ratchet clicks.)

Number of notches

: Refer to

PB-10, "Parking Brake Control"

.

PB-6

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

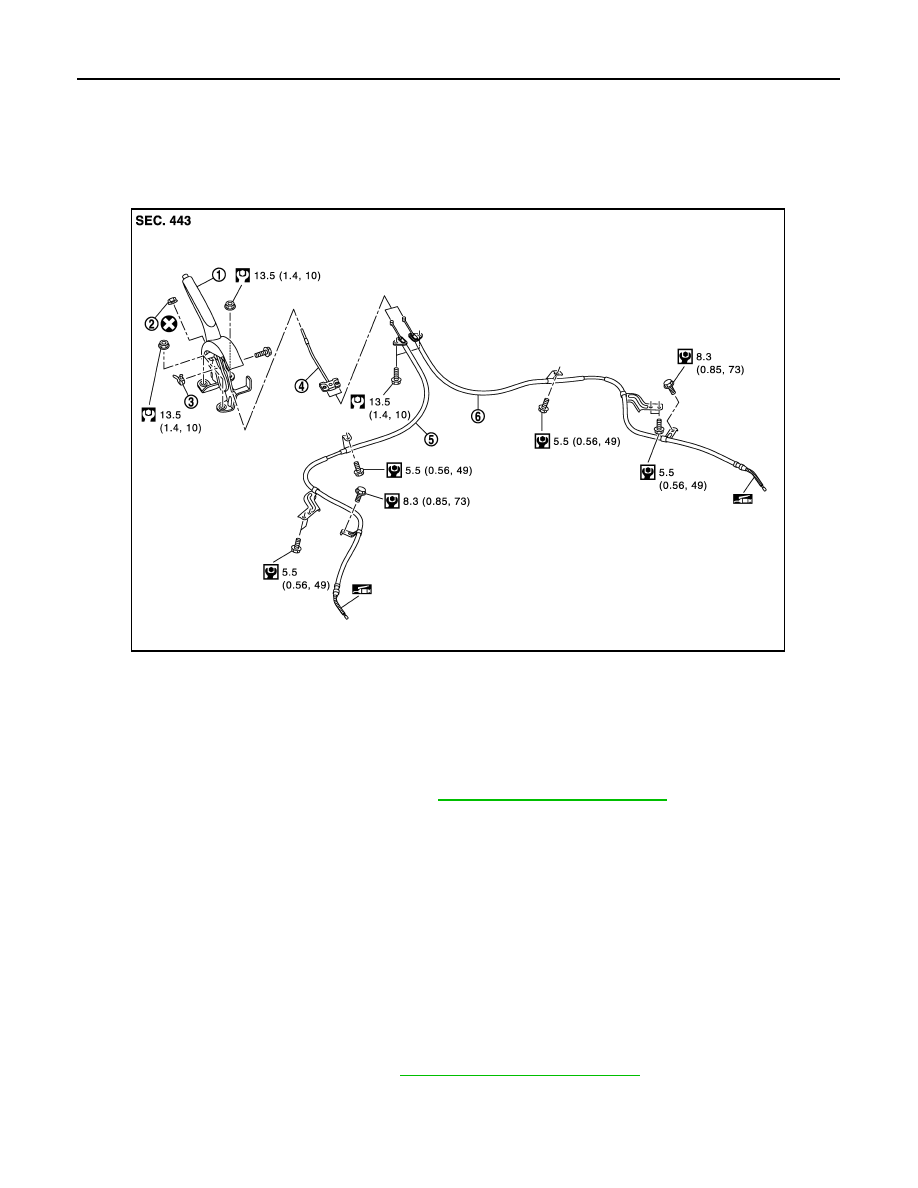

Exploded View

INFOID:0000000009365039

Removal and Installation

INFOID:0000000009365040

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove the adjusting nut.

CAUTION:

Do not reuse the adjusting nut.

3. Separate the parking brake front cable from the parking brake rear cables (RH/LH).
4. Disconnect the harness connector from the parking brake switch.
5. Remove the screw and remove the parking brake switch.
6. Remove the nuts and remove the parking brake control.

INSTALLATION

Installation is in the reverse order of the removal.

CAUTION:

• Replace the parking brake control if it has been dropped or sustained an impact.

• Replace the parking brake switch if it has been dropped or sustained an impact.

• Do not reuse the adjusting nut.

Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.

1.

Parking brake control

2.

Adjusting nut

3.

Parking brake switch

4.

Parking brake front cable

5.

Parking brake rear cable (LH)

6.

Parking brake rear cable (RH)

JPFIB0133GB

PARKING BRAKE CABLE

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE CABLE

Removal and Installation

INFOID:0000000009619499

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove the adjusting nut. Refer to

PB-6, "Exploded View"

.

3. Separate the parking brake front cable from parking brake rear cables (RH/LH). Refer to

PB-6, "Exploded

View"

.

CAUTION:

To prevent damage to the parts, do not bend the parking brake cables.

4. Remove the parking brake front cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut.

• Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE REAR CABLE

PARKING BRAKE REAR CABLE

Removal and Installation

INFOID:0000000009619500

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Loosen the adjusting nut. Refer to

PB-6, "Exploded View"

.

NOTE:

It is not necessary to remove the parking brake front cable.

3. Separate the parking brake rear cables (RH/LH) from the parking brake front cable. Refer to

PB-6,

"Exploded View"

.

4. Remove the rear wheels and tires using power tool. Refer to

WT-8, "Exploded View"

.

5. Remove rear wheel sensors. Refer to

BRC-70, "REAR WHEEL SENSOR : Removal and Installation"

.

6. Remove the rear drum brake components. Refer to

BR-40, "Removal and Installation"

.

CAUTION:

Do not separate the brake tube from the wheel cylinders.

7. Remove the center muffler. Refer to

EX-5, "Exploded View"

.

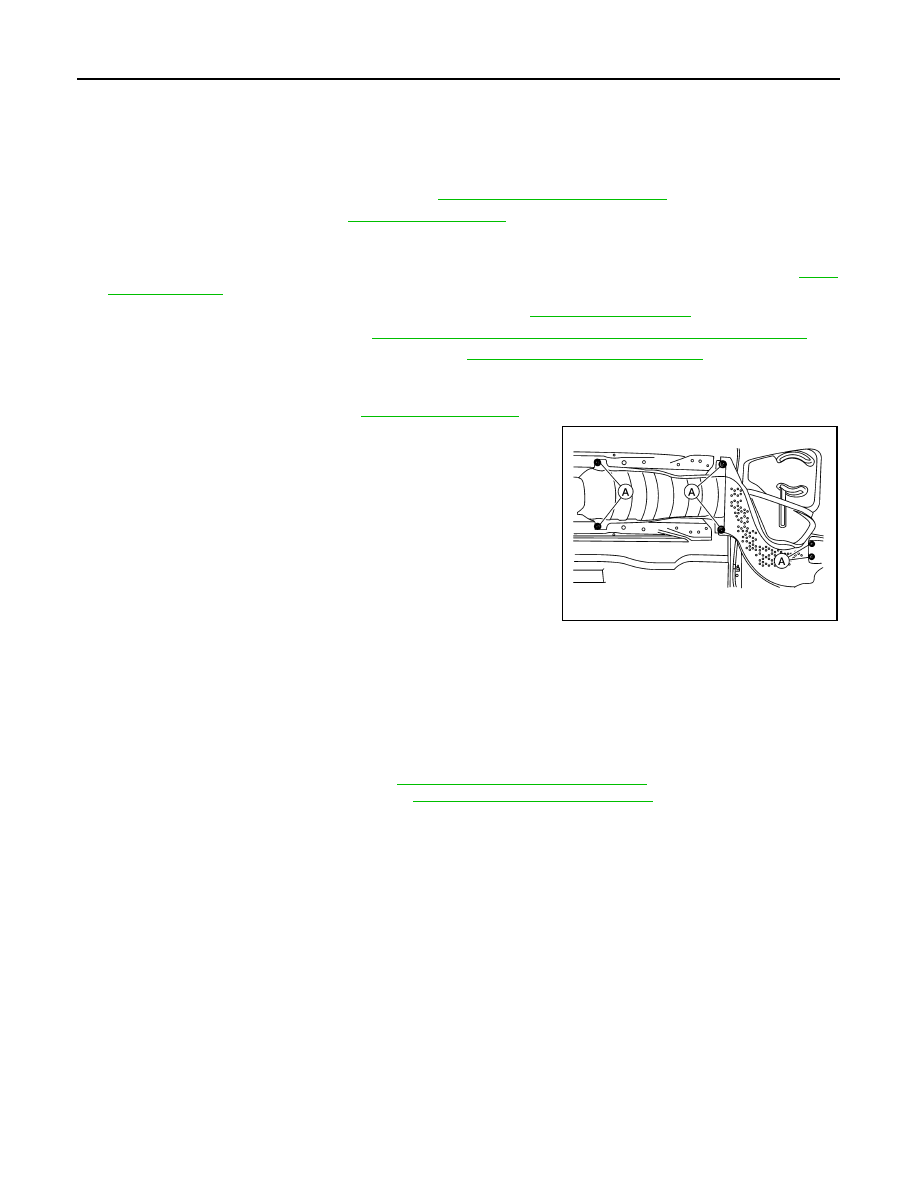

8. Remove nuts (A) and remove center floor insulators.

9. Remove the bolts and remove the parking brake rear brake cables (RH/LH).

CAUTION:

Do not excessively bend the parking brake cables.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

• Inspect and adjust the rear brakes. Refer to

BR-42, "Inspection and Adjustment"

.

• Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.
