MWI-46

< SYMPTOM DIAGNOSIS >

THE DOOR OPEN WARNING CONTINUES DISPLAYING, OR DOES NOT DIS-

PLAY

THE DOOR OPEN WARNING CONTINUES DISPLAYING, OR DOES NOT
DISPLAY

Description

INFOID:0000000009549367

• The door ajar warning is displayed even though all of the doors are closed.

• The door ajar warning is not displayed even though a door is ajar.

Diagnosis Procedure

INFOID:0000000009549368

1.

CHECK BCM INPUT SIGNAL

Check the BCM input signal. Refer to

DLK-84, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK COMBINATION METER INPUT SIGNAL

Select the METER/M&A Data Monitor and check the DOOR W/L monitor value while opening and closing

doors.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-48, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

3.

CHECK DOOR SWITCH SIGNAL CIRCUIT

Check the door switch signal circuit. Refer to

DLK-84, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connector.

4.

CHECK DOOR SWITCH

Check the door switch. Refer to

DLK-85, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-48, "Removal and Installation"

.

NO

>> Replace applicable door switch. Refer to

DLK-158, "Removal and Installation"

.

Monitor item

Condition

Status

DOOR W/L

Door open

ON

Door closed

OFF

MWI

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING, OR

DOES NOT DISPLAY

MWI-47

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING,
OR DOES NOT DISPLAY

Description

INFOID:0000000009549369

• The parking brake warning is displayed while driving the vehicle even though the parking brake is released.

• The parking brake warning is not displayed while driving the vehicle even though the parking brake is

applied.

Diagnosis Procedure

INFOID:0000000009549370

1.

CHECK PARKING BRAKE WARNING LAMP OPERATION

1. Start engine.

2. Check the operation of the brake warning lamp while operating the parking brake.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-48, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH

Check the parking brake switch. Refer to

BRC-59, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace parking brake switch. Refer to

PB-9, "Removal and Installation"

.

3.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Check the parking brake switch signal circuit. Refer to

BRC-58, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-48, "Removal and Installation"

.

NO

>> Repair or replace harness or connector.

Condition

Warning lamp status

Parking brake applied

ON

Parking brake released

OFF

MWI-48

< UNIT REMOVAL AND INSTALLATION >

COMBINATION METER

UNIT REMOVAL AND INSTALLATION

COMBINATION METER

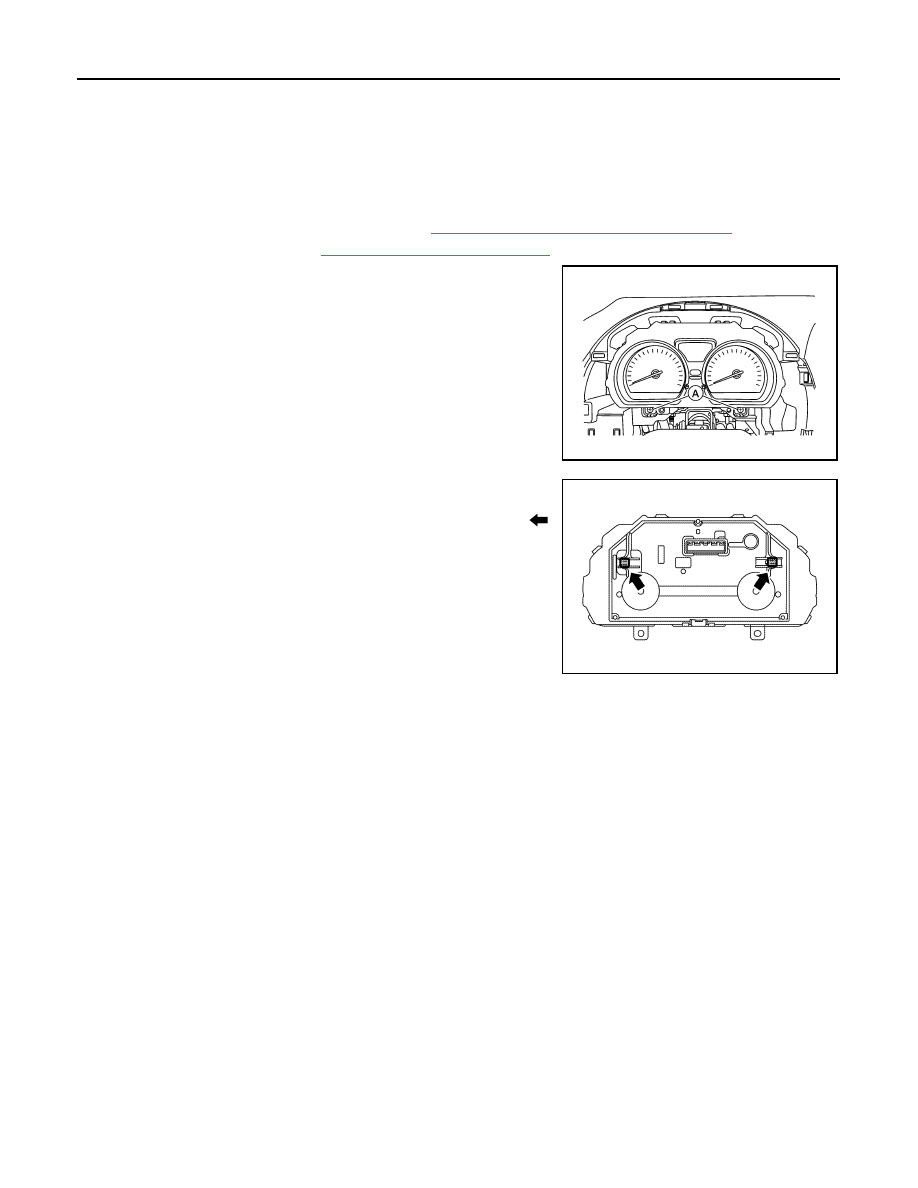

Removal and Installation

INFOID:0000000009482449

REMOVAL

1. Disconnect negative battery terminal. Refer to

PG-69, "Removal and Installation (Battery)"

.

2. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

3. Remove combination meter screws (A).

4. Pull the combination meter straight out to release clips.

NOTE:
Back side of the combination meter shown for clip position (

)

clarity.

5. Disconnect the harness connector from the combination meter.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1519ZZ

JSNIA3895ZZ

MWI

COMBINATION METER

MWI-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

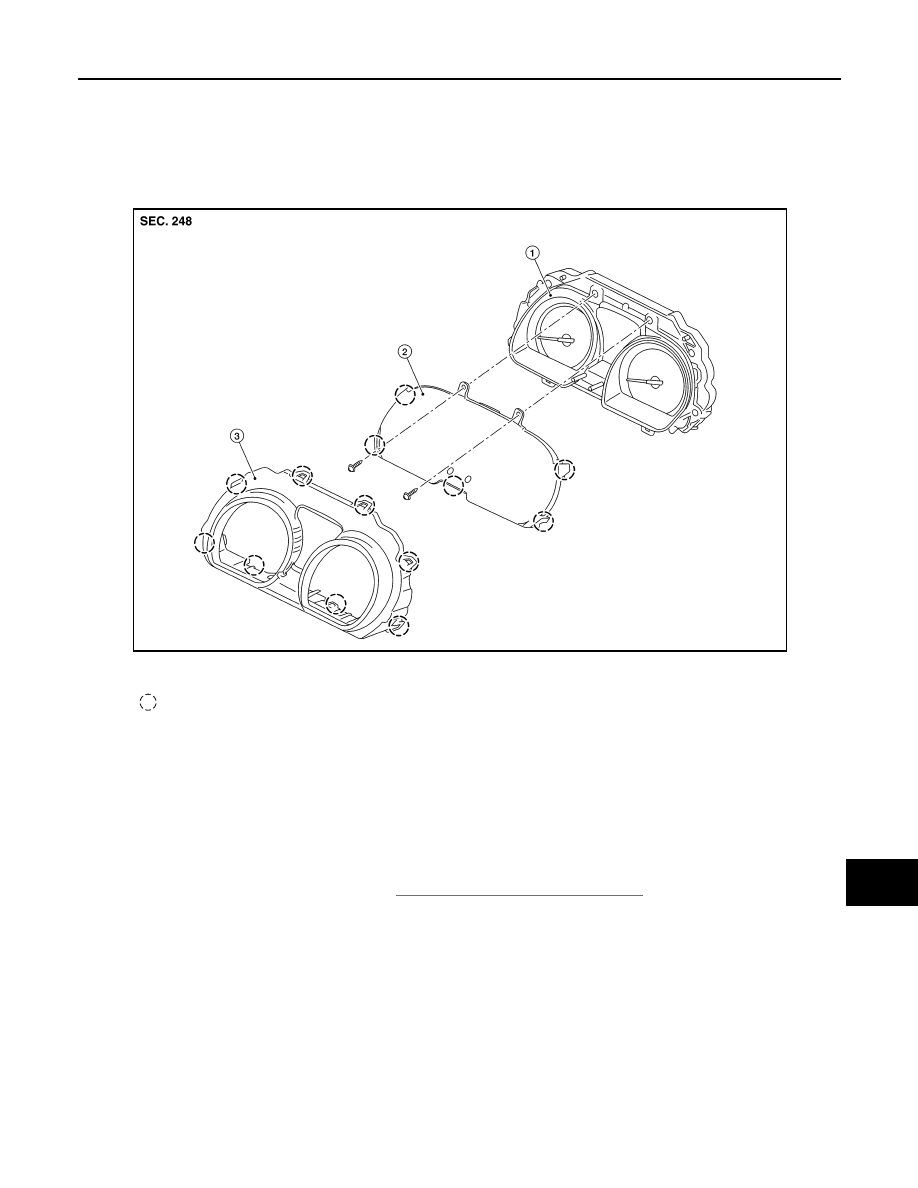

Exploded View

INFOID:0000000009482450

Disassembly and Assembly

INFOID:0000000009482451

CAUTION:

• Do not touch the display, pointer, the inside of combination meter and the printed area of the dial

during the work.

• Keep away from magnetic sources.

• Do not damage the combination meter finisher.

DISASSEMBLY

1. Remove the combination meter. Refer to

MWI-48, "Removal and Installation"

.

2. Release the pawls and remove combination meter finisher.
3. Remove screws, then release pawls and remove combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1. Combination meter

2.

Combination meter lens

3.

Combination meter finisher

Pawl

AWNIA3052ZZ
