Nissan Note E12. Manual - part 457





MWI-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000009549344

ON BOARD DIAGNOSIS ITEM

Information display, speedometer and tachometer can be checked in self-diagnosis mode.

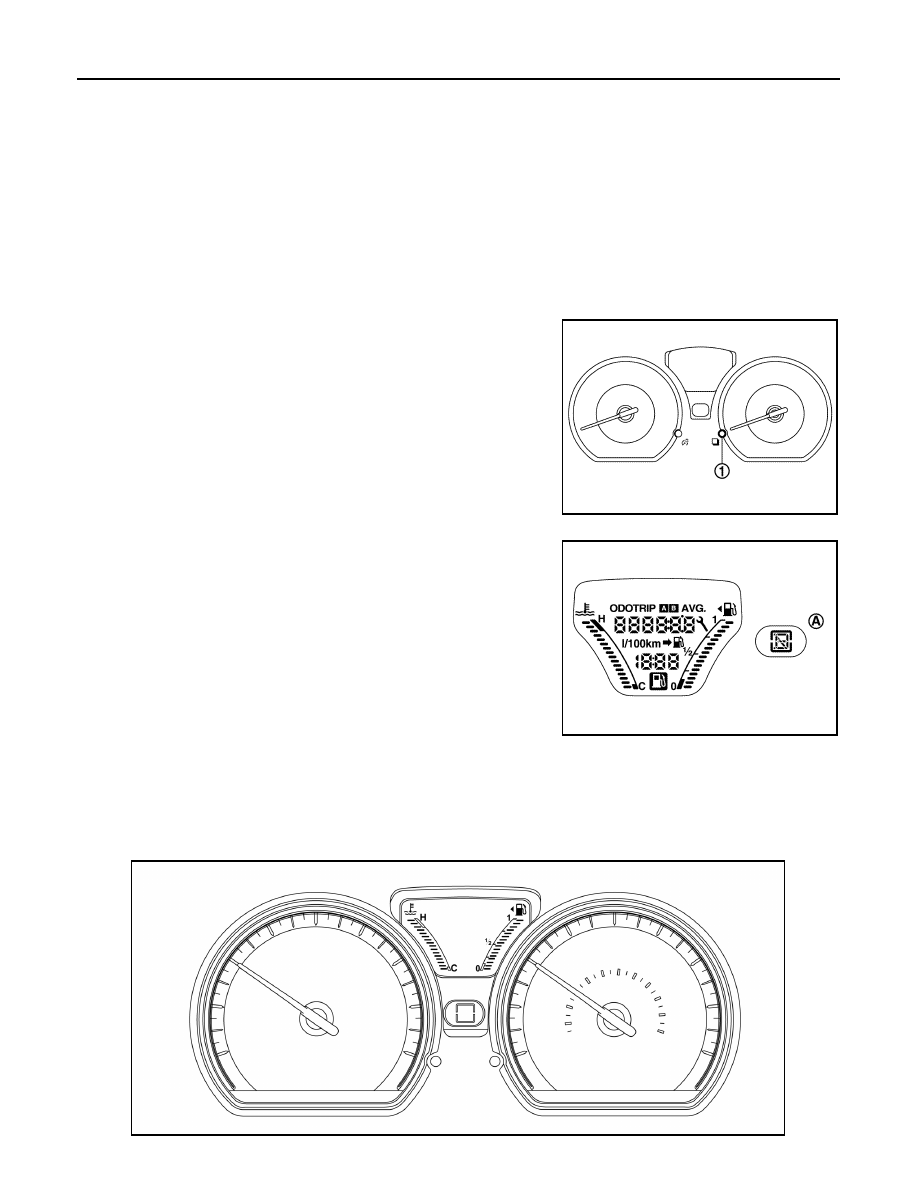

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

METHOD OF STARTING

1. Turn ignition switch ON,  and switch the trip meter to “trip A” or “trip B”.
2. Turn ignition switch to OFF.
3. While pressing the meter control switch (1), turn the ignition

switch ON.

4. Make sure that the trip meter displays “0000.0”.
5. Press the meter control switch (1) at least 3 times. (Within 7 sec-

onds after the ignition switch is turned ON).

6. The combination meter is turned to self-diagnosis mode.

• All segments of the information display and shift position indi-

cator (A) for CVT models are displayed.

NOTE:

• Check combination meter power supply and ground circuit when the self-diagnosis mode of the combination

meter does not start. replace combination meter if power supply and ground circuit are normal.

• If any of the segments are not displayed, replace combination meter.

7. Each meter activates by pressing the meter control switch.

JSNIA3904ZZ

JSNIA3900ZZ

AWNIA2440ZZ

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:

• If any of the meters or gauges is not activated, replace combination meter.

• The figure is reference.

CONSULT Function

INFOID:0000000009549345

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

SELF DIAG RESULT

Refer to

MWI-20, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

METER/M&A Diagnosis mode

Description

SELF DIAGNOSTIC RESULT

The combination meter self-diagnosis results.

Data Monitor

Displays combination meter input/output data in real time.

Warning History

Lighting history of the warning lamp and indicator lamp can be checked.

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h] or [mph]

X

Displays the value of vehicle speed signal.

SPEED OUTPUT
[km/h] or [mph]

X

Displays the value of vehicle speed signal, which is transmitted to each unit with
CAN communication.

ODO OUTPUT
[km/h or mph]

Displays odometer signal value transmitted to other units via CAN communica-
tion.

TACHO METER
[rpm]

X

Displays the value of engine speed signal, which is input from ECM.

FUEL METER
[L]

X

Displays the fuel level.

W TEMP METER
[

°C]  or [°F]

X

Displays the value of engine coolant temperature signal, which is input from ECM.

ABS W/L
[ON/OFF]

Displays [ON/OFF] condition of ABS warning indicator

BRAKE W/L
[ON/OFF]

Displays [ON/OFF] condition of brake warning indicator.

DOOR W/L
[ON/OFF]

Displays [ON/OFF] condition of door warning indicator.

HI-BEAM IND
[ON/OFF]

Displays [ON/OFF] condition of high beam indicator.

TURN IND
[ON/OFF]

Displays [ON/OFF] condition of turn indicator.

LIGHT IND
[ON/OFF]

Displays [ON/OFF] condition of light indicator.

OIL W/L
[ON/OFF]

Displays [ON/OFF] condition of engine oil pressure warning indicator.

MIL
[ON/OFF]

Displays [ON/OFF] condition of malfunction indicator.

CRUISE IND
[Off]

Displays [ON/OFF] condition of CRUISE indicator.

O/D OFF IND
[ON/OFF]

Displays [ON/OFF] condition of O/D OFF indicator.

MWI-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

NOTE:
Some items are not available according to vehicle specification.

WARNING HISTORY

W/L ON HISTORY

• Stores histories when warning/indicator lamp is turned on.

• “W/L ON HISTORY” indicates the “TIME” when the warning/ indicator lamp is turned on.

• The “TIME” above is:

- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine

and waiting for 30 seconds.

- 1 - 39: The number of times the engine was restarted after the 0 condition.

- NO W/L ON HISTORY: Stores NO (0) turning on history of warning/indicator lamp.

NOTE:

• W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.

• Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets

low.

FUEL W/L
[ON/OFF]

Displays [ON/OFF] condition of low-fuel warning indicator.

O/D OFF SW
[ON/OFF]

Displays [ON/OFF] condition of O/D OFF switch.

REAR DEF SW
[ON/OFF]

Displays [ON/OFF] condition of rear window defogger switch.

BRAKE SW
[ON/OFF]

Displays [ON/OFF] condition of brake switch.

EPS W/L
[ON/OFF]

Displays [ON/OFF] condition of EPS indicator.

CHAGE W/L
[Off]

Displays [ON/OFF] condition of charge warning indicator.

SHIFT IND
[P, R, N, D, L]

Displays shift selector position.

FUEL CAP W/L
[Off]

Displays [ON/OFF] condition of loose fuel cap warning message.

PKB SW
[ON/OFF]

Status of parking brake switch.

BUCKLE SW
[ON/OFF]

Status of seat belt buckle switch (LH).

BRAKE OIL SW
[ON/OFF]

Status of brake fluid level switch.

DISTANCE
[km] or [Mi]

Displays distance to empty.

BUZZER
[ON/OFF]

X

Displays [ON/OFF] condition of buzzer.

FR FOG IND
[ON/OFF]

Displays [ON/OFF] condition of front fog lamp indicator.

KEY G/Y W/L
[ON/OFF]

Displays [ON/OFF] condition of Intelligent Key warning lamp.

Display item [Unit]

MAIN

SIGNALS

Description

Display item

Description

W/L ON HISTORY

Lighting history of warning lamp and indicator lamp can be checked.

MWI

COMBINATION METER

MWI-17

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000009015874

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Display content

Data monitor

Condition

Reference value in normal operation

SPEED METER
[km/h or mph]

Speed meter
operation

While driving

Vehicle speed matches speed meter

SPEED OUTPUT
[km/h or mph]

Vehicle speed

While driving

The speed output signal value via CAN
communication is approx. value of ve-
hicle speed.

ODO OUTPUT
[km/h or mph]

ODO meter op-
eration

Driving

Distance driven

TACHO METER
[rpm]

Tacho meter
operation

Engine running

The tacho meter is approx. value of en-
gine speed via CAN communication.

FUEL METER
[L]

Fuel level

Ignition ON

Fuel level is approx. value of fuel
gauge.

W TEMP METER
[

°C] or [°F]

Engine coolant
temperature

Engine running

Input value of engine coolant tempera-
ture signal via CAN communication.

ABS W/L

ABS warning
lamp

When ABS warning lamp is ON

On

When ABS warning lamp is OFF

Off

BRAKE W/L

Brake warning
lamp

 When Brake warning lamp is ON

On

*

When Brake warning lamp is OFF

Off

DOOR W/L

Door open
warning lamp

When Door warning lamp  is ON

On

 When Door warning lamp  is OFF

Off

HI-BEAM IND

HI-Beam  indi-
cator lamp

When High-beam indicator lamp is ON

On

When High-beam indicator lamp is OFF

Off

TURN IND

Turn signal  in-
dicator

When Turn signal indicator lamp is ON

On

When Turn signal indicator lamp is  OFF

Off

LIGHT IND

Light indicator

When Tail lamp indicator lamp is ON

On

When Tail lamp indicator lamp is OFF

Off

FR FOG IND

Front fog lamp
indicator

Front fog lamp indicator lamp ON

On

Front fog lamp indicator lamp OFF

Off

OIL W/L

Engine oil pres-
sure warning
light

When engine oil pressure warning lamp is
ON

On

When engine oil pressure warning lamp is
OFF

Off

MIL

MIL warning
lamp

When Malfunction indicator lamp (MIL) is
ON

On

When Malfunction indicator lamp (MIL) is
OFF

Off

CRUISE IND

Cruise indicator
lamp

When cruise indicator lamp is ON.

ON

When cruise indicator lamp is OFF.

Off

O/D OFF IND

O/D OFF indi-
cator

When O/D OFF indicator lamp is OFF.

Off

When O/D OFF indicator lamp is ON.

On
