MIR-4

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

WIRING DIAGRAM

DOOR MIRROR SYSTEM

OUTSIDE MIRROR

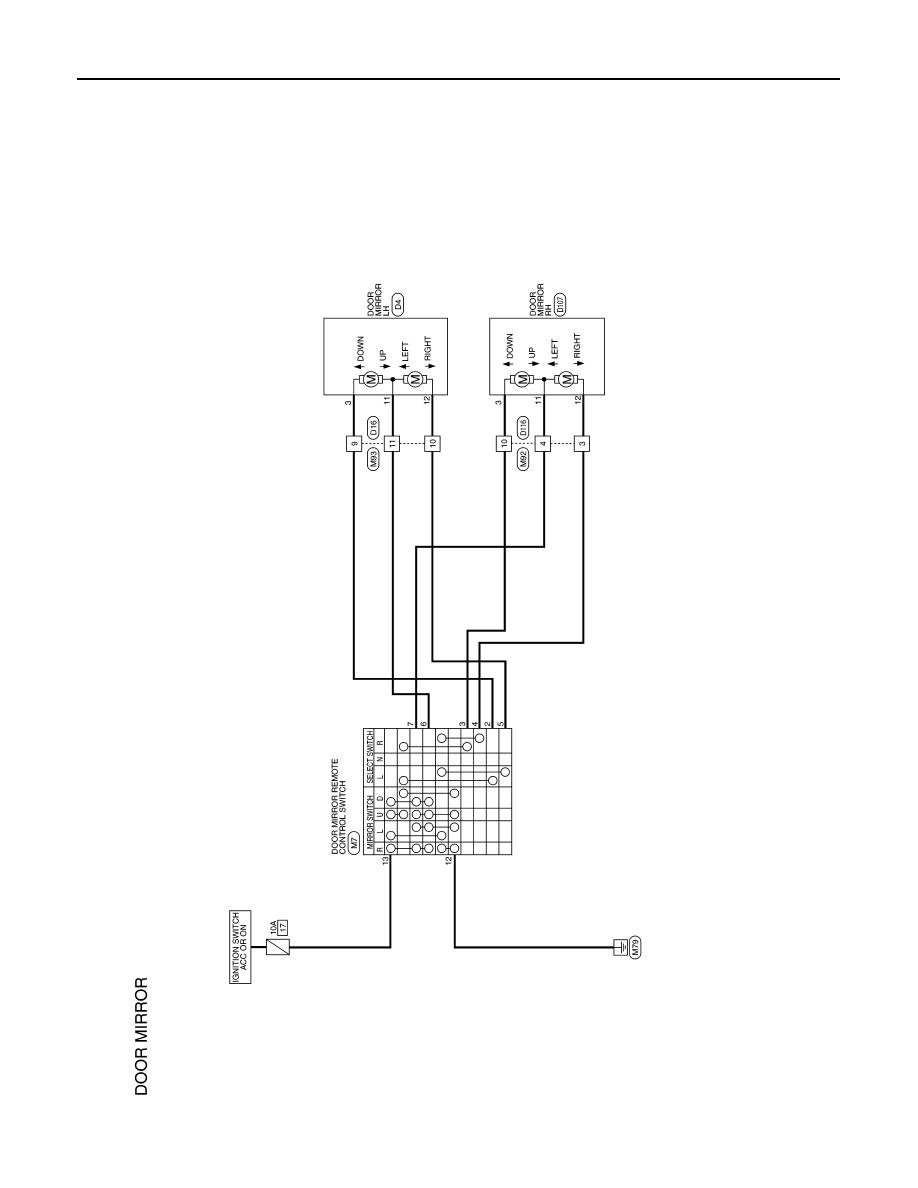

OUTSIDE MIRROR : Wiring Diagram

INFOID:0000000009014892

AALWA0625GB

DOOR MIRROR SYSTEM

MIR-5

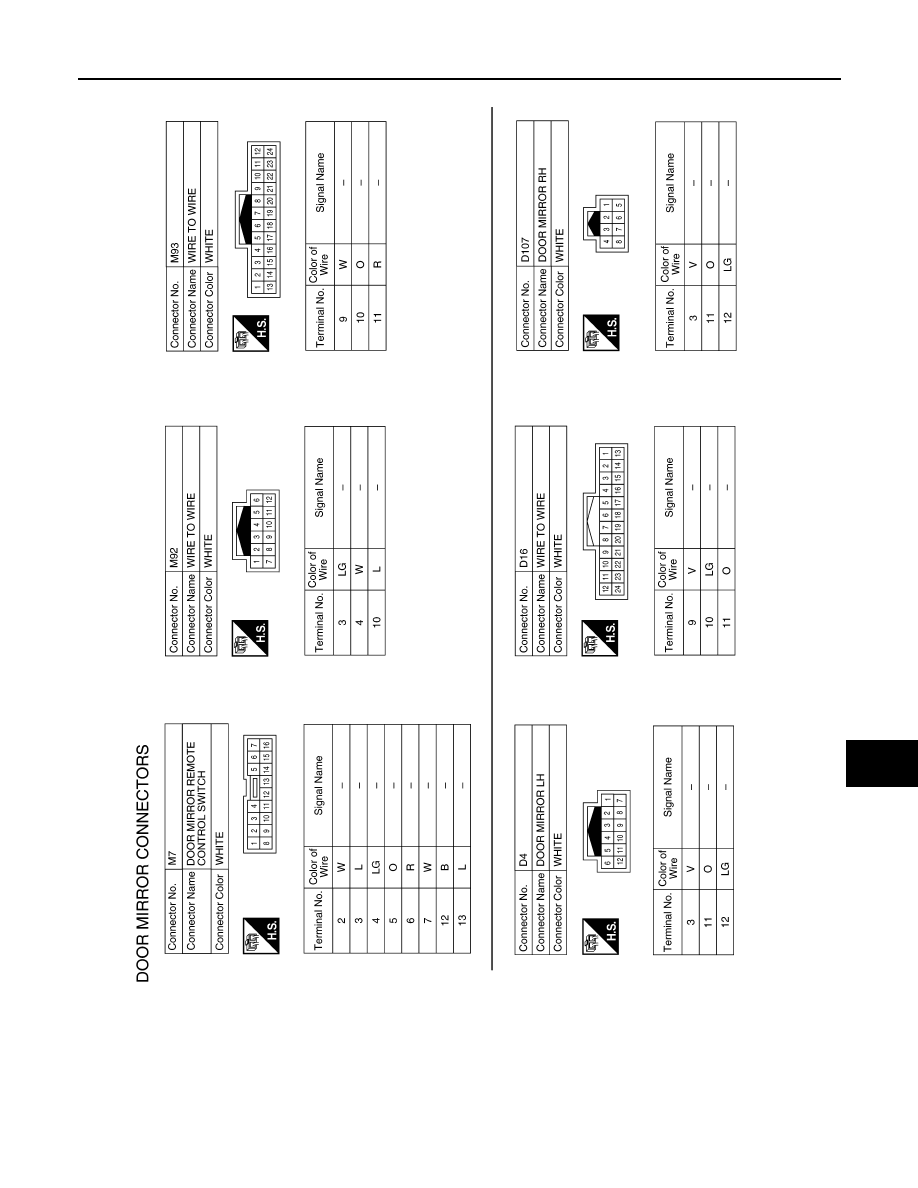

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

AALIA1373GB

MIR-6

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

AALIA1374GB

DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/

CHANGEOVER SWITCH)

MIR-7

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DTC/CIRCUIT DIAGNOSIS

DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/
CHANGEOVER SWITCH)

Component Inspection

INFOID:0000000009549399

1.

CHECK MIRROR SWITCH & CHANGEOVER SWITCH

1. Turn ignition switch OFF.

2. Disconnect door mirror remote control switch connector.

3. Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Replace door mirror remote control switch. Refer to

MIR-18, "Removal and Installation"

.

Door mirror remote control switch

Condition

Continuity

Terminal

Change over

switch

Mirror switch

RH

13

7

RIGHT

RIGHT

Yes

12

4

13

4

LEFT

12

7

13

3

UP

12

7

13

7

DOWN

12

3

LH

13

6

LEFT

RIGHT

12

5

13

5

LEFT

12

6

13

2

UP

12

6

13

6

DOWN

12

2
