MA-40

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

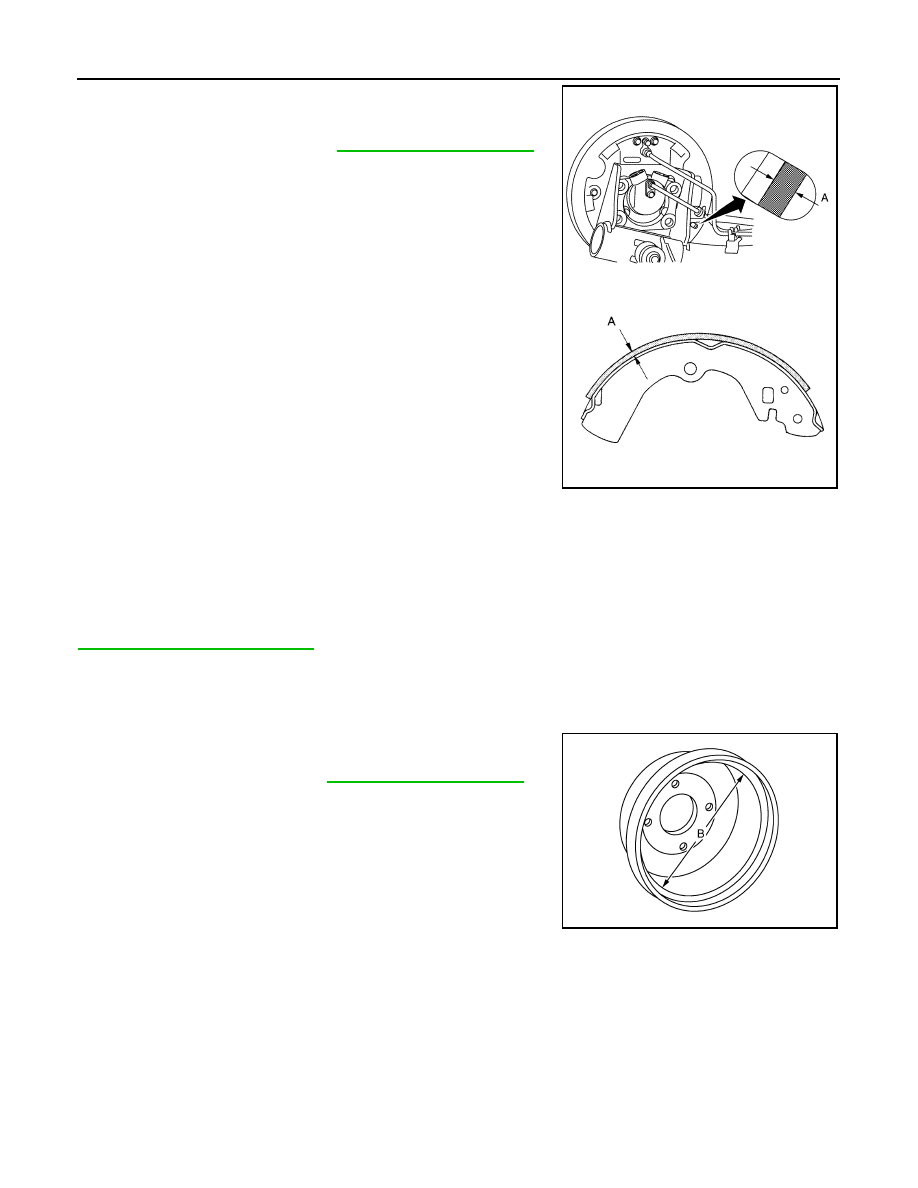

2. Check brake lining wear thickness (A) from an inspection hole

on back plate. Check using a scale if necessary.

BRAKE DRUM
BRAKE DRUM : Inspection

INFOID:0000000009670524

INSPECTION

Appearance

Check surface of brake drum for uneven wear, cracks and serious damage. Replace it if necessary. Refer to

BR-40, "Removal and Installation"

.

NOTE:

• Make sure the parking brake control is fully released prior to removal of the brake drum.

• The rear wheel hub is part of the brake drum.

Brake Drum Inner Diameter

Check inner diameter (B) of the brake drum.

STEERING GEAR AND LINKAGE
STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000009417671

STEERING GEAR

Wear thickness

: Refer to

BR-45, "Rear Drum Brake"

.

JSFIA1039ZZ

Inner diameter : Refer to

BR-45, "Rear Drum Brake"

.

JPFIA0113ZZ

CHASSIS AND BODY MAINTENANCE

MA-41

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

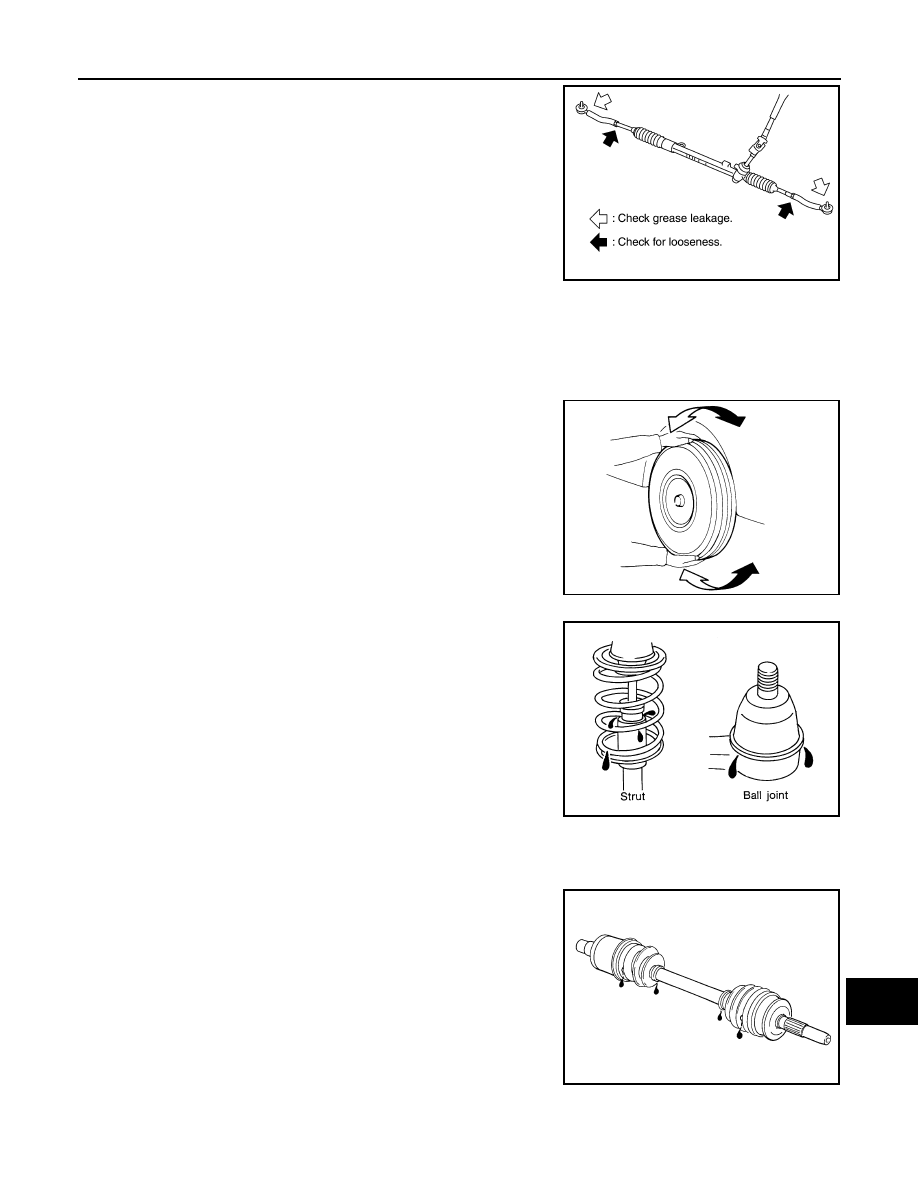

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS
AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000009417672

Check front and rear axle and suspension parts for excessive play,

cracks, wear or other damage.

• Shake each wheel to check for excessive play.

• Check wheel bearings for smooth operation.

• Check axle and suspension nuts and bolts for looseness.

• Check strut (shock absorber) for oil leakage or other damage.

• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT
DRIVE SHAFT : Inspection

INFOID:0000000009417673

Check boot and drive shaft for cracks, wear, damage and grease

leakage.

LOCKS, HINGES AND HOOD LATCH

JPPIA0013GB

SMA525A

SFA392B

SFA108A

MA-42

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

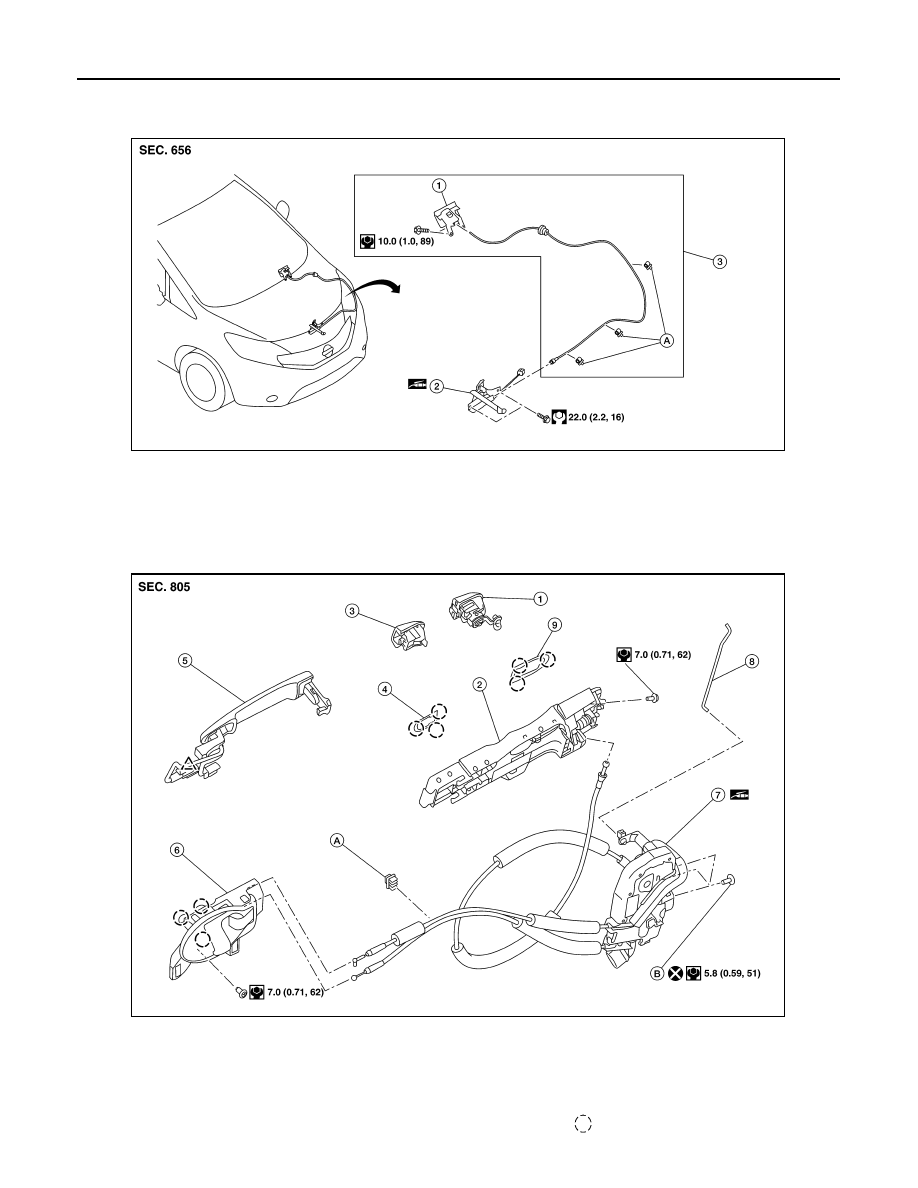

LOCKS, HINGES AND HOOD LATCH : Exploded View

INFOID:0000000009671244

LOCKS, HINGES AND HOOD LATCH : Exploded View

INFOID:0000000009671245

1.

Hood lock/fuel filler lid release handle

2.

Hood lock assembly

3.

Hood lock release cable assembly

A.

Clip

AWKIA2572ZZ

1.

Key cylinder (driver side)

2.

Outside handle bracket

3.

Outside handle escutcheon
(passenger side)

4.

Front gasket

5.

Outside handle

6.

Inside handle

7.

Door lock

8.

Key cylinder rod (driver side)

9.

Rear gasket

A.

Clip

B.

Bolt

Pawl

AWKIA2573ZZ

CHASSIS AND BODY MAINTENANCE

MA-43

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

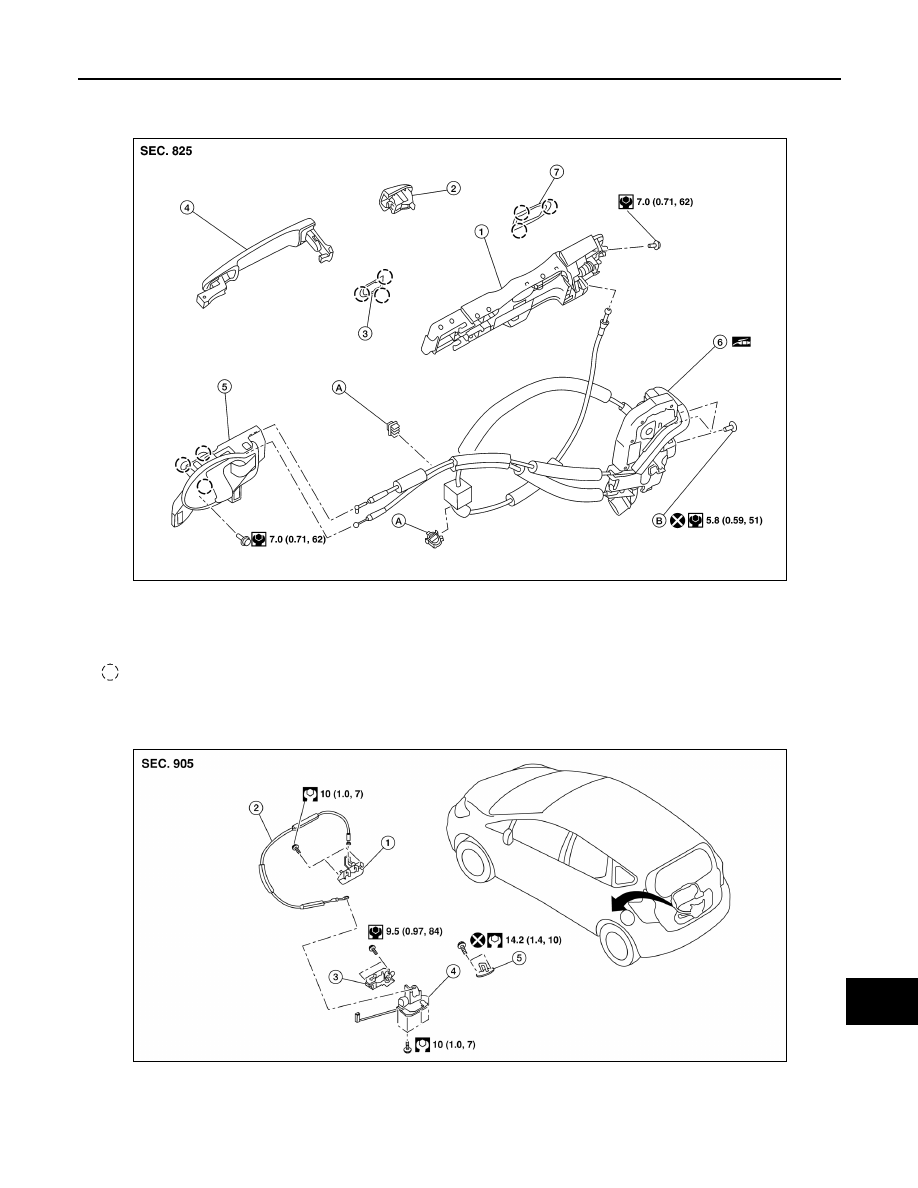

LOCKS, HINGES AND HOOD LATCH : Exploded View

INFOID:0000000009671246

LOCKS, HINGES AND HOOD LATCH : Exploded View

INFOID:0000000009671247

1.

Outside handle bracket

2.

Outside handle escutcheon

3.

Front gasket

4.

Outside handle

5.

Inside handle

6.

Door lock

7.

Door lock

A.

Clip

B.

Bolt

Pawl

AWKIA2575ZZ

1.

Outside handle

2.

Back door lock cable

3.

Back door lock actuator

4.

Back door lock

5.

Door striker

AWKIA2578ZZ
