DIAGNOSIS SYSTEM (BCM)

HAC-19

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR CONDITIONER : CONSULT Function (BCM - AIR CONDITIONER)

INFOID:0000000009567627

DATA MONITOR

Monitor Item [Unit]

Description

FAN ON SIG [On/Off]

Indicates condition of fan switch.

AIR COND SW [On/Off]

Indicates condition of A/C switch.

HAC-20

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

BCM, ECM, IPDM E/R

ECU DIAGNOSIS INFORMATION

BCM, ECM, IPDM E/R

List of ECU Reference

INFOID:0000000009477937

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-44, "Fail-safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-46, "DTC Index"

ECM

EC-62, "Reference Value"

EC-73, "Fail Safe"

EC-74, "DTC Inspection Priority Chart"

EC-76, "DTC Index"

IPDM E/R

PCS-13, "Reference Value"

PCS-18, "Fail-safe"

PCS-20, "DTC Index"

MANUAL AIR CONDITIONING SYSTEM

HAC-21

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

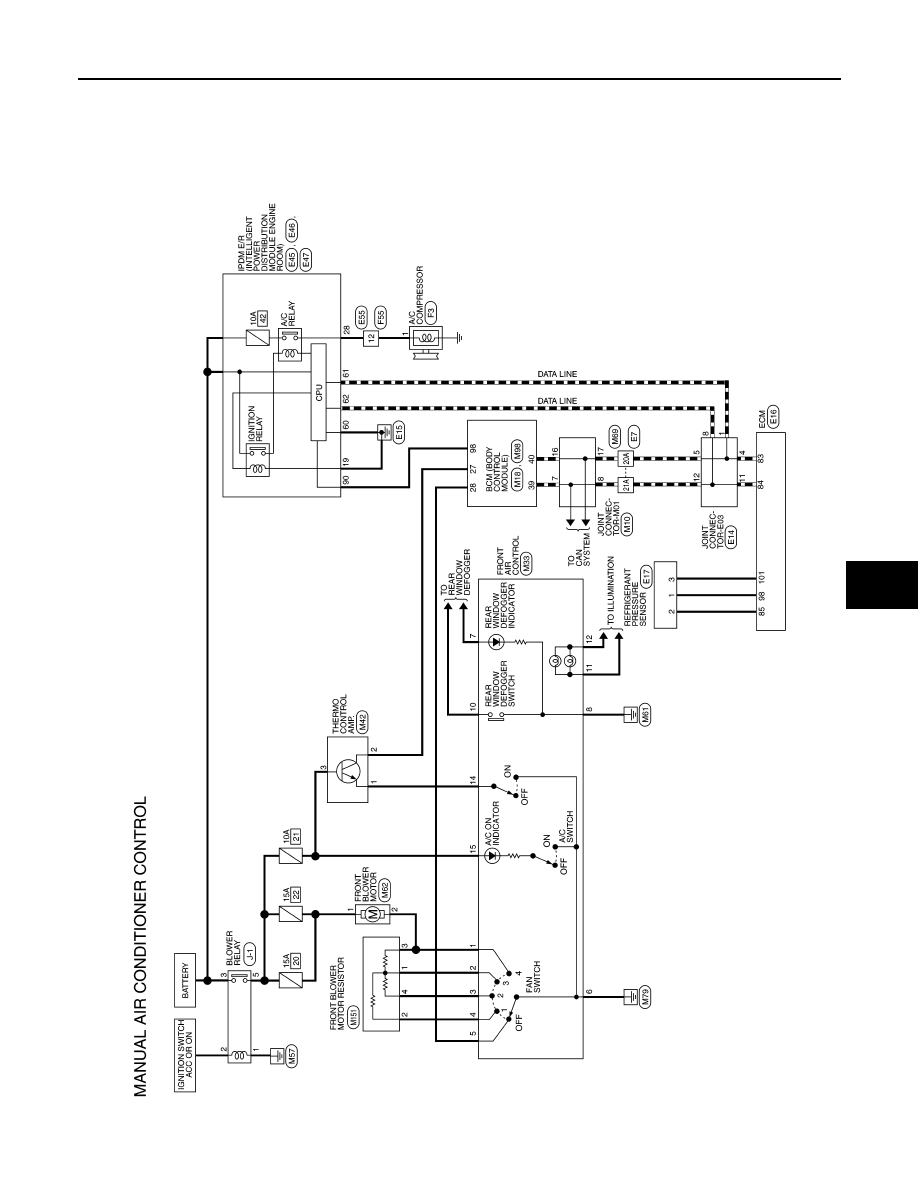

WIRING DIAGRAM

MANUAL AIR CONDITIONING SYSTEM

Wiring Diagram

INFOID:0000000009477938

AAIWA0144GB

HAC-22

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

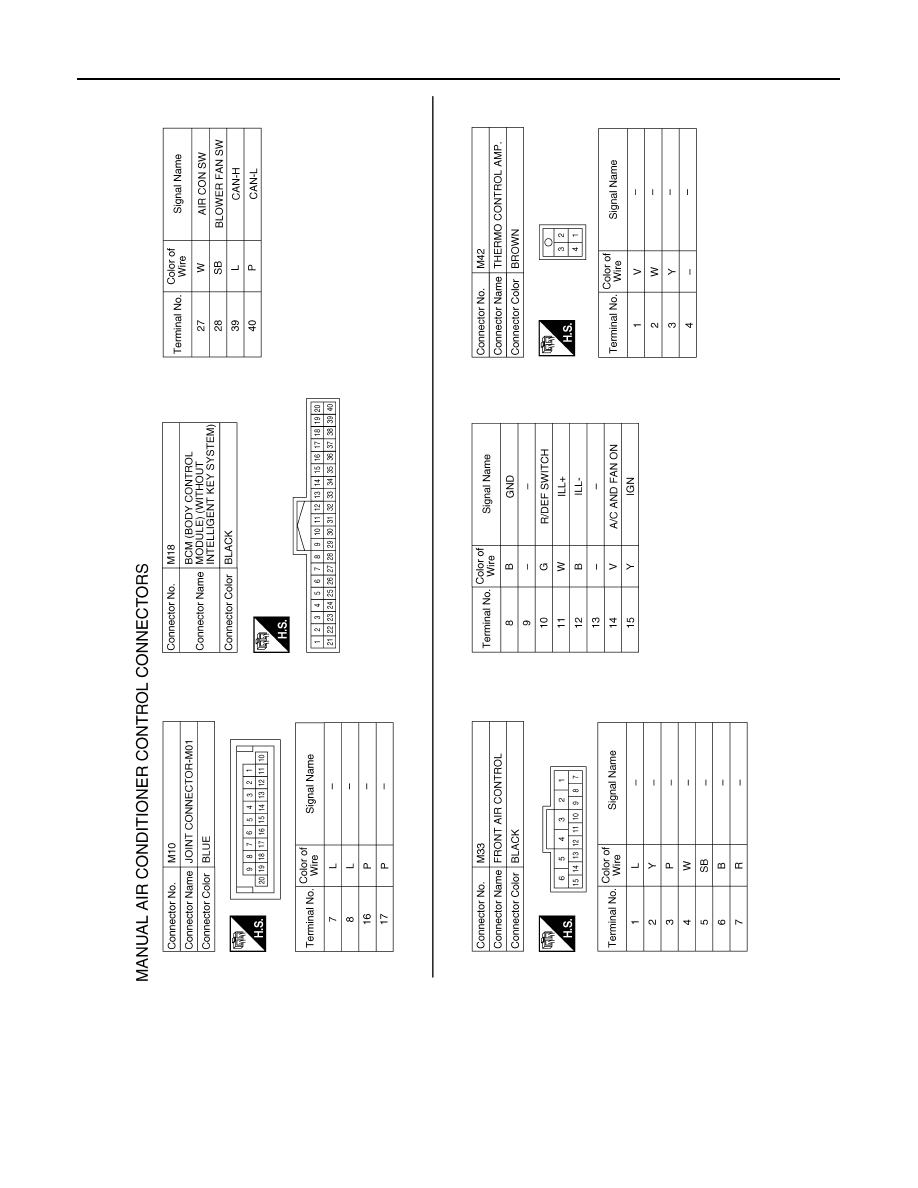

MANUAL AIR CONDITIONING SYSTEM

AAIIA0267GB
