FRONT STABILIZER

FSU-13

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

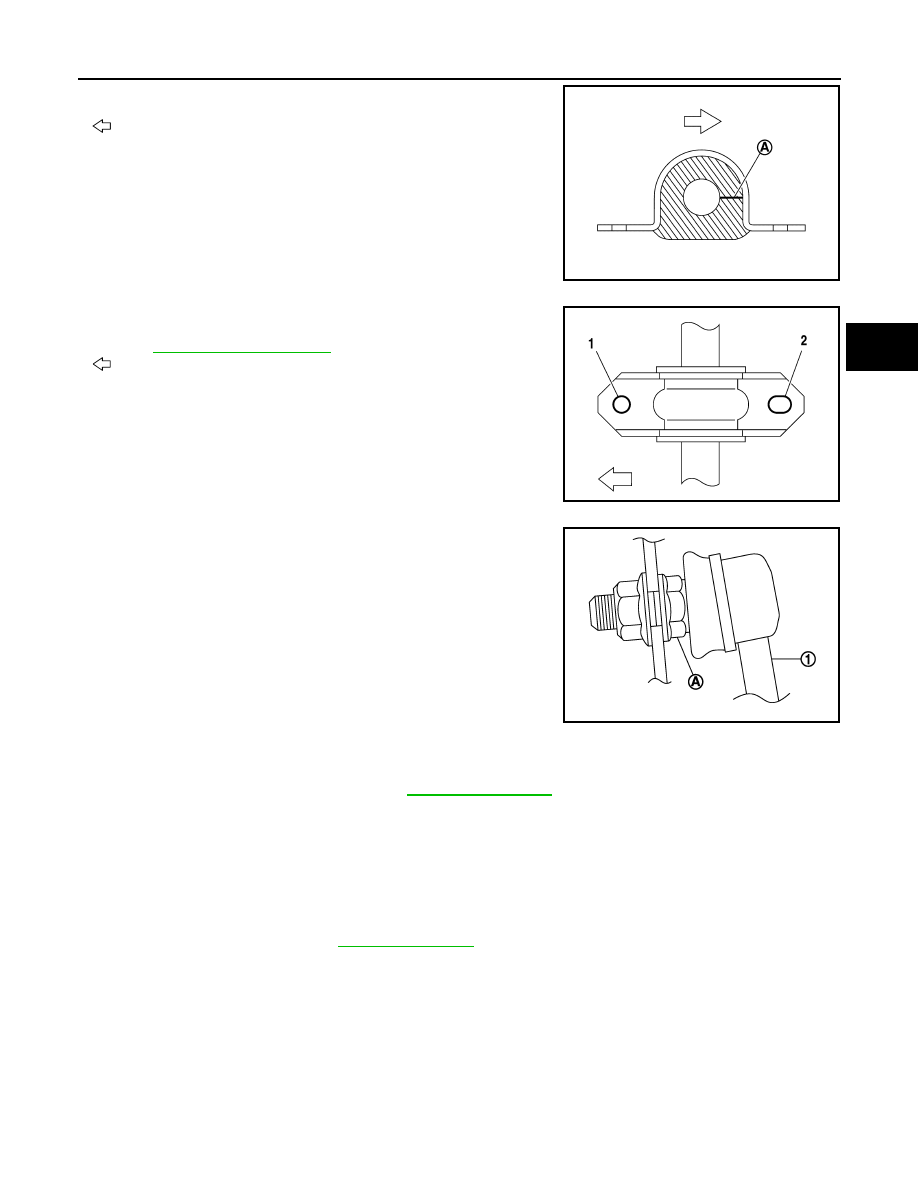

• Install the stabilizer bushing with the slit (A) facing the rear of the

vehicle.

: Rear

• To install stabilizer clamp bolt, temporarily tighten them in numeri-

cal order as shown, then tighten them to the specified torque.

Refer to

FSU-12, "Exploded View"

.

: Front

• To connect the stabilizer connecting rod (1), tighten the nut while

holding the hexagonal part (A) on the stabilizer connecting rod.

• Perform final tightening of bolts and nuts with the vehicle under unladen conditions with tires on level

ground.

• Perform inspection after installation. Refer to

FSU-13, "Inspection"

.

Inspection

INFOID:0000000009645137

INSPECTION AFTER REMOVAL

Check the stabilizer bar, the stabilizer connecting rod, the stabilizer bushing, and the stabilizer clamp for defor-

mation, cracks, or damage. Replace components if necessary.

INSPECTION AFTER INSTALLATION

Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

JPEIA0273ZZ

JPEIA0274ZZ

JPEIA0252ZZ

FSU-14

< UNIT REMOVAL AND INSTALLATION >

FRONT SUSPENSION MEMBER

UNIT REMOVAL AND INSTALLATION

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000009645138

Removal and Installation

INFOID:0000000009645139

REMOVAL

1. Remove the wheel and tire using power tool. Refer to

WT-8, "Removal and Installation"

.

2. Disconnect steering outer sockets from steering knuckles. Refer to

ST-14, "Exploded View"

.

3. Disconnect transverse links from steering knuckle. Refer to

FSU-10, "Exploded View"

.

4. Disconnect stabilizer connecting rods from stabilizer bar. Refer to

FSU-12, "Exploded View"

.

5. Disconnect the lower joint from the steering gear. Refer to

ST-12, "Exploded View"

.

6. Set suitable jack under front suspension member.

CAUTION:

Do not damage the front suspension member with suitable jack.

7. Remove the engine rear torque rod. Refer to

EM-85, "Exploded View"

.

8. Remove suspension member bolts.
9. Gradually lower the jack to remove front suspension member from vehicle body.
10. If necessary, remove steering gear from front suspension member. Refer to

ST-14, "Removal and Installa-

tion"

.

11. If necessary, remove transverse links. Refer to

FSU-10, "Exploded View"

.

12. If necessary, remove stabilizer bar, stabilizer bar clamps, and stabilizer bushings. Refer to

FSU-12,

"Exploded View"

.

13. Inspect the front suspension member. Refer to

FSU-15, "Inspection"

.

INSTALLATION

Installation is in the reverse order of removal.

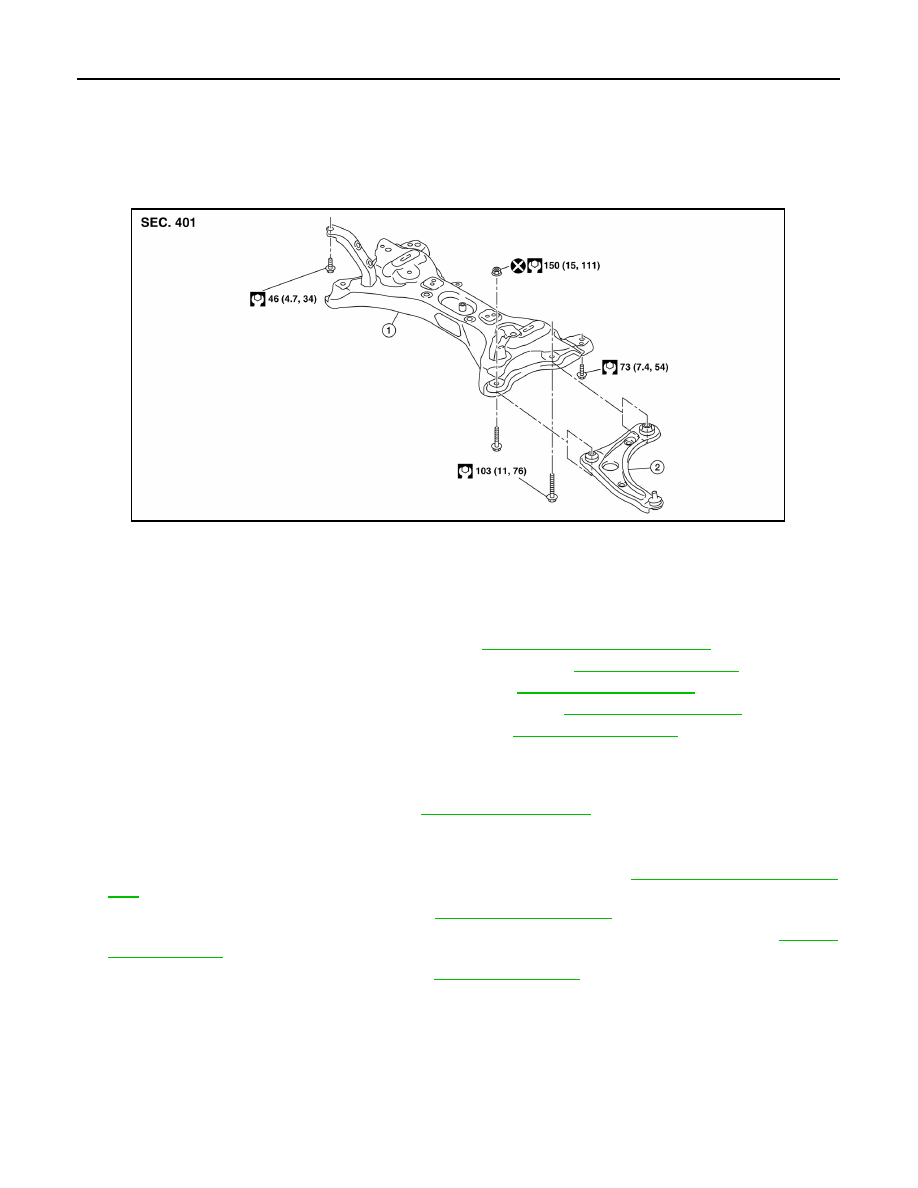

1.

Front suspension member

2.

Transverse link

AWEIA0210GB

FRONT SUSPENSION MEMBER

FSU-15

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

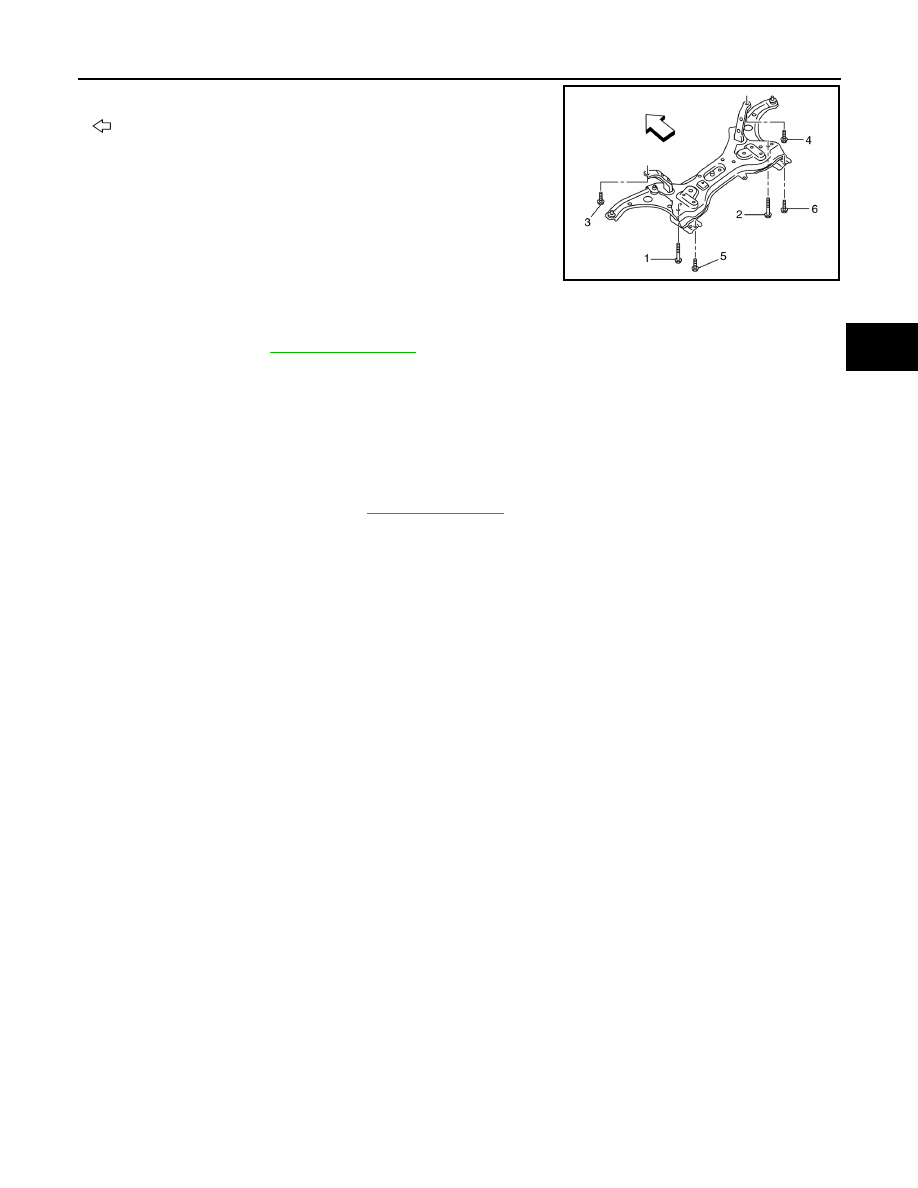

• Install the member stay bolts, the upper link bolts, and the front

suspension member bolts in the order of 1-6 as shown.

: Front

• After installation, perform the final tightening of each part under unladen conditions with tires on level

ground.

• Complete the inspection.

FSU-15, "Inspection"

Inspection

INFOID:0000000009645140

INSPECTION AFTER REMOVAL

Check the front suspension member for cracks, wear or damage. Replace components if necessary.

INSPECTION AFTER INSTALLATION

1. Check the wheel sensor harness to be sure the connectors are fully seated.
2. Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

AWEIA0211ZZ

FSU-16

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT COIL SPRING AND STRUT

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COIL SPRING AND STRUT

Exploded View

INFOID:0000000009578941

Disassembly and Assembly

INFOID:0000000009578942

DISASSEMBLY

CAUTION:

Do not damage strut piston rod when removing components from strut.
1. Remove strut mount insulator.
2. Install Tool (A) to the front coil spring and strut.

CAUTION:

When installing Tool (A), wrap a shop cloth around the front

coil spring and strut to protect the parts from damage.

3. Secure Tool (A) in a vise.

4. Slightly loosen the piston rod lock nut.

WARNING:

Do not remove the piston rod lock nut completely. If the piston rod lock nut is removed com-

pletely, the coil spring can jump out and may cause serious damage or injury.

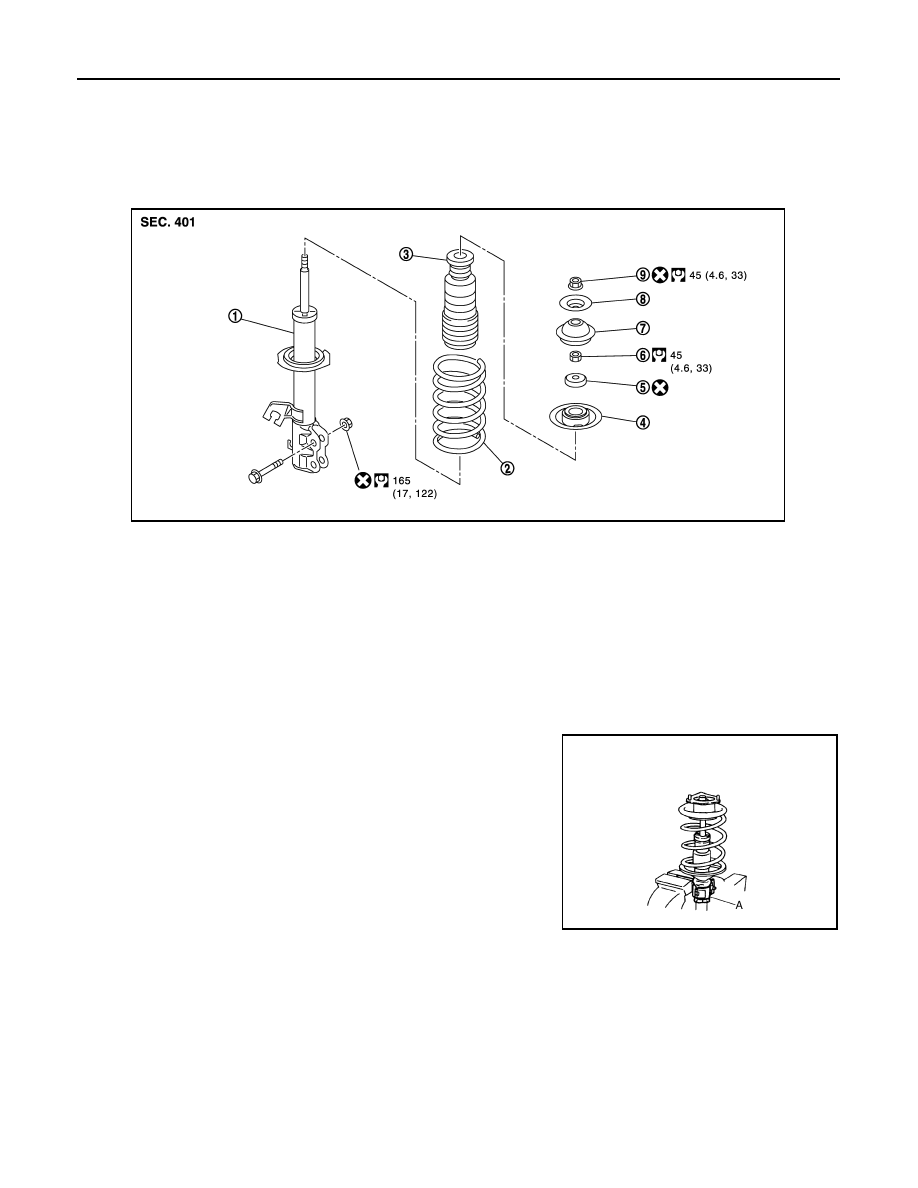

1.

Strut

2.

Coil spring

3.

Bound bumper

4.

Spring upper seat

5.

Strut mount bearing

6.

Piston rod lock nut

7.

Strut mount insulator

8.

Stopper insulator

9.

Stopper insulator lock nut

JPEIA0261GB

Tool number : ST35652000 ( — )

JPEIA0006ZZ
