FRONT COMBINATION LAMP

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

DISASSEMBLY

1. Remove front combination lamp. Refer to

EXL-108, "Removal and Installation"

.

2. Rotate lock ring counterclockwise and remove.
3. Remove headlamp bulb.
4. Rotate side marker bulb socket counterclockwise and remove.
5. Remove the side marker lamp bulb from the side marker bulb socket.
6. Rotate turn signal/parking lamp bulb socket counterclockwise and remove.
7. Remove turn signal/parking lamp bulb from turn signal/parking lamp bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

• After installing the headlamp bulb, be sure to install lock ring securely to ensure watertightness.

• After installing, be sure to install the bulb sockets securely to ensure watertightness.

REAR COMBINATION LAMP

EXL-121

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

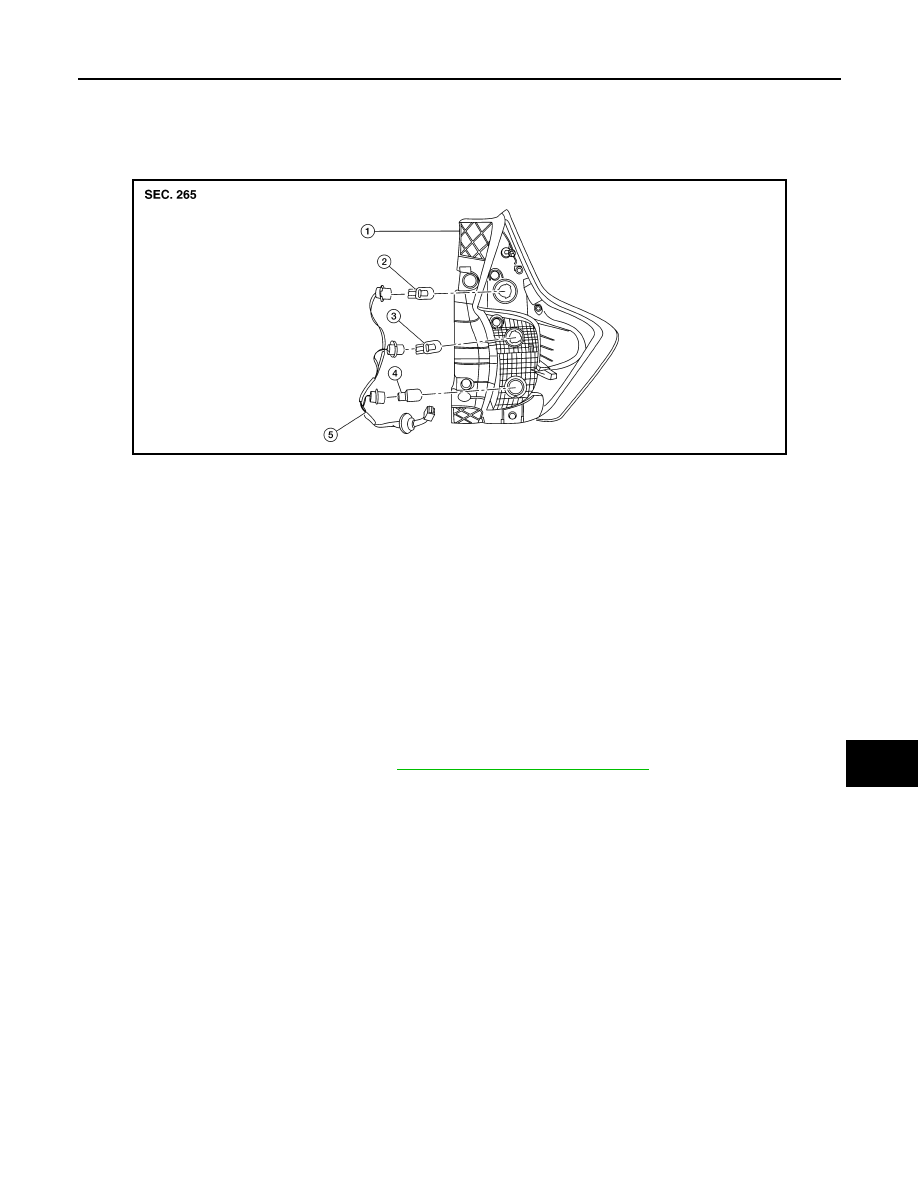

Exploded View - Non LED

INFOID:0000000009670499

REAR COMBINATION LAMP - NON LED

Disassembly and Assembly - Non LED

INFOID:0000000009670500

REAR COMBINATION LAMP

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Disassembly

1. Remove rear combination lamp. Refer to

EXL-115, "Removal and Installation"

.

2. Rotate rear turn signal lamp bulb socket counterclockwise to remove from rear combination lamp.
3. Remove the rear turn signal lamp bulb from bulb socket.
4. Rotate back-up lamp bulb socket counterclockwise to remove from rear combination lamp.
5. Remove the back-up lamp bulb from bulb socket.
6. Rotate stop/tail lamp bulb socket counterclockwise to remove from rear combination lamp.
7. Remove the stop/tail lamp bulb from bulb socket.

Assembly

Assembly is in the reverse order of disassembly.

CAUTION:

After installing, be sure to install the bulb sockets securely to ensure watertightness.

AWLIA2166ZZ

1.

Rear combination lamp

2.

Rear tail lamp bulb

3.

Rear back-up lamp bulb

4.

Rear turn signal lamp bulb

5.

Rear combination lamp har-
ness connector

EXL-122

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR COMBINATION LAMP

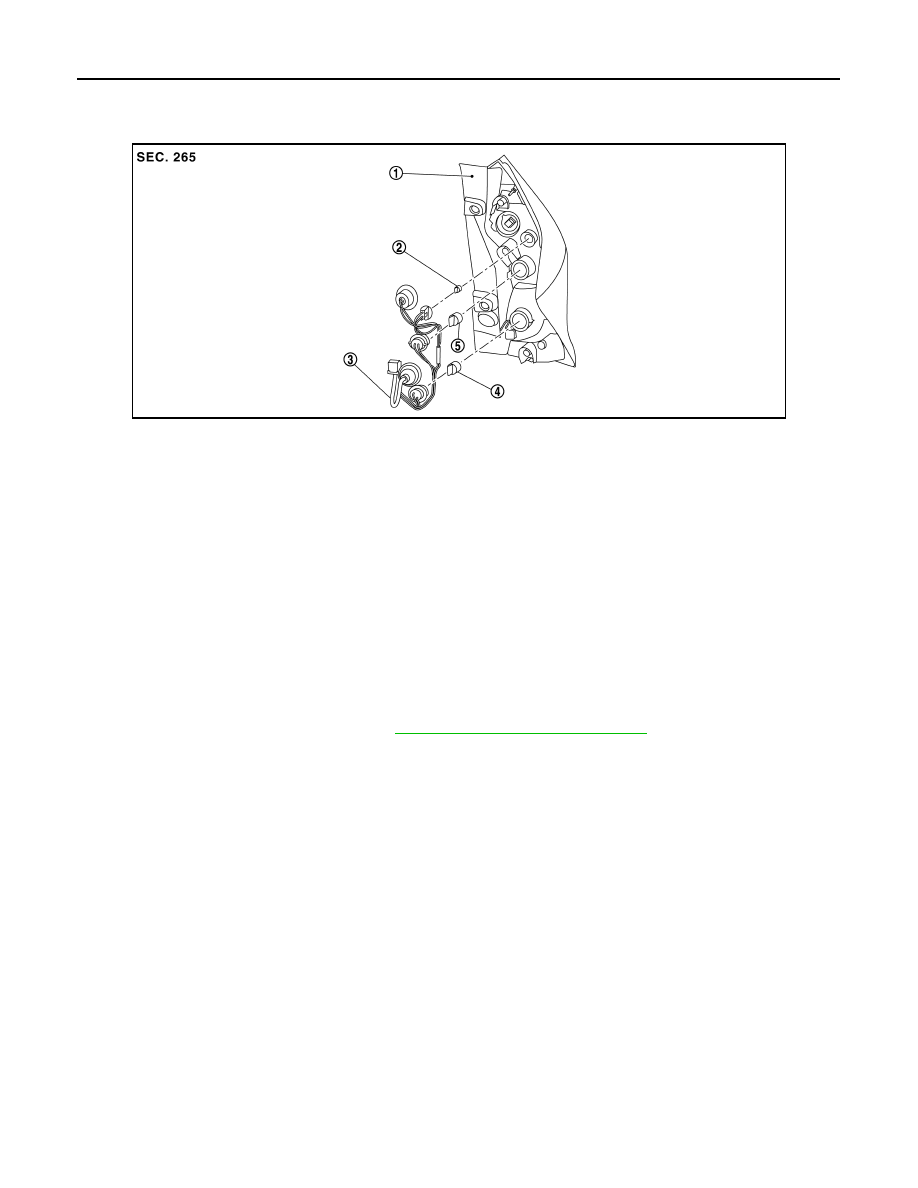

Exploded View - LED
