Nissan Note E12. Manual - part 311

EXL-112

< REMOVAL AND INSTALLATION >

COMBINATION SWITCH

COMBINATION SWITCH

Removal and Installation

INFOID:0000000009606282

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Do not use air or electric tools when removing or installing the combination switch.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

2. Remove the steering column covers. Refer to

IP-17, "Removal and Installation"

.

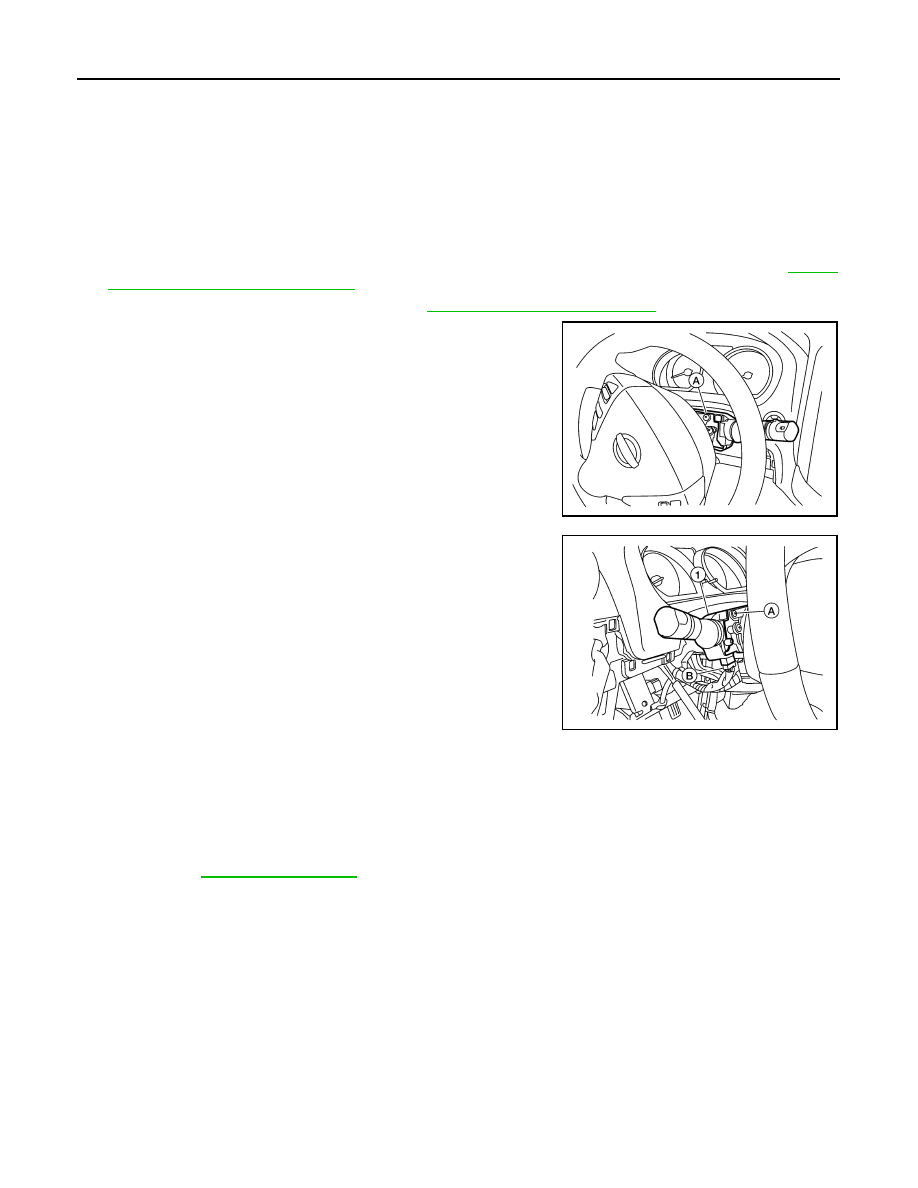

3. Rotate steering wheel clockwise to access first combination

switch screw (A) and remove.

4. Rotate steering wheel counter-clockwise to access second com-

bination switch screw (A) and remove.

5. Disconnect the harness connector (B) from the combination

switch (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function

and delete the memory with CONSULT.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

EXL-70, "Work Flow"

.

ALMIA0648ZZ

ALMIA0649ZZ

HAZARD SWITCH

EXL-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

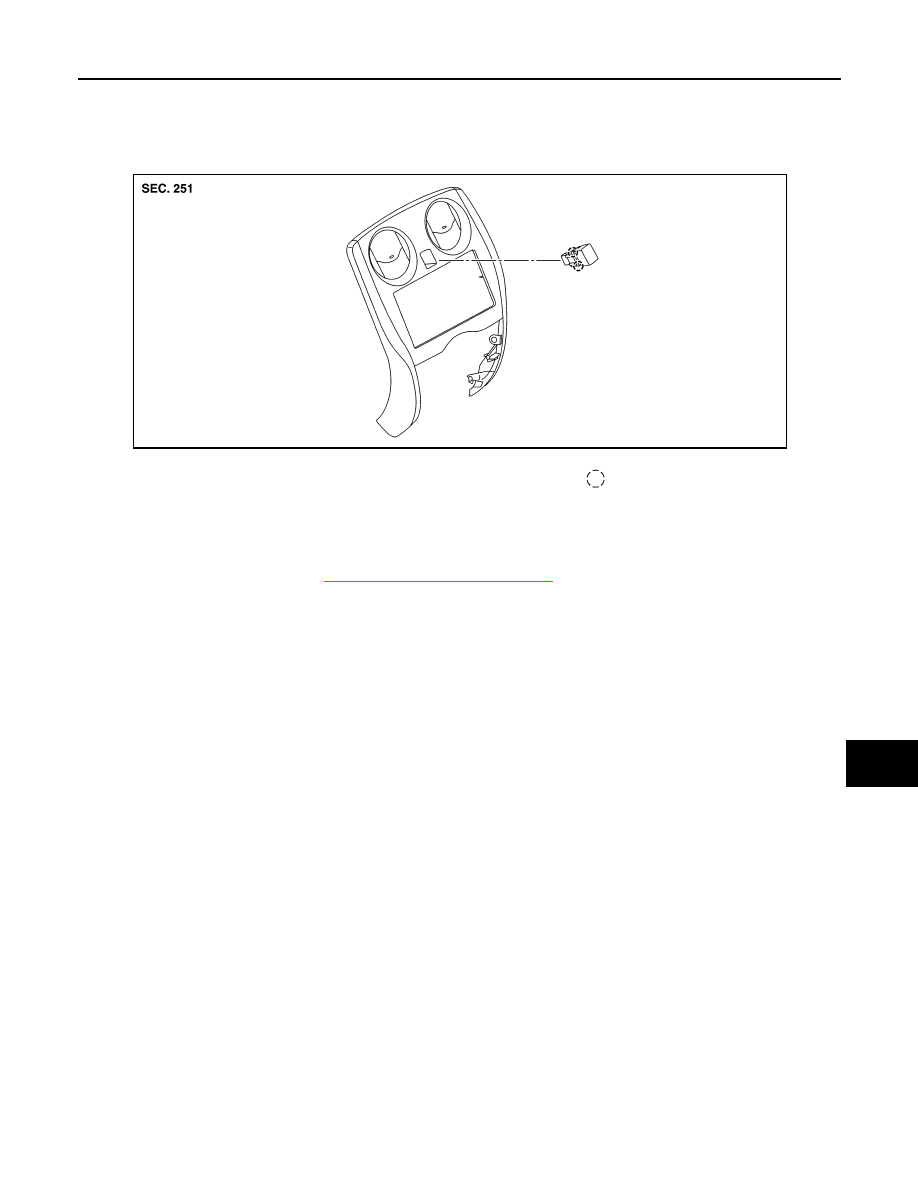

HAZARD SWITCH

Exploded View

INFOID:0000000009015739

Removal and Installation

INFOID:0000000009445907

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Release pawls and remove hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

1. Cluster lid C

2. Hazard switch

Pawl

AWLIA2163ZZ

EXL-114

< REMOVAL AND INSTALLATION >

HEADLAMP AIMING SWITCH

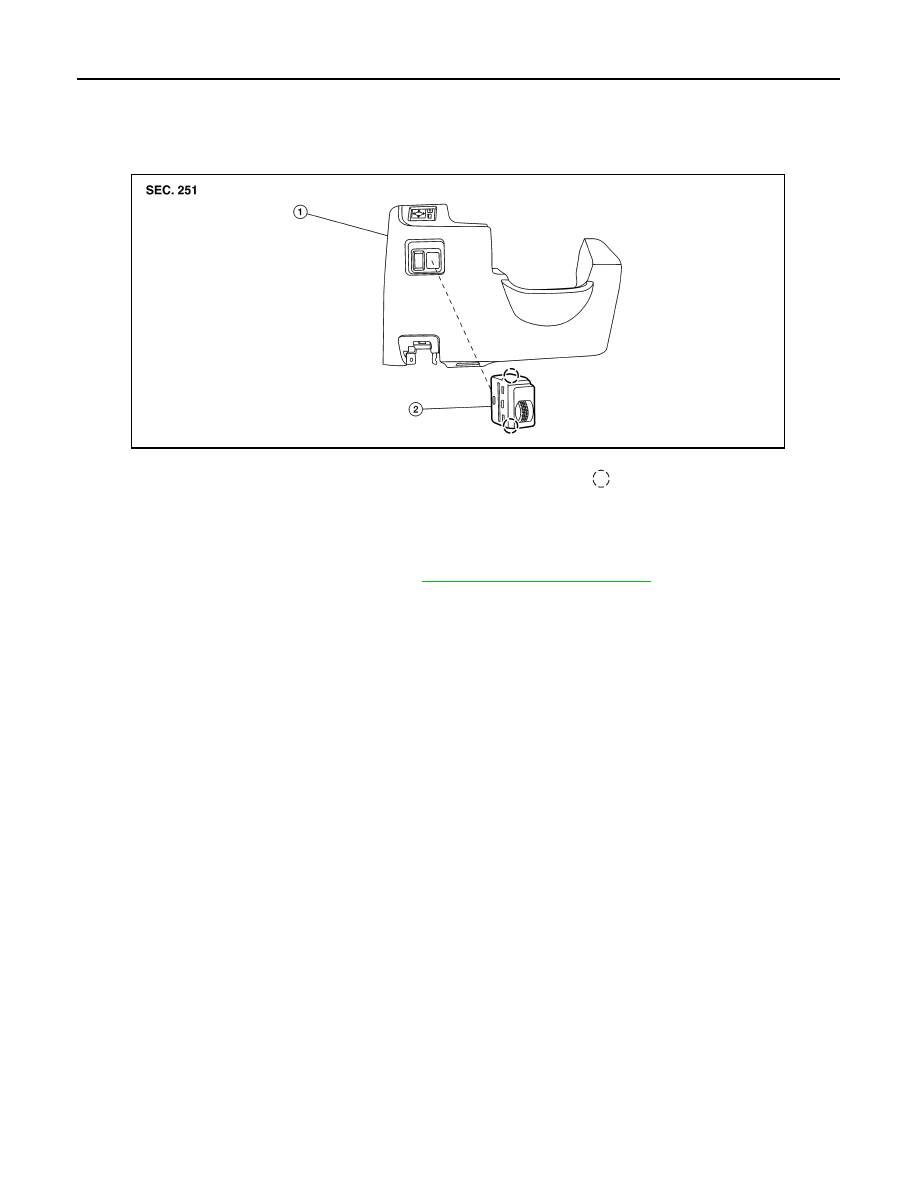

HEADLAMP AIMING SWITCH

Exploded View

INFOID:0000000009015743

Removal and Installation

INFOID:0000000009641646

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. While pressing pawls, push the headlamp aiming switch to remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument lower panel LH

2.

Headlamp aiming switch

Pawl

AWLIA2172ZZ

REAR COMBINATION LAMP

EXL-115

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

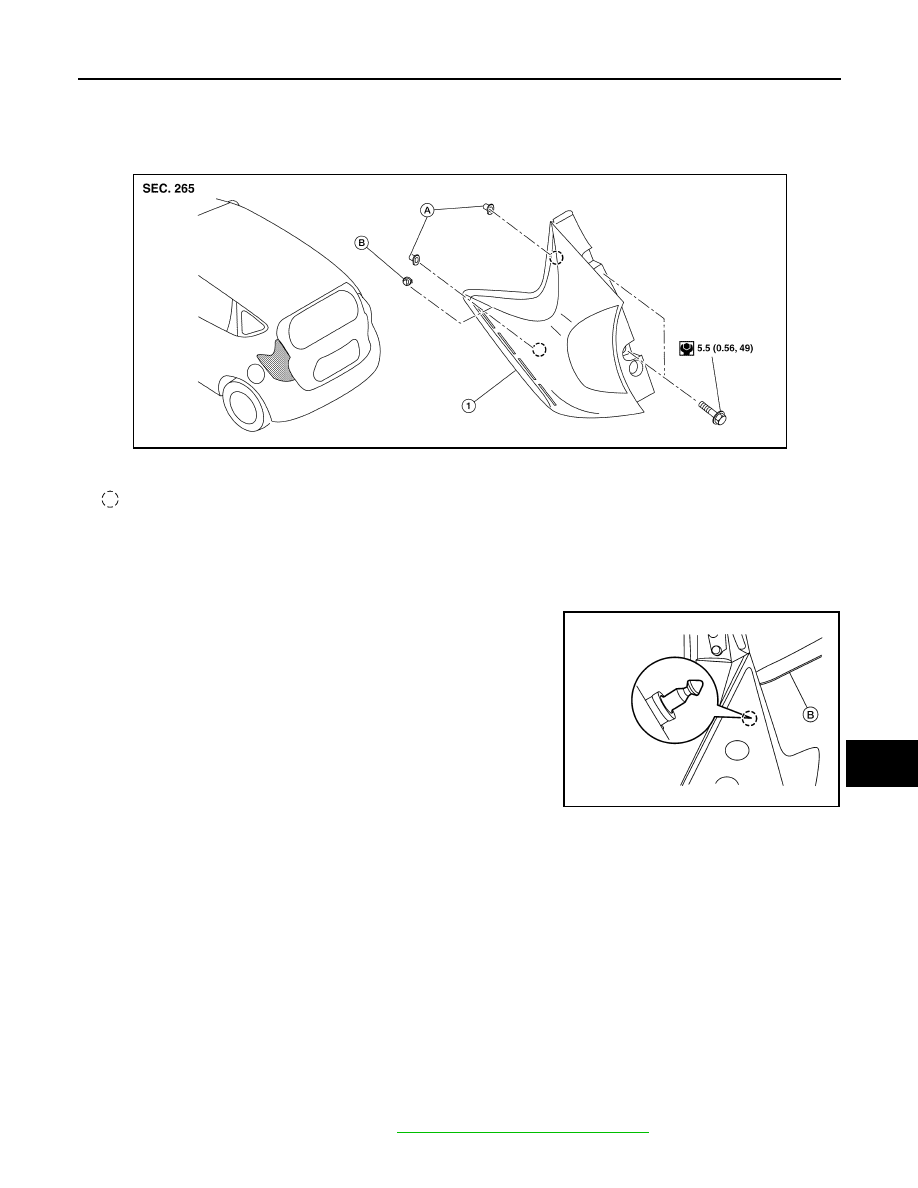

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009015744

Removal and Installation

INFOID:0000000009015745

REMOVAL

1. Remove rear combination lamp bolts.
2. Release the locating pin (A) of the rear combination lamp using

a suitable tool (B) as shown.

3. Disconnect the harness connector from the rear combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009015746

WARNING:

Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-115, "Removal and Installation"

.

1.

Rear combination lamp

A.

Grommet

B.

Clip

Locating pin

AWLIA2167ZZ

AWLIA2169ZZ
