EXL-108

< REMOVAL AND INSTALLATION >

FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

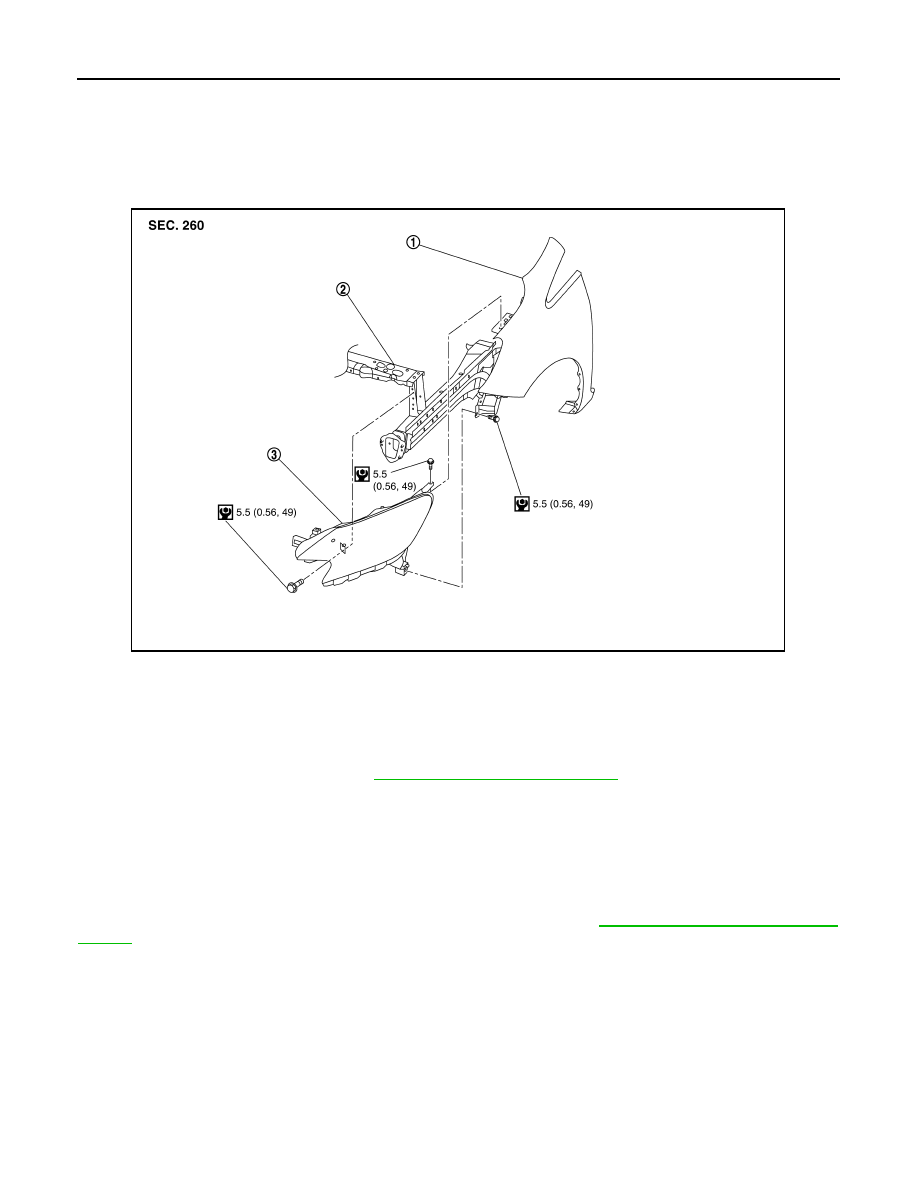

Exploded View

INFOID:0000000009015732

Removal and Installation

INFOID:0000000009015733

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-16, "Removal and Installation"

.

2. Remove the front combination lamp bolts.
3. Pull front combination lamp forward.
4. Disconnect the harness connectors from front combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform headlamp aiming adjustment procedure. Refer to

EXL-104, "Aiming Adjustment Pro-

cedure"

.

Bulb Replacement

INFOID:0000000009015734

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB

1.

Front fender

2.

Radiator core upper support

3.

Front combination lamp

JMLIA3217GB

FRONT COMBINATION LAMP

EXL-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal

1. Remove plastic cover.
2. Remove bulb from the front combination lamp.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

SIDE MARKER LAMP BULB

Removal

1. Rotate bulb socket counterclockwise and remove.
2. Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

FRONT TURN SIGNAL/PARKING LAMP BULB

Removal

1. Rotate bulb socket counterclockwise and remove.
2. Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

EXL-110

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

FRONT FOG LAMP

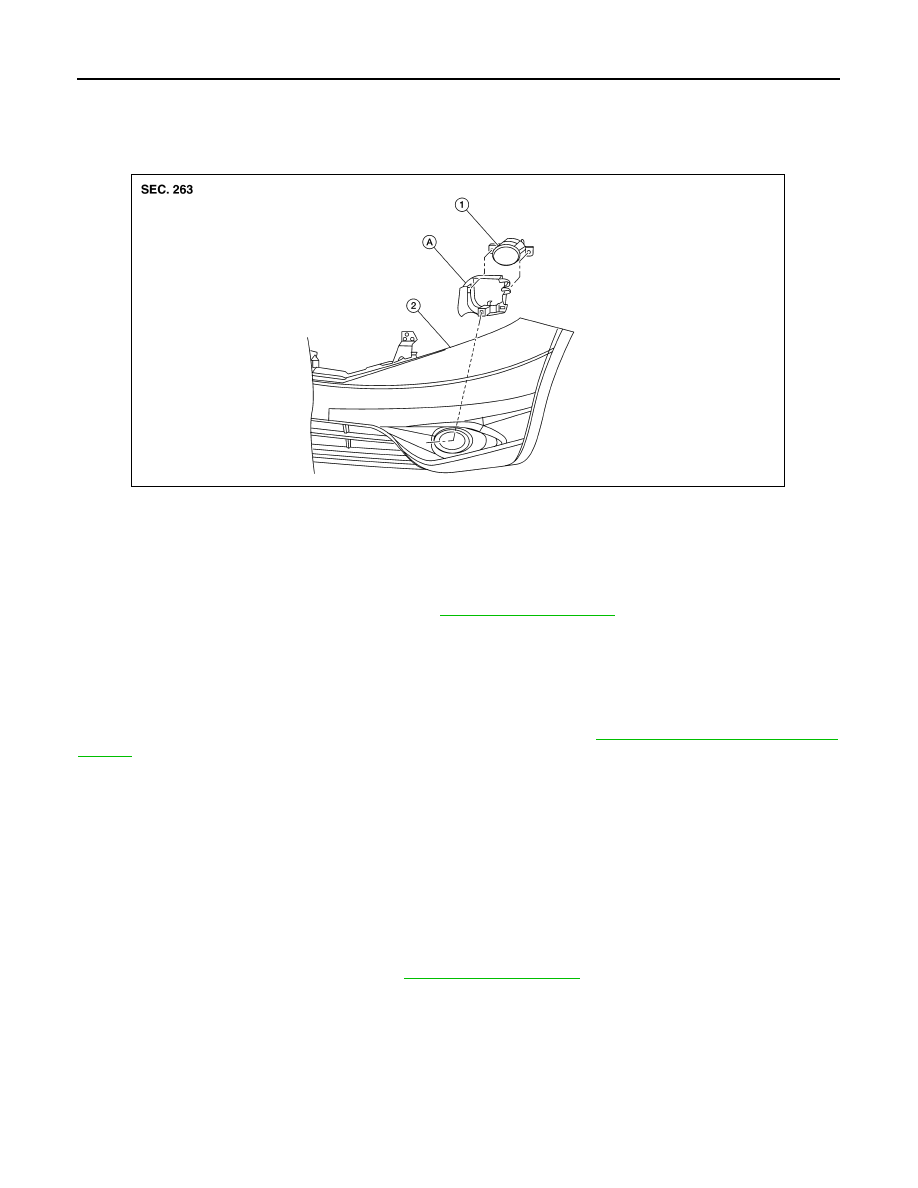

Exploded View

INFOID:0000000009445901

Removal and Installation

INFOID:0000000009445902

REMOVAL

1. Partially remove front fender protector. Refer to

EXT-24, "Exploded View"

.

2. Disconnect the harness connector from front fog lamp.
3. Remove screws and front fog lamp.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform fog lamp aiming adjustment procedure. Refer to

EXL-104, "Aiming Adjustment Pro-

cedure"

.

Bulb Replacement

INFOID:0000000009445910

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Partially remove fender protector. Refer to

EXT-24, "Exploded View"

.

1.

Front fog lamp

2.

Front bumper fascia

A.

Front fog lamp bracket

AWLIA2178ZZ

FRONT FOG LAMP

EXL-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

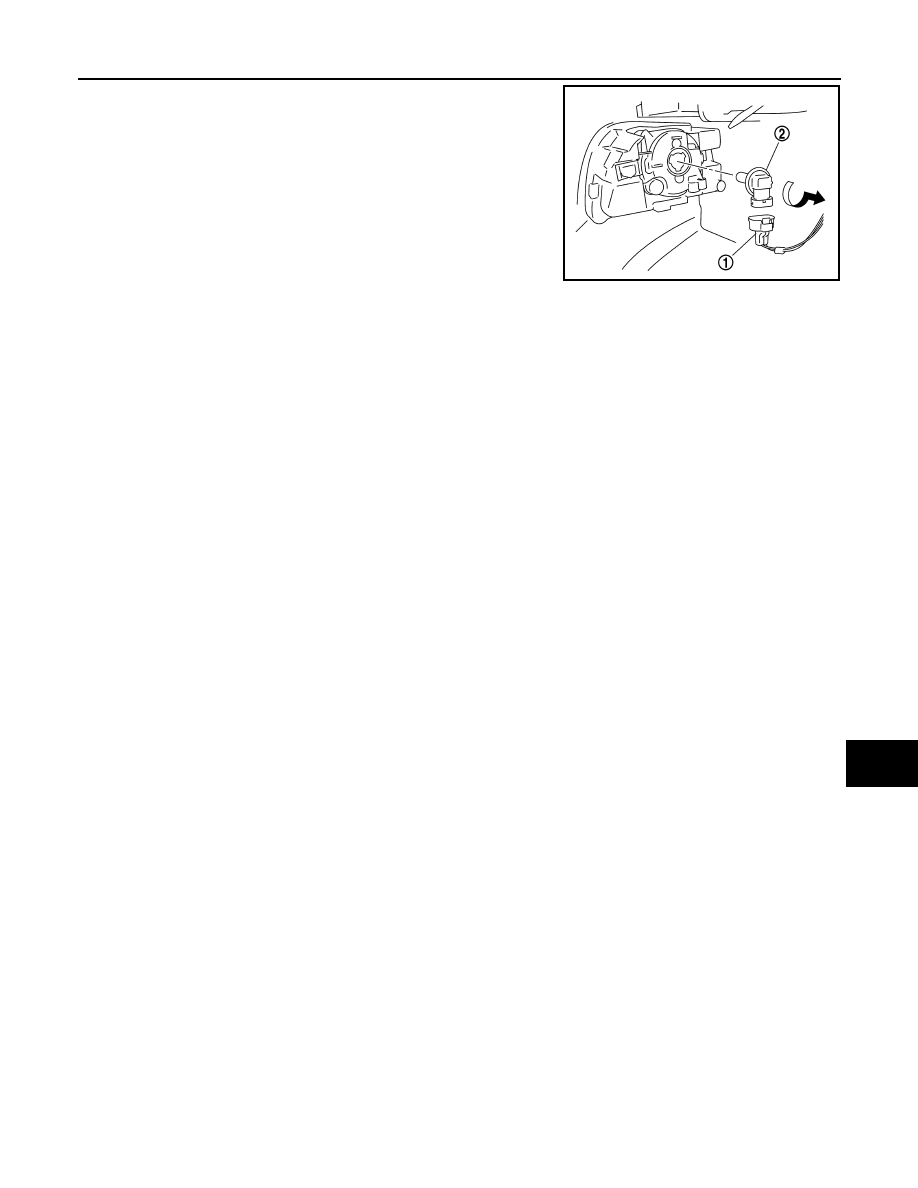

2. Disconnect harness connector (1) from front fog lamp bulb.
3. Rotate the bulb (2) counterclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.
