EXL-84

< DTC/CIRCUIT DIAGNOSIS >

TAIL LAMP CIRCUIT

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace IPDM E/R.

5.

CHECK TAIL LAMP OPEN CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between IPDM E/R harness connector and rear combination lamp harness connector.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK TAIL LAMP GROUND OPEN CIRCUIT

Check continuity between rear combination lamp harness connector and ground.

Is the inspection result normal?

YES

>> Check corresponding bulb socket and harness. Repair or replace if necessary.

NO

>> Repair or replace harness.

(+)

(

−)

Test item

Voltage

(Approx.)

IPDM E/R

Connector

Terminal

E45

23

Ground

EXTERNAL
LAMPS

TAIL

Battery voltage

Off

0 V

IPDM E/R

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E45

23

B27

1

Yes

LH

B25

Rear combination lamp

Ground

Continuity

Connector

Terminal

RH

B27

6

Yes

LH

B25

LICENSE PLATE LAMP CIRCUIT

EXL-85

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP CIRCUIT

Component Function Check

INFOID:0000000009472898

1.

CHECK TAIL LAMP OPERATION

Check that the tail lamp is turned ON.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check tail lamp circuit. Refer to

EXL-83, "Component Function Check"

.

2.

CHECK LICENSE PLATE LAMP OPERATION

CONSULT ACTIVE TEST

1. Select “EXTERNAL LAMPS” of IPDM E/R active test item.

2. With operating the lighting switch, check that the license plate lamp is turned ON.

Is the inspection result normal?

YES

>> License plate lamp circuit is normal.

NO

>> Refer to

EXL-85, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009472899

1.

CHECK LICENSE PLATE LAMP BULB

Check the applicable lamp bulb.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace bulb.

2.

CHECK LICENSE PLATE LAMP OPEN CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector and license plate lamp connector.

3. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK LICENSE PLATE LAMP GROUND OPEN CIRCUIT

Check continuity between license plate lamp harness connector and ground.

Is the inspection result normal?

YES

>> Check corresponding bulb socket and harness. Repair or replace if necessary.

NO

>> Repair or replace harness.

TAIL

: License plate lamp ON

Off

: License plate lamp OFF

IPDM E/R

License plate lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E45

23

D508

1

Yes

LH

D507

License plate lamp

Ground

Continuity

Connector

Terminal

RH

D508

2

Yes

LH

D507

EXL-86

< DTC/CIRCUIT DIAGNOSIS >

TURN SIGNAL LAMP CIRCUIT

TURN SIGNAL LAMP CIRCUIT

Component Function Check

INFOID:0000000009472900

1.

CHECK TURN SIGNAL LAMP

CONSULT ACTIVE TEST

1. Select “FLASHER” of BCM (FLASHER) active test item.

2. With operating the test items, check that the turn signal lamps is turned ON.

Is the inspection result normal?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-86, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009472901

1.

CHECK TURN SIGNAL LAMP

CONSULT ACTIVE TEST

1. Select “FLASHER” of BCM (FLASHER) active test item.

2. With operating the test items, check that the turn signal lamps is turned ON.

Which turn signal lamp does not turn ON?

Side turn signal lamp>>GO TO 3.

Other than side turn signal lamp>>GO TO 2.

2.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace bulb.

3.

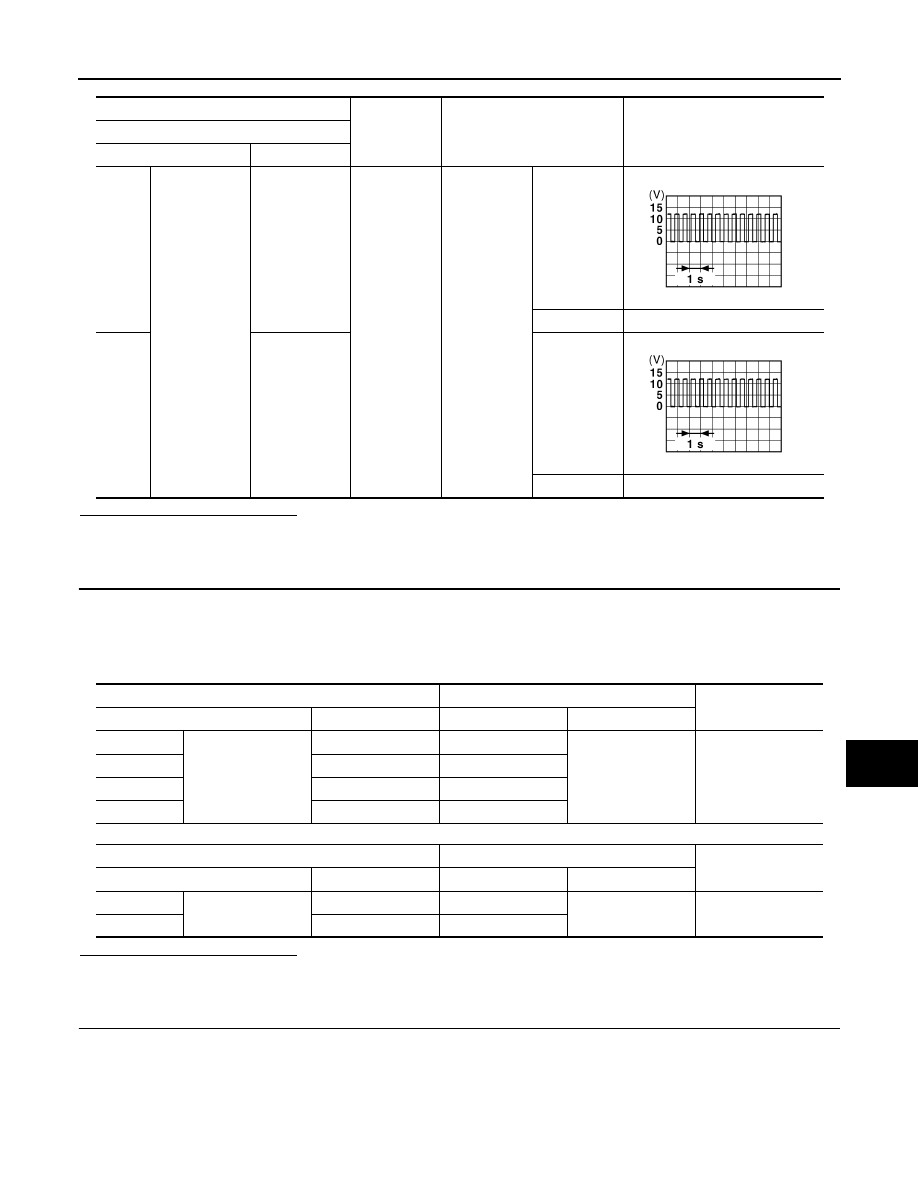

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1. Turn ignition switch OFF.

2. Disconnect front combination lamp connector, side turn signal lamp connector and rear combination lamp

connector.

3. Turn ignition switch ON.

4. With operating the turn signal switch, check voltage between BCM harness connector and ground.

LH

: Turn signal lamps (LH) ON

RH

: Turn signal lamps (RH) ON

Off

: Turn signal lamps OFF

LH

: Turn signal lamps (LH) ON

RH

: Turn signal lamps (RH) ON

Off

: Turn signal lamps OFF

TURN SIGNAL LAMP CIRCUIT

EXL-87

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK TURN SIGNAL LAMP OPEN CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and front combination lamp, door mirror or rear combi-

nation lamp harness connector.

Front turn signal lamp

Rear turn signal lamp

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

5.

CHECK TURN SIGNAL LAMP SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

LH

M99

60

Ground

Turn signal
switch

LH

OFF

0 V

RH

61

RH

OFF

0 V

PKID0926E

PKID0926E

BCM

Front combination lamp

Continuity

Connector

Terminal

Connector

Terminal

 RH

M99

61

E30 (Without DTRL)

4

Yes

 LH

60

E29 (Without DTRL)

RH

61

E76 (With DTRL)

LH

60

E75 (With DTRL)

BCM

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

M99

61

B27

4

Yes

LH

60

B25
