Nissan Note E12. Manual - part 196





FUEL PRESSURE CHECK

EC-123

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

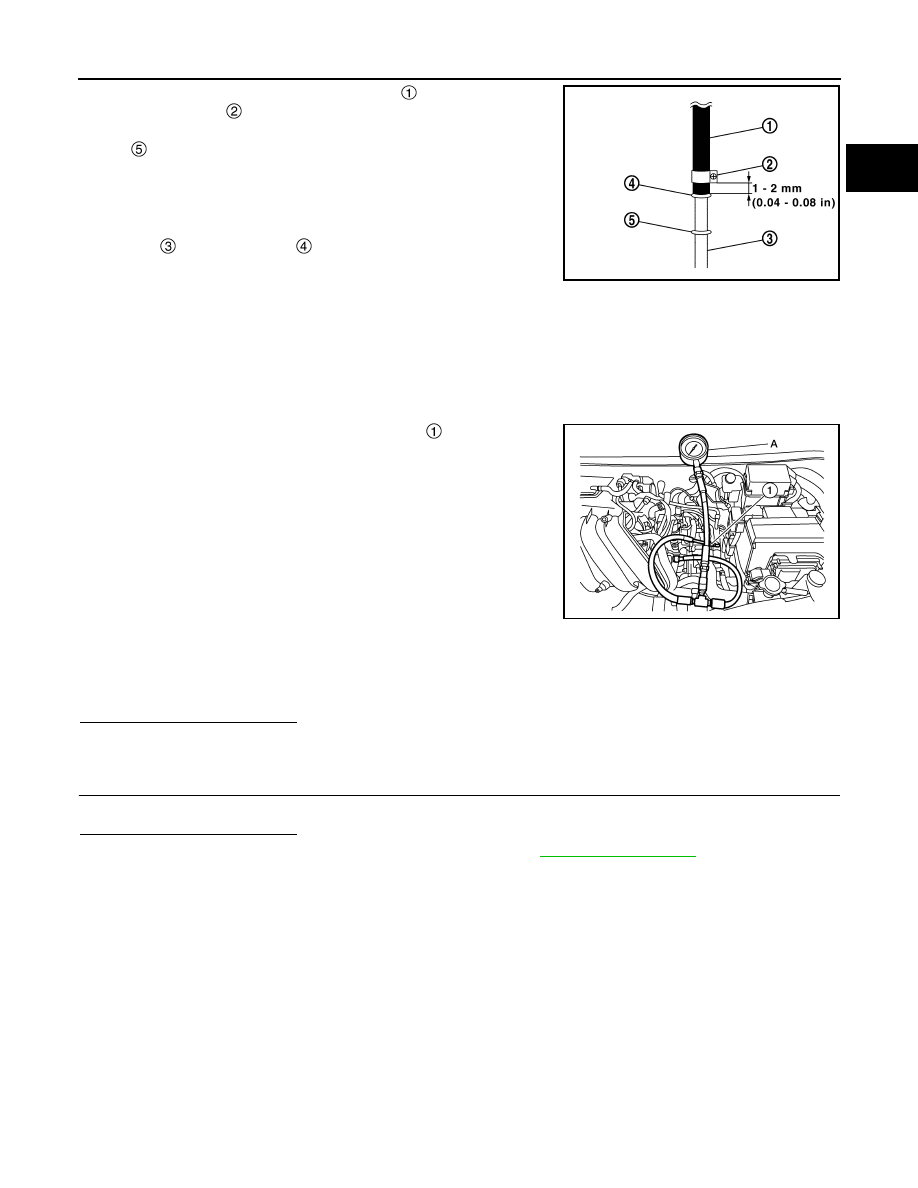

4. Connect fuel hose for fuel pressure check   to fuel tube (engine

side) with clamp   as shown in the figure.

CAUTION:

• Wipe off oil or dirt from hose insertion part using cloth

moistened with gasoline.

• Apply proper amount of gasoline between top of the fuel

tube   and No.1 spool  .

• Insert fuel hose for fuel pressure check until it touches

the No.1 spool on fuel tube.

• Use NISSAN genuine hose clamp (part number: 16439 N4710 or 16439 40U00).

• When reconnecting fuel line, always use new clamps.

• Use a torque driver to tighten clamps.

• Install hose clamp to the position within 1 - 2 mm (0.04 - 0.08 in).

• Make sure that clamp screw does not contact adjacent parts.

5. Connect fuel tube adapter to quick connector  .

6. After connecting fuel hose for fuel pressure check, pull the hose

with a force of approximately 98 N (10 kg, 22 lb) to confirm fuel

tube does not come off.

7. Turn ignition switch ON and check for fuel leakage.

8. Start engine and check for fuel leakage.

9. Read the indication of fuel pressure gauge.

CAUTION:

• Do not perform fuel pressure check with system operat-

ing. Fuel pressure gauge may indicate false readings.

• During fuel pressure check, confirm for fuel leakage from fuel connection every 3 minutes.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK FUEL HOSE AND FUEL TUBE

If result is unsatisfactory, check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly”. Refer to

FL-6, "Exploded View"

.

NO

>> Repair or replace.

: No.2 spool

Tightening torque : 1 - 1.5 N·m (0.1 - 0.15 kg-m, 9 - 13 in-lb)

A : Fuel pressure gauge

At idling

: Approximately 350 kPa (3.5 bar, 3.57 kg/cm

2

, 51 psi)

PBIB2983E

ALBIA1073ZZ

EC-124

< BASIC INSPECTION >

[HR16DE]

HOW TO SET SRT CODE

HOW TO SET SRT CODE

Description

INFOID:0000000009022492

OUTLINE

In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least

once. Each diagnosis may require actual driving for a long period of time under various conditions.

SRT ITEM

The table below shows required self-diagnostic items to set the SRT to “CMPLT”.

*: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.

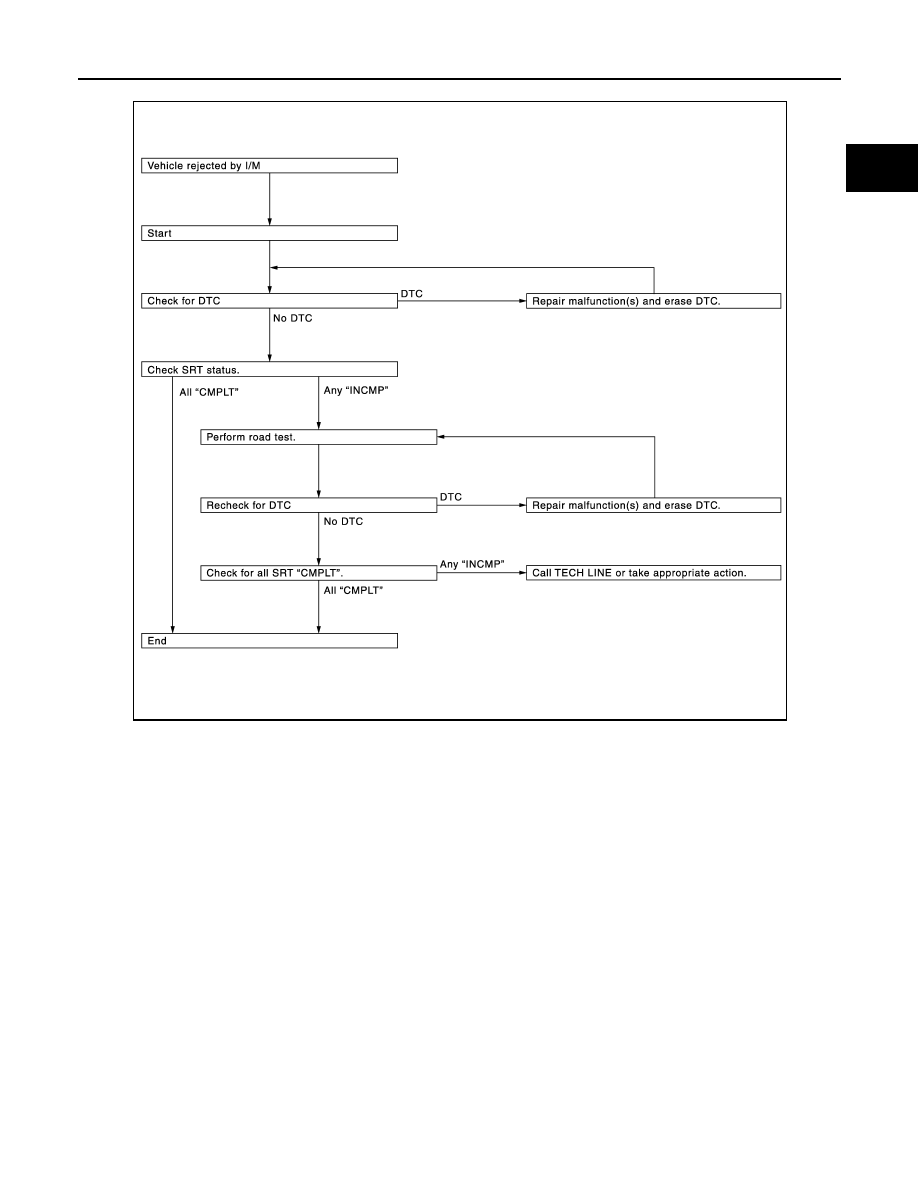

SRT SERVICE PROCEDURE

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review

the flowchart diagnostic sequence, referring to the following flowchart.

SRT item

*

(CONSULT indication)

Required self-diagnostic items to set the SRT to “CMPLT”

Corresponding DTC No.

CATALYST

Three way catalyst function

P0420

HO2S

Air fuel ratio (A/F) sensor 1

P0130, P0133

Heated oxygen sensor 2

P0137

Heated oxygen sensor 2

P0138

Heated oxygen sensor 2

P0139

HOW TO SET SRT CODE

EC-125

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SRT Set Driving Pattern

INFOID:0000000009022493

CAUTION:

JSBIA0399GB

EC-126

< BASIC INSPECTION >

[HR16DE]

HOW TO SET SRT CODE

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

NOTE:

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal

and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h

(56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

JSBIA1318GB
