Nissan Note E12. Manual - part 195





BASIC INSPECTION

EC-119

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

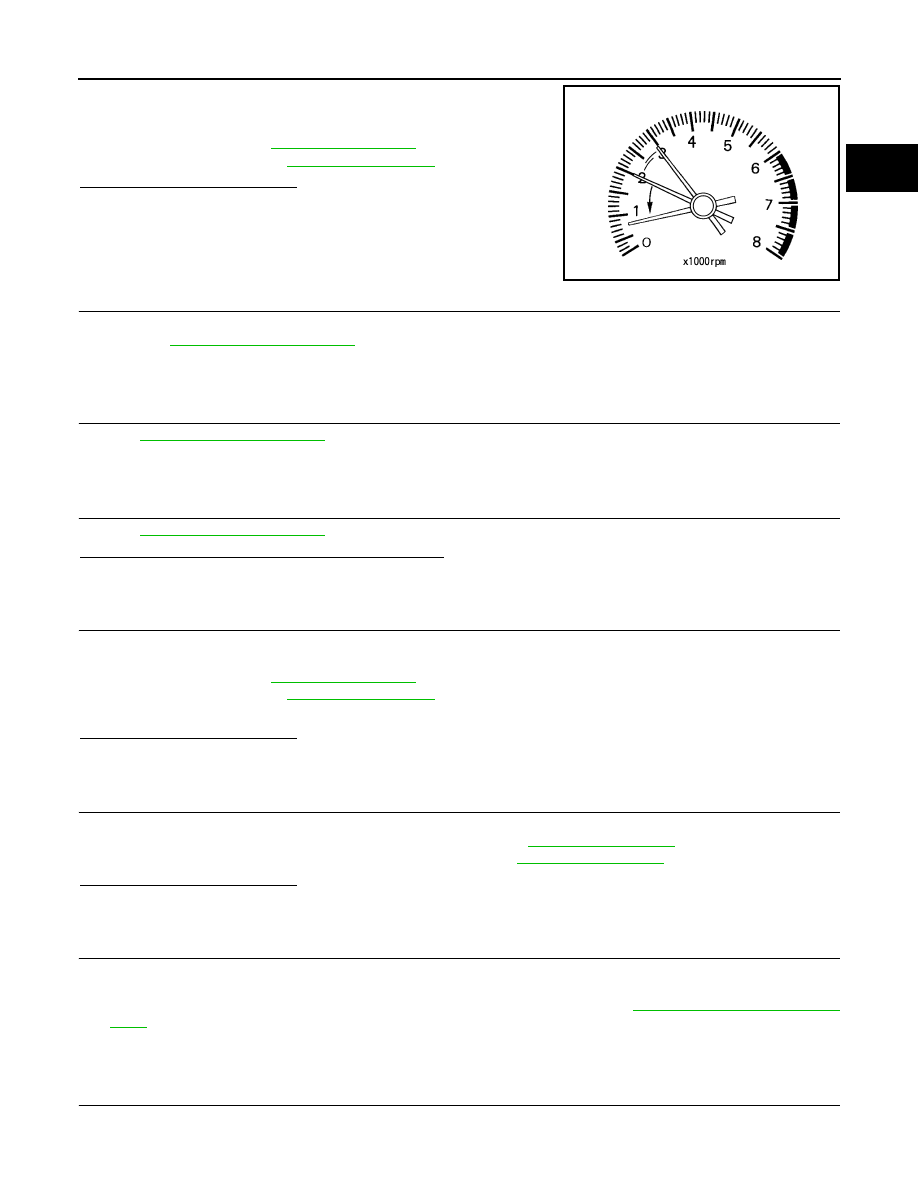

2. Rev engine (2,000 to 3,000 rpm) two or three times under no

load, then run engine at idle speed for about 1 minute.

3. Check idle speed.

For procedure, refer to

EC-334, "Inspection"

.

For specification, refer to

EC-339, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 4.

4.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.

2. Perform

EC-113, "Work Procedure"

.

>> GO TO 5.

5.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perfor

EC-114, "Work Procedure"

.

>> GO TO 6.

6.

PERFORM IDLE AIR VOLUME LEARNING

Perfor

EC-115, "Work Procedure"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 7.

NO

>> Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

1. Start engine and warm it up to normal operating temperature.

2. Check idle speed.

For procedure, refer to

EC-334, "Inspection"

.

For specification, refer to

EC-339, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the Following.

• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-228, "DTC Logic"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-224, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace. Then GO TO 4.

9.

CHECK ECM FUNCTION

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but

this is a rare case.)

2. Perform initialization and registration of all NATS ignition key IDs. Refer to

SEC-61, "ECM : Work Proce-

dure"

.

>> GO TO 4.

10.

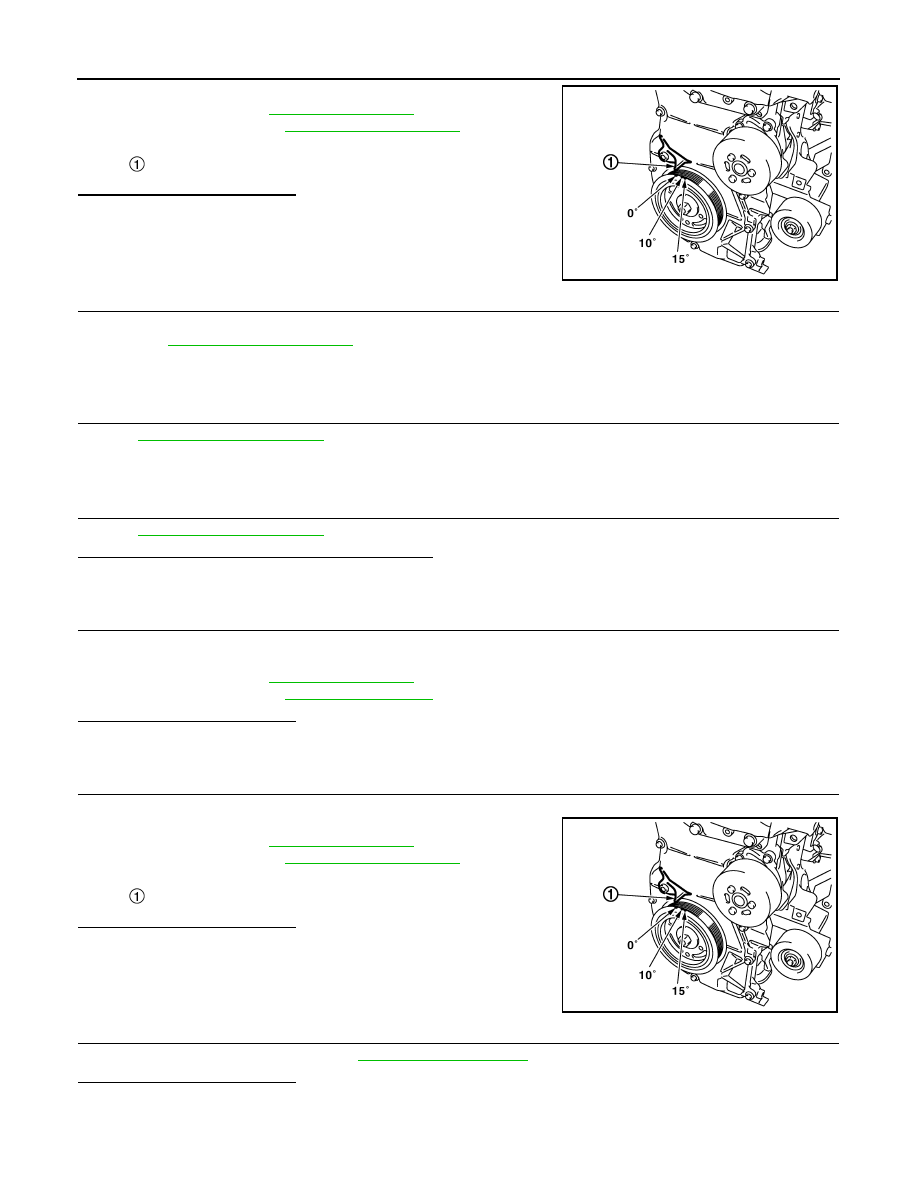

CHECK IGNITION TIMING

1. Run engine at idle.

PBIA8513J

EC-120

< BASIC INSPECTION >

[HR16DE]

BASIC INSPECTION

2. Check ignition timing with a timing light.

For procedure, refer to

EC-335, "Inspection"

.

For specification, refer to

EC-339, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.

2. Perform

EC-113, "Work Procedure"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-114, "Work Procedure"

.

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-115, "Work Procedure"

.

Is idle air volume learning carried out successfully?

YES

>> GO TO 14.

NO

>> Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

1. Start engine and warm it up to normal operating temperature.

2. Check idle speed.

For procedure, refer to

EC-334, "Inspection"

.

For specification, refer to

EC-339, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> GO TO 17.

15.

CHECK IGNITION TIMING AGAIN

1. Run engine at idle.

2. Check ignition timing with a timing light.

For procedure, refer to

EC-335, "Inspection"

.

For specification, refer to

EC-339, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 16.

16.

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to

EM-51, "Exploded View"

.

Is the inspection result normal?

YES

>> GO TO 17.

NO

>> Repair the timing chain installation. Then GO TO 4.

: Timing indicator

MBIB1331E

: Timing indicator

MBIB1331E

BASIC INSPECTION

EC-121

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

17.

DETECT MALFUNCTIONING PART

Check the following.

• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-228, "DTC Logic"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-224, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 18.

NO

>> Repair or replace. Then GO TO 4.

18.

CHECK ECM FUNCTION

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but

this is a rare case.)

2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to

SEC-61,

"ECM : Work Procedure"

.

>> GO TO 4.

19.

INSPECTION END

If ECM is replaced during this BASIC INSPECTION procedure, perform

EC-111, "Work Procedure"

.

>> INSPECTION END

EC-122

< BASIC INSPECTION >

[HR16DE]

FUEL PRESSURE CHECK

FUEL PRESSURE CHECK

Work Procedure

INFOID:0000000009022491

FUEL PRESSURE RELEASE

1.

FUEL PRESSURE RELEASE

With CONSULT

1. Turn ignition switch ON.

2. Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode with CONSULT.

3. Start engine.

4. After engine stalls, crank it two or three times to release all fuel pressure.

5. Turn ignition switch OFF.

Without CONSULT

1. Remove fuel pump fuse located in IPDM E/R.

2. Start engine.

3. After engine stalls, crank it two or three times to release all fuel pressure.

4. Turn ignition switch OFF.

5. Reinstall fuel pump fuse after servicing fuel system.

>> INSPECTION END

FUEL PRESSURE CHECK

1.

FUEL PRESSURE CHECK

CAUTION:

• Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

• The fuel hose connection method used when taking fuel pressure check must not be used for other

purposes.

• Be careful not to scratch or put debris around connection area when servicing, so that the quick

connector maintains seal ability with O-rings inside.

• Do not perform fuel pressure check with electrical systems operating (i.e. lights, rear defogger, A/C,

etc.) Fuel pressure gauge may indicate false readings due to varying engine load and changes in

manifold vacuum.

NOTE:

Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-

sure cannot be completely released because this models do not have fuel return system.

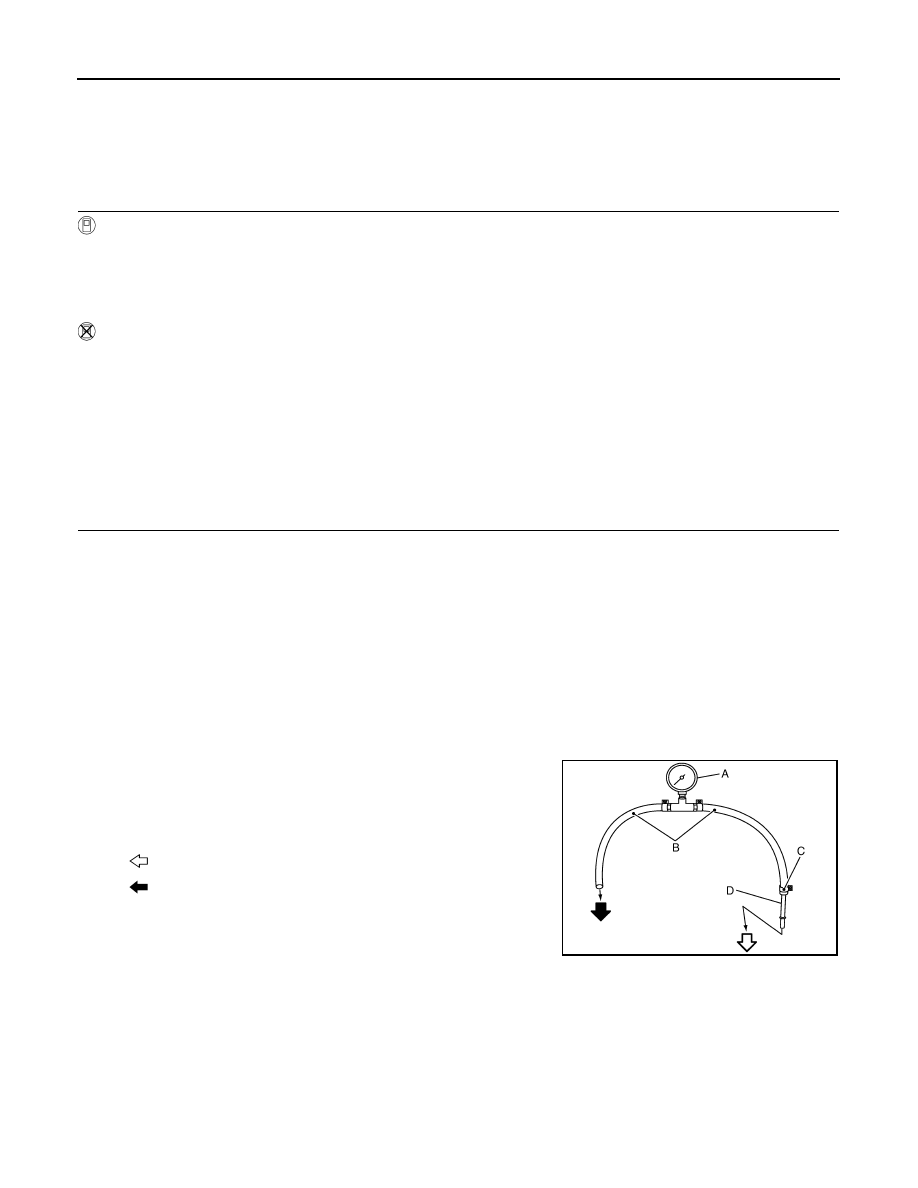

1. Release fuel pressure to zero.

2. Prepare fuel hose for fuel pressure check (B) and fuel tube

adapter [SST: KV10118400 or KV10120000] (D), then connect

fuel pressure gauge (A).

CAUTION:

• Use suitable fuel hose for fuel pressure check (genuine

NISSAN fuel hose without quick connector).

• To avoid unnecessary force or tension to hose, use mod-

erately long fuel hose for fuel pressure check.

• Do not use the fuel hose for checking fuel pressure with damage or cracks on it.

• Use Pressure Gauge to check fuel pressure.

3. Remove fuel hose.

CAUTION:

Do not twist or kink fuel hose because it is plastic hose.

C

: Hose clamp
: To quick connector
: To fuel tube (engine side)

PBIB2982E
