ECM

EC-63

< ECU DIAGNOSIS INFORMATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

LOAD SIGNAL

• Ignition switch: ON

Rear window defogger switch: ON
and/or
Lighting switch: 2nd position

ON

Rear window defogger switch and lighting
switch: OFF

OFF

IGNITION SW

• Ignition switch: ON

→ OFF → ON

ON

→ OFF → ON

HEATER FAN SW

• Engine: After warming up, idle

the engine

Heater fan switch: ON

ON

Heater fan switch: OFF

OFF

BRAKE SW

• Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

INJ PULSE-B1

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

2.0 - 3.0 msec

2,000 rpm

1.9 - 2.9 msec

IGN TIMING

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

11

°BTDC (CVT)

10

°BTDC (M/T)

2,000 rpm

25

° - 45°BTDC

CAL/LD VALUE

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

10% - 35%

2,500 rpm

10% - 35%

MASS AIRFLOW

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

0.8 - 4.0 g/s

2,500 rpm

2.0 - 10.0 g/s

PURG VOL C/V

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

0%

2,000 rpm

0% - 50%

INT/V TIM(B1)

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

−5° - 5°CA

When revving engine up to 2,000rpm
Quickly

Approx. 0

° - 40°CA

EXH/V TIM B1

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

−5° - 5°CA

When revving engine up to 2,000rpm
Quickly

Approx. 0

° - 40°CA

INT/V SOL(B1)

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

0% - 2%

When revving engine up to 2,000rpm
Quickly

Approx. 0% - 90%

AIR COND RLY

• Engine: After warming up, idle

the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates.)

ON

FUEL PUMP RLY

• For 1 seconds after turning ignition switch: ON
• Engine running or cranking

ON

• Except above

OFF

Monitor Item

Condition

Values/Status

EC-64

< ECU DIAGNOSIS INFORMATION >

[HR16DE]

ECM

THRTL RELAY

• Ignition switch: ON

ON

COOLING FAN

• Engine: After warning up, idle the

engine

• Air conditioner switch: OFF

Engine coolant temperature is 98

°C

(208

°F) or less

OFF

Engine coolant temperature is between
98

°C (208°F) and 99°C (210°F)

LOW

Engine coolant temperature is 100

°C

(212

°F) or more

HIGH

HO2S2 HTR (B1)

• Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

ON

ALT DUTY SIG

• Power generation voltage variable control: Operating

ON

• Power generation voltage variable control: Not operating

OFF

VEHICLE SPEED

• Turn drive wheels and compare CONSULT value with the speedometer indi-

cation.

Almost the same speed as
speedometer indication

IDL A/V LEARN

• Engine: running

Idle air volume learning has not been per-
formed yet.

YET

Idle air volume learning has already been
performed successfully.

CMPLT

TRVL AFTER MIL

• Ignition switch: ON

Vehicle has traveled after MIL has turned
ON.

0 - 65,535 km
(0 - 40,723 miles)

ENG OIL TEMP

• Engine: After warming up

More than 70

°C (158F)

A/F S1 HTR (B1)

• Engine: After warming up, idle the engine

(More than 140 seconds after starting engine)

4 - 100%

ALT DUTY

• Engine: Idle

0 - 80%

BAT CUR SEN

• Engine speed: Idle
• Battery: Fully charged

*

• Selector lever position: P or N (CVT) or Neutral (M/T)
• Air conditioner switch: OFF
• No  load

Approx 2,500 - 3,500 mV

VHCL SPEED SE

• Turn drive wheels and compare CONSULT value with the speedometer indi-

cation.

Almost the same speed as
speedometer indication

A/F ADJ-B1

• Engine running

−0.330 - 0.330

P/N POSI SW

• Ignition switch: ON

Selector lever position: P or N (CVT) or
Neutral (M/T)

ON

Shift lever: Except above

OFF

INT/A TEMP SE

• Ignition switch: ON

Indicates intake air tempera-
ture

AC PRESS SEN

• Engine: Idle
• Both A/C switch and blower fan switch: ON (Compressor operates.)

1.0 - 4.0 V

SET VHCL SPD

• Engine: Running

ASCD: Operating

The preset vehicle speed is
displayed

MAIN SW

• Ignition switch: ON

MAIN switch: Pressed

ON

MAIN switch: Released

OFF

CANCEL SW

• Ignition switch: ON

CANCEL switch: Pressed

ON

CANCEL switch: Released

OFF

RESUME/ACC SW

• Ignition switch: ON

ACCEL/RES switch: Pressed

ON

ACCEL/RES switch: Released

OFF

SET SW

• Ignition switch: ON

COAST/SET switch: Pressed

ON

COAST/SET switch: Released

OFF

Monitor Item

Condition

Values/Status

ECM

EC-65

< ECU DIAGNOSIS INFORMATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM inter-

nally. Thus, they differ from ECM terminals voltage signal.

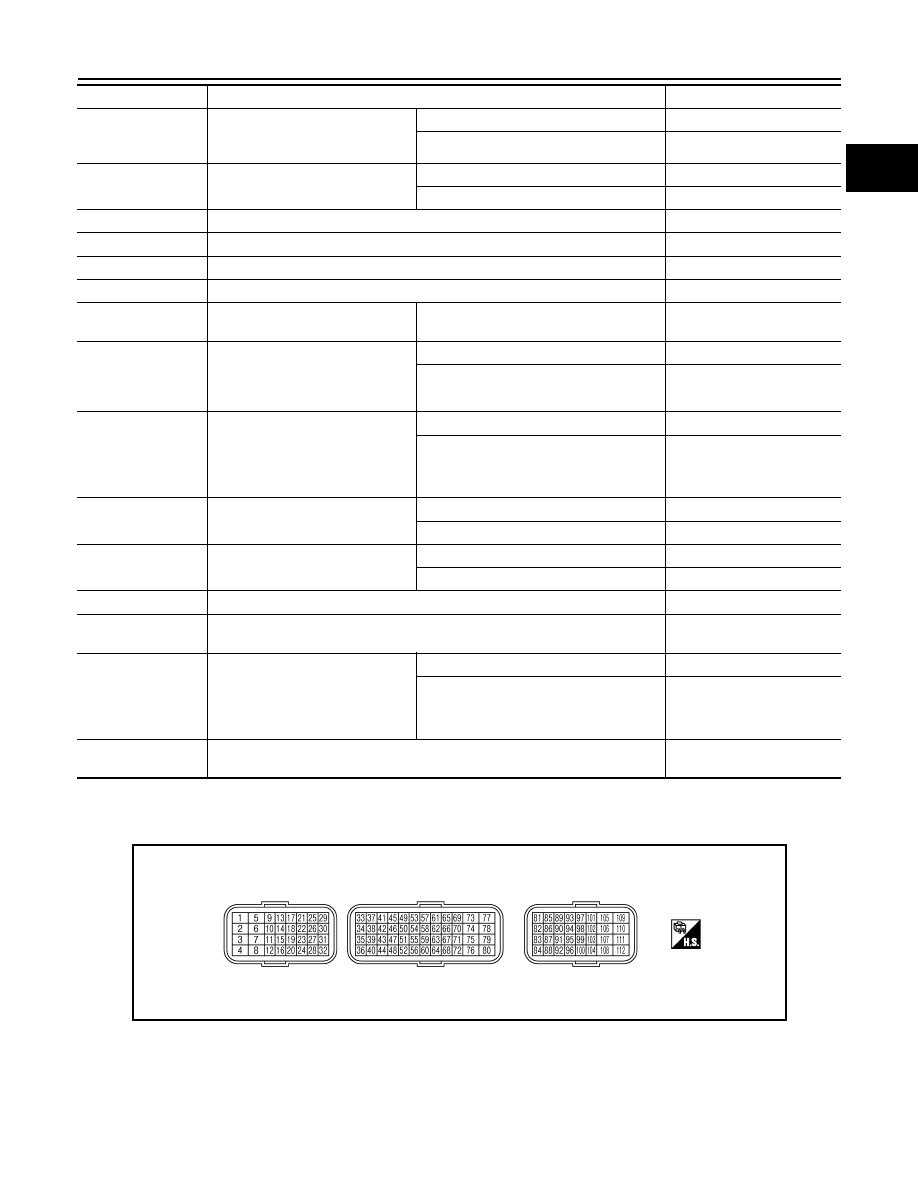

TERMINAL LAYOUT

PHYSICAL VALUES

NOTE:

• ECM is located in the engine room left side near battery.

BRAKE SW1
(Brake pedal posi-
tion switch)

• Ignition switch: ON

• Brake pedal: Fully released

ON

• Brake pedal: Slightly depressed

OFF

BRAKE SW2
(Stop lamp switch)

• Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

VHCL SPD CUT

• Ignition switch: ON

NON

LO SPEED CUT

• Ignition switch: ON

NON

AT OD MONITOR

• Ignition switch: ON

OFF

AT OD CANCEL

• Ignition switch: ON

OFF

CRUISE LAMP

• Ignition switch: ON

MAIN switch: Pressed at the 1st time

→ at

the 2nd time

ON

→ OFF

SET LAMP

• MAIN switch: ON
• When vehicle speed: Between

30 km/h (19 MPH) and 170 km/h
(105 MPH)

ASCD: Operating

ON

ASCD: Not operating

OFF

VTC DTY EX B1

• Engine: After warming up
• Selector lever: P or N (CVT) or

Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

0 - 2%

2,000 rpm

Approx 0- 90%

KICKDOWN POS

• Ignition switch: ON

Accelerator pedal: Fully released

OFF

Accelerator pedal: Fully depressed

ON

CLUTCH P/P SW

• Ignition switch: ON

Clutch pedal: Fully released

OFF

Clutch pedal: Fully depressed

ON

THRTL STK CNT B1 Not used.

—

HO2 S2 DIAG2(B1)

NOTE:
The item is indicated, but not used.

—

EOP SENSOR

• Engine: After warming up
• Selector lever position: P or N

(CVT) or Neutral (M/T)

• Air conditioner switch: OFF
• No  load

Idle

Approx 1,000 - 2,000 mV

2,000 rpm

Approx 1,500 - 3,500 mV

A/F SEN1
DIAG2(B1)

NOTE:
The item is indicated, but not used.

—

Monitor Item

Condition

Values/Status

PBIA9221J

EC-66

< ECU DIAGNOSIS INFORMATION >

[HR16DE]

ECM

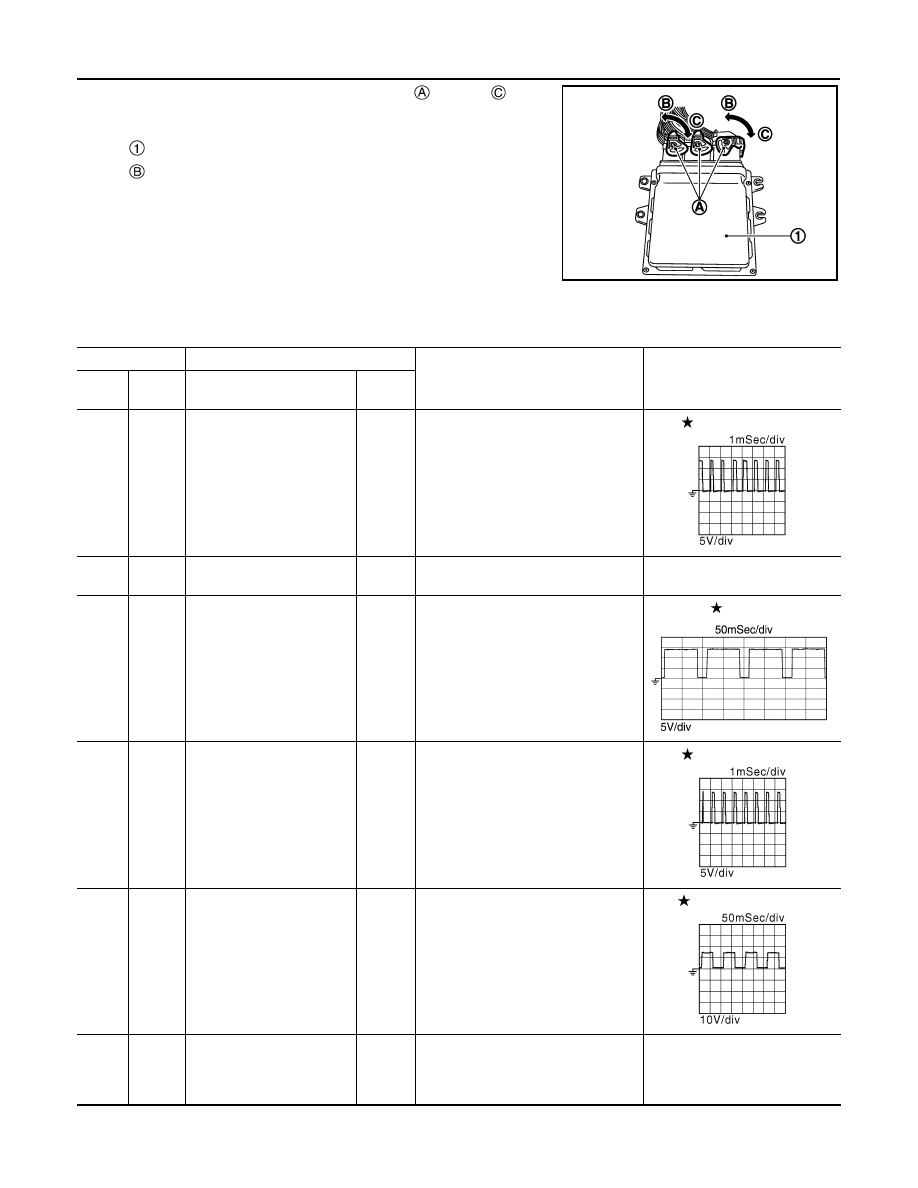

• When disconnecting ECM harness connector  , loosen   it with

levers as far as they will go as shown in the figure.

• Connect a break-out box and harness adapter between the ECM

and ECM harness connector.

- Use extreme care not to touch 2 pins at one time.

- Data is for comparison and may not be exact.

• Specification data are reference values and are measured

between each terminals.

• Pulse signal is measured by CONSULT.

: ECM

: Fasten

JMBIA0029ZZ

Terminal No.

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(L)

108

(B)

Throttle control motor
(Open)

Output

[Ignition switch: ON]
• Engine stopped
• Shift lever: D (CVT), 1st (M/T)
• Accelerator pedal: Fully depressed

2.6 V

2

(L/W)

108

(B)

Throttle control motor power
supply

Input

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

3

(G/W)

108

(B)

A/F sensor 1 heater

Output

[Engine is running]
• Warm-up condition
• Idle speed

(More than 140 seconds after start-
ing engine)

2.9 - 8.8 V

4

(P)

108

(B)

Throttle control motor
(Close)

Output

[Ignition switch: ON]
• Engine stopped
• Shift lever: D (CVT), 1st (M/T)
• Accelerator pedal: Fully released

1.8 V

5

(BR/

W)

59

(L/Y)

Heated oxygen sensor 2
heater

Output

[Engine is running]
• Engine speed: Below 3,600 rpm af-

ter the following conditions are met

- Engine: after warming up
- Keeping the engine speed between

3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no
load

10 V

[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14 V)

JMBIA0213GB
