Nissan Note E12. Manual - part 156

DLK-128

< REMOVAL AND INSTALLATION >

FRONT DOOR

Installation is in the reverse order of removal.

CAUTION:

• After installation, perform the front door adjustment procedure. Refer to

DLK-128, "DOOR ASSEM-

BLY : Adjustment"

.

• Apply anticorrosive agent to the door hinge mating surface.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

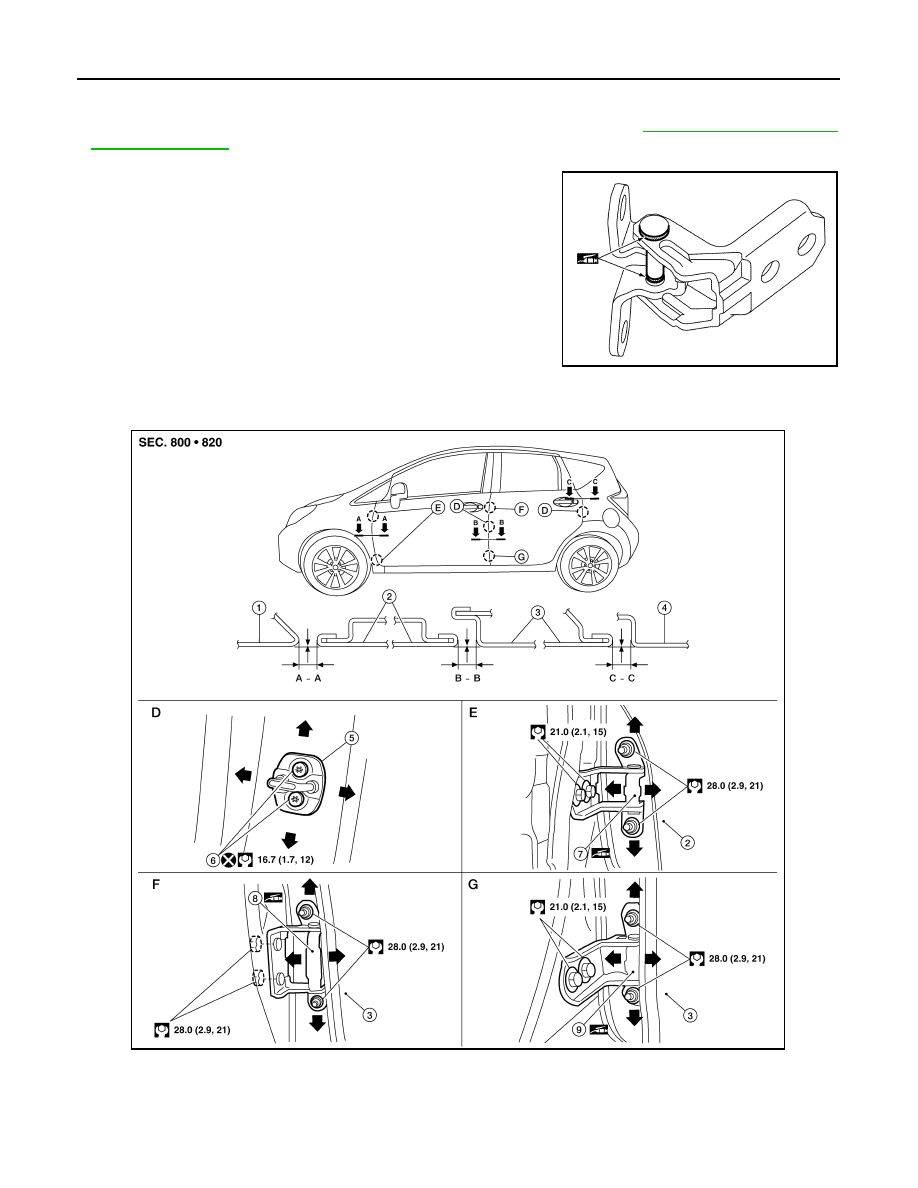

DOOR ASSEMBLY : Adjustment

INFOID:0000000009567341

JMKIA8072ZZ

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door upper hinge

9.

Rear door lower hinge

AWKIA2493ZZ

FRONT DOOR

DLK-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check the clearance and surface height between front door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1. Remove front fender. Refer to

DLK-125, "Removal and Installation"

.

2. Loosen front door hinge nuts (door side).
3. Adjust the surface height of front door according to the specifications provided.
4. Temporarily tighten front door hinge nuts (door side).
5. Loosen front door hinge bolts (body side).
6. Raise or lower the front door at rear end to adjust clearance of the front door according to the specifica-

tions provided.

7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

8. Install front fender. Refer to refer to

DLK-125, "Removal and Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009567342

REMOVAL

Remove bolts and door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door striker bolts.

• Tighten bolts to specification. Refer to

DLK-127, "Exploded View"

.

• After installation, check front door open/close operation. If necessary, perform the door striker

adjustment procedure. Refer to

DLK-129, "DOOR STRIKER : Adjustment"

.

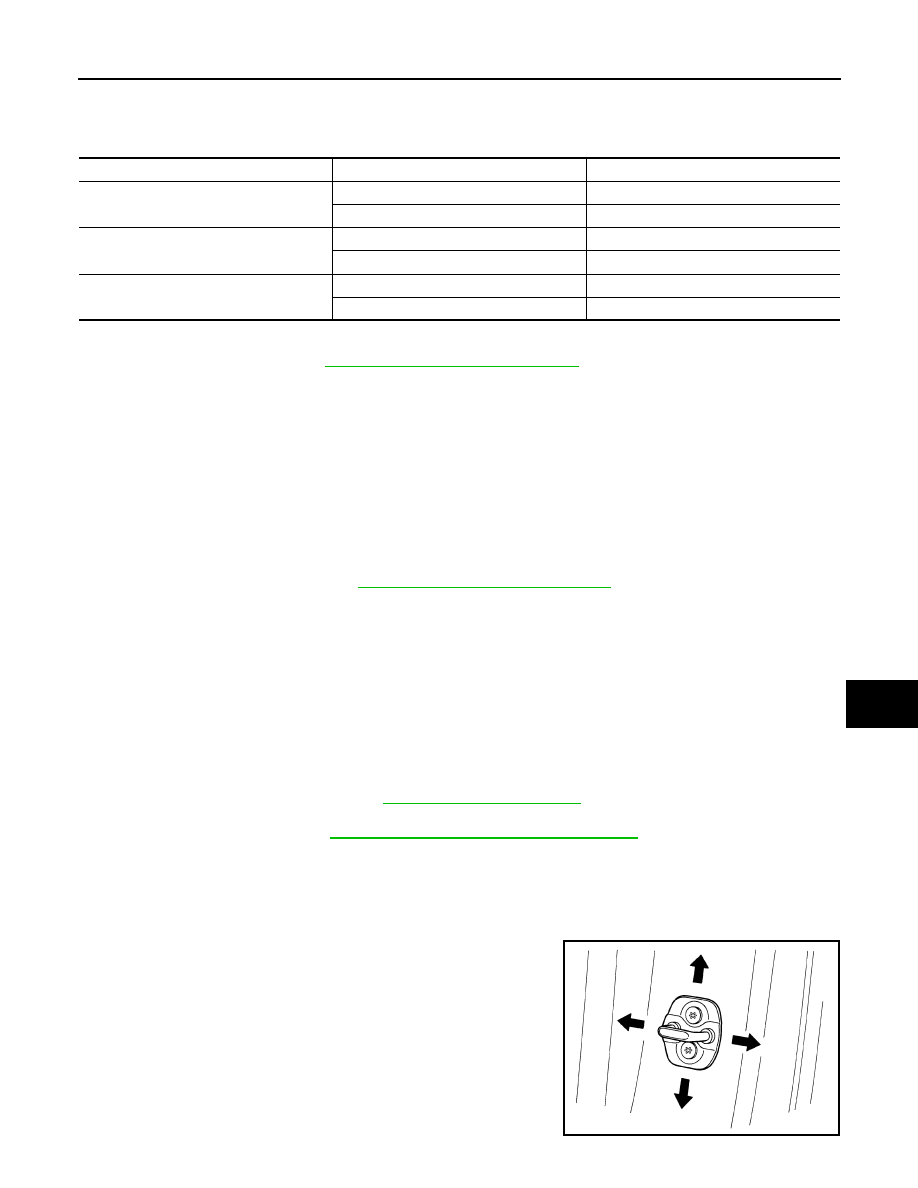

DOOR STRIKER : Adjustment

INFOID:0000000009567343

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

PIIB2804J

DLK-130

< REMOVAL AND INSTALLATION >

FRONT DOOR

3. Tighten door striker bolts to specification. Refer to

DLK-127, "Exploded View"

.

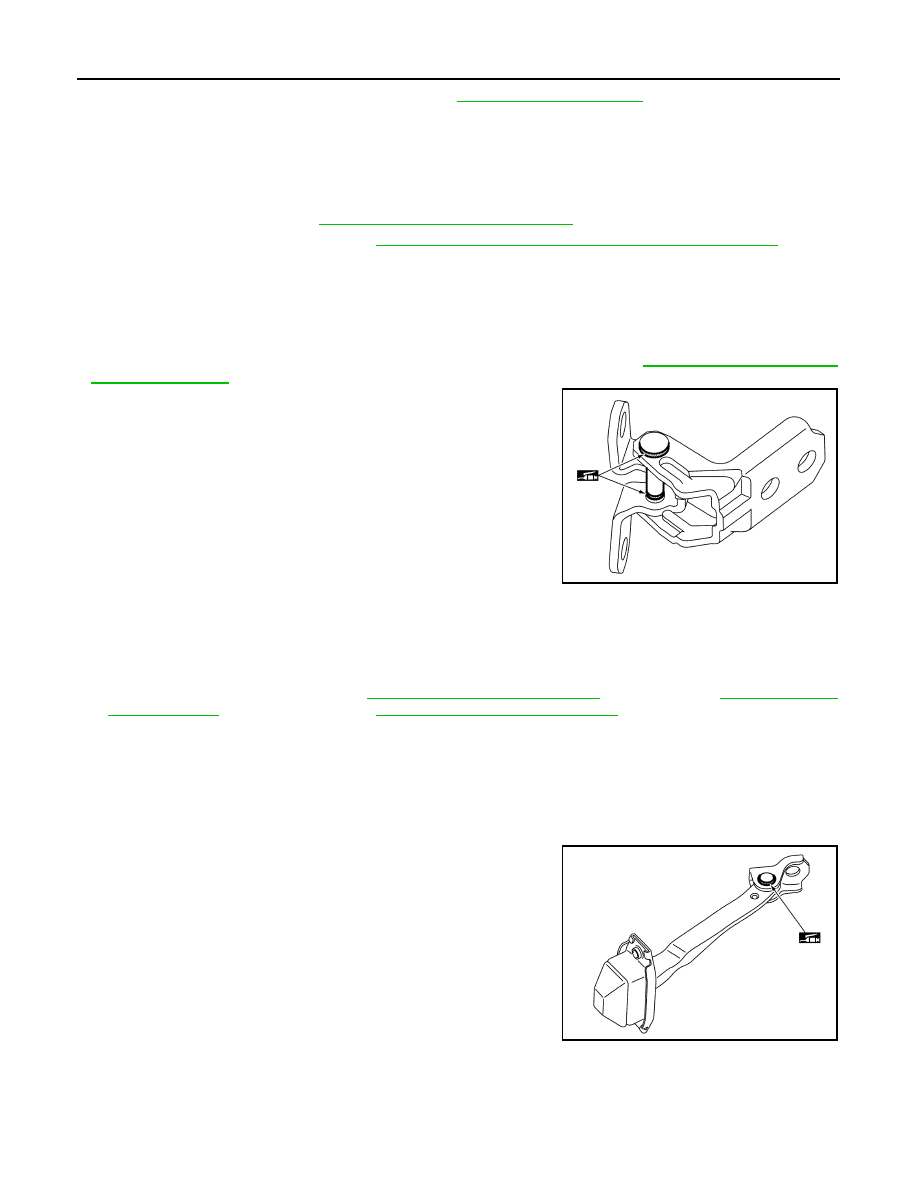

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009567344

REMOVAL

1. Remove front fender. Refer to

DLK-125, "Removal and Installation"

.

2. Remove front door assembly. Refer to

DLK-127, "DOOR ASSEMBLY : Removal and Installation"

.

3. Remove front door hinge bolts (body side) and front door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent to the hinge mating surface.

• After installation, perform the front door adjustment procedure. Refer to

DLK-128, "DOOR ASSEM-

BLY : Adjustment"

.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009567345

REMOVAL

1. Remove front door speaker. Refer to

AV-34, "Removal and Installation"

 (BASE AUDIO),

AV-94, "Removal

and Installation"

 (DISPLAY AUDIO) or

AV-179, "Removal and Installation"

 (NAVIGATION).

2. Remove door check link bolt (body side).
3. Remove door check link bolts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close, lock/unlock operation.

• Check door check link rotating point for poor lubrication. If

necessary, apply a multi-purpose grease.

JMKIA8072ZZ

JMKIA8074ZZ

REAR DOOR

DLK-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

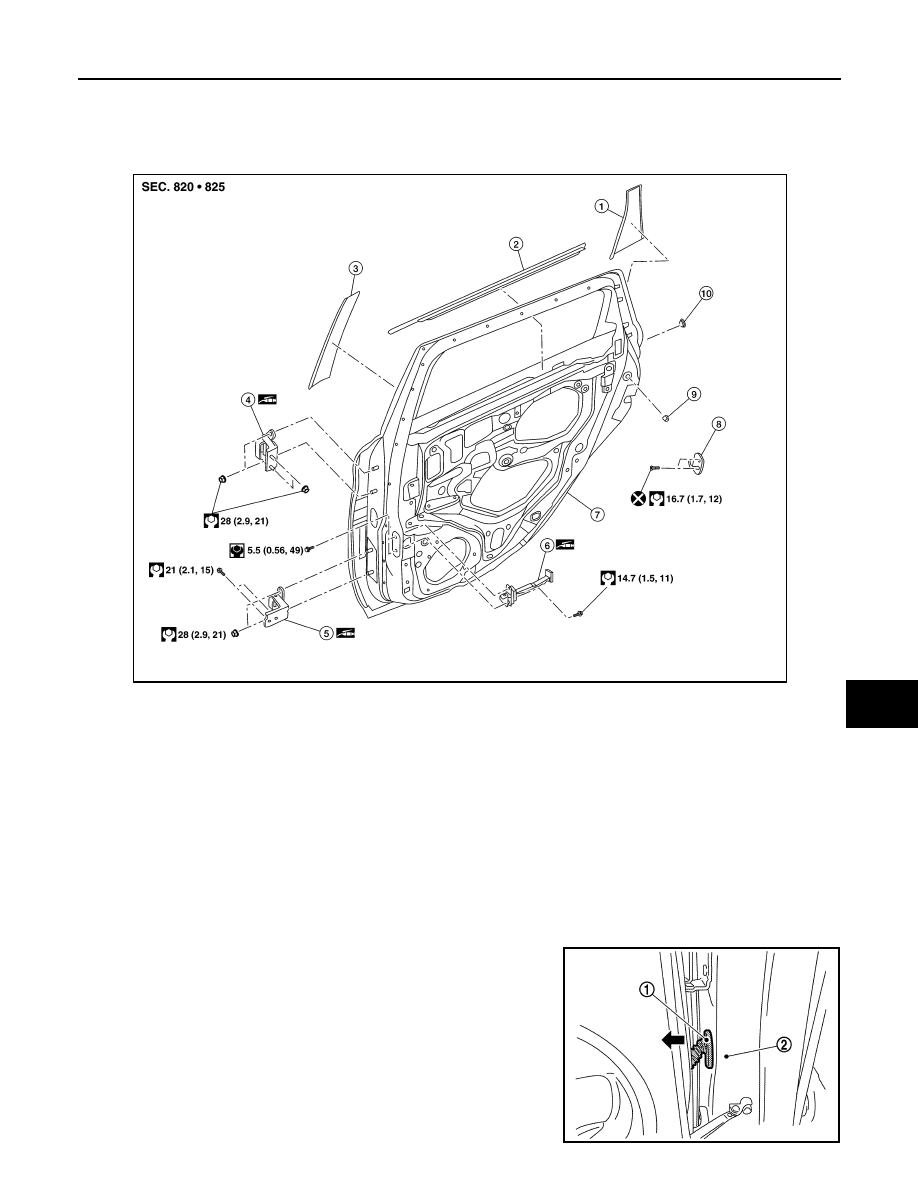

REAR DOOR

Exploded View

INFOID:0000000009567346

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009567347

CAUTION:

• Use two people when removing or installing rear door due to its heavy weight.

• When removing and installing rear door assembly, support door using a suitable tool.

REMOVAL

1. Remove rear door harness grommet (1) from body side outer

(2), then pull out rear door harness.

1.

Door sash rear tape

2.

Inside seal

3.

Door sash front tape

4.

Door upper hinge

5.

Door lower hinge

6.

Door check link

7.

Rear door panel

8.

Door striker

9.

Grommet

10. Body panel plug

AWKIA2570ZZ

JMKIA8083ZZ
