Nissan Note E12. Manual - part 147

DLK-92

< DTC/CIRCUIT DIAGNOSIS >

REMOTE KEYLESS ENTRY RECEIVER

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace remote keyless entry receiver. Refer to

DLK-164, "Removal and Installation"

.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

(+)

(–)

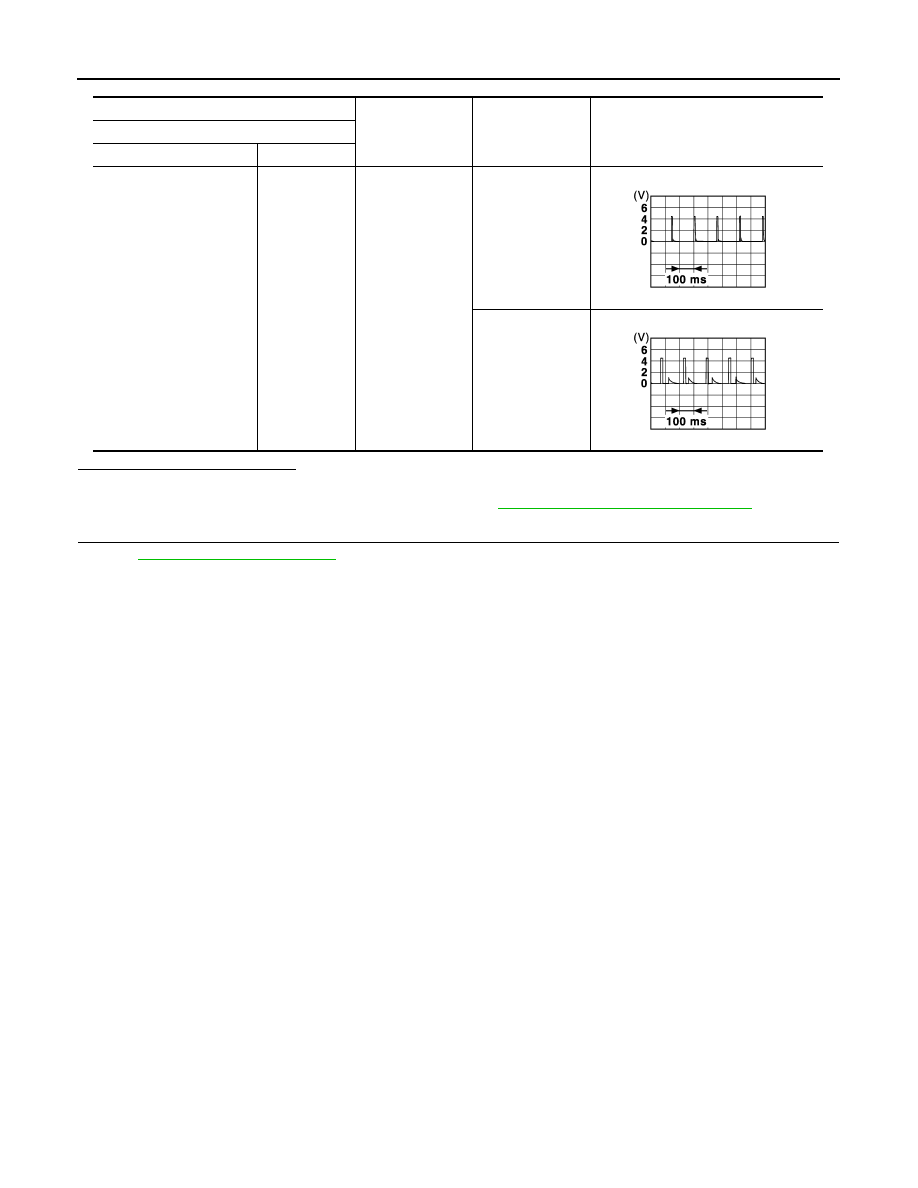

Condition

Signal

(Reference value)

Remote keyless entry receiver

Connector

Terminal

M90

3

Ground

During waiting

When pressing
and holding either
button on Intelli-
gent Key

JMKIA5952GB

JMKIA5953GB

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-93

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYMPTOM DIAGNOSIS

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK
SWITCH

ALL DOOR
ALL DOOR : Description

INFOID:0000000009516182

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

INFOID:0000000009516183

1.

CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.

Refer to

DLK-78, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-145, "DOOR LOCK : Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1. Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000009516184

Driver side door does not lock/unlock using door lock and unlock switch.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000009516185

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to

DLK-68, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

PASSENGER SIDE

DLK-94

< SYMPTOM DIAGNOSIS >

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

PASSENGER SIDE : Description

INFOID:0000000009516186

Passenger side door does not lock/unlock using door lock and unlock switch.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000009516187

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).

Refer to

DLK-69, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

REAR LH
REAR LH : Description

INFOID:0000000009516188

Rear LH side door does not lock/unlock using door lock and unlock switch.

REAR LH : Diagnosis Procedure

INFOID:0000000009516189

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.

Refer to

DLK-70, "REAR LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

REAR RH
REAR RH : Description

INFOID:0000000009516190

Rear RH side door does not lock/unlock using door lock and unlock switch.

REAR RH : Diagnosis Procedure

INFOID:0000000009516191

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH.

Refer to

DLK-71, "REAR RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1. Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-95

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Confirm the operation after replacement.
Is the result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.
