DLK-84
< DTC/CIRCUIT DIAGNOSIS >
DOOR SWITCH
DOOR SWITCH
Component Function Check
INFOID:0000000009515863
1.
CHECK FUNCTION
1. Select DOOR LOCK of BCM using CONSULT.
2. Select DOOR SW-DR, DOOR SW-AS, DOOR SW-RL and DOOR SW-RR in DATA MONITOR mode.
3. Check that the function operates normally according to the following conditions.
Is the inspection result normal?
YES
>> Door switch is OK.
NO
>> Refer to
.
Diagnosis Procedure
INFOID:0000000009515864
Regarding Wiring Diagram information, refer to
DLK-37, "INTELLIGENT KEY SYSTEM : Wiring Diagram"
.
1.
CHECK DOOR SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.
3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.
Is the inspection result normal?
YES
>> GO TO 3.
NO
>> GO TO 2.
2.
CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between door switch harness connector and BCM harness connector.

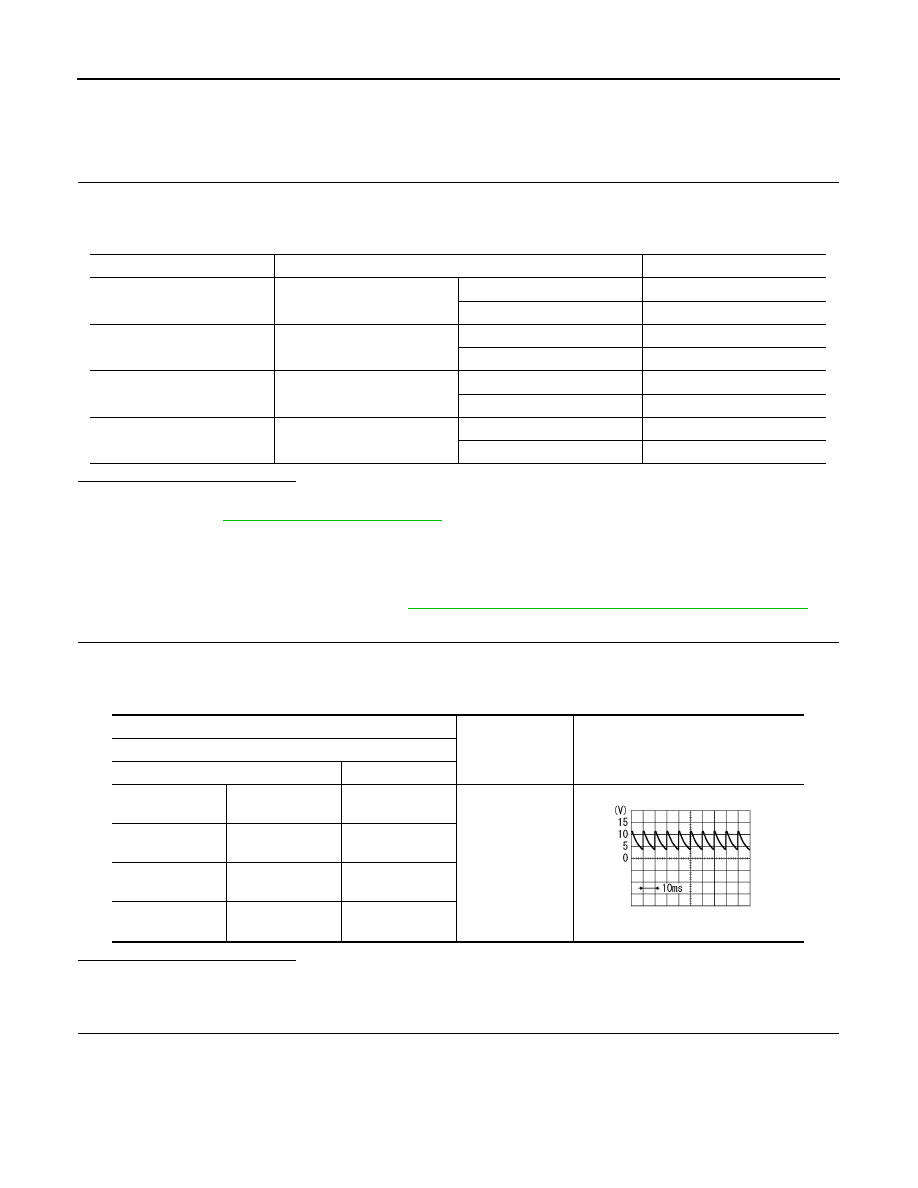

Monitor item
Condition
Status
DOOR SW-DR
Front door LH
Open
ON
Closed
OFF
DOOR SW-AS
Front door RH
Open
ON
Closed
OFF
DOOR SW-RL
Rear door LH
Open
ON
Closed
OFF
DOOR SW-RR
Rear door RH
Open
ON
Closed
OFF
(+)
(–)
Signal
(Reference value)
Door switch
Connector
Terminal
Front door switch
LH
B8
3
Ground
7.0 - 8.0 V
Front door switch
RH
B16
3
Rear door switch
LH
B6
3
Rear door switch
RH
B17
3
PKIB4960J
