CLUTCH PEDAL

CL-5

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

PERIODIC MAINTENANCE

CLUTCH PEDAL

Inspection and Adjustment

INFOID:0000000009417552

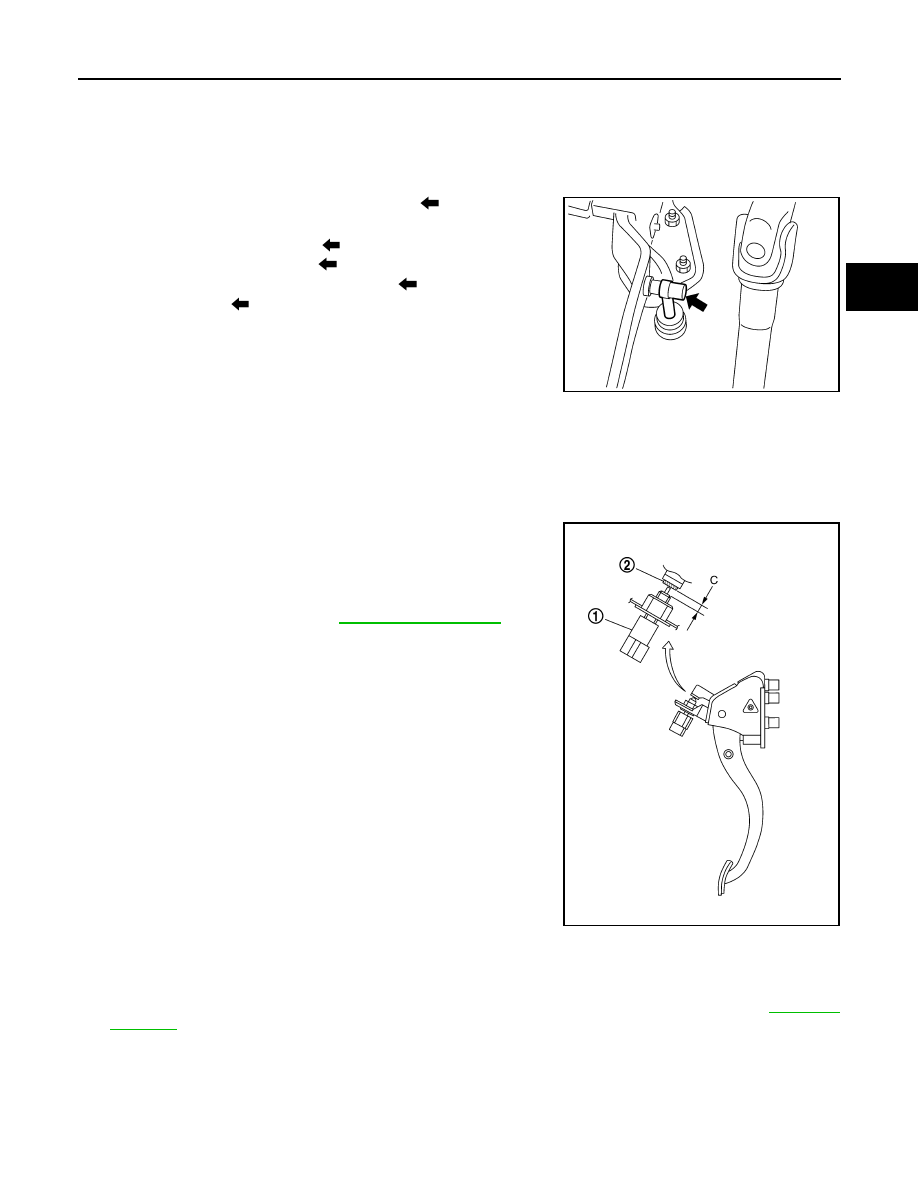

1. Check to see if the master cylinder rod end (

) moves freely. It

should not be bound by the clutch pedal.

a. If the master cylinder rod end (

) does not move freely, remove

the master cylinder rod end (

) and check for deformation or

damage on the master cylinder rod end (

). Leave the master

cylinder rod end (

) removed.

2. Check the clutch pedal stroke for free range of movement.
a. With the master cylinder rod end removed, manually move the pedal up and down to determine if it moves

freely.

b. If any sticking is noted, replace the clutch pedal assembly. Re-verify that the master cylinder rod end

moves freely.

3. Adjust clutch interlock switch (1) position so that clearance

between clutch pedal (2) and thread end of clutch interlock

switch (1), with clutch pedal fully depressed, is within specifica-

tion (C).

4. Check the clutch hydraulic system components (clutch master cylinder, clutch pedal and CSC (Concentric

Slave Cylinder) for sticking or binding.

a. If any sticking or binding is noted, repair or replace the related parts as necessary.
b. If any hydraulic system repair was necessary, bleed the clutch hydraulic system. Refer to

CL-8, "Air

Bleeding"

.

PCIB1491E

Clearance (C)

: Refer to

CL-21, "Clutch Pedal"

.

PCIB1493E

CL-6

< PERIODIC MAINTENANCE >

CLUTCH FLUID

CLUTCH FLUID

Inspection

INFOID:0000000009417553

CLUTCH FLUID LEAKS

• Check clutch line for cracks, deterioration or other damage. Replace any damaged parts.

• Check for clutch fluid leaks by fully depressing clutch pedal while engine is running.

CAUTION:

If leaks occur around connections, reinstall the lines or replace damaged parts, if necessary.

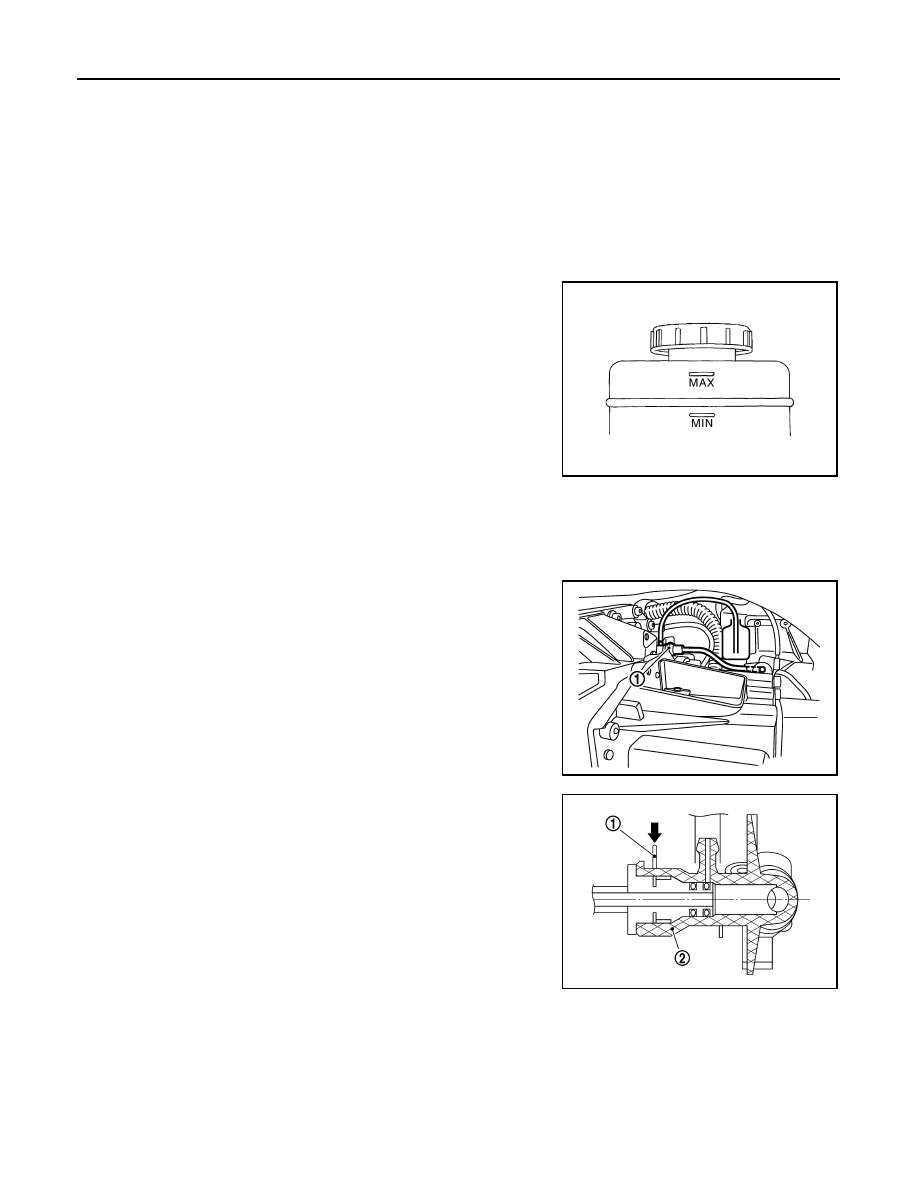

CLUTCH FLUID LEVEL

• Check that the clutch fluid level in the reservoir tank is within the

specified range, between the MAX and MIN lines as shown.

• Visually check for any clutch fluid leaks around the reservoir tank.

• Check the clutch system for any leaks if the clutch fluid level is

extremely low (lower than MIN).

Draining

INFOID:0000000009417554

CAUTION:

Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash the

affected area with water.
1. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

2. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

JPFIA0007ZZ

JPDIB0144ZZ

PCIB1495E

CLUTCH FLUID

CL-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

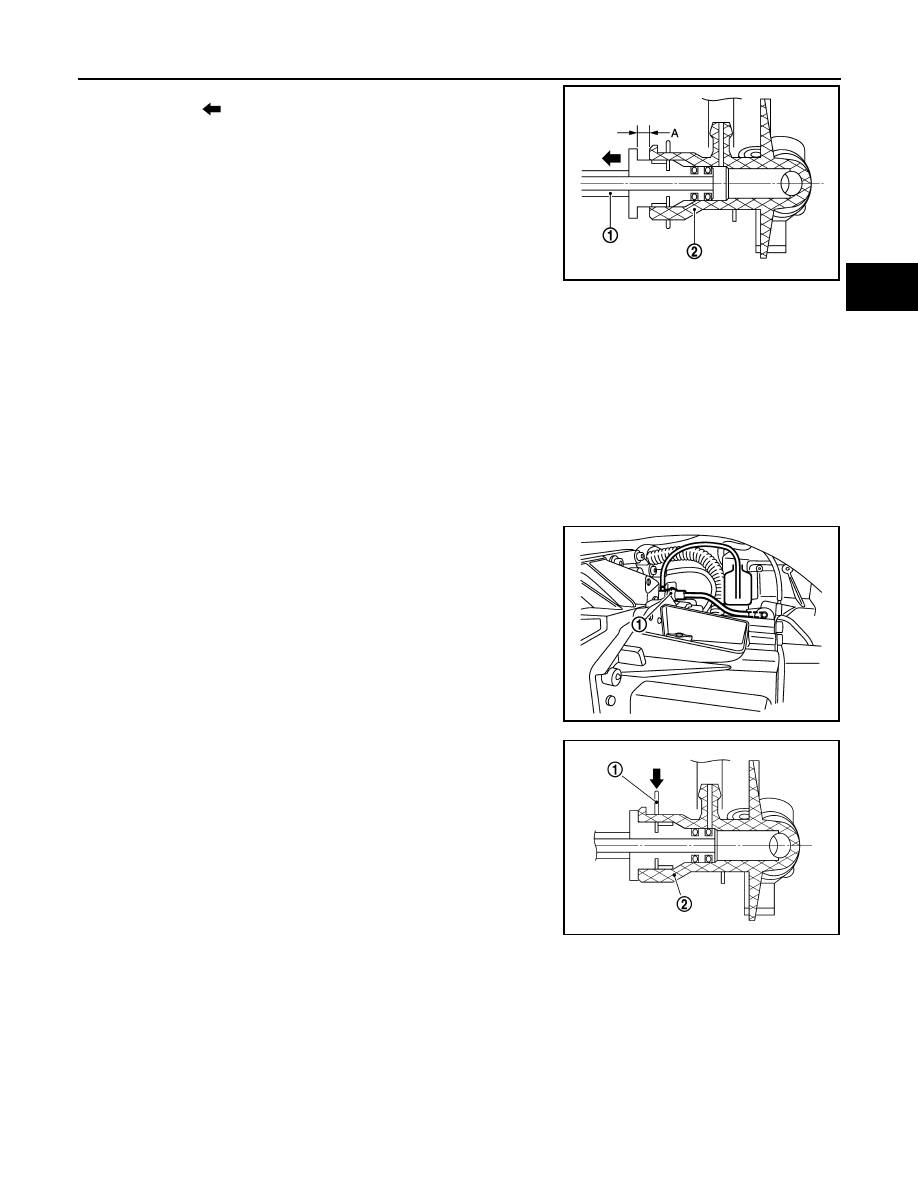

3. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown.

CAUTION:

Do not allow the clutch tube to disconnect from the bleed-

ing connector.

4. Depress clutch pedal to gradually discharge clutch fluid.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the

bleeding connector.

Refilling

INFOID:0000000009417555

CAUTION:

Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash the

affected area with water.
1. Check that there is no foreign material in reservoir tank and then fill with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

2. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

3. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

JPDIB0144ZZ

PCIB1495E

CL-8

< PERIODIC MAINTENANCE >

CLUTCH FLUID

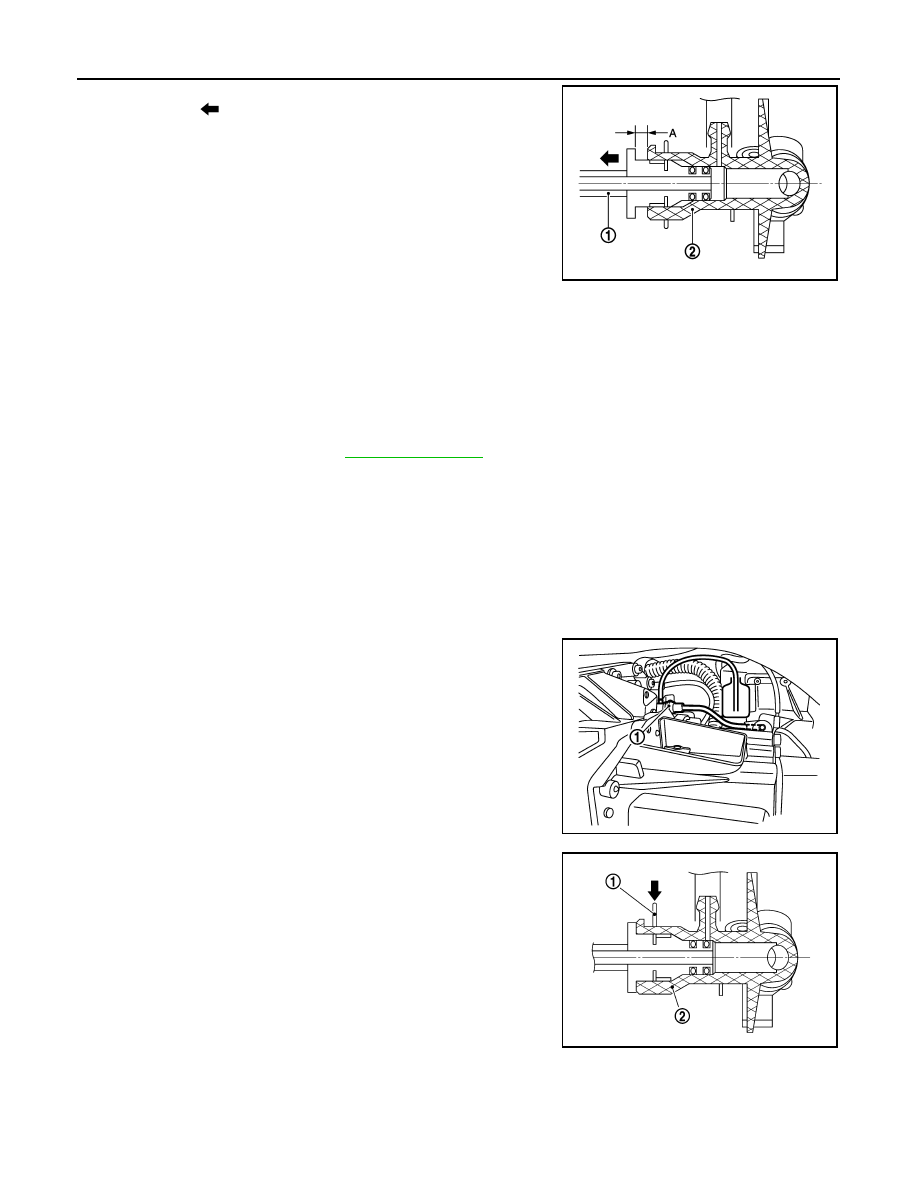

4. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown.

5. Slowly depress clutch pedal to the full stroke position and then release the pedal.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the

bleeding connector.

6. Repeat step 5 at intervals of 2 or 3 seconds until new clutch fluid is discharged.

CAUTION:

Monitor clutch fluid level in reservoir tank so as not to empty the tank.

7. Return clutch tube and lock pin in their original positions while clutch pedal is depressed.
8. Perform the air bleeding. Refer to

CL-8, "Air Bleeding"

.

Air Bleeding

INFOID:0000000009417556

CAUTION:

• Monitor clutch fluid level in reservoir tank so as not to empty the tank.

• Do not spill clutch fluid onto painted surfaces. If clutch fluid spills, wipe up immediately and wash

the affected area with water.

1. Fill reservoir tank with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

2. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

3. Depress and release the clutch pedal slowly and fully 15 times

at an interval of 2 to 3 seconds and release the clutch pedal.

4. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the

clutch tube to disconnect from the bleeding connector.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

JPDIB0144ZZ

PCIB1495E
