Nissan Note E12. Manual - part 66





BCS-68

< REMOVAL AND INSTALLATION >

COMBINATION SWITCH

COMBINATION SWITCH

Removal and Installation

INFOID:0000000009447322

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Do not use air or electric tools when removing or installing the combination switch.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

2. Remove the steering column covers. Refer to

IP-17, "Removal and Installation"

.

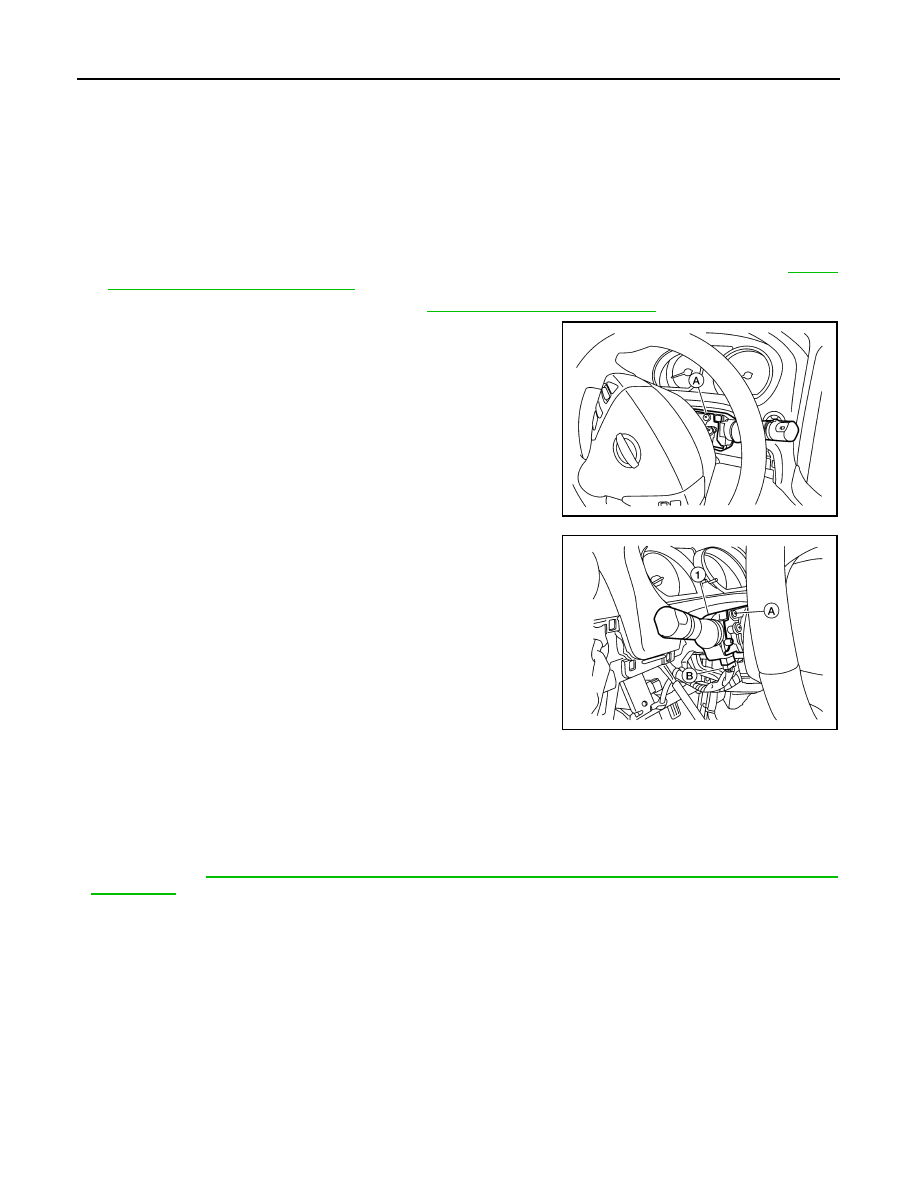

3. Rotate steering wheel clockwise to access first combination

switch screw (A) and remove.

4. Rotate steering wheel counter-clockwise to access second com-

bination switch screw (A) and remove.

5. Disconnect the harness connector (B) from the combination

switch (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function

and delete the memory with CONSULT.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

BCS-54, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work

Procedure"

.

ALMIA0648ZZ

ALMIA0649ZZ

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover ......

3

Precaution for Brake System  ....................................

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

SYMPTOM DIAGNOSIS  ...............................

7

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

7

NVH Troubleshooting Chart  ......................................

7

PERIODIC MAINTENANCE ..........................

8

BRAKE PEDAL  ...................................................

8

Inspection and Adjustment ........................................

8

BRAKE FLUID ....................................................

11

Inspection ................................................................

11

Draining ...................................................................

11

Refilling ...................................................................

11

Bleeding Brake System ...........................................

12

BRAKE MASTER CYLINDER ............................

13

Inspection ................................................................

13

BRAKE BOOSTER  ............................................

14

Inspection ................................................................

14

FRONT DISC BRAKE ........................................

15

BRAKE PAD ..............................................................

15

BRAKE PAD : Inspection  ........................................

15

BRAKE PAD : Brake Burnishing .............................

15

DISC ROTOR  .............................................................

15

DISC ROTOR : Inspection .......................................

15

REAR DRUM BRAKE .......................................

17

BRAKE LINING ..........................................................

17

BRAKE LINING : Inspection ....................................

17

BRAKE LINING : Brake Burnishing .........................

17

BRAKE DRUM  ...........................................................

17

BRAKE DRUM : Inspection  .....................................

17

REMOVAL AND INSTALLATION ...............

19

BRAKE PEDAL .................................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

Inspection and Adjustment  ......................................

20

BRAKE PIPING .................................................

21

FRONT .......................................................................

21

FRONT : Exploded View  .........................................

21

FRONT : Hydraulic Piping  .......................................

22

FRONT : Removal and Installation ..........................

22

FRONT : Inspection .................................................

23

REAR .........................................................................

23

REAR : Exploded View ............................................

24

REAR : Hydraulic Piping ..........................................

24

REAR : Removal and Installation  ............................

25

REAR : Inspection  ...................................................

25

BRAKE MASTER CYLINDER  ..........................

27

Exploded View .........................................................

27

Removal and Installation  .........................................

27

Disassembly and Assembly .....................................

28

Inspection ................................................................

28

BRAKE BOOSTER AND CHECK VALVE ........

30

Exploded View .........................................................

30

Removal and installation  .........................................

30

Inspection and Adjustment  ......................................

31

BR-2

VACUUM LINES  ................................................

32

Exploded View ........................................................

32

Removal and Installation  ........................................

32

Inspection ...............................................................

32

FRONT DISC BRAKE ........................................

34

BRAKE PAD  .............................................................

34

BRAKE PAD : Exploded View  ................................

34

BRAKE PAD : Removal and Installation .................

34

BRAKE PAD : Inspection ........................................

35

BRAKE CALIPER ASSEMBLY  ................................

35

BRAKE CALIPER ASSEMBLY : Exploded View ....

35

BRAKE CALIPER ASSEMBLY : Removal and In-
stallation ................................................................
.

36

BRAKE CALIPER ASSEMBLY : Disassembly and
Assembly ...............................................................
.

37

REAR DRUM BRAKE  .......................................

40

Exploded View  ........................................................

40

Removal and Installation .........................................

40

Disassembly and Assembly  ....................................

42

Inspection and Adjustment ......................................

42

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

44

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

44

General Specifications  ............................................

44

Brake Pedal  ............................................................

44

Check Valve ............................................................

44

Brake Booster  .........................................................

44

Front Disc Brake  .....................................................

44

Rear Drum Brake  ....................................................

45

PRECAUTIONS

BR-3

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009578746

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

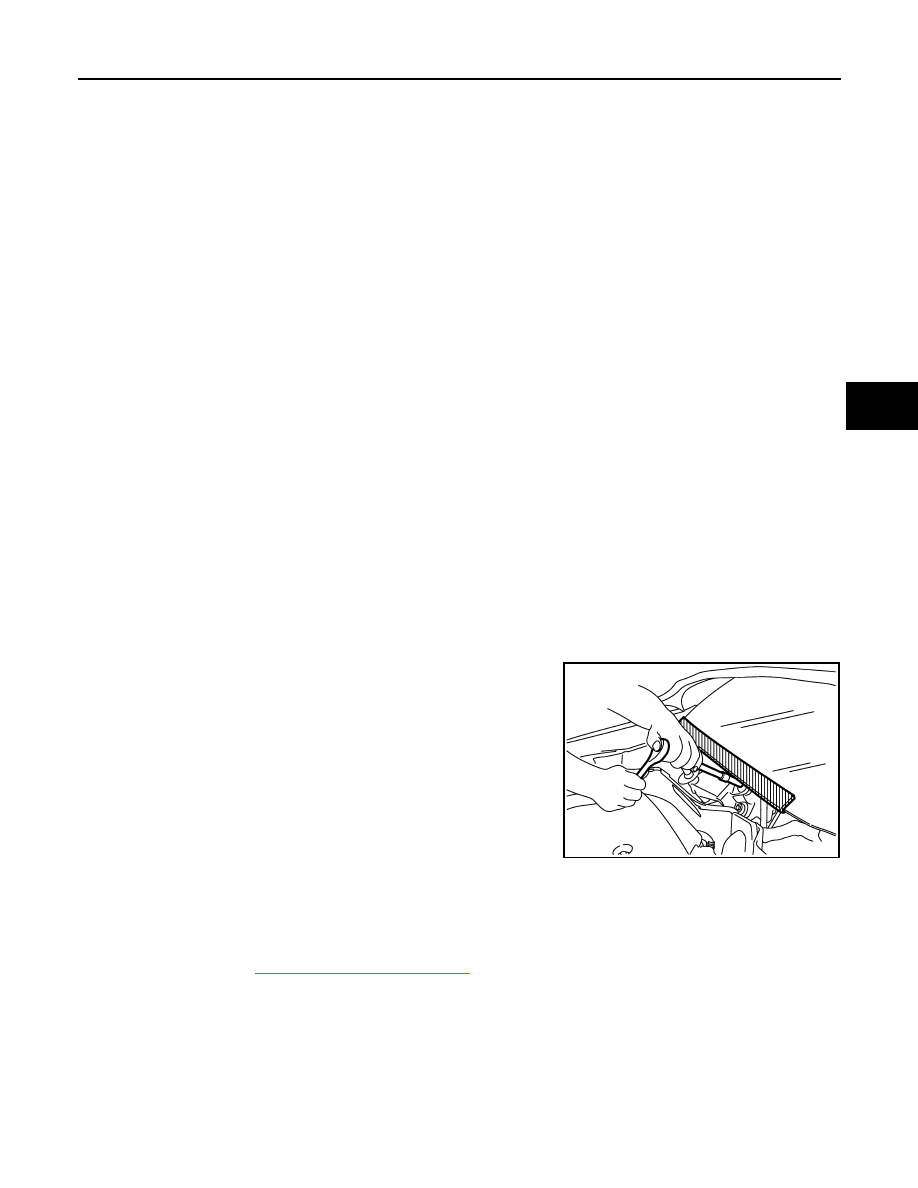

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009364984

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc. to prevent damage to

windshield.

Precaution for Brake System

INFOID:0000000009364985

WARNING:

Clean any dust from the front brake and rear brake with a vacuum dust collector. Do not blow with

compressed air.

• Brake fluid use refer to

MA-12, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off

immediately and wash with water if it gets on a painted surface.

• Always confirm the specified tightening torque when installing the brake pipes.

• After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, inspect the

brake pedal height and play. Adjust brake pedal if it is outside the standard value.

• Always clean with new brake fluid when cleaning the brake caliper and other components.

• Do not use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause

improper operation.

PIIB3706J
